3.2

Assembly instructions

Before starting assembly, look carefully through the individual assembly steps shown and assemble the
equipment in the order indicated.

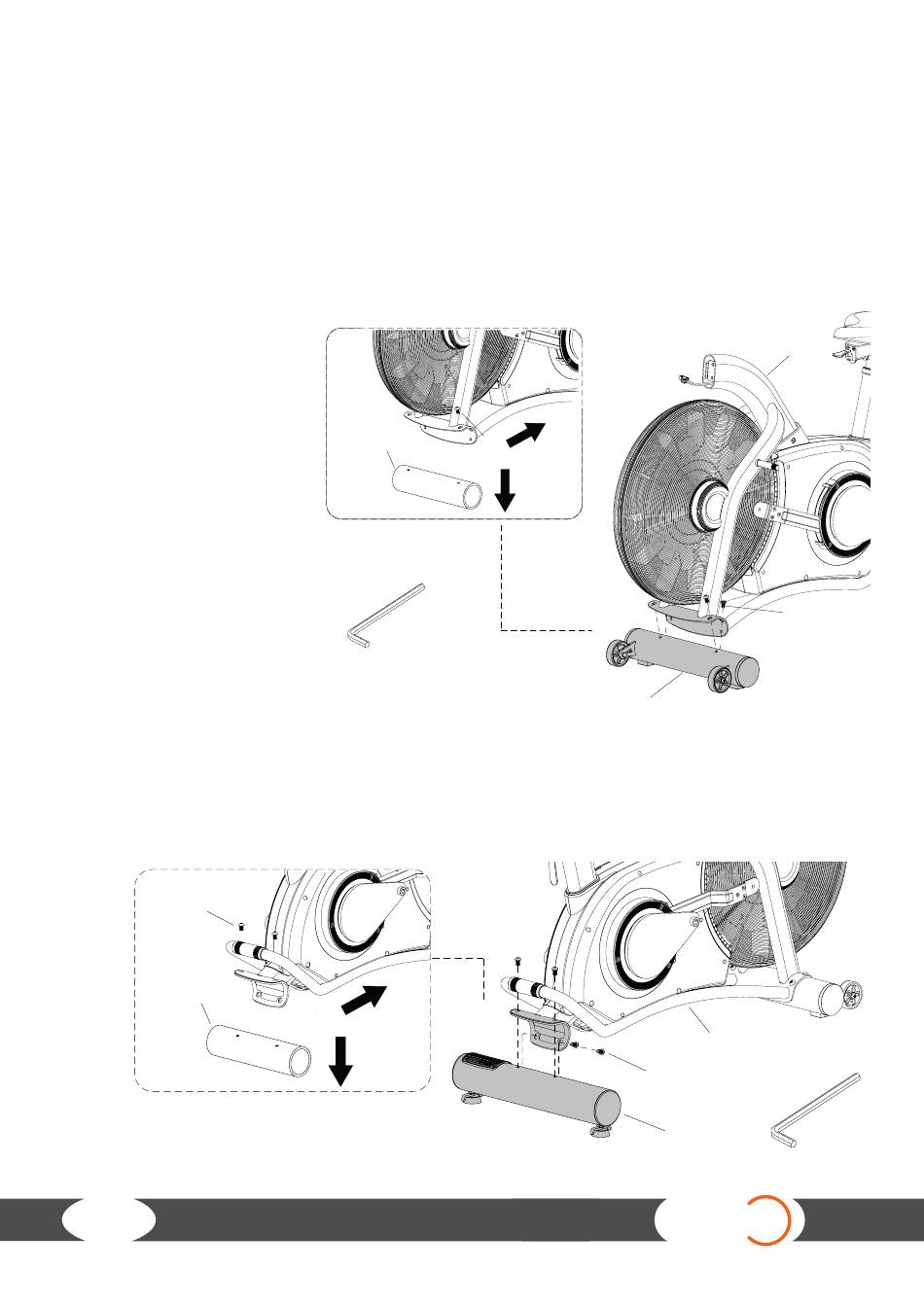

Step 1: Assembly of front base
(1) Loosen both screws (J6) from the cardboard roll. The cardboard roll serves as packaging protection and
is not required for or after the assembly.
(2) Mount the front base (B) with the screw (J6) on the main frame (A). Screw the adjusting screws in or
out to compensate potential
unevenness of the floor.
Step 2: Assembly of rear base
(1) Loosen both screws (J6) from the cardboard roll. The cardboard roll serves as packaging protection and
is not required for or after the assembly.
(2) Mount the rear base (C) with the screw (J6) on the main frame (A).
J6
PAPER TUBE
10
PAPER TUBE
USE TOOL
6m/m
STEP 1
J6
B
J6
A
J6
A
USE TOOL
6m/m
C
ERGO X
