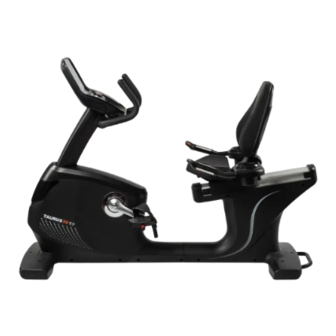

- Page 1 Assembly and Operating Instructions max. 180 kg ~ 60 Min. 66 kg L 170 | W 75 | H 122 FSTFRB99.01.01 Art. No. TF-RB99 Recumbent bike RB9.9...
- Page 2 RB9.9...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console display Button functions Powering on the equipment Standby mode MANUAL (Manual programs) 3.5.1 Quick-Start program 3.5.2 Target programs PROGRAM (Profi le programs) USER (User defi ned program) H.R.C. - Page 4 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT RB9.9...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
GENERAL INFORMATION Technical Data LCD Display: Training duration in min. Speed in km/h Training distance in km Calories in kcal Heart rate (using the hand pulse sensors or a chest strap) Watts Brake system: Electro-magnetic induction brake Resistance levels: Flywheel mass: 10kg Wattage Adjustable range in the watt programme:... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Electrical Safety
⚠ CAUTION Be aware that if adjustment devices are left protruding, they may impede the user’s movement. ATTENTION Do not insert any objects of any kind into the openings of the device. To protect the equipment from use by unauthorised third parties, always remove the power cable (if existing) when not in use and store it in a safe place that is inaccessible to unauthorised persons (e.g. -
Page 11: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 12: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 13 114 & 115 51L & 51R STEP 1 7A M8*1.25*110L 4PCS 16 D16*D8.5*1.2T 8PCS 7 M8*1.25*70L 4PCS 9 D15.4*D8.2*2T 8PCS STEP 2 9 D15.4*D8.2*2T 4PCS 16 D16*D8.5*1.2T 4PCS 15 M8*1.25*15L 4PCS STEP 3 39 M5*12L 8PCS STEP 4 8 D22*D8.5*1.5T 4PCS 9 D15.4*D8.2*2T 3PCS 41 M8*1.25*50L 4PCS 15 M8*1.25*15L 3PCS...
-
Page 14: Assembly
Acrobat Reader programme must be installed on your end device in order to open the fi le. The assembly can also be found as a video under the following link: https:// www.sport-tiedje.co.uk/taurus-recumbent-bike-rb9.9-tf-rb99#product- assembly. To go directly to the assembly video, you can alternatively scan the QR code. Step 1:... - Page 15 M8x1.25x70L M8x1.25x110L D15.4xD8.2x2T D16xD8.5x1.2T 7 16 7 16...
- Page 16 Step 2: Mounting the front post Slide the cover (11) up along the front post (17) (see fi g. 2-1). Connect the cables (64 & 65) and the cables (14 & 18) with one another (see fi g. 2-2). Insert the front post (17) into the main frame holder (1). Connect the front post (17) with the main frame holder (1) with four bolts (15), four spring washers (9) and four fl at washers (16).
- Page 17 M8x1.25x15L D15.4xD8.2x2T D16xD8.5x1.2T...
- Page 18 Step 4: Mounting the console Connect the cables (76 & 64) and the cables (76 & 14) with one another (see fi g. 3-1). Place the console (76) on the front post (17). Attach the console (76) to the front post (17) with four screws (39) (see fi g. 3-2). Fix the cover (40) to the console (76) with four screws (39) (see fi g.
- Page 19 M5*12L 40 39 Step-3...
- Page 20 Step 5: Mounting the handles and backrest Insert the backrest (119) into the main frame (1) and secure with three screws (15), three washers (16), and three spring washers (9). Connect the cables (37L & 18) and the cables (37R & 18) (see fi g. 4-1). Attach the handles with the hand pulse sensors (36) to the main frame (1) with two screws (41) and two curved washers (8).
- Page 21 M8x1.25x50L D22*D8.5*1.5T M8x1.25x15L D15.4xD8.2x2T D16xD8.5x1.2T 8 41 Step-4...
- Page 22 Step 6: Mounting the covers and pedals Mount the seat (69) on the main frame (1) with four screws (112) and four washers (16). Screw the left pedal (51L) to the left crank (48L) by turning the pedal (51L) counterclockwise. Screw the right pedal (51R) to the right crank (48R) by turning the pedal (51R) clockwise.
- Page 23 M8x1.25x35L D16xD8.5x1.2T M5*12L ST4.2*15L Step-5...
-
Page 24: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Always start your training with low intensity and increase evenly and gently. End your training with a cool-down phase. -
Page 25: Button Functions
Button functions BUTTON DESCRIPTION Increasing the setting value or resistance level Rotary knob Decreasing the setting value or resistance level Setting confi rmation BODY FAT Body fat test RECOVERY Heart rate test on your recovery condition Returns you to the previous training mode while making settings or RESET selecting an option. -
Page 26: Powering On The Equipment
Powering on the equipment The console starts automatically as soon as the equipment is plugged into the mains supply. Various components will light up. Choose a user profi le (U1 - U4). Enter in your gender (SEX), age (AGE), height (HEIGHT) and weight (WEIGHT). You will proceed onto the main menu. -
Page 27: Manual (Manual Programs)
MANUAL (Manual programs) Under MANUAL you can choose between the Quick-Start program and one of the target programs. For target programs, settings for time (TIME), distance (DISTANCE), caloires (CALORIES) or heart rate (PULSE) are possible. 3.5.1 Quick-Start program In the main menu, select MANUAL and confi rm your choice with a single push of the rotary knob. -
Page 28: Program (Profi Le Programs)
Training with multiple target values In the main menu select MANUAL and confi rm your choice with a single push of the rotary knob. Select your target value for time, calories, distance and/or heart rate with the rotary knob and confi rm your choice with a single push of the rotary knob. -
Page 30: User (User Defi Ned Program)
USER (User defi ned program) There are 16 segments available in user defi ned programs. In the main menu select USER and confi rm your choice with a single push of the rotary knob. Select the resistance level of each segment and confi rm each value with a single push of the rotary knob. -
Page 31: Heart Rate Controlled Programs)
H.R.C. (Heart rate controlled programs) ⚠ WARNING This crosstrainer is not medical equipment. The heart rate measurement of the crosstrainer can be unprecise. Diff erent factors can infl uence the heart rate reading. The heart rate readings are only meant as a guide for training. There are three heart rate programs available to choose from. -
Page 32: Watt (Watt Program)
WATT (Watt program) In the main menu select WATT and confi rm your choice with a single push of the rotary knob. Using the rotary knob, select a Watt value and confi rm your setting with a single push of the rotary knob. -
Page 33: Body Fat (Body Fat Analysis)
3.11 BODY FAT (Body fat analysis) Choose your user profi le (U1-U4). To start the body fat analysis, in the main menu press the BODY FAT button and hold on to the hand pulse sensors. NOTICE Should you not properly grip the hand pulse sensors, the display will show the error code E-1. ... -
Page 34: Bluetooth And Fitness Apps
3.12 Bluetooth and Fitness Apps This console is equipped with a bluetooth interface. Please take note that your mobile device needs to be compatible with the bluetooth interface of the treadmill. To use training apps you will have to activate the bluetooth function on your mobile device (tablet or smart phone) and start the fi tness app. -
Page 35: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 36: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 37: Error Codes And Troubleshooting
Error Codes and Troubleshooting The electronics of the equipment continuously carries out tests. In case of deviations, an error code appears on the display and normal operation is stopped for your safety. No values were received during the body fat analysis. Make sure that, during the analysis, you hold on to the hand pulse sensors with both hands. -
Page 38: Disposal
DISPOSAL At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an electricals recycling centre. Further information can be obtained from your local authority‘s recycling service. The materials can be recycled as per their symbols. -
Page 39: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For exercise bikes this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat or silicone spray to keep moving parts in good shape. -
Page 40: Ordering Spare Parts
The exact position of this sticker is MADE IN Serial nº.: shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / recumbent bike Model Name: RB9.9 Article Number: TF-RB99 RB9.9... -
Page 41: Parts List
Parts List Name Supplier Parts No. Material Specifi cation Qty. Main frame 744S0-3-1000-J1 Rear stabiliser 744S0-3-2112-J0 Adjustable round 26000-6-1095-B0 D38*M10*1.5 Q235A+plastic wheel Front stabiliser 744S0-3-2100-J0 Cover of front 734S0-6-2186-B0 600*190.2*79.4 stabiliser Allen bolt 50308-5-0040-F3 M8*1.25*40L Q235A Bolt 50108-5-0070-F4 M8*1.25*70L Bolt 50108-5-0110-F5 M8*1.25*110L Curve washer... - Page 42 Crank axle 734S0-3-2903-00 Pulley 58008-6-1037-D0 D260*25*3T Q235A Nylon nut 55206-1-2006-FA M6*1.0*6T Q235A Bolt 50106-5-0015-C0 M6x1.0x15L Belt 58004-6-1116-00 430 PJ8 Round magnet 174R4-6-2574-00 Upper cable for quick 734S0-6-2539-00 400L button (2) Upper cable for quick 734S0-6-2542-00 400L button (1) Upper cover for 747S0-6-2517-B0 184.5*20.8*50 handpulse...
- Page 43 Cover of bolt 734S0-6-2779-C0 D29*11.5L 51L&51R Pedal 58029-6-1105-B0 JD-36A,9/16" Round screw 54006-5-0015-D0 M6*1.0*15L Flat washer 55106-1-1310-FA D13*D6.5*1.0T Q235A Flat washer 55106-1-1310-NA D13*D6.5*1.0T Q235A Electric Magnetic 734S0-3-3102-00 D265*153*50 System 71600-6-4586-60 D6*26.5*7.7 Power supply 261D8-6-2411-00 Power socket 26100-6-2413-00 Countersunk head 51004-2-0010-F0 ST4*1.41*10L cross tapping screw Live line 734S0-6-3480-00...
- Page 44 Bearing 58006-6-1026-01 6203-2RS GCr15 Flat washer 55110-1-5030-NA D50*D10*3T Q235A Allen bolt 50308-5-0030-C0 M8x1.25x30L Flat washer 55108-1-2830-NA D28*D8.5*3T Q235A Plastic cover 803K0-6-1082-00 D3*30L Spring 58003-6-1055-N0 D2.6*15*82L 72A# Idle fi xing plate 734S0-3-1600-00 Plastic fl at washer 55110-1-2404-BF D10*D24*0.4T NL66 55208-2-2006-NA M8*1.25*6T Q235A Nylon nut 55208-1-2008-FA...
- Page 45 Inner hex cylindrical 54006-5-0035-F3 M6*1.0*35L head screw Sleeve 744S0-6-2707-00 D9.8*D6.1*20.5L Q235A Locking base 73502-6-2219-N1 71.5*20*4T Q235A Spring 58003-6-1068-N0 D1*D8*35 Moving wheel 73502-6-3886-B0 D25*D10*11.5 Bolt 50108-5-0035-F3 M8*1.25*35L Square cap 55315-2-2040-B8 20*40*15 Handrail cover (left) 744S0-6-2290-B0 188.1*64.3*117.3 Handrail cover (right) 744S0-6-2291-B0 188.1*56.8*117.3 Adjusting protective 744S0-6-1082-B0 100*69.8*45...
-
Page 46: Exploded Drawing
Exploded Drawing RB9.9... -
Page 47: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 48 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 49: Contact
CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER SUPPORT �� �� �� +49 4621 4210-900 80 90 16 50 00800 2020 2772 +494621 4210 944 +49 4621 4210-945 �� +49 4621 4210-698 �� �� info@fi tshop.dk info@fi tshop.co.uk �� technik@fi tshop.de �� ��... - Page 50 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Fitshop is Europe’s largest specialist store for www.fi tshop.co.uk home fi tness equipment with currently over 70 www.fi tshop.de/blog stores and one of the world’s most renowned online mail order companies for fi tness equipment.
- Page 52 Recumbent bike RB9.9...
