GeoVision GV-POE2411-V2 Manual

GeoVision GV-POE2411-V2 Manual

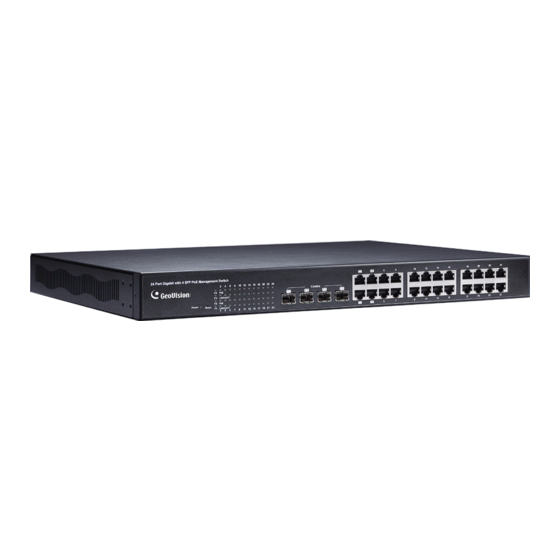

24-port gigabit 802.3at web management poe switch

Advertisement

Quick Links

GV-POE2411-V2
PoE Switch

Packing List

1. GV-POE2411-V2 x 1
2. AC Power Cord x 1
3. Screw x 8
4. Rack Mount Kit x 1
5. Download Guide x 1
6. GV-POE2411-V2 Installation Guide x 1
Note: If any of these items is found missing or damaged, please contact your local
supplier for replacement.

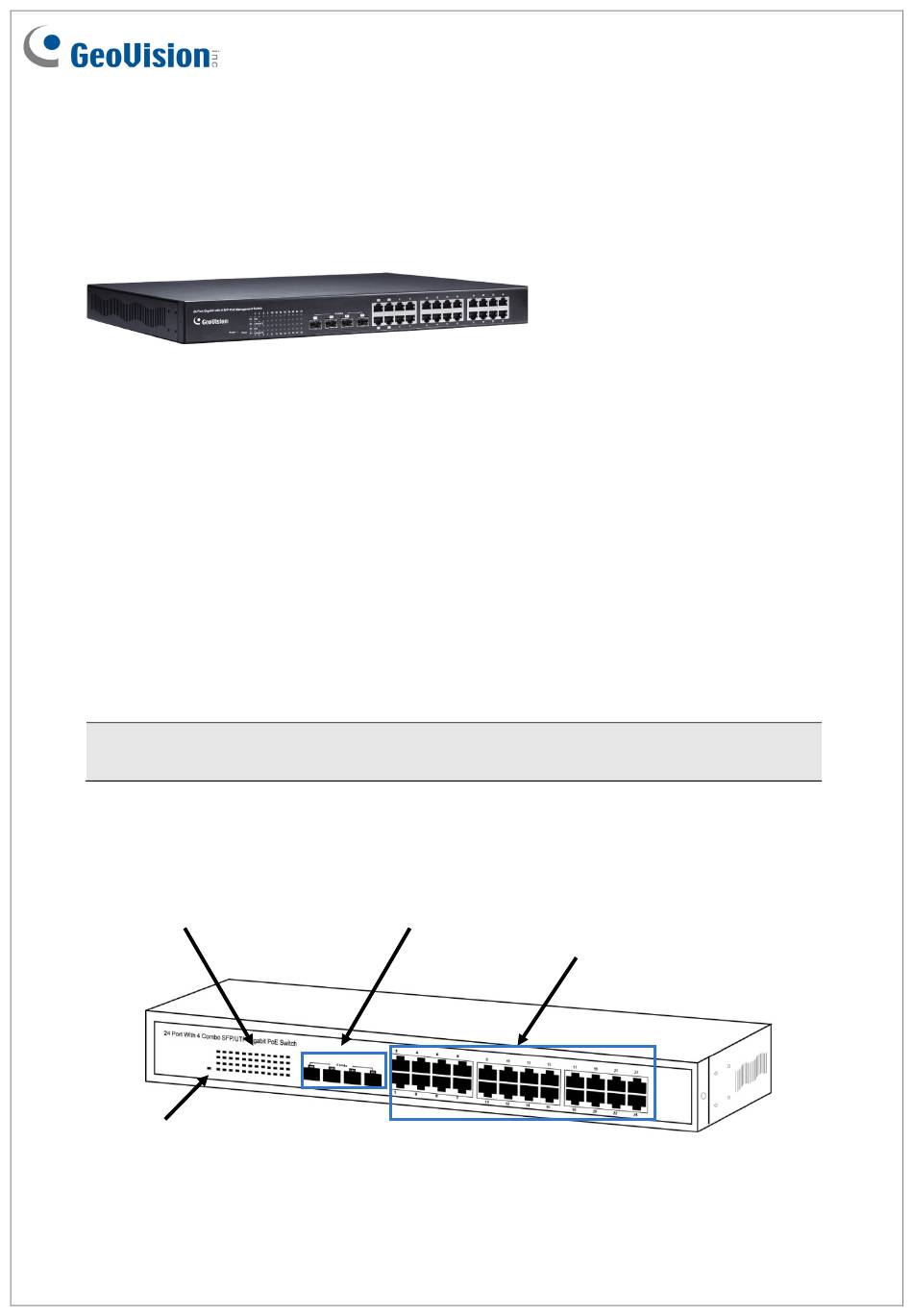

Front Panel

LED Display
Reset Button
December 13, 2017
24-Port Gigabit 802.3at Web Management
Gigabit SFP
1
Gigabit RJ-45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-POE2411-V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GeoVision GV-POE2411-V2

  • Page 1: Packing List

    3. Screw x 8 4. Rack Mount Kit x 1 5. Download Guide x 1 6. GV-POE2411-V2 Installation Guide x 1 Note: If any of these items is found missing or damaged, please contact your local supplier for replacement. Front Panel...
  • Page 2 24 Port Gigabit with 4 SFP PoE+ Management Switch 14 16 20 22 24 Combo LINK/ACT Power Reset LINK/ACT 13 15 21 23 IMPORTANT: The 4 SFP ports labeled F1 ~ F4 are associated with the 4 RJ-45 ports labeled 1 ~ 4 respectively. When one of the two associated ports is used, the other port will not work.
  • Page 3 Connecting up to 23 GV-IP Cameras and 1 GV-NVR/DVR System Through twisted pair cables, this switch can be connected to up to 23 GV-IP Cameras and 1 GV-NVR/DVR System. You can also extend the connections by connecting to other switches. Switch GV-NVR/DVR System GV-IP Camera x 23...
  • Page 4 Loading Default Setting You can load the default value with the Reset button or with the Web interface. Hardware 1. Turn on the switch. 2. Press and hold the Reset button on the front panel of the switch for 5 seconds until all the LED start blinking.
  • Page 5: Updating Firmware

    Updating Firmware 1. On the Web interface, select Software Upload. This page appears. 2. Click Browse to select the latest firmware file (.bin) for update. 3. Click Upload. The uploading process is started. 4. After the firmware is successfully uploaded, click Logout from the left menu and re-login the switch.
  • Page 6: Specifications

    Specifications Ports 24 ports Number of Ports 24-port 10/100/1000BaseT(X) with RJ-45 Connectors, PoE+ 4-port SFP Combo uplink Port Performance MAC Address Buffer Memory 4 M bits Jumbo Frames 9.6 KB Transmission Method Store and Forward 10/100BaseT(X) Cat. 5 UTP/STP Transmission Media 1000BaseT Cat.
  • Page 7 General Dimensions (H x W x D) 44 x 440 x 331 mm (1.73 x 17.3 x 13.03”) Weight 4.7 kg (10.36 lb) Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 90°C (-4°F ~ 194°F) Humidity 10% ~ 90% RH (non-condensing) Standards and Regulatory IEEE 802.3 10BaseT...
