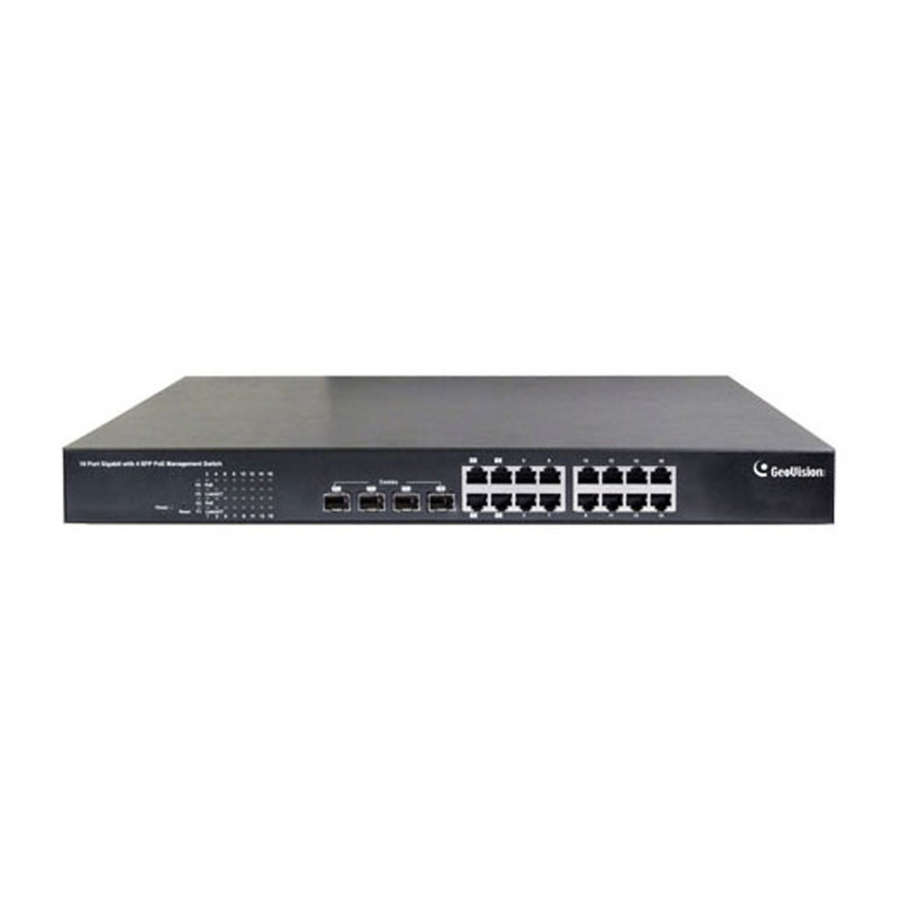

GV-POE1611
PoE Switch
16-Port Gigabit Ethernet with 4-Port Combo Gigabit SFP Web Management
PoE Switch
Packing List
Before you start to install, please verify that your package contains the following items:
1. GV-POE1611 x 1
2. AC Power Cord x 1
3. Screw x 8
4. Rack Mount Kit x 1
5. User's Manual CD x 1
6. GV-POE1611 Quick Start Guide x 1
Note: If any of these items is found missing or damaged, please contact your local supplier
for replacement.
December 27, 2013
16-Port Gigabit 802.3at Web Management
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-POE1611 and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-POE1611

Summary of Contents for GeoVision GV-POE1611

  • Page 1 3. Screw x 8 4. Rack Mount Kit x 1 5. User’s Manual CD x 1 6. GV-POE1611 Quick Start Guide x 1 Note: If any of these items is found missing or damaged, please contact your local supplier for replacement.

  • Page 2: Front Panel

    Front Panel Gigabit Gigabit Load RJ-45 Display Default 16 Port Gigabit with 4 SFP PoE+ Management Switch 14 16 Combo LINK/ACT Power Reset LINK/ACT 9 11 IMPORTANT: The 4 SFP ports labeled F1 ~ F4 are associated with the 4 RJ-45 ports labeled 1 ~ 4 respectively.

  • Page 3: Rear Panel

    Rear Panel AC input (100~240 V/AC, 50~60 Hz) UL Safety Connection Connecting up to 15 GV-IP Cameras and 1 GV-NVR/DVR System Through twisted pair cables, this switch can be connected to up to 15 GV-IP Cameras and 1 GV-NVR/DVR System. You can also extend the connections by connecting to other switches. Note: The maximum cable length for Gigabit RJ-45 is 100 meters.

  • Page 4: Web Interface

    Web Interface Users can log in the Web interface to manage and set up the switch. Follow the below steps to log in the Web interface. Note: The device has a default IP \\192.168.0.250. The default Password to log in is admin. 1.

  • Page 5: Load Default Setting

    Load Default Setting You can load the default value with the Reset button or with the Web interface. Hardware Follow the steps below to restore the switch to its default settings using the Reset button on the front panel of the switch. Note: After restoring default settings, you will need to configure IP address and Password again.

  • Page 6: Firmware Update

    Firmware Update 1. On the Web interface, select Software Upload. This page appears. 2. Click Browse to select the latest firmware file (.bin) for update. Click Upload. The uploading process starts. 4. After the firmware file is successfully uploaded, click Logout from the left menu and re- login the switch.

  • Page 7: Specifications

    Specifications Ports 16 ports Number of Ports 16-port 10/100/1000BaseTX with RJ-45 Connectors, PoE+ 4-port SFP Combo Uplink Port Performance MAC Address Buffer Memory 4 M bits Jumbo Frames 9.6 KB Transmission Method Store and Forward 10/100BaseTX Cat. 5 UTP/STP Transmission Media 1000BaseT Cat.
  • Page 8 Electrical Characteristics Input 100 ~ 240 V/AC, 50 ~ 60 Hz IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts Power Output (16 Ports at Full 15.4 W / 8 Ports at Full 30 W) Max. Power 250 W General Dimensions (H x W x 44 x 440 x 331 mm (1.73”...
