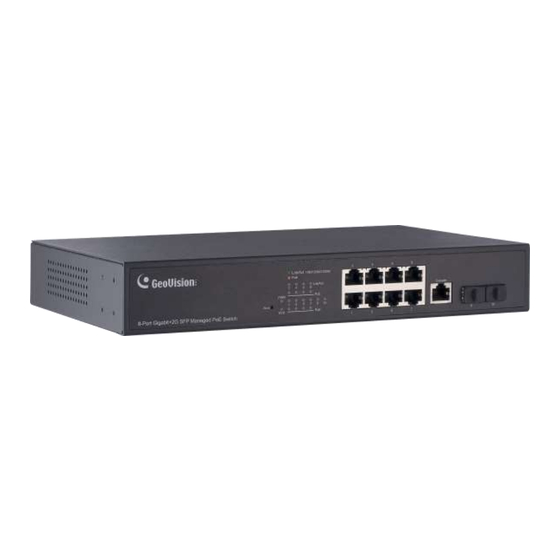

GV-APOE0811-V2
8-Port Gigabit 802.3at Web Management PoE Switch

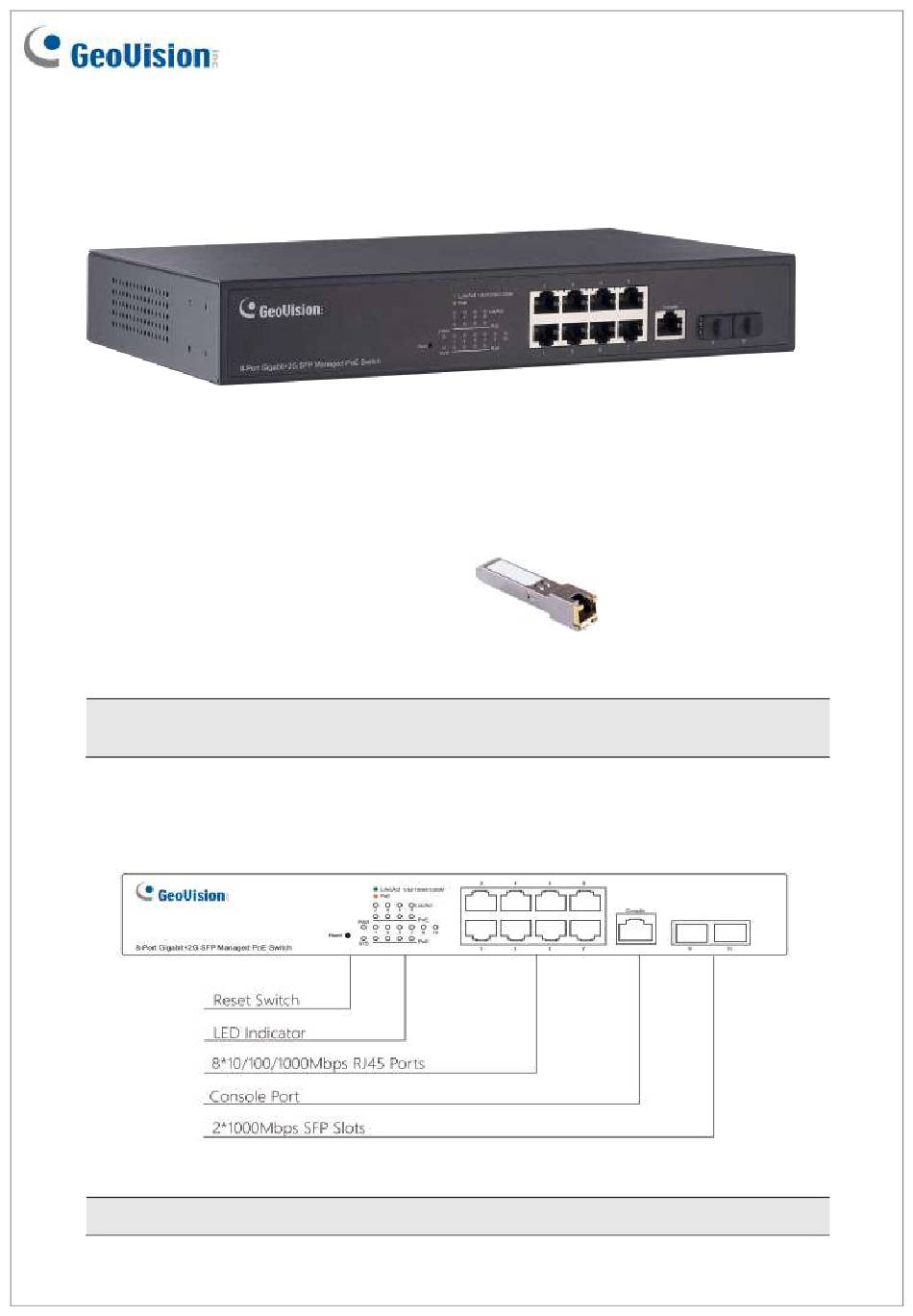

Packing List
1. GV-APOE0811-V2
2. Power Cord
3. Screw x 8
4. Rack Mount Kit
5. Rubber Feet x 4
Note: If any of these items is found missing or damaged, please contact your local supplier
for replacement.
Front Panel
Note: The console port is not functional.
May 9, 2024
6. GV-TA (1000Base-T Copper RJ-45 SFP
Transceiver)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GV-APOE0811-V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-APOE0811-V2

Summary of Contents for GeoVision GV-APOE0811-V2

  • Page 1 GV-APOE0811-V2 8-Port Gigabit 802.3at Web Management PoE Switch Packing List 1. GV-APOE0811-V2 6. GV-TA (1000Base-T Copper RJ-45 SFP 2. Power Cord Transceiver) 3. Screw x 8 4. Rack Mount Kit 5. Rubber Feet x 4 Note: If any of these items is found missing or damaged, please contact your local supplier for replacement.

  • Page 2: Rear Panel

    LED Indicators on the switch Color/Status Description Green System powered on. Blinking Green System is working. Network through the corresponding port has been Green successfully established at 10/100/1000 Mbps. Link/Act Data currently is being sent through the corresponding Blinking Green port.
  • Page 3 Mount Installation Desktop Rack May 9, 2024...
  • Page 4 Connecting to GV-IP Cameras / Systems / Switches GV-APOE0811-V2 can be connected to up to 8 GV-IP Cameras and 2 GV-NVR / DVR / VMS Systems or switches. You can also extend the connections by connecting to other switches. GV-IP Camera x 8...

  • Page 5: Accessing Web Interface

    Accessing Web Interface Users can log in the Web interface to manage and set up the switch. Follow the below steps to log in the Web interface. 1. To access the Web user interface, type the default IP 192.168.0.250 into your Web browser.

  • Page 6: Loading Default Setting

    Loading Default Setting You can load the default value with the Reset button or with the Web interface. Hardware 1. Turn on the switch. 2. Press and hold the Reset button on the front panel of the switch for 5 seconds until all the LED start blinking.

  • Page 7: Specifications

    Specifications For detailed specifications, see Datasheet. May 9, 2024...
