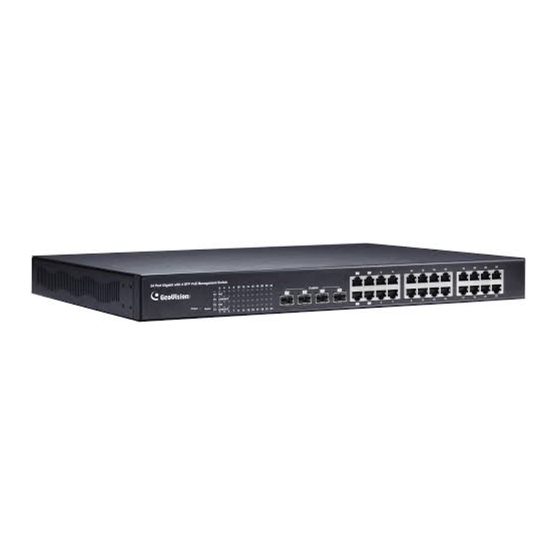

GV-POE2411
PoE Switch
Packing List
1. GV-POE2411 x 1
2. AC Power Cord x 1
3. Screw x 8
4. Rack Mount Kit x 1
5. Software CD x 1
6. GV-POE2411 Quick Start Guide x 1
Note: If any of these items is found missing or damaged, please contact your local
supplier for replacement.
Front Panel
LED Display
Reset Button
July 5, 2016
24-Port Gigabit 802.3at Web Management
Gigabit SFP
1
Gigabit RJ-45
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GeoVision 84-POE2411-201U
Summary of Contents for GeoVision 84-POE2411-201U

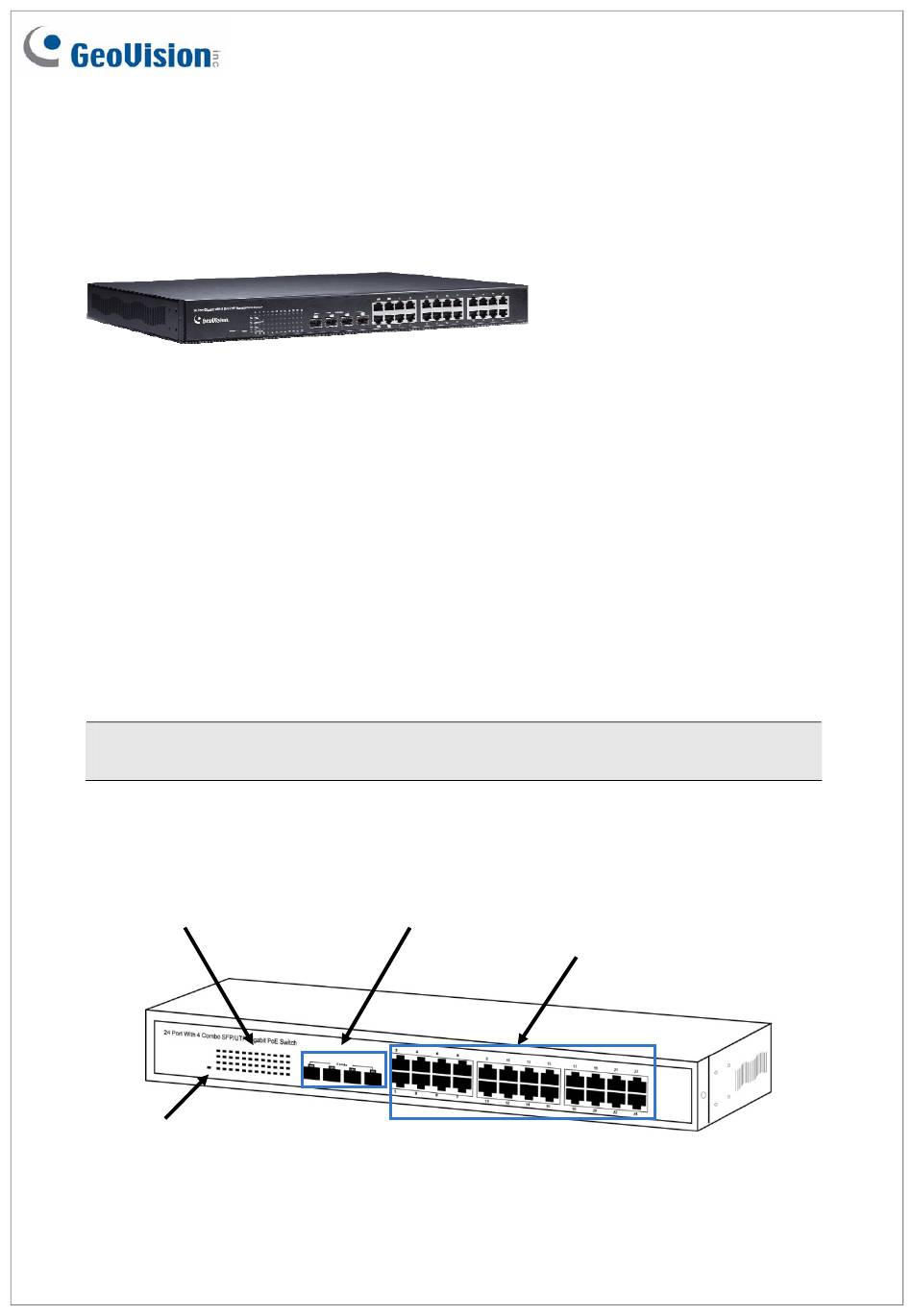

- Page 1 GV-POE2411 24-Port Gigabit 802.3at Web Management PoE Switch Packing List 1. GV-POE2411 x 1 2. AC Power Cord x 1 3. Screw x 8 4. Rack Mount Kit x 1 5. Software CD x 1 6. GV-POE2411 Quick Start Guide x 1 Note: If any of these items is found missing or damaged, please contact your local supplier for replacement.
- Page 2 24 Port Gigabit with 4 SFP PoE+ Management Switch 14 16 20 22 24 Combo LINK/ACT Power Reset LINK/ACT 13 15 21 23 IMPORTANT: The 4 SFP ports labeled F1 ~ F4 are associated with the 4 RJ-45 ports labeled 1 ~ 4 respectively. When one of the two associated ports is used, the other port will not work.
- Page 3 Connecting up to 23 GV-IP Cameras and 1 GV-NVR/DVR System Through twisted pair cables, this switch can be connected to up to 23 GV-IP Cameras and 1 GV-NVR/DVR System. You can also extend the connections by connecting to other switches. Note: The maximum cable length for Gigabit RJ-45 is 100 meters.
- Page 4 Loading Default Setting You can load the default value with the Reset button or with the Web interface. Hardware 1. Turn on the switch. 2. Press and hold the Reset button on the front panel of the switch for 5 seconds until all the LED start blinking.
- Page 5 Updating Firmware 1. On the Web interface, select Software Upload. This page appears. 2. Click Browse to select the latest firmware file (.bin) for update. 3. Click Upload. The uploading process is started. 4. After the firmware is successfully uploaded, click Logout from the left menu and re-login the switch.
- Page 6 Specifications Ports 24 ports Number of Ports 24-port 10/100/1000BaseT(X) with RJ-45 Connectors, PoE+ 4-port SFP Combo uplink Port Performance MAC Address Buffer Memory 4 M bits Jumbo Frames 9.6 KB Transmission Method Store and Forward 10/100BaseT(X) Cat. 5 UTP/STP Transmission Media 1000BaseT Cat.
- Page 7 General Dimensions (H x W x D) 44 x 440 x 331 mm (1.73 x 17.3 x 13.03”) Weight 4.7 kg (10.36 lb) Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 90°C (-4°F ~ 194°F) Humidity 10% ~ 90% RH (non-condensing) Standards and Regulatory IEEE 802.3 10BaseT...
