GV-POE0811
Switch

Packing List

1. GV-POE0811 x 1
2. AC Power Cord x 1
3. Screw x 8
4. Rack Mount Kit x 1
5. Software CD x 1
6. GV-POE0811 Quick Start Guide x 1
Note: If any of these items is found missing or damaged, please contact your local supplier
for replacement.

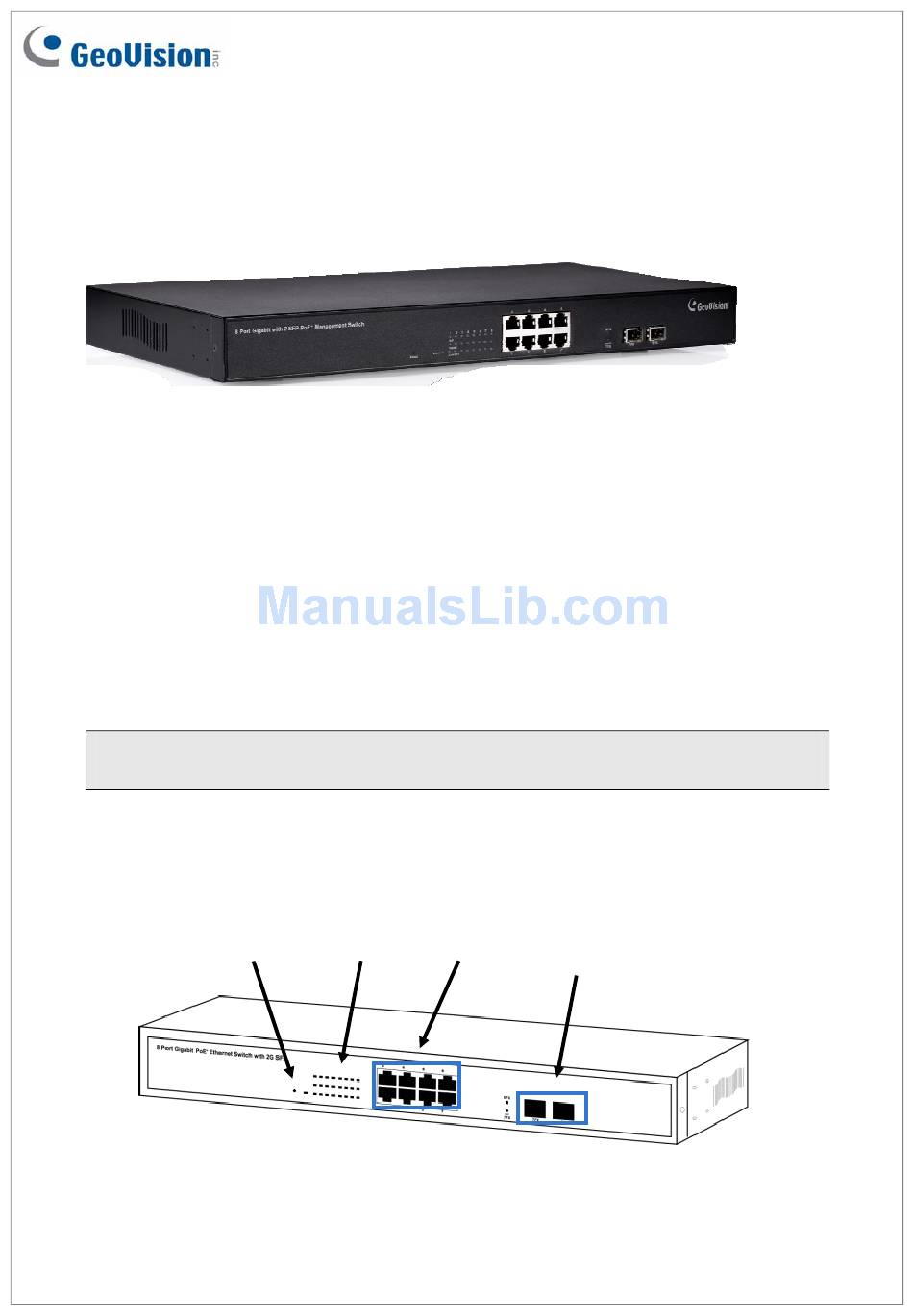

Front Panel

July 5, 2016

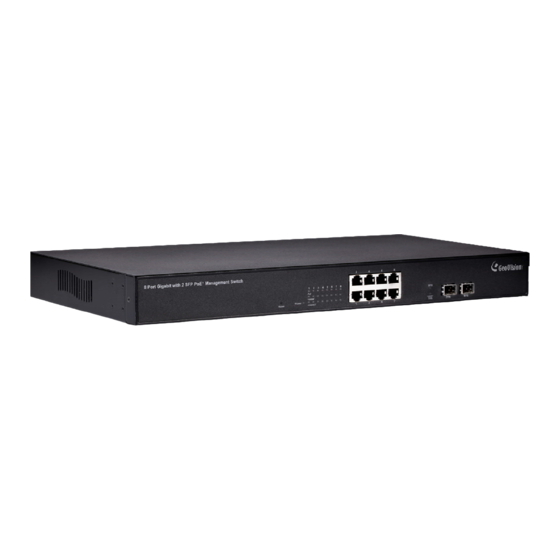

8-Port Gigabit 802.3at Web Management PoE
Load
LED
Default
Display
Gigabit
Gigabit
RJ-45
SFP
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-POE0811 and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-POE0811

Summary of Contents for GeoVision GV-POE0811

  • Page 1: Packing List

    3. Screw x 8 4. Rack Mount Kit x 1 5. Software CD x 1 6. GV-POE0811 Quick Start Guide x 1 Note: If any of these items is found missing or damaged, please contact your local supplier for replacement.
  • Page 2 IMPORTANT: The 2 SFP ports labeled 7FX ~ 8FX are associated with the 2 RJ-45 ports labeled 7 ~ 8 respectively. When one of the two associated ports is used, the other port will not work. For example, if the Gigabit SFP port labeled 7FX is used, the Gigabit RJ-45 port labeled 7 will not function.

  • Page 3: Accessing Web Interface

    Connecting up to 7 GV-IP Cameras and 1 GV-NVR/DVR System Through twisted pair cables, this switch can be connected to up to 7 GV-IP Cameras and 1 GV-NVR/DVR System. You can also extend the connections by connecting to other switches. Note: The maximum cable length for Gigabit RJ-45 is 100 meters.

  • Page 4: Loading Default Setting

    2. On the User Log In page, type the default Password admin and click Apply. When you successfully log in, the message “Password Successfully Entered” appears. 3. To configure the GV-POE Switch, select desired functions from the left menu. Loading Default Setting You can load the default value with the Reset button or with the Web interface.

  • Page 5: Updating Firmware

    Note: Loading default from the Web interface will not change the user name, password and IP configuration. If you want to restore the default setting of IP address, user name and password, press the Reset button on the front panel of the switch. Updating Firmware 1.

  • Page 6: Specifications

    Specifications Ports 8 ports Number of Ports 8-port 10/100/1000BaseT(X) with RJ-45 Connectors, PoE+ 2-port SFP Open Slots Performance MAC Address Buffer Memory 1.37 M bits Jumbo Frames 9.6 KB Transmission Method Store and Forward 10/100BaseT(X) Cat. 5 UTP/STP Transmission Media 1000BaseT Cat.
  • Page 7 Electrical Characteristics Input 100 ~ 240 V/AC, 50 ~ 60 Hz IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts Power Output (8 Ports at Full 15.4 W / 4 Ports at Full 30 W) Max. Power 130 W Consumption General Dimensions 44 x 440 x 220 mm (1.73”...
