Anexos / Appendices
PLUS200 EXPERT
200P200EDL / 200P200EDL

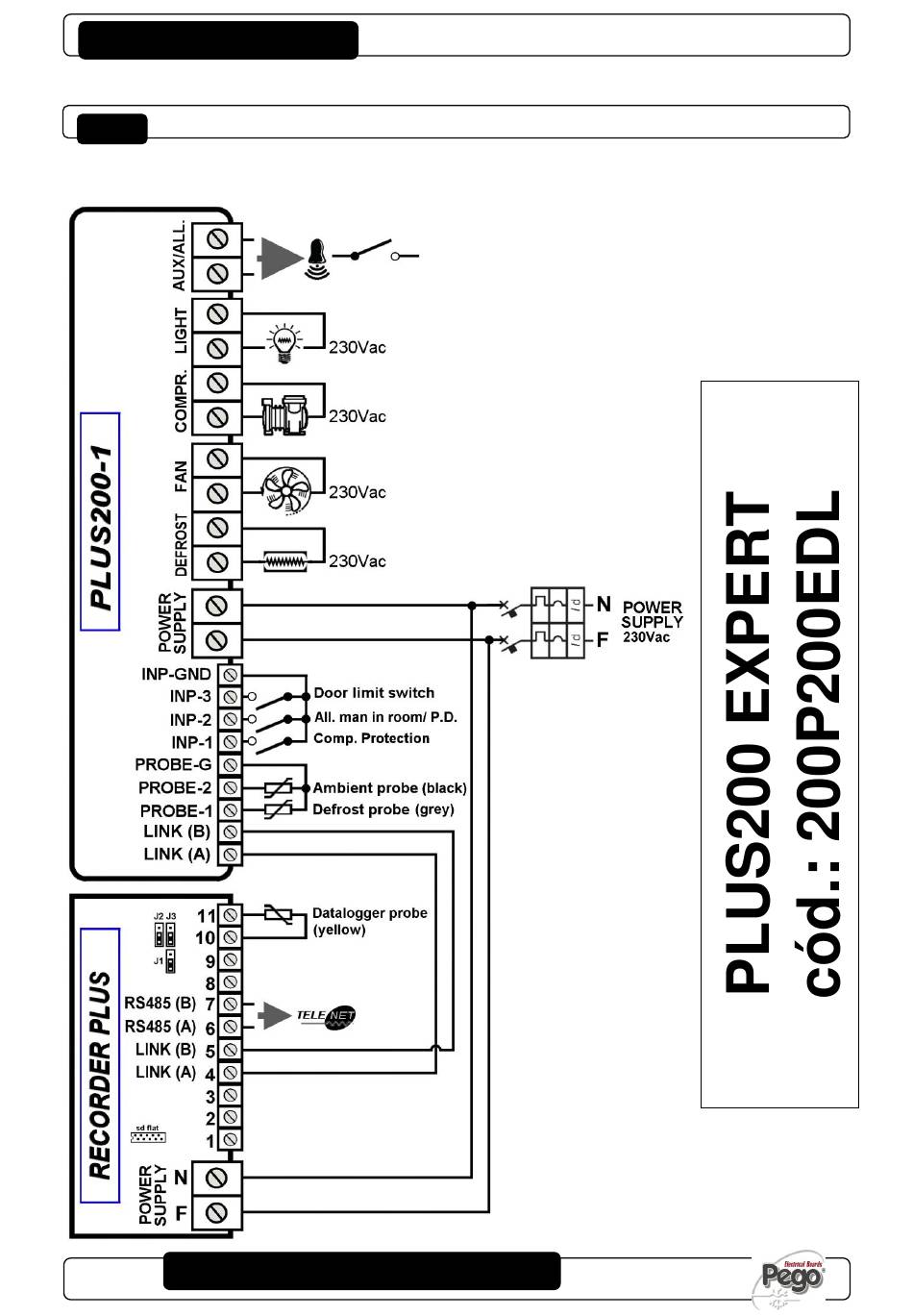

ESQUEMA DE CONEXIÓN
WIRING DIAGRAM
A.2
Salidas en tensión (230 V) excepto el contacto Aux/All.
Live outputs (230 V) excluding Aux/All contact.
MANUAL DE USO Y MANTENIMIENTO
Pág. 38
Rev. 01-16
USE AND MAINTENANCE MANUAL
