Figure 3-1 F201 Controls And Indicators (Front); Mounting - Synrad f201 Operator's Manual

operation
Controls and indicators
The Controls and indicators section includes subsections:
■
f201 lasers
f201 lasers
3
1

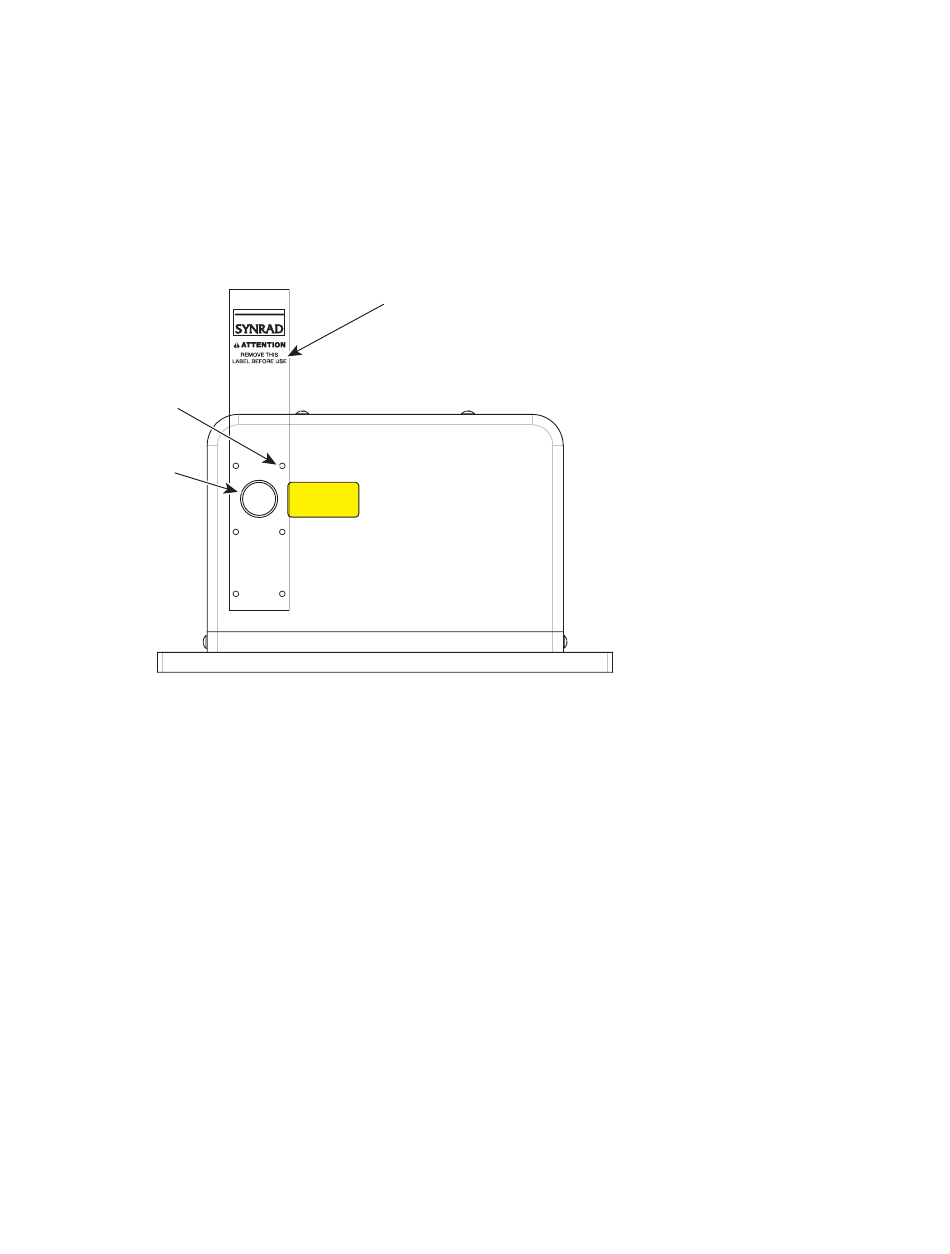

Figure 3-1 F201 controls and indicators (front).

1 Laser Aperture – provides an opening in Firestar's front panel from which the beam exits.
2 Aperture Seal – prevents dust from damaging the output coupler during shipping. Remove the
red self-adhesive label before applying power to the laser.
3 Optical Accessories Mounting – provides six threaded holes (8–32 UNC) for mounting optional
beam delivery components available from SYNRAD. Because excessive weight may damage the
laser, consult SYNRAD before mounting components not specifically designed as Firestar op-
tions. Refer to Firestar package outline drawings in the Technical Reference chapter for mounting
dimensions.
Note: When mounting optical components to f201 lasers, the 8–32 UNC fasteners must extend no
further than 4.8 mm (0.19") into the laser's faceplate.
SYNRAD f201 Operator's Manual Version 3.2
46
2
AVOID EXPOSURE
Invisible laser radiation
is emitted from
this aperture.
