Firestar™ f201 laser & Flyer 3D System Quick Start Guide
Important
See the Flyer 3D Marking Head and Firestar f201 Laser Operators Manual for complete
Note:
installation details and instructions. A PDF version is available Online at:
http://www.synrad.com/Manuals/manuals_laser.htm.
Read all
Danger,
Hazard information) sections in the Flyer 3D Marking Head and Firestar f201 Laser Operation Manuals.
Marking Head Unpacking:
Attention:
For complete details, refer to the Getting Started (System Inventory and Mounting)
Sections in the Firestar f201 and Flyer 3D Marking Head Operator's Manual.

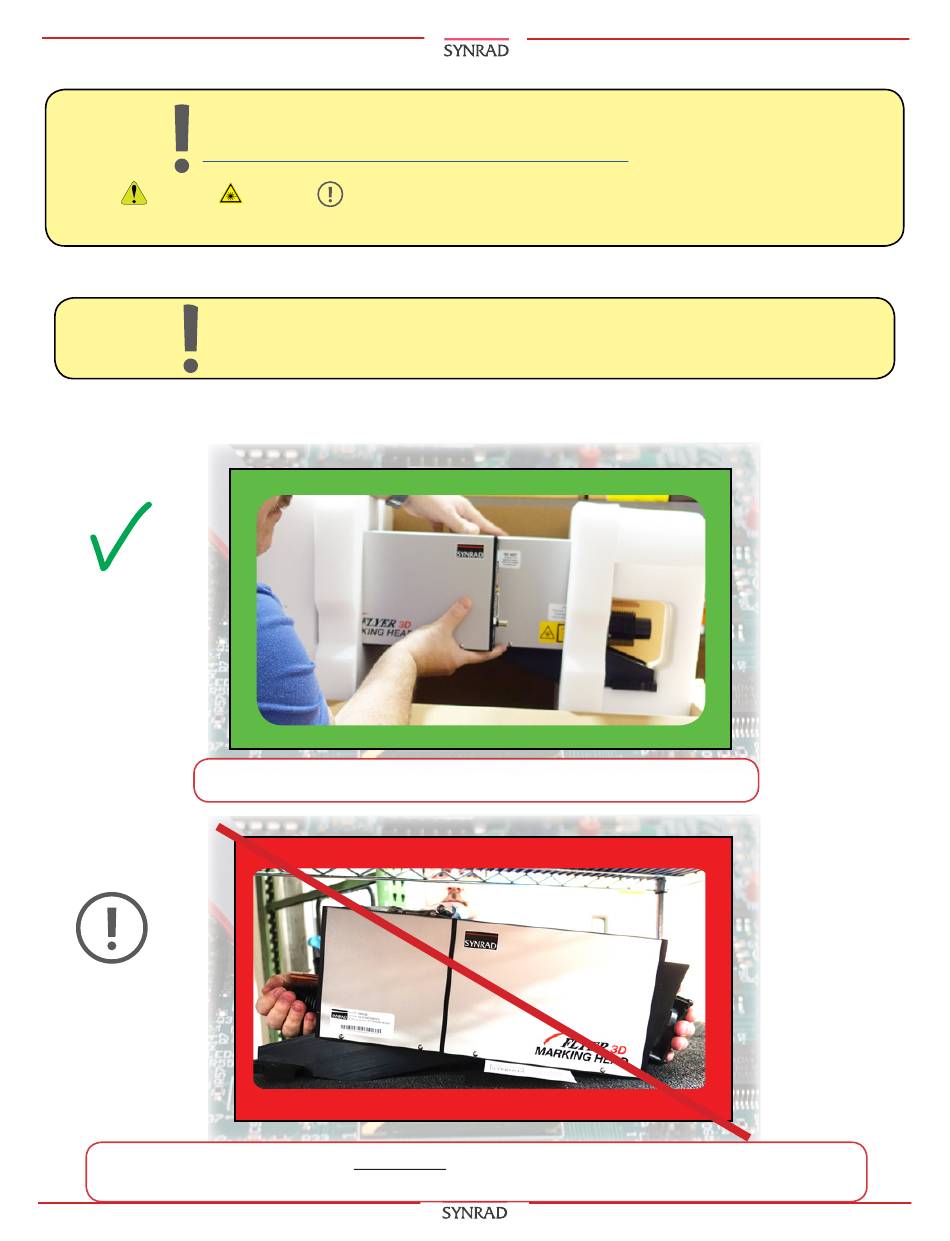

Lift the Flyer 3D Marking Head out of the box only by the middle; do not use housing, coolant fittings,
1.
or anything else on the sides to lift the laser.
Correct
1.1 Lifting the Marking Head correctly by holding in the middle.
Caution
1.2 Avoid mis-alignment risk! Do not use housing fitting or fan (as shown) or any thing on
the side to lift.
1
Warning,
Caution terms, symbols, and instructions located in the (Laser Safety
a Novanta company
QSG f201 version 2.1
a Novanta company

Advertisement

loading
Need help?

Need help?

Do you have a question about the Firestar f201 and is the answer not in the manual?

Questions and answers

Summary of Contents for Synrad Firestar f201

  • Page 1 Danger, Warning, Caution terms, symbols, and instructions located in the (Laser Safety Hazard information) sections in the Flyer 3D Marking Head and Firestar f201 Laser Operation Manuals. Marking Head Unpacking: Attention: For complete details, refer to the Getting Started (System Inventory and Mounting) Sections in the Firestar f201 and Flyer 3D Marking Head Operator’s Manual.
  • Page 2 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company Locate the shipping components for the Marking Head at the bottom of the box under the Marking Head. Remove the marking head from the box. Retrieve the components from the bottom of the box.
  • Page 3 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company Laser Unpacking: Locate the mounting hardware kit at the end cap (fitting side of the box or the cardboard pocket.) Two people will be required to lift the laser out of the box using the lifting handles on each side of the box.
  • Page 4 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company Mounting (preparing the rail): Remove the rail & hardware from the packaging. Ensure the notch is facing down and to the left. Assemble the eye bolts first, the bar second, then the triangle bars third. Triangle bars Eye bolts...
  • Page 5 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company Mounting (Continued): Place the bar onto the rail as shown below. When attaching the Marking Head to the Laser, make sure the notch is as shown in Attention: figure below before going on to the next step.
  • Page 6 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company After the triangle bars are installed place the side screw(s) as shown below on each side. Install the two (2) bar/triangle bar end screws, affixing the triangle rails to the bar rail, see 7.1 on the previous page.
  • Page 7 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company Mounting (the laser and the marking head to the rail): 10. The laser should arrive with feet and shims installed, please refer to the figure below for further detail. 11.
  • Page 8 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company Mounting (the Laser and the Marking Head to the rail): Remove the laser aperture self-adhesive film before mounting to Attention: the rail. Don’t tighten the Allen screws on the clamp until the laser is mounted to the rail.
  • Page 9 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company 13. Assure the Laser and Marking Head are mounted on the rail first, then assemble the tube’s path enclosure below. Locate the path enclosure components in the kit. Expander Cooling Head Path...
  • Page 10 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company 14. Marking Head & f201 series laser mounted on rail. 14.1 Should look like this. QSG f201 version 2.1 a Novanta company...
  • Page 11: Electrical Connections

    Electrical Connections: For further details, please see the Getting Started (Connecting-DC power Attention: supply connections) section in the Firestar f201 Laser Operator’s Manual and Getting Started (Connecting-DC power cable) section in the 3D Mark- ing Head Operator’s Manual. 15. Connect the Marking Head DC power VDC cable into the Marking Head’s power supply.
  • Page 12: Control Connections

    Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company Control Connections: Caution: The Quick Start Plug bypasses the laser’s safety interlock function, potentially exposing personnel to hazardous invisible laser radiation. 17. Connect the laser’s control User interface connector to the laser. For initial setup and testing, use the Quick Start Plug.
  • Page 13 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company 19. Connect the Ethernet plug to the PC. For further details, please see the Getting Started section in the Flyer Attention: 3D Operator’s Manual. To PC Ethernet port QSG f201 version 2.1 a Novanta company...
  • Page 14: Cooling Connections

    Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company Cooling Connections: For further details, please see the Getting Started (Cooling Connec- Attention: tions, Cooling Tubing Connections, Other Connections) in the Firestar f201 Laser Operator’s Manual in the following sections for Facilities/ Utilities (Air Drop or Gas Purge), Also see the Getting Started section of the Flyer 3D Operator’s Manual.
  • Page 15 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company Hook up two coolant connections (one for the cooling water input, one for the output) at the Mark- ing Head. Assure the water ‘out’ of the Assure the water ‘in’ from the chiller from the Marking head chiller to the Marking Head is is connected to the laser’s T valve...
  • Page 16 Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company Gas Purge Connections: (Note: Clean and dry air or N2 Only-please refer to the operators manual for Note: specifications.) 23. See gas purge sections in the Maintenance and Troubleshooting sections of the p400 Operation Manu- Locate the gas purge kit and spherical washer sets shipped with your al for specifications.
  • Page 17: Final Preparations

    Firestar™ f201 laser & Flyer 3D System Quick Start Guide a Novanta company Final Preparations: 24. After assembly and mounting are complete, see the Mounting Head’s QSG for WinMark software setup. If using a diode pointer and/or this is a new laser and you need to verify performance, see the Diode Pointer Quick Start Guide located on our website.
