Synrad Novanta vi Series Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

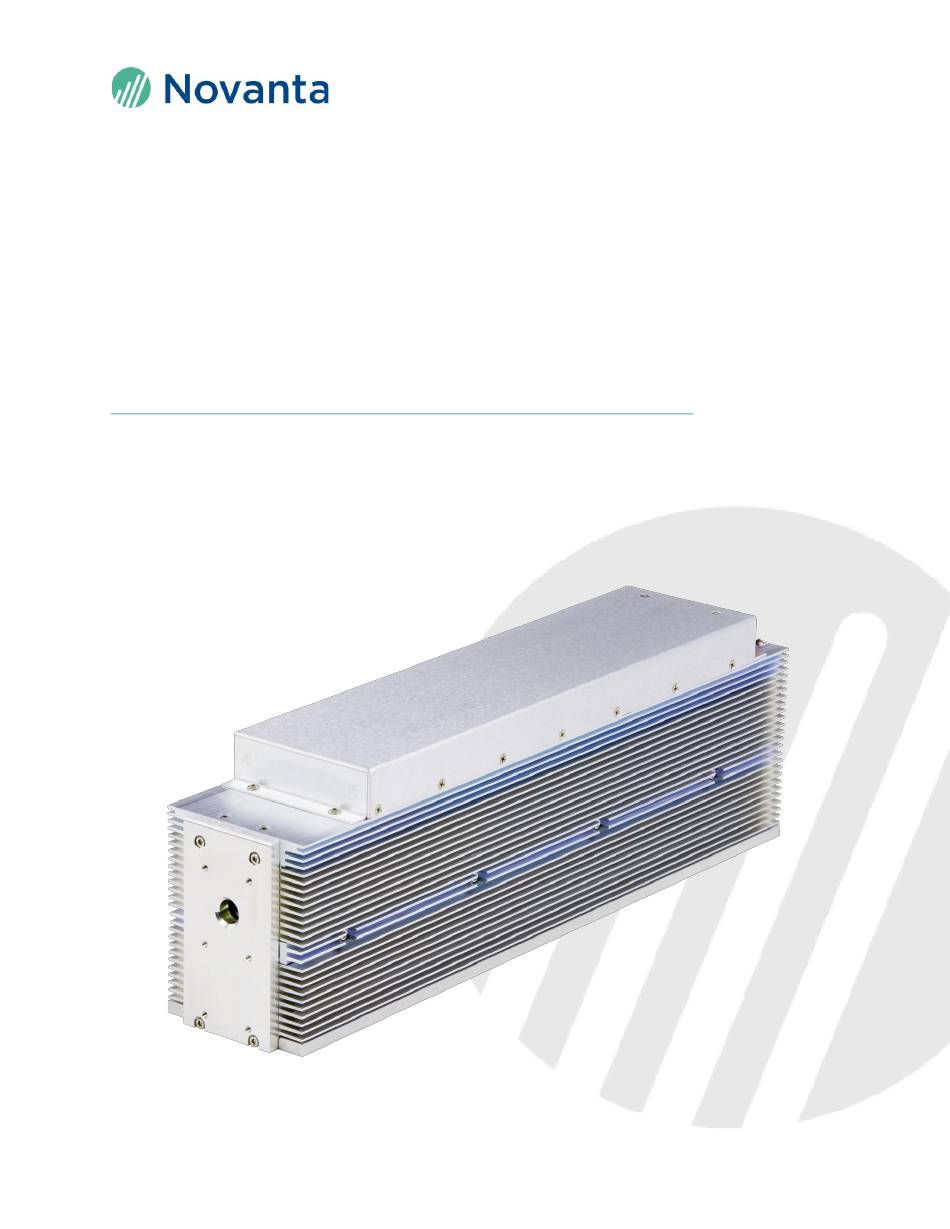

2025V1, RevA
ENGINEERED BY SYNRAD
vi Series Lasers
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Novanta vi Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Synrad Novanta vi Series

Summary of Contents for Synrad Novanta vi Series

  • Page 1 2025V1, RevA ENGINEERED BY SYNRAD vi Series Lasers Operator’s Manual...

  • Page 2: Table Of Contents

    Contents General Information ____________________________________________________________ 7 Trademark & Copywrite __________________________________________________________________________ 7 Warranty Information _____________________________________________________________________________ 7 Contact Information _______________________________________________________________________________ 8 1.3.1 Online Contact Form ________________________________________________________________________________ 8 1.3.2 Americas, Asia Pacific _______________________________________________________________________________ 8 1.3.3 Europe, Middle East, Africa _________________________________________________________________________ 9 1.3.4 China ________________________________________________________________________________________________ 9 1.3.5 Japan ________________________________________________________________________________________________ 9 Application Testing ________________________________________________________________________________ 9...
  • Page 3 2.3.4.1 RoHS Compliance _________________________________________________________________________________ 20 2.3.4.2 Laser Safety Standards ____________________________________________________________________________ 21 2.3.4.3 Electromagnetic Interference Standards __________________________________________________________ 21 2.3.4.4 Table: European Union Directives_________________________________________________________________ 22 2.3.5 vi30 Declaration of Conformity ___________________________________________________________________ 23 2.3.6 vi40 Declaration of Conformity ___________________________________________________________________ 24 Getting Started _______________________________________________________________ 25 Introduction ______________________________________________________________________________________ 25 3.1.1 Nomenclature _____________________________________________________________________________________ 25...
  • Page 4 3.4.2.5 Setting Coolant Temperature _____________________________________________________________________ 36 3.4.2.6 Table: Dew Point Temperatures___________________________________________________________________ 37 3.4.2.7 Cooling Tubing Connections _____________________________________________________________________ 38 3.4.3 Temperature Monitoring _________________________________________________________________________ 38 3.4.3.1 Figure: vi30 External Temperature Monitoring Location _________________________________________ 39 Electrical Connections ___________________________________________________________________________ 39 3.5.1 DC Power Supply__________________________________________________________________________________ 39 3.5.2 Control Connections ______________________________________________________________________________ 40 3.5.2.1...
  • Page 5 4.2.1.1 Tickle Pulses _______________________________________________________________________________________ 52 4.2.1.2 Pulse Width Modulation (PWM) __________________________________________________________________ 52 4.2.1.3 Figure: Typical Optical Output Pulse (50%) Duy Cycle at 3 kHz __________________________________ 53 4.2.1.4 Figure: Typical Optical Output Pulse (50%) Duy Cycle at 5 kHz __________________________________ 53 4.2.1.5 Command Signal __________________________________________________________________________________ 53 4.2.1.6...
  • Page 6 4.3.4.6 Table: Example Temperature Measurements _____________________________________________________ 65 General Specifications ___________________________________________________________________________ 66 4.4.1 vi Series General Specifications ___________________________________________________________________ 66 Outline & Mounting Drawings _________________________________________________________________ 68 4.5.1 Figure: vi30 Air-Cooled (OEM) Outline and Mounting Dimensions ______________________________ 68 4.5.1.1 Figure: vi30 Outline and Mounting Dimensions – with Optional Customer-Installed “Tall” Mounting Feet ______________________________________________________________________________________________ 69 4.5.1.2 Figure: vi30 Outline and Mounting Dimensions –...
  • Page 7 5.2.7 Other Laser Faults _________________________________________________________________________________ 84 5.2.8 Beam Delivery Optics _____________________________________________________________________________ 87 © Novanta | Page 6 of 90 | Be mindful of our environment, don’t print if you don’t need to.

  • Page 8: General Information

    1 General Information For your protection, carefully read these instructions before installing and operating the laser. Retain these instructions for future reference. Novanta reserves the right to update this user manual at any time without prior notification. If product ownership changes, this manual should accompany the product. 1.1 Trademark &...

  • Page 9: Contact Information

    Buyer by Novanta, or the use thereof, infringes upon any Patent, foreign or domestic. 1.3 Contact Information The CO2 laser business (SYNRAD) is headquartered north of Seattle in Mukilteo, Washington, U.S.A. Our mailing address is: Novanta...

  • Page 10: Europe, Middle East, Africa

    co2lasercustomercare@novanta.com 1.3.3 Europe, Middle East, Africa Novanta Europe GmbH, Wackersdorf, Germany Phone: +49 9431 7984-0 sales-europe@novanta.com Milan, Italy Phone: +39-039-793-710 1.3.4 China Novanta Sales & Service Office, Shenzhen, China Phone: +86-755-8280-5395 Novanta Sales & Service Office, Suzhou, China Phone: +86-512-6283-7080 1.3.5 Japan Novanta Service &...

  • Page 11: General Inquiries

    You can also use the Application Test Request form on our website: https://novantaphotonics.com/application-test-request-form-header/ 1.5 General Inquiries For assistance with order or delivery status or service status, please use the Information Request form on our website: https://novantaphotonics.com/info-request-form-header/ To obtain a Return Authorization (RA) number, please use the Service Request form on our website: https://novantaphotonics.com/service-request-form-header/ For all other inquiries, please contact our Customer Care team by emailing co2lasercustomercare@novanta.com...

  • Page 12: Laser Safety

    2 Laser Safety 2.1 Hazard Information Hazard information includes terms, symbols, and instructions used in this manual or on the equipment to alert both operating and service personnel to the recommended precautions in the care, use, and handling of Class 4 laser equipment. 2.1.1 Terms Certain terms are used throughout this manual or on the equipment labels.
  • Page 13 Danger: Serious Personal Injury This Class 4 laser product emits invisible infrared laser radiation in the 9.3 – 10.6 µm CO2 wavelength band, depending on model. Do not allow laser radiation to enter the eye by viewing direct or reflected laser energy. CO2 laser radiation can be reflected from metallic objects even though the surface is darkened.
  • Page 14 Warning: Serious Personal Injury Materials processing with a laser can generate air contaminants such as vapors, fumes, and/or particles that may be noxious, toxic, or even fatal. Material Safety Data Sheets (MSDS) for materials being processed should be thoroughly evaluated and the adequacy of provisions for fume extraction, filtering, and venting should be carefully considered.

  • Page 15: Other Hazards

    A CO2 laser is an intense energy source and will ignite most materials under the proper conditions. Never operate the laser in the presence of flammable or explosive materials, gases, liquids, or vapors. The use of controls or adjustments or performance of procedures other than those specified herein may result in exposure to invisible laser radiation, damage to, or malfunction of the laser.

  • Page 16: Label Locations

    Another excellent laser safety resource is the Laser Institute of America (LIA). Their comprehensive web site is located at http://www.lia.org. 2.2 Label Locations 2.2.1 Figure: vi30 Laser Label Locations © Novanta | Page 15 of 90 | Be mindful of our environment, don’t print if you don’t need to.

  • Page 17: Agency Compliance

    2.2.2 Figure: vi40 Laser Label Locations 2.3 Agency Compliance Novanta lasers are designed, tested, and certified to comply with certain United States (U.S.) and European Union (EU) regulations. These regulations impose product performance requirements related to electromagnetic compatibility (EMC) and product safety characteristics for industrial, scientific, and medical (ISM) equipment.

  • Page 18: Center For Devices And Radiological Health (Cdrh) Requirements

    In the U.S., laser safety requirements are governed by the Center for Devices and Radiological Health (CDRH) under the auspices of the U.S. Food and Drug Administration (FDA) while radiated emission standards fall under the authority of the U.S. Federal Communications Commission (FCC). Outside the U.S., laser safety and emissions are governed by European Union (EU) Directives and Standards.
  • Page 19 2.3.2 Table: Class 4 Safety Features Required by CDRH & EN60825-1 Available Required by: Feature Location Description on OEM CDRH EN60825-1 vi Series On/Off/Reset Key switch controls Rear Panel power to laser electronics. Key Keyswitch Control cannot be removed from switch in the “On”...

  • Page 20: Federal Communications Commission (Fcc) Requirements

    (ISM) equipment are fully described in 47 CFR, Part 18, Subpart C. Novanta vi Series lasers have been tested and found to comply by demonstrating performance characteristics that have met or exceeded the requirements of 47 CFR, Part 18, Subpart C for Radiated and Conducted Emissions.

  • Page 21: Fcc Information

    2.3.4 European Union (EU) Requirements 2.3.4.1 RoHS Compliance Novanta vi Series lasers meet the requirements of the European Parliament and Council Directive 2015/863/EU on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment that establishes maximum concentration values for certain hazardous substances in electrical and electronic equipment.

  • Page 22: Laser Safety Standards

    European Union regulations. 2.3.4.3 Electromagnetic Interference Standards Novanta vi Series lasers have demonstrated performance characteristics that have met or exceeded the requirements of EMC Directive 2014/30/EU. The European Union’s Electromagnetic Compatibility (EMC) Directive, 2014/30/EU, is the sole Directive developed to address electromagnetic interference (EMI) issues in electronic equipment.
  • Page 23 2015/863/EU RoHS Directive Safety Requirements for Electrical Equipment for Measurement, Control, and EN 61010-1 Laboratory Use - Part 1: General Requirements EN 61000-6-4 Radiated Emissions Group 1, Class A EN 61000-6-4 Conducted Emissions Group 1, Class A EN 61000-6-2 Electrostatic Discharge Immunity EN 61000-6-2 RF Electromagnetic Field Immunity EN 61000-6-2...

  • Page 24: Vi30 Declaration Of Conformity

    2.3.5 vi30 Declaration of Conformity © Novanta | Page 23 of 90 | Be mindful of our environment, don’t print if you don’t need to.

  • Page 25: Vi40 Declaration Of Conformity

    2.3.6 vi40 Declaration of Conformity © Novanta | Page 24 of 90 | Be mindful of our environment, don’t print if you don’t need to.

  • Page 26: Getting Started

    3 Getting Started Use information in this chapter to prepare your OEM vi30 for operations. The order of information presented in this chapter is the same as the order of tasks that you will need to perform. The best way to get your laser ready for operation is to start at Unpacking and work your way through Connecting.

  • Page 27: Unpacking

    Safety configuration: “K” for Keyswitch or “S” Standard OEM models. The vi Series lasers are only  available in the Standard OEM configuration. Cooling option: “W” for water-cooled units, “F” for fan-cooled units, and “A” for air-cooled lasers  (where the OEM or end user must provide cooling via fans or blowers) Revision letter: indicates the current model revision ...

  • Page 28: Repackaging Or Storing

    After unpacking, review 3.2.3 Inventory and verify that all components are on hand  Save all shipping containers and packaging materials, including covers and plugs. Its unique design  prevents damage to your laser during storage, relocation and/or shipping. Caution: Possible Equipment Damage Lift the laser only by the mounting feet or baseplate.

  • Page 29: Additional Information

    3.2.3 Table: vi Series Shipment Inventory Contents Additional Information For cutting, welding, drilling, and marking a wide variety of products vi Series Laser and materials Customer Follow the instructions on the flier to access the latest manual on the Communication Flier Novanta website Cooling kit Only with fan and water-cooled models...

  • Page 30: Mounting The Vi Series Laser

    Caution: Possible Equipment Damage Novanta does not recommend mounting lasers in a vertical “head-down” or equipment “tail-down” orientation. If you must mount your laser in this manner, please contact the factory for limitations as a vertical orientation increases the risk of damage to the laser’s output optic. Failure to properly package the laser using Novanta shipping box and foam/cardboard inserts as shown in Packaging Instructions (section 4.5.4) may void the warranty.

  • Page 31: Optional Mounting Feet

    3.3.2 Optional Mounting Feet For most customers, the standard baseplate design provides the smallest physical footprint for mounting the laser in a compact laser system. Where mounting compatibility to the v Series lasers is required, you can purchase and install one of two optional mounting kits (available separately from the factory). The ‘Tall’...

  • Page 32: Install The Optional Mounting Feet

    3.3.2.1 Figure: Tall and Tall/Wide Mounting Feet 3.3.2.2 Install the optional mounting feet Contact our technical support team for more information on attaching the “Tall” or “Tall/Wide” mounting feet. Please refer to 1.6 Technical Support for contact information. 3.4 Cooling There are three cooling configurations available: Air: Also referred to as the OEM cooling configuration.

  • Page 33: Air Cooling

    3.4.1 Air Cooling The air-cooled versions of the vi Series lasers do not include cooling fans. Customers must provide some type of air cooling to prevent the laser from overheating. The air/OEM vi Series does not provide a voltage output sufficient to power cooling fans, so customers must provide an external power source to drive the selected cooling fans.

  • Page 34: Rear Cooling

    3.4.1.2 Figure: Cooling Fan Locations (Side) 3.4.1.3 Rear Cooling For the vi30 Series lasers, a fan shroud designed for rear cooling can be used to minimize the width of the laser installation, as shown in 3.4.1.4 Figure: Alternate vi30 Cooling Fan (Rear). Guidelines for rear cooling: The shroud should enclose the full length of the laser and the cooling fan ...

  • Page 35: Water Cooling

    3.4.1.4 Figure: Alternate vi30 Cooling Fan (Rear) 3.4.2 Water Cooling For the water-cooled version, customers are required to provide a chiller to cool and circulate the water. This section explains how to connect the laser and chiller and includes guidelines for operating. 3.4.2.1 Cooling Fitting Adaptors If your integrated laser application uses metric cooling tubing, you should install tubing adaptors to...

  • Page 36: Chiller Preparation

    If tubing must be disconnected from a fitting, first push and hold the tubing slightly into the fitting.  Next push the release collet evenly towards the fitting, and then pull the tubing free. After disconnecting the tubing from a fitting, trim about 12.7 mm (0.5”) from its end before ...

  • Page 37: Setting Coolant Temperature

    3.4.2.5 Setting Coolant Temperature Choosing the correct coolant temperature is important to the proper operation and longevity of your laser. When coolant temperature is lower than the dew point (the temperature at which moisture condenses out of the surrounding air), condensation forms inside the laser housing leading to failure of laser electronics as well as damage to optical surfaces.
  • Page 38 3.4.2.6 Table: Dew Point Temperatures The laser’s coolant temperature must be set above the dew point temperatures shown in the chart but should not exceed 22 °C (72 °F). Relative Humidity Temp 20% 25% 30% 35% 40% 45% 50% 55% 60% 65% 70% 75% 80% 85% 90% 95% °F/°C 60 °F 16 °C...

  • Page 39: Cooling Tubing Connections

    Relative Humidity columns is the Dew Point Temperature. The chiller’s temperature setpoint must be above the dew point temperature. For example, if the air temperature if 85°F (29°C) and the relative humidity is 60%, then the dew point temperature is 70°F (21°C). Adjust the chiller’s temperature setpoint to 72°F (22°C) to prevent condensation from forming inside the laser.

  • Page 40: Electrical Connections

    3.4.3.1 Figure: vi30 External Temperature Monitoring Location 3.5 Electrical Connections The following procedures describe how to complete electrical connections to the vi Series lasers. The vi30 DC power cables are manufactured from #12 AWG wire and measure 1 meter (40 inches) in length. 3.5.1 DC Power Supply The vi30 laser requires a DC power supply capable of providing 48 VDC at 10 A minimum (11 A peak for less than 1 ms).

  • Page 41: Control Connections

    Note: The negative (-) side of the DC input to the laser is internally connected so that the laser chassis serves as DC power ground. You should isolate the laser’s DC power supply so that the only grounded connection is at the laser. Alternatively, you can mount the laser chassis on an insulating pad or film in order to electrically isolate the laser when other equipment is grounded to the laser’s DC power supply.
  • Page 42 If your system does not provide an enable input to the DB-9 plug, then jumper Pin 9, Laser Enable, to Pin 5, DC Out. Danger: Serious Personal Injury Jumpering Pin 9, Laser Enable, to Pin 5, DC Out, bypasses the laser enable function, potentially exposing personnel to hazardous invisible laser radiation.

  • Page 43: Controls And Indicators

    3.6 Controls and Indicators Use information in this chapter to familiarize yourself with the vi Series controls and indicators on the front and rear panels of the laser. 3.6.1 Front Panel The front panel contains the following features, also shown in 3.6.2 Figure: Front Panel: Aperture Seal –...

  • Page 44: Rear Panel

    Important Note: Remove the self-adhesive seal before applying power to the laser. Important Note: To prevent damage when mounting optical components to the vi Series lasers, the 8–32 UNC fasteners must extend no further than 4.8 mm (0.19”) into the laser’s faceplate. 3.6.3 Rear Panel The rear panel contains the following features, also shown in 3.6.4 Figure: Rear Panel: DC Power Cables –...

  • Page 45: Initial Start-Up

    3.6.4 Figure: Rear Panel 3.7 Initial Start-Up This section explains the status indicators and how to start the laser with and without a UC-2000 controller. 3.7.1 Status Indicators Three status indicators (LEDs) on the rear of the laser provide a visual indication of operating status. A green PWR indicator illuminates when DC power is applied to the laser.

  • Page 46: With A Uc-2000 Controller

    Danger: Serious Personal Injury Any Class 4 CO2 laser product that emits invisible infrared laser radiation in the 9–11 µm wavelength band can seriously burn human tissue. Because direct or diffuse laser radiation can inflict severe corneal injuries, always wear eye protection when in the same area as an exposed laser beam.

  • Page 47: Without A Uc-2000 Controller

    Note: If you have not yet operated your UC-2000 Universal Laser Controller, refer to the UC-2000 Laser Controller Operator’s Manual for setup and operation instructions before continuing. Start vi Series Laser If the laser has a Diode Pointer installed, remove its aperture dust cover. Turn on the +48 VDC power supply.
  • Page 48 Note: After applying 48 VDC, but before operating the laser, you must provide a Laser Enable input signal to the DB-9 I/O connector. See DB-9 I/O connections in the Technical Reference chapter for pinouts and signal descriptions. Start Auxiliary Equipment Ensure that all personnel in the area wear protective eyewear Remove the self-adhesive aperture seal from the laser faceplate Place a power meter, or appropriate beam block, about 2 feet (61 cm) from the laser aperture to...

  • Page 49: Technical Reference

    when PWM pulses are long enough to produce laser output. The spot where the beam hits the beam block should increase in brightness to indicate increased power output. Remove the PWM Command signal from the laser and reapply tickle pulses every 200 µs. The LASE indicator on the laser should turn off.

  • Page 50: Internal Rf Power Supply

    output window. These optical elements are fastened to the tube’s exterior and are exposed to its interior through holes in the end caps. O-rings sandwiched between optical elements and each end cap form a gas seal and provide a flexible cushion that allows the slight movement necessary for alignment. All optical elements are aligned and locked into place by factory technicians before the laser is shipped.

  • Page 51: Optical Setup

    4.1.2 Optical Setup After selecting a laser for a CO laser processing system, the two most crucial elements to consider are: (1) beam delivery optics to transmit the beam to the work area; and (2) focusing optics to focus the beam onto the part or material to be processed.

  • Page 52: Controlling Laser Power

    available, it must be filtered and dried to ISO 8573-1:2010 Class 1, 2, 1 specification as shown in the following table. Important Note: Optical components in the beam path must always be aligned to the actual beam path, not the laser faceplate.

  • Page 53: Tickle Pulses

    DB-9 I/O Connections, for an understanding of the signal requirements necessary to control lasers. For more information about the UC-2000, please consult the UC-2000 Laser Controller Operator’s Manual found on the Novanta website. 4.2.1.1 Tickle Pulses Tickle pulses are signals that pre-ionize the laser gas to just below the lasing threshold so that a further increase in pulse width adds enough energy to the plasma to cause laser emission.

  • Page 54: Command Signal

    4.2.1.3 Figure: Typical Optical Output Pulse (50%) Duy Cycle at 3 kHz 4.2.1.4 Figure: Typical Optical Output Pulse (50%) Duy Cycle at 5 kHz 4.2.1.5 Command Signal The modulated Command signal applied between Pin 1 (PWM Positive) and Pin 6 (PWM Negative) on either interface connector has three basic parameters: signal amplitude, base frequency, and PWM duty ©...
  • Page 55 cycle. By changing these parameters, you can command the beam to perform a variety of marking, cutting, welding, or drilling operations. The first Command signal parameter, signal amplitude, is a square wave that is either logic low— corresponding to laser beam off, or logic high—corresponding to beam on. The laser off voltage, typically 0 V, can range from 0.0 V to +0.8 VDC while the laser on voltage, typically 5 V, can range from +3.5 V to +6.7 VDC.

  • Page 56: Operating Modes

    4.2.1.7 Table: PWM Command Signal Levels Laser State Minimum Nominal Maximum Laser Off 0.0 VDC 0.0 VDC +0.8 VDC Laser On +3.5 VDC (5 mA) +5.0 VDC (9 mA) +6.7 VDC (10 mA), continuous Frequency Range 0 Hz (DC) 5 kHz 100 kHz Duty Cycle 100% (95%...

  • Page 57: Continuous Wave (Cw) Operation

    4.2.2.3 Continuous Wave (CW) Operation In some applications, such as high-speed marking or cutting, the time constant of the laser and the PWM modulation causes a series of dots that may be visible on the marking surface instead of a “clean” line. Operating the laser in CW mode will prevent this behavior from occurring.

  • Page 58: I/O Connections

    4.3 DB-9 I/O Connections 4.3.1 DB-9 I/O Connector The DB-9 I/O connector provides a +5 VDC auxiliary output (DC Out), a PWM input, an enable input, and four status outputs. The user inputs, Laser Enable and PWM Positive/PWM Negative, enable lasing and provide output power control.
  • Page 59 4.3.1.2 Table: DB-9 I/O Pin Descriptions Description Function Use this optoisolated voltage input for tickle and PWM signals PWM Positive referenced to PWM Negative (Pin 6). The tickle signal is a +5 VDC, 1 μs Input pulse at 5 kHz while the PWM Command signal is a +5 VDC, 5 kHz nominal (100 kHz max) pulse width modulated square wave.

  • Page 60: Input Circuitry

    4.3.2 Input Circuitry Warning: Serious Personal Injury Always use shielded cable when connecting your PWM Command signal source to PWM Positive/PWM Negative inputs. In electrically noisy environments, long lengths of unshielded wire act like an antenna and may generate enough voltage to trigger uncommanded lasing. 4.3.2.1 Figure: Input Equivalent Schematic 4.3.2.2...

  • Page 61: Sample Input Circuits

    5V logic input buffer Off state Vmax +0.8 VDC Laser Enable On state Vmin +2.0 VDC @ 0.2 mA On state (continuous) Vmax +5.0 VDC @ 0.5 mA Important Note: Do not apply a Laser Enable signal until the vi Series laser internal +5 VDC power supply has stabilized (approximately 200 ms after DC power-up).

  • Page 62: Output Circuitry

    4.3.2.3.2 Figure: Customer Powered Laser Enable Circuit 4.3.2.3.3 Figure: PLC Switched Laser Enable Circuit 4.3.3 Output Circuitry The vi Series lasers have four user outputs that communicate laser status to the user’s control system. As described in the following table, the four outputs, Laser Ready, Lase Indicator, Over Temp Fault, and DC Voltage Fault are ESD protected, but are not optoisolated.
  • Page 63 The vi Series lasers also include a +5 VDC output voltage source, DC Out. This output can provide a maximum current of 250 mA and is useful for driving the Laser Enable input as described in the Input circuitry subsection. The table below provides vi Series output circuit specifications while the figure on the following page illustrates the output circuit’s equivalent internal schematic.

  • Page 64: Sample Output Circuit

    4.3.3.3 Sample Output Circuit You can monitor the vi Series laser status remotely by connecting one or more outputs to an isolated 5 VDC solid state relay or PLC input module. The figure below illustrates the connections required to monitor the vi30’s Lase Indicator status, or any other vi30 output, using an isolated 5 VDC input module. 4.3.3.4 Figure: Lase Indicator Output to PLC Input 4.3.4 vi40 Temperature Broadcast...

  • Page 65: Temperature Reading

    4.3.4.2 Figure: Synchronous Transmission of a Single Bit Rest Duration (ms) 15.625 Period 3.90625 High 3.90625 7.8125 Data The figure above shows the protocol for the synchronous transmission of a single bit. The rising edge of the output signal indicates the start of a data bit and the level must remain high for the time indicated by .
  • Page 66 The last 4 bits of data represents the binary temperature value in 0.0625°C increments. See the following figure and table for examples. 4.3.4.5 Figure: Example Output for Measurement of 25.5°C 4.3.4.6 Table: Example Temperature Measurements Temperature (Celsius) Corresponding Data Output +125 0 0111 1101 0000 0 0001 1001 0000...

  • Page 67: General Specifications

    4.4 General Specifications 4.4.1 vi Series General Specifications © Novanta | Page 66 of 90 | Be mindful of our environment, don’t print if you don’t need to.
  • Page 68 * Specifications subject to change without notice. 1 This power level is guaranteed for 12 months regardless of operating hours. 2 48 VDC input voltage to obtain guaranteed output power. 3 Guaranteed from cold start at 5kHz, 95% duty cycle. Value after 2 minutes typical.

  • Page 69: Outline & Mounting Drawings

    4.5 Outline & Mounting Drawings 4.5.1 Figure: vi30 Air-Cooled (OEM) Outline and Mounting Dimensions © Novanta | Page 68 of 90 | Be mindful of our environment, don’t print if you don’t need to.

  • Page 70: Mounting Feet

    4.5.1.1 Figure: vi30 Outline and Mounting Dimensions – with Optional Customer-Installed “Tall” Mounting Feet © Novanta | Page 69 of 90 | Be mindful of our environment, don’t print if you don’t need to.

  • Page 71: Mounting Feet

    4.5.1.2 Figure: vi30 Outline and Mounting Dimensions – with Optional Customer-Installed “Tall/Wide” Mounting Feet © Novanta | Page 70 of 90 | Be mindful of our environment, don’t print if you don’t need to.
  • Page 72 4.5.2 Figure: vi30 Water-Cooled Outline and Mounting Dimensions © Novanta | Page 71 of 90 | Be mindful of our environment, don’t print if you don’t need to.
  • Page 73 4.5.3 Figure: vi40 Air-Cooled Outline and Mounting Dimensions © Novanta | Page 72 of 90 | Be mindful of our environment, don’t print if you don’t need to.
  • Page 74 4.5.4 Figure: vi Series Packaging Instructions © Novanta | Page 73 of 90 | Be mindful of our environment, don’t print if you don’t need to.

  • Page 75: Maintenance And Troubleshooting

    5 Maintenance and Troubleshooting Use information in this chapter to perform maintenance or troubleshoot your vi Series laser. 5.1 Maintenance 5.1.1 Disabling the Laser Before performing any maintenance on your vi Series laser, be sure to completely disable the laser by disconnecting the DC Power Cables from the DC power supply.

  • Page 76: Storage/Shipping

    section in the Getting Started chapter, and the Technical Reference chapter for details on preventing condensation. Inspect beam delivery components for signs of dust or debris and clean as required. When cleaning the optical surfaces of beam delivery components, carefully follow the manufacturer’s instructions. Visually inspect the exterior housing of the laser to ensure that all warning labels are present.

  • Page 77: Cleaning Guidelines

    Danger: Serious Personal Injury Ensure that DC power to the laser is turned off and locked out before inspecting optical components in the beam path. Invisible CO2 laser radiation is emitted through the aperture. Corneal damage or blindness may result from exposure to the laser radiation. Caution: Possible Equipment Damage Because of their smaller beam diameter, the vi Series lasers have significantly higher power densities than most of our other lasers.

  • Page 78: Cleaning Material

    5.1.4.2 Table: Required Cleaning Materials The table below lists the type and grade of materials required to properly clean optical surfaces. Cleaning Material Requirement Latex gloves or finger cots Powder-free Air bulb Clean air bulb Ethyl or isopropyl alcohol Spectroscopic or reagent grade Acetone Spectroscopic or reagent grade Lens wipe (preferred)

  • Page 79: Troubleshooting

    Important Note: If acetone is used as a cleaning solvent, a second follow-up cleaning of the optical surface using alcohol is required Gently, and without applying pressure, drag the damp lens wipe across the optical surface in a single pass. Do not rub or apply any pressure, especially when using a cotton swab. Drag the wipe without applying any downward pressure.
  • Page 80 Danger: Serious Personal Injury This Class 4 laser product emits invisible infrared laser radiation in the 9.3 – 10.6 µm CO2 wavelength band, depending on model. Direct or diffuse laser radiation can inflict severe corneal injuries leading to permanent eye damage or blindness.
  • Page 81 5.2.2 Figure: Operational Flowchart The following figure illustrates the vi Series laser’s start up sequence © Novanta | Page 80 of 90 | Be mindful of our environment, don’t print if you don’t need to.

  • Page 82: Status Indicator Leds

    5.2.3 Status Indicator LEDs Three status indicator LEDs on the rear of the vi Series laser provide a visual indication of operating status. A green PWR LED illuminates when DC power is applied to the laser. The yellow RDY LED indicates that a Laser Enable signal has been applied and that, after a five- second delay, lasing will begin once a PWM Command signal is received.
  • Page 83 5.2.5 Table: vi Series Input I/O Status States © Novanta | Page 82 of 90 | Be mindful of our environment, don’t print if you don’t need to.

  • Page 84: Resetting Faults

    5.2.6 Resetting Faults 5.2.6.1 Over Temperature Fault Over temperature faults occur when thermal limits in the laser are exceeded (RDY indicator flashes continuously; PWR LED remains solid green). To reset an over temperature fault, cool laser chassis temperature below 60 °C and then cycle DC power. When the RDY LED illuminated without flashing, lasing is enabled.

  • Page 85: Other Laser Faults

    5.2.7 Other Laser Faults When a laser fault occurs, the status LEDs and output signals will reflect a fault condition as indicated in the previous table. Each Symptom listed below described a particular fault. For each Symptom, specific causes and solutions are described under Possible Causes. Symptom: The following LED and I/O states exist: LASE LED = Off Lase Indicator output...
  • Page 86 Possible Causes: An under voltage fault exists • An under voltage fault occurs when input voltage drops below 45 VDC for more than 420 ms. Check that the DC power supply is supplying +48 VDC under load and that its current capacity is 10 amperes or greater.
  • Page 87 Symptom: The following LED and I/O states exist: LASE LED = Off Lase Indicator output = Low (0V) • RDY LED = Flashing Laser Ready output - = Low (0V) • PWR LED = Flashing • Over Temp Fault output = Low (0V)) •...

  • Page 88: Beam Delivery Optics

    5.2.8 Beam Delivery Optics Warning: Serious Personal Injury The use of aerosol dusters containing difluoroethane causes “blooming,” a condition that significantly expands and scatters the laser beam. This beam expansion can affect mode quality and/or cause laser energy to extend beyond the confines of optical elements in the system, damaging acrylic safety shielding.
  • Page 89 Warning: Serious Personal Injury A risk of exposure to toxic elements, like zinc selenide, may result when certain optical or beam delivery components are damaged. In the event of damage to the laser, marking head, or beam delivery optics, contact Novanta or the optics manufacturer for handling instructions. If the focusing optic is pitted, it must be replaced immediately.
  • Page 90 This page is intentionally left blank © Novanta | Page 89 of 90 | Be mindful of our environment, don’t print if you don’t need to.
  • Page 91 Engineered by Synrad, part of Novanta © 2025, Novanta Corporation. All rights reserved. 4600 Campus Place Mukilteo, WA 98275 www.novantaphotonics.com V1 Revision A January 2025 © Novanta | Page 90 of 90 | Be mindful of our environment, don’t print if you don’t need to.

This manual is also suitable for:

Novanta vi30Novanta vi40

Table of Contents
