Laser Unpacking:
Important
Note:
Caution
Possible equip-
ment damage
Mounting feet and/or rails are optional, for complete details, refer to the laser's Operator's
ings
and
Mounting
located on our website.
If you discover shipping damage, document the damage (photographically if possible), then immediately no-
tify the shipping carrier (responsible party) and SYNRAD. After unpacking, review the Inventory list in the Intro
section within the operators manual.
If you need a replacement box for packing and/or shipping your laser,
Caution! When re-packing the laser for relocation or shipment, nothing can be on the sides of the laser
at any time as damage will occur. There is only one way the laser fits into the foam! All components must
be stowed under the laser. Re-package the wire harness as shown above. The wire harness &/or ports can
be damaged in shipping if not re-packaged as shown in this guide, the drawings, operation manual, and/or
resources located in our website.
Danger
Potential
Lifting
Injury
1
p250 Quick Start Guide
See your
Marking Head
plete installation details and instructions.
Read all
Danger,
the (Laser Safety Hazard information) sections in the Laser's Operation Manual and in
our Laser Safety/Compliance 101 on our website.
Caution! Unpacking the wire harness incorrectly can lead to damage.
Keep All specially designed Foam Packaging and end-caps, you will need to re-use it
when re-packaging/moving your laser. Refer to this guide and the Technical Reference
chapters in the laser's Operation Manual when re-packaging for shipping and/or reloca-
tion.
Two
Person Lift

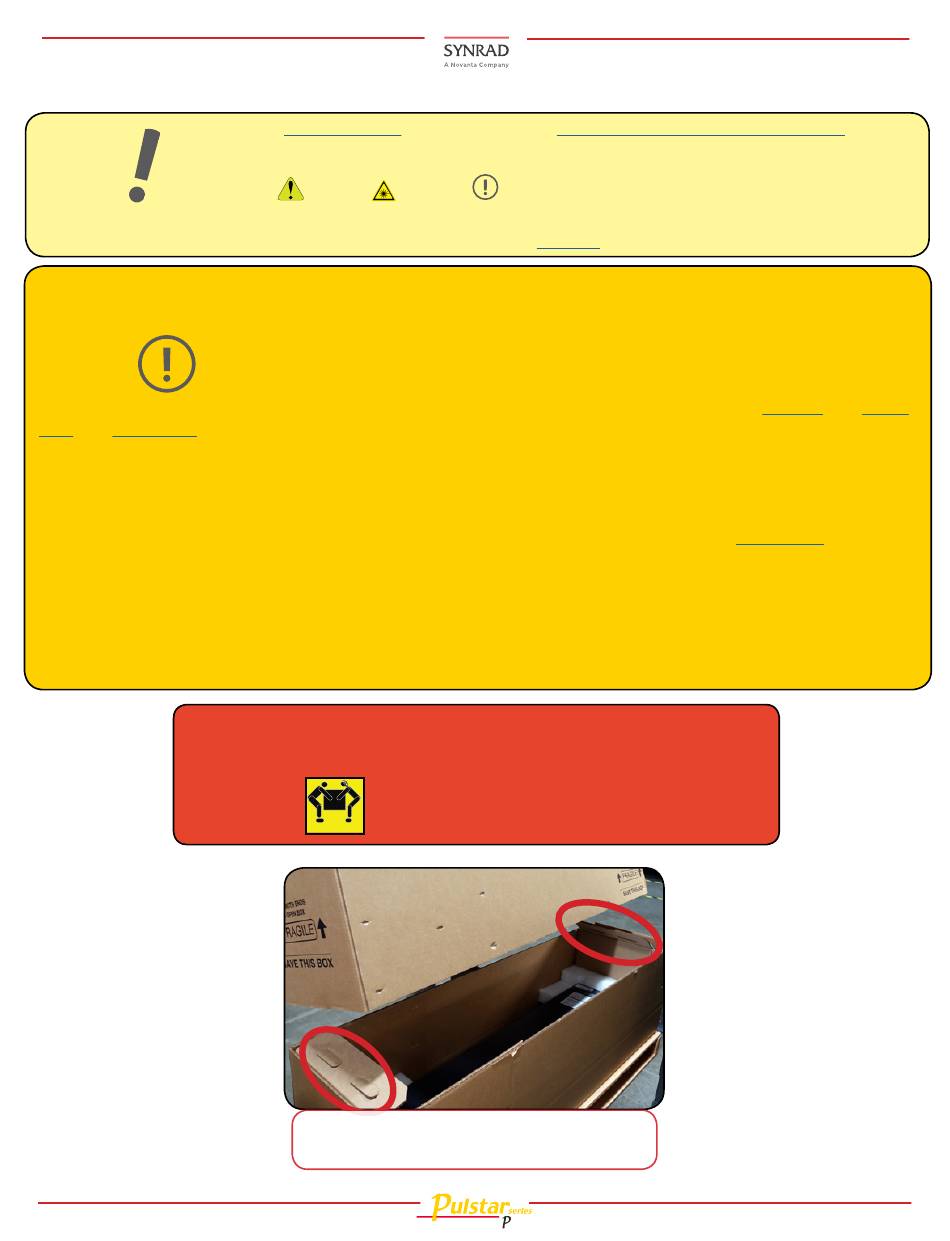

1.1 Two places for both people at
opposite ends of the box for lifting.
(If utilized) and the
Pulstar p100/150 Operators Manual
Warning,
Caution terms, symbols, and instructions located in
Use two people at a minimum to lift and/or
move the laser.
Use carts to minimize risk.
250
Manual
contact
p250 Laser Quick Start Guide Version 3.1
for com-
and
draw-
us.
Advertisement
Table of Contents
Related Manuals for Synrad p250
Summary of Contents for Synrad p250
- Page 1 If you discover shipping damage, document the damage (photographically if possible), then immediately no- tify the shipping carrier (responsible party) and SYNRAD. After unpacking, review the Inventory list in the Intro section within the operators manual.
- Page 2 Cooling 101 located on our website. Note: IF not using a SYNRAD marking head OR mounting kit with your laser, continue to the section below. Note: IF using the Flyer 3D marking head with your laser, review the following sections in this guide, also see the Mounting &...
- Page 3 Caution SYNRAD does not recommend mounting lasers in a vertical, (head and/or tail down) Possible position. Please contact the factory for limitations as a vertical orientation increases the Equipment risk of damage to the lasers optics.
- Page 4 Quick Start Guide Mounting (Continued): When mounting the p250, you can choose to fasten from below, into the mounting surface, into the laser’s mounting brackets. See the figure below. Assemble three spherical washer sets as shown in Detail in the following drawing. These hole locations should correspond to the threaded holes labeled “M”, for metric, or “S”, for standard.
- Page 5 Eight (8) Long laser mounting bolts. Remove the aperture seal. Four (4) Triangle bolts. Two (2) Pegs. Path enclosure tube. Twelve (12) laser mounting bolts. Eight (8) Marking Head Mounting bolts. p250 Laser Quick Start Guide Version 3.1...
- Page 6 Affix the bolt onto the eye bolt as shown. so that it moves down toward the rail. Assure the bolt is snugged flush Assemble the 4 eye-bolts/nuts onto the rail as shown above in 6.2. with the rail as shown above. p250 Laser Quick Start Guide Version 3.1...
- Page 7 10.1 The Triangle bar screws and final placement on the rail are shown circled in red below. Laser feet Laser feet screws screws Note: The Laser feet screws are shown in their final locations for clarity on the rail above. p250 Laser Quick Start Guide Version 3.1...
- Page 8 11. After the triangle bars are installed place the side screw(s) as shown below on each side. 11.1 Install the two (2) bar/triangle bar end screws, affixing the triangle rails to the bar rail, see 8.1 on the previous page. p250 Laser Quick Start Guide Version 3.1...
- Page 9 Note: Should look like this when mounting is complete. Note: Very important! Assure the notch is facing to the back left of the laser! Otherwise, re-work required because the head will be mounted incorrectly. Notch p250 Laser Quick Start Guide Version 3.1...
- Page 10 15. Assure the Laser and Marking Head are mounted on the rail first, then assemble the tube’s path enclosure below. Locate the path enclosure components in the kit. 15.1 Mount the marking head to the rail. Tighten all four (4) screws, (two on each side.) p250 Laser Quick Start Guide Version 3.1...
- Page 11 15.4 Place the expander cooling head into the path enclosure tube on the gasket end. Rotate the cooling head 15.5 Apply mild compression to the assembly and slide into place. down p250 Laser Quick Start Guide Version 3.1...
-
Page 12: Guidelines For Cutting And Installing Tubing
Never allow the tubing to kink, since kinking severely restricts coolant flow. Push tubing completely into the fitting, then pull the tubing to verify that it is locked into place. p250 cooling fittings are designed to accept 12mm polyethylene tubing. If adaption is required, we recommend McMaster-Carr (P/N 51495K416). - Page 13 Install gas purge- Introduce nitrogen or dry filtered air into the laser housing*. *See Assist gas purity and Purge gas specifications in the Technical References section of the p250 Opera- tor’s Manual. See the Facilities/Utilities (Air Drop or Gas Purge Port) in the next few sections of this guide.
- Page 14 If coolant flow needs adjusting: Note: Assure coolant flow is within specifications located in the Technical Reference chapter of the 16.1 Exploded view of the Pulstar p250 laser Laser’s Operation Manual. cooling connections. Refer to the dew point table and coolant flow specifications in the aforementioned chapter in the Operator’s Manual and gradually increase...
-
Page 15: Things To Know
If you operate your laser or marking head in a dirty or dusty environment, contact Possible equipment SYNRAD about the risks of doing so and precautions you can take to increase the damage longevity of your laser, marking head, and associated optical components. -
Page 16: Control Connections
Control Connections: 21. Connect the Ethernet & BNC (Laser Control) cabling per the SYNRAD marking head QSG. If using the QSP, see your Laser’s Operators Manual. If you aren’t using a SYNRAD marking head, go to the next section. -
Page 17: Final Preparations
If using a diode pointer and/or this is a new laser and you need to verify performance, see the Diode Pointer Quick Start Guide and the How to video located on our website. p250 Laser Quick Start Guide Version 3.1... -
Page 18: Finished Setup
To PC Ethernet Important Ferrite bead adjacent port Note: to Marking Head. To Laser BNC port To Chiller From Chiller (not shown) To User TCP/IP Interface To Chiller Purge From Chiller Power Supply p250 Laser Quick Start Guide Version 3.1... - Page 19 34.5 kPa (5 PSI). If a flow-meter is not available, set a purge pressure between 13.8–34.5 kPa (2–5 PSI). Air conditioning the room will also help. 30. Make note of the current PWM setting. Set the PWM signal source to provide zero percent output (0.0%). p250 Laser Quick Start Guide Version 3.1...
- Page 20 Initial Laser startup (Continued): 31. Turn on the +48 VDC power supply. If using a SYNRAD power supply, please see our website for further details. If input signals are properly applied to the user I/O connector, or the factory-wired Quick Start Plug is installed, the INT indicator will illuminate green, the SHT indicator will illuminate blue, and the RDY LED will illuminate yellow.
