Summary of Contents for Synrad Firestar OEM vi30
- Page 1 OEM vi30 reference guide 4600 Campus Place Mukilteo, WA 98275 USA 1.800.SYNRAD1 tel 1.425.349.3500 fax 1.425.349.3667 e-mail synrad@synrad.com web www.synrad.com...
-
Page 3: Table Of Contents
Figure 6 Firestar vi30 external temperature monitor- Firestar OEM vi30 label locations ........6 ing point ............15 Compliance requirements ..........7 Figure 7 Firestar OEM vi30 controls and indicators ..17 Center for Devices and Radiological Health Figure 8 Firestar OEM vi30 standard package outline (CDRH) requirements ..........7 and mounting dimensions ........23... -
Page 4: Warranty Information
SYNRAD shall assume the shipment was delivered complete and defect-free. If, within one year from the date of purchase, any part of the Firestar vi30 laser should fail to operate, contact the SYNRAD Customer Service department at 1.800.SYNRAD1 (outside the U.S. call 1.425.349.3500) and report the problem. When calling for support, please be prepared to provide the date of purchase, model number and serial number of the unit, and a brief description of the problem. -
Page 5: Laser Safety
Danger This product is not intended for use in explosive, or potentially explosive, atmospheres. serious serious personal personal injury injury Synrad Firestar OEM vi30 reference guide... - Page 6 A risk of exposure to toxic elements, like zinc selenide, may result when certain optical or beam delivery components are damaged. In the event of damage to laser, marking serious possible head, or beam delivery optics, contact SYNRAD, Inc. or the optics manufacturer for handling instructions. personal personal...
- Page 7 This product contains components that are considered hazardous industrial waste. If a situation occurs where the laser is rendered non-functional and cannot be repaired, it may be returned to SYNRAD, Inc. who, for a fee, will ensure adequate disassembly, recycling, and/or disposal of the product.
-
Page 8: Firestar Oem Vi30 Label Locations
This laser component does not comply with standards for complete laser products as specified by 21 CFR 1040.10 or IEC 60825-1. SYNRAD, Inc. 4600 Campus Place, Mukilteo WA 98275 425.349.3500 This laser product is manufactured under one or more of the following U.S. Patents:... -
Page 9: Compliance Requirements
Because OEM laser products are intended for incorporation as components in a laser processing system, they do not meet all of the Standards for complete laser processing systems as specified by 21 CFR, Part 1040 or EN 60825-1. SYNRAD, Inc. -
Page 10: European Union (Eu) Requirements
Ensure that all exterior covers are properly fastened in position. Measures to Correct Interference If you suspect that your Firestar OEM vi30 laser interferes with other equipment, take the following steps to minimize this interference: Use shielded cables to and from the equipment that is experiencing interference problems. -
Page 11: Class Iv Safety Features
CISPR:11 and EN 61000-6-4 define radiated and conducted RF emission limits while the generic Standard EN 61000- 6-2 defines immunity requirements. SYNRAD’s Firestar OEM vi30 lasers have been tested and found to comply by demonstrating performance characteristics that have met or exceeded the requirements of EMC Directive 2004/108/EC. -
Page 12: European Union Directives
Compliance requirements (cont.) When integrating SYNRAD’s OEM vi30 lasers, the Buyer and/or integrator of the end system is responsible for meeting all applicable Standards to obtain the CE mark. To aid this compliance process, SYNRAD’s testing program has demonstrated that Firestar vi30 lasers comply with the relevant requirements of 2004/108/EC, the Electromagnetic Compatibility Direc- tive, as summarized in Table 2 below. -
Page 13: Declaration Of Conformity
Directives and Standards for CE compliance and marking. Corporate Officer: European Contact: Excel Technology Europe GmbH Münchner Str. 2a D-82152 Planegg Germany Dave Clarke, President of SYNRAD, Inc. Dated 3 December 2010 Synrad Firestar OEM vi30 reference guide... -
Page 14: Introduction

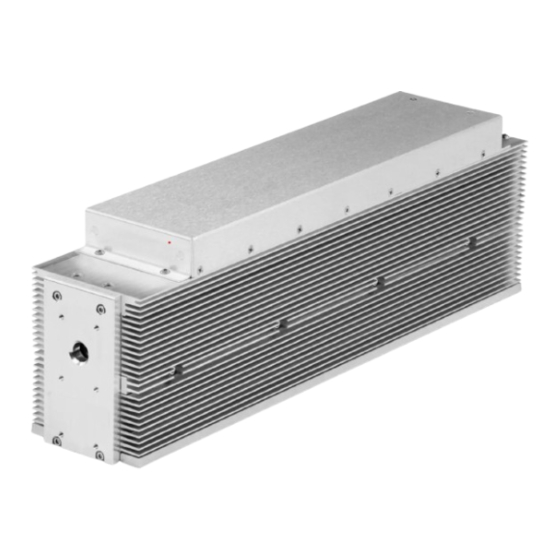

Introduction The Firestar OEM vi30 laser is a more compact version of the Firestar v30 laser and is designed to provide OEMs with the smallest possible 30 W laser package. The optoisolated PWM input, PWM Positive, (on the DB-9 I/O connector) is identical to that on the v30 laser and, like the v30, the vi30 does not incorporate a built-in tickle generator—users must provide a 5... -
Page 15: Installation
Mounting The Firestar OEM vi30 base plate (and the optional customer-installed mounting feet) are designed so the laser can be easily mounted using only three 1/4–20 UNC or M6×1 ISO fasteners. Three ball bearing ‘feet’ eliminate any possible distortion of the laser tube caused by variations in the flatness of the mounting surface. -
Page 16: Figure 4 Optional Mounting Feet Installation
Optional mounting feet installation Mounting the OEM vi30 laser To fasten the Firestar OEM vi30 laser to your mounting surface, perform the following steps: Refer to the appropriate vi30 outline and mounting diagram and drill three holes into your mounting surface that cor- respond to either the UNC or metric baseplate (or optional mounting foot) hole pattern. -
Page 17: Cooling
A reading of approximately 60 °C (140 °F) at this location is the point where over temperature faults will begin to occur. Measure chassis temperature Top View Front at this location Firestar vi30 external temperature monitoring point Figure 6 Synrad Firestar OEM vi30 reference guide... -
Page 18: Electrical Connections
DC power supply The Firestar OEM vi30 laser requires a DC power supply capable of providing 48 VDC at 10 A minimum (11 A peak for less than 1 ms). To connect the vi30 laser to the 48 VDC power supply, perform the following steps: Verify that input AC power to the DC power supply is physically locked out or disconnected. -
Page 19: Controls And Indicators
Optical Accessories Mounting – provides six threaded holes (8–32 UNC) for mounting optional beam delivery com- ponents available from SYNRAD. Because excessive weight may damage the laser, consult SYNRAD before mounting components not specifically designed as Firestar options. Refer to the Firestar OEM vi30 package outline drawings for mounting hole dimensions. -
Page 20: Operation
Always be aware of the beam’s path and always use a beam block while testing. Warning On Firestar OEM vi30 lasers, DC voltage faults are not latched. Clearing a DC voltage fault (under- or over-voltage) will restore normal operation and lasing is possible after serious the five-second delay provided that the Laser Enable input signal is high. - Page 21 If you are not using a UC-2000 to control the laser, remove the PWM Command signal from the laser and re-apply tickle pulses every 200 µs. The LASE LED turns off. If your OEM vi30 laser fails to lase, refer to the Troubleshooting section for troubleshooting information. Synrad Firestar OEM vi30 reference guide...
-
Page 22: Db-9 I/O Connector
DC power to restore normal operation. Note: Firestar OEM vi30 outputs are voltage sources. They can provide only 20 mA typical, 40 mA maximum, to a ground referenced load (the ground reference, GND, is Pin 8.). The control board will be damaged if this current maximum is exceeded. -
Page 23: I/O Connector Pinouts
When switching +5 VDC to the Laser Enable input (DB-9, Pin 9) through a switch or relay contact, we highly recommend adding a 100 Ohm, 1/4 watt resistor in series between the switching device and the Laser Enable input. Synrad Firestar OEM vi30 reference guide... -
Page 24: Firestar Vi30 General Specifications
5 Measured at laser output. 6 Measured at location shown by Item 9 in Figure 3, Firestar OEM vi30 controls and indicators. 7 Published specifications guaranteed at a temperature of 22 °C. Some performance degradation may occur in ambient temperatures above 22 °C. Typically, laser output power decreases 0.5–1% per degree Celsius increase in ambient temperature. -
Page 25: Firestar Oem Vi30 Package Outline Drawings
Firestar OEM vi30 package outline drawings Figure 8 Firestar OEM vi30 standard package outline and mounting dimensions Synrad Firestar OEM vi30 reference guide... -
Page 26: Dimensions – With Optional Customer-Installed Tall' Mounting Feet
Firestar OEM vi30 package outline drawings Figure 9 Firestar OEM vi30 package outline and mounting dimensions – with optional customer-installed ‘Tall’ mounting feet Synrad Firestar OEM vi30 reference guide... -
Page 27: Dimensions – With Optional Customer-Installed Tall/Wide' Mounting Feet
Firestar OEM vi30 package outline drawings Figure 10 Firestar OEM vi30 package outline and mounting dimensions – with optional customer- installed ‘Tall/Wide’ mounting feet Synrad Firestar OEM vi30 reference guide... -
Page 28: Troubleshooting
Troubleshooting This section is designed to help isolate Firestar OEM vi30 lasers problems to the board level only. Problems on circuit boards or the laser tube are not within the scope of this guide because they are not user-serviceable assemblies; do not attempt to repair them. -
Page 29: Laser Faults
A control board failure has occurred. Contact SYNRAD or a SYNRAD Authorized Distributor. Warning On Firestar OEM vi30 OEM lasers, DC voltage faults are not latched. Clearing a DC voltage fault (under- or over-voltage) will restore normal operation and lasing is pos- serious sible after the five-second delay provided that the Laser Enable input signal is high. -
Page 30: I/O Connector
PWM signal is applied. ■ A control board failure has occurred. Contact SYNRAD or a SYNRAD Authorized Distributor. Symptom: ■ Both PWR and RDY indicators are flashing. The LASE LED is Off. On the DB-9 I/O connector, all outputs (Lase Indi- cator, Laser Ready, DC Voltage Fault, and Overtemp Fault) are low (0 V). -
Page 31: Firestar Oem Vi30 Reference Guide
Caution If you operate your laser or marking head in a dirty or dusty environment, contact SYNRAD about the risks of doing so and precautions you can take to increase the possible longevity of your laser, marking head, and associated optical components. -
Page 32: Firestar Oem Vi30 Reference Guide
This page intentionally left blank. Synrad Firestar OEM vi30 reference guide...
