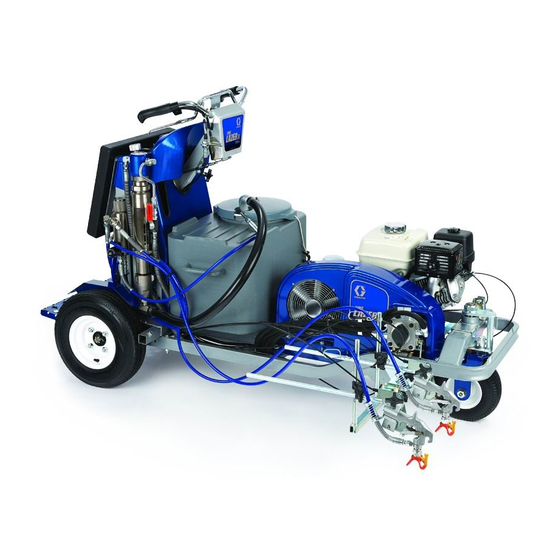

Graco LineLazer IV 250SPS Operation

Self-propelled line striper, for the application of line striping materials, for professional use only, for outdoor use only, not for use in hazardous locations or explosive atmospheres, maximum operating speed 10 mph 16 kph, maximum operating pressure: 3
Hide thumbs Also See for LineLazer IV 250SPS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Repair Manual, Operation & Installation Manual

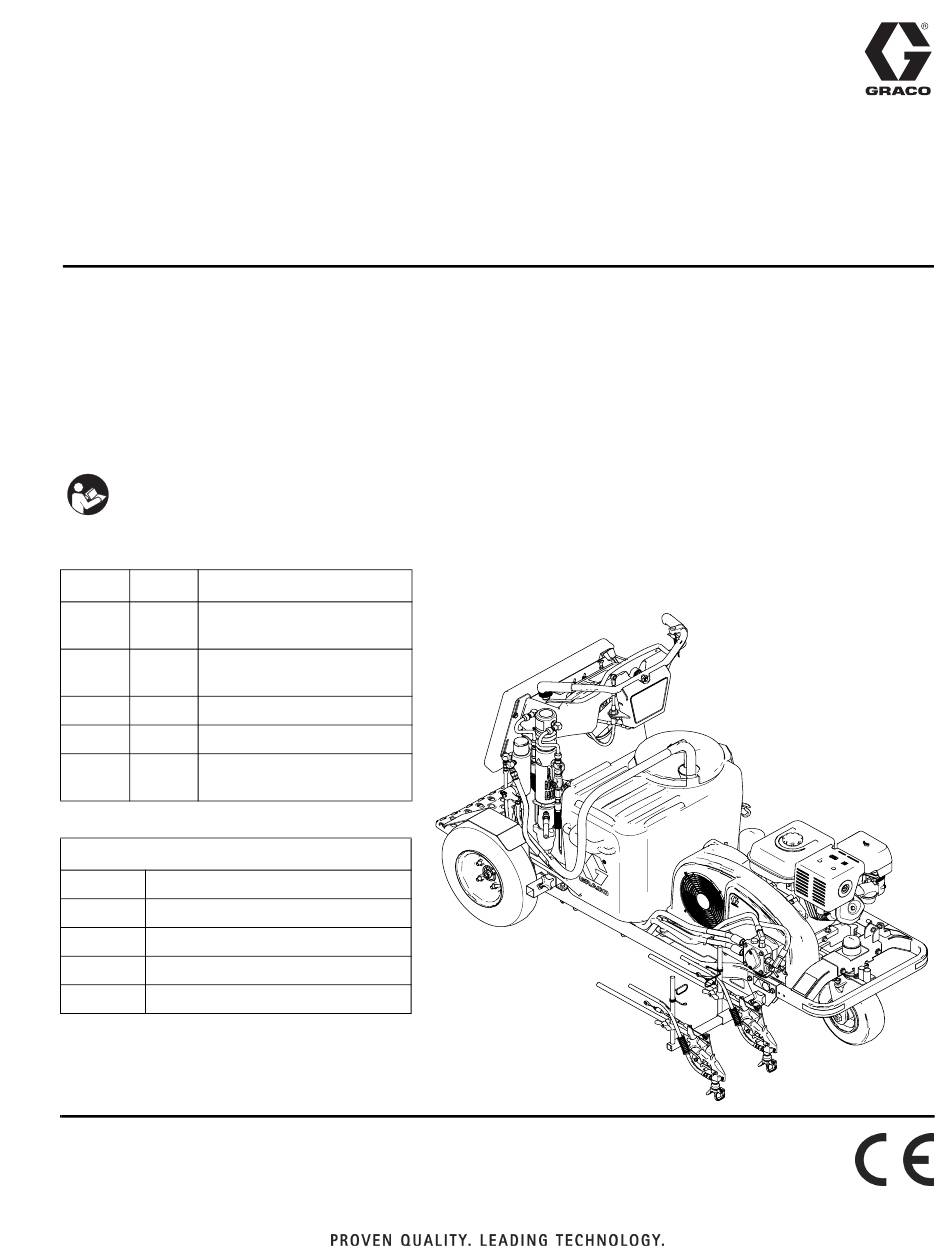

Operation
LineLazer IV 250
Self-Propelled Line Striper
For the application of line striping materials.
For professional use only.
For outdoor use only.
Not for use in hazardous locations or explosive atmospheres.
Maximum Operating Speed: 10 mph (16 kph)
Maximum Operating Pressure: 3300 psi (22.8 MPa, 228 bar)
IMPORTANT SAFETY INSTRUCTIONS
Read all warnings and instructions in
this manual and the engine manual.
Save these instructions.
Model
Guns
Description
LLIV 250SPS (North America,
24F307
2 Guns
Latin America, Asia Pacific)
LLIV 250SPS (Latin America,
24K960
1 Gun
Asia Pacific)
24K961
1 Gun
LLIV 250SPS (Europe)
24K962
2 Guns
LLIV 250SPS (Europe)
FieldLazer G400
24M608 1 Gun
(North America)
Related Manuals:
3A2593
Repair
3A2598
Parts
311254
Gun
309277
Pump
312307
Auto-Layout Applications Methods
SPS
3A2090A
EN
ti17520a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LineLazer IV 250SPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco LineLazer IV 250SPS

Summary of Contents for Graco LineLazer IV 250SPS

  • Page 1 Operation LineLazer IV 250 3A2090A Self-Propelled Line Striper For the application of line striping materials. For professional use only. For outdoor use only. Not for use in hazardous locations or explosive atmospheres. Maximum Operating Speed: 10 mph (16 kph) Maximum Operating Pressure: 3300 psi (22.8 MPa, 228 bar) IMPORTANT SAFETY INSTRUCTIONS Read all warnings and instructions in this manual and the engine manual.

  • Page 2: Table Of Contents

    Straight Line Adjustment ....19 Graco Standard Warranty ....36 Handle Bar Height Adjustment .

  • Page 3: Warnings

    Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these sym- bols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard sym- bols and warnings not covered in this section may appear throughout the body of this manual where applicable.
  • Page 4 Warnings WARNING ENTANGLEMENT HAZARD Rotating parts can cause serious injury. • Keep clear of moving parts. • Do not operate equipment with protective guards or covers removed. • Do not wear loose clothing, jewelry or long hair while operating equipment. •...
  • Page 5 Warnings WARNING BATTERY SAFETY The battery may leak, explode, cause burns, or cause an explosion if mishandled. • Only use the battery type specified for use with the equipment. See Technical Data. • Battery maintenance must only be performed or supervised by personnel knowledgeable of batteries and the required precautions.

  • Page 6: Component Identification (Sprayer)

    Component Identification (Sprayer) Component Identification (Sprayer) ti15841a Engine ON/OFF Switch Operator Platform Hydraulic Fill Cap / Dipstick Paint Filter Oil Filter Prime / Drain Valve Paint Hopper (25 gallon / 75 liter) Displacement Pump Handle Bar Height Adjustment Knob Rear Gun Arm Mount Engine Recoil Handle Serial Label Brake...

  • Page 7: Component Identification (Controls)

    Component Identification (Controls) Component Identification (Controls) ti18719a Hydraulic Pump Valve Gun Trigger Control Forward / Reverse Lever Display Engine Throttle Engine Choke Gun 1 Selector Gun 2 Selector Engine Kill / Main Power Switch 12V Accessory Jack Pressure Control 3A2090A Operation...

  • Page 8: Grounding Procedure (For Flammable Materials Only)

    Grounding Procedure (For Flammable Materials Only) Grounding Procedure Pressure Relief Procedure (For Flammable Materials Only) This equipment stays pressurized until pressure is manually relieved. To help prevent serious injury from This equipment must be grounded to reduce the risk pressurized fluid, such as skin injection, splashing of static sparking.

  • Page 9: Setup/Startup

    Setup/Startup Setup/Startup 6. If removed, install strainer. This equipment stays pressurized until pressure is manually relieved. To help prevent serious injury from pressurized fluid, such as skin injection, splashing fluid and moving parts, follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or servicing the equipment.
  • Page 10 Setup/Startup 10. Start engine: After engine starts, move choke to open. a. Move fuel valve to open. ti3312a ti18563a b. Move choke to closed. 11. Set main power switch ON. ti18552a 12. Set pump valve ON (pump is now active). ti18561a c.

  • Page 11: Switchtip And Guard Assembly

    Setup/Startup 14. Increase pressure control enough to start pump. 19. Trigger gun again into flushing fluid pail until paint Allow fluid to circulate for 15 seconds. appears. Assemble tip and guard. 15 SEC. ti3442a 15. Turn pressure down, turn prime valve horizontal. Disengage gun trigger safety.

  • Page 12: Gun Placement

    Gun Placement Gun Placement Install Gun 3. Use the Gun Selector Switches to determine which guns are active. Each gun selector switch has 3 positions: continuous line, OFF, and programmed 1. Insert gun into gun holder. Tighten clamp. line pattern. Programmed line pattern OFF position disengages gun Continuous line...

  • Page 13: Gun Arm Mounts

    Gun Placement Gun Arm Mounts 3. Slide gun arm assembly into desired gun arm mounting slot. This unit is equipped with front and rear gun arm mounts. ti18980a 4. Tighten gun arm knob into gun arm mounting slot. ti18556a ti18974a NOTICE ti18555a Make sure all hoses, cables, and wires are properly...
  • Page 14 Gun Placement 3. Loosen gun mounting wing nut and remove gun 2. Install gun mount onto gun arm assembly and mount. tighten gun mount wing nut. ti18978a ti18979a ti18984a 3. Tighten gun arm knob into gun arm mounting slot. ti18985a 4.

  • Page 15: Gun Cable Adjustment

    Gun Placement Gun Cable Adjustment 3. Install cable end onto trigger plate pin and install clip. Adjusting the gun cable will increase or decrease the gap between the trigger plate and the gun trigger. To adjust trigger gap, perform the steps below. ti18987a ti18998a 4.

  • Page 16: Change Trigger Position

    Gun Placement Change Trigger Position Removal Installation 1. Remove both hand grips from handle bar (spraying 1. Route trigger wire to other side of handle bar. Make compressed air into end of handle grip works well sure wire is routed behind steering column, through for this).

  • Page 17: Gun Positions Chart

    Gun Placement Gun Positions Chart ti18553a One line One line up to 24 in. (61 cm) wide. Two lines One gun curb Two gun curb 3A2090A Operation...

  • Page 18: Driving Instructions

    Driving Instructions Driving Instructions To turn right and left: Turn the handle bar right or left to steer the LineStriper. Perform Startup, page 9. Use the handle bars of the LineStriper to control all motion during operation. In addition to steering the LineStriper, the handle bars also control forward and ti17518a reverse movement by pulling the forward/reverse control...

  • Page 19: Drive Engagement

    Driving Instructions Drive Engagement 3. If striper arcs to the left, turn adjuster screw counter-clockwise. The wheel motor bypass valve allows the operator to disengage the wheel tension and push the unit around. Rotate one complete turn counter-clockwise to disengage. ti18591a 4.

  • Page 20: Platform Storage Position

    Driving Instructions Platform Storage Position Front Pad Adjustment 1. Raise stand and pin self-locks. 1. Loosen four bolts. 2. Slide pad up or down to desired position. 4 bolts ti18560a ti19006a 2. To lower stand, pull pin and lower stand. 3.

  • Page 21: Smart Control Overview

    Smart Control Overview Smart Control Overview Quick Guide 3A2090A Operation...

  • Page 22: Smart Control Operation

    Smart Control Operation Smart Control Operation Initial Setup Calibration 1. Select appropriate language. 1. Check tire pressure and fill if necessary. 2. Rotate calibration bar. !!(1* 6(783 02'(    ! 2. ! ti19024a ENG = English ti18713a SPA = Spanish FRE = French DEU = German NOTE: Languages can also be changed later.
  • Page 23 Smart Control Operation 6. Press SETUP twice to move to CALIBRATION & 10. Stop when calibration bar rear edge aligns with UNITS display. Set TRAVEL DISTANCE to 25 ft. 26-ft. on steel tape (25-ft. distance). Longer distances ensure better accuracy, depend- ing on conditions.

  • Page 24: Change Units Or Language

    Smart Control Operation Change Units or Language 2. While in CHANGE UNITS display, press CHANGE to change units or NEXT to move to the next unit of measure. Press SETUP to exit CHANGE UNITS 1. Press SETUP twice to move to CALIBRATION & mode.

  • Page 25: Operation In Manual Mode

    Smart Control Operation Operation in Manual Mode Operation in Automatic Mode Preset Skip Patterns 0DQXDO 0RGH 6(783 02'(     1. In the AUTOMATIC MODE, the striper is equipped ',67$1&( *$//216 UHVHW ! with Preset Skip Patterns. To select a preset skip -2% 0,/ µ...
  • Page 26 Smart Control Operation Advanced: Preset Skip Patterns 1. A Preset Skip Pattern can be modified for a custom 3. Use EDIT arrows to change the PAINT line length. pattern. From AUTO MODE press SETUP key to Use SELECT arrows to scroll down to SPACE get preset patterns.

  • Page 27: Parking Layout Mode

    Smart Control Operation Parking Layout Mode Advanced: Parking Calc 1. Press SETUP and move to PARKING CALC. The NOTE: Please use the 286111 tip provided with striper striper divides the stall size into the measurement for parking lot layout work. For best performance set taken here to determine the number of stalls that pressure to 1000 psi (68.9 bar, 6.89 MPa) and reverse can be striped in this space.
  • Page 28 Smart Control Operation Angle Stalls 4. Measure and mark the offset distance for the first stall. 1. Angle stalls require the operator to input stall angle and depth. The Auto-Layout System calculates the offset distance based on this input. 5. Press SETUP two times to save angled stall dot spacing to PARKING LAYOUT MODE.

  • Page 29: Marker Mode

    Smart Control Operation Marker Mode Automatic marker layout example shows typical lane line layout for reflective markers. Set space sizes up to 8 consecutive measurements. By leaving zeros in 1. Press the MODE key to select Parking Layout any space, AutoLayout will skip to the next Mode.

  • Page 30: Measure Mode

    Smart Control Operation Measure Mode Machine Information 1. Press SETUP once from Manual Mode display. 1. Press SETUP button three times from Manual Mode display. 0$18$/ 02'( 6(783 02'( 0$18$/ 02'(     6(783 02'(     ',67$1&( *$//216 UHVHW !

  • Page 31: Cleanup

    Cleanup Cleanup 5. Place siphon tube set in grounded metal pail par- tially filled with flushing fluid. Attach ground wire to true earth ground. Perform Startup steps 1 - 6 (see page 9) to flush out paint in sprayer. Use water to This equipment stays pressurized until pressure is flush water-base paint and mineral spirits solvent manually relieved.

  • Page 32: Hydraulic Oil/Filter Change

    1. Apply a light film of oil on filter gasket. Install drain ti2271a plug and oil filter (227). Tighten oil filter 3/4 turn after gasket contacts base. 2. Fill with five quarts of Graco hydraulic oil 169236 (5 gallon/20 liter) or 207428 (1 gallon/3.8 liter). 3. Check oil level. 3A2090A Operation...

  • Page 33: Technical Specifications

    Technical Specifications Technical Specifications LineLazer IV 250 (Models 24F307, 24K960, 24K961, 24K962, 24M608) U.S. Metric Dimensions Height (with handle bar down) Unpackaged - 47.25 in. Unpackaged - 120.0 cm Packaged - 54.25 in. Packaged - 137.8 cm Width Unpackaged - 33.0 in. Unpackaged - 83.8 cm Packaged - 40.0 in.

  • Page 34: Notes

    Notes Notes 3A2090A Operation...

  • Page 35: Notes

    Notes Notes 3A2090A Operation...

  • Page 36: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
