  • Page 1 TRUTOUCH RS Series User Manual V1.0...

  • Page 2: Table Of Contents

    2.1 Safety Precautions ..............................17 2.2 Installation Precautions ............................... 18 2.3 Installation .................................. 19 2.4 Installing the Internal PC (Optional) ........................... 21 2.5 Installing Newline Assistant ............................22 3 Getting Started..........................23 3.1 Power On ..................................23 3.2 Power Off..................................24 3.3 Calibration ..................................
  • Page 3 4.3.10 Input/Output Setting .............................. 47 4.3.11 Logo and Wallpaper Setting ........................... 47 4.3.12 Security Setting ..............................48 4.3.13 Theme ..................................48 4.3.14 About ..................................49 4.4 Windows ..................................50 4.5 Screen Sharing ................................50 4.6 Whiteborad ................................. 51 4.6.1 Whiteboard Functions .............................. 53 4.6.2 Page Management ..............................
  • Page 4 Welcome to the world of TRUTOUCH Thank you for choosing the RS series Collaboration Touch Screen. Please use TRUTOUCH this document to get the most out of your screen. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: About This Document

    About This Document This document describes multiple functions, instructions, and notes about the product. Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows: Provides additional information to supplement operation in the main text. Provides tips for operation.

  • Page 6: Safety Instruction

    The voltage/current of the rear power output port is 5V/2A (maximum). Purchase the power code/AC adapter according to customer needs. The port can be used for the Newline X10D Android box. Please do not connect any products with different power requirement. Otherwise,...
  • Page 7 WARNING Do not put items on the top of the product. Do not put items, such as a container for liquid (a vase, flowerpot, cosmetics, or liquid  medicine) on the top of the product. If any water or liquid is spilled on the product, the product may short circuit and cause fire or ...
  • Page 8 CAUTION Do not install the product on carpet or cloth.  Do not use a cloth, such as table cloth, to cover the product.  Keep the product away from the radio. The product complies with the international EMI standard to pervent radio interference. However, interference may still exists and causes noise in the radio.

  • Page 9: Overview

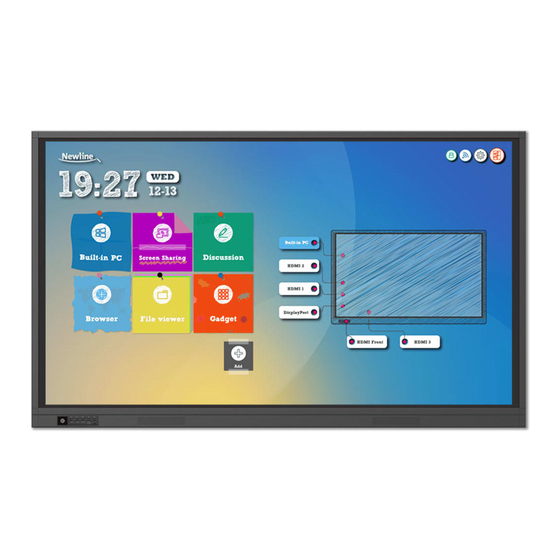

    Overview 1.1 Introduction Take collaboration to the next level with the TRUTOUCH RS interactive display. Increase productivity and collaboration across the board with a display that uses advanced touch technology. Each TRUTOUCH can be customized to fit your needs. The non-proprietary nature lets you use the software you prefer, take notes on local files, wirelessly cast to the screen from smaller devices, run your favorite apps, and view multimedia files, all while making your experience better than before.
  • Page 10 Rear View  TT-6518RS： TT-7518RS/TT-8618RS:...
  • Page 11 TT-9818RS: Remote Control Receiver Speakers Power On/Off Power Supply Plug Power Switch Light Sensor Front Plate Cover Internal PC Port (OPS) Front Ports Rear Ports Front Buttons...

  • Page 12: Ports

    The voltage/current of the rear power output port is 5V/2A (maximum). Purchase the power code/AC adapter according to customer needs. The port can be used for the Newline X10D Android box. Please do not connect any products with different power requirement. Otherwise...
  • Page 14 Please connect an X10D to HDMI rear 2.
  • Page 15 Front Buttons Buttons Operations Functions Short press Power on/off Steady red color: Display is in shut down mode  Steady blue color: Display is on and working  Home Short press Go to the home page Return Short press Return to the last menu/Exit Menu Short press Open the Settings menu...

  • Page 16: Remote Control

    1.4 Remote Control Carefully read the following instructions before using the remote control to avoid possible faults: Do not drop or damage the remote control.  Do not spill water or other liquids on the remote control.  Do not place the remote control on a wet object. ...
  • Page 17 Buttons Operations View all Pre-installed Applications Switch Source to Internal PC Switch Source to Display Port HDMI Switch Source to HDMI Front FRONT HDMI 1 Switch Source to HDMI 1 HDMI 2 Switch Source to HDMI 2 Switch Source to VGA Autocorrection Screen Display (For VGA Signal Source) Open the Browser Application...

  • Page 18: Installation Guide

    Installation Guide 2.1 Safety Precautions Installation Environment Installation Direction...

  • Page 19: Installation Precautions

    2.2 Installation Precautions Weight Loading Weight of the product: 293lb/ 133kg (TT-9818RS), 161lb/ 73 kg (TT-8618RS), 123lb/56 kg (TT-7518RS), 97lb/ 44kg (TT-6518RS) When using a mobile stand, ensure that the weight of the product is less than the loading  capacity of the mobile stand.

  • Page 20: Installation

    For any problem, please contact our support desk. Our company is not responsible for any damage or losses incurred by users if the users fails to follow the instructions. Ventilation Ensure adequate ventilation and/or an air conditioned environment. We recommend keeping certain distances from the side of the product to the wall or panels.
  • Page 21 TT-9818RS: TT-7518RS/TT-8618RS: TT-6518RS：...

  • Page 22: Installing The Internal Pc (Optional)

    2.4 Installing the Internal PC (Optional) The internal PC does not support hot plugging. Therefore, you must insert or remove the internal PC when the display is powered off. Otherwise, the display or internal PC may be damaged. You will need to purchase the internal PC separately. Perform the following steps to install the internal PC: Step 1 Unscrew the M3 screws by hand to remove the internal PC shielding cover.

  • Page 23: Installing Newline Assistant

    2.5 Installing Newline Assistant Introduction The Newline Assistant is the tool used as a bridge between the embedded operating system and the Internal PC (OPS). It helps add Windows software shortcuts to the Home Page, as well as to protect USB data when switching between sources.

  • Page 24: Getting Started

    Getting Started 3.1 Power On Step 1 Plug the power supply into the power outlet fully and plug the power connector into the side of the product. Ensure the power supply is in the range of 100V to 240V with frequency at 50 Hz/60 Hz ±...

  • Page 25: Power Off

    Step 3 Press the power button on the front control panel or on the remote control. 3.2 Power Off Step 1 Press the power button on the front panel or the power button on the remote control. The information will be displayed as shown in the following figure.

  • Page 26: Calibration

    Step 2 Press the power button on the front panel or the power button on the remote control again, the power indicator will turn to red. Step 3 If you are not going to use the product for an extended period of time, we recommend you switch the power switch to “Off”.
  • Page 27 Step 4 Select in the Tablet PC Settings window.
  • Page 28 Step 5 Select Touch input from the option and start calibration. Step 6 Use your finger or a pencil to click and hold the center of the flickering cross . Do not release until moves to the next positioning point. Complete the calibration process as instructed.

  • Page 29: Operating The Touch Screen

    Operating the Touch Screen 4.1 Start Screen When the product is turned on, the product will show the Start Screen page, as shown in the following figure:...

  • Page 30: Home

    4.2 Home Touch anywhere on the Start Screen to start a meeting, and the product will go to the Home page, as shown in the following figure: 1: Logo (Shortcut to Settings) 2: Clock (Shortcut to Clock) 3: Date and Week 4: Side Toolbar 5: Status Bar and Settings 6: Main Icon 7: Preview Window For Signal Source...
  • Page 31 Shortcut for Clock Click the time icon on the Home age to start the clock application. Using the icons on the top left, you may switch from clock mode to alarm mode, or to timer and stop watch mode. In the clock mode, you may click to add other time zones as shown in the following figure:...
  • Page 32 Side Toolbar The Annotation Mode, Whiteboard, Home, Return, and Windows icons are displayed by default in the toolbar on both sides of the screen. You may hide one or both side toolbars in the Settings or move it up and down on the screen, shrink or expand by using touch gestures. You may double-tap the “=”...
  • Page 33 The functions of the side toolbar are as follows: Icon Functions Enter annotation mode, and click again to stop annotation and take a screenshot. Access discussion mode. Go to Home page. Return to the previous menu/Exit an app Go to the internal PC source. Manage currently running applications.
  • Page 34 Status Bar and Settings The upper right corner of the home page displays three working status icons (including USB drive(s), Ethernet, and Wi-Fi, system setting shortcut and return to the start screen page). Icon Functions If a USB flash drive is connected to the USB port, this icon will appear. If the product is connected to Ethernet, this icon will appear.

  • Page 35: System Settings

    Icon Functions Gadget displays all pre-installed applications, including Gallery, Browser, Music, Calculator, E-mail, File Viewer, Keyboard, Office Viewer and Trucast Express. Click the icon of an application to run the application. Click Add to customize the Home page. You can add up to 5 shortcuts to your favorite software, gadgets, or connections.

  • Page 36: Network Settings

    4.3.1 Network Settings Enter the Network submenu to set a LAN, enable Wi-Fi, view network information, and enable the Wake up via LAN function. Status: View IP address, MAC address and work time of the screen.  LAN setting: Automatically obtain the LAN IP address or set static IP address according to ...
  • Page 37 Settings The default input method of the system is FloatNSplit Table Keyboard Plus, and the Hardware keyboard must be enabled. If you want to switch to another language, switch the keyboard input method via Keyboard & Input methods, in addition to switching the language. FloatNSplit Table Keyboard Plus does not support Chinese, Japanese and Korean.
  • Page 38 : Drag this icon to change the size of the keyboard.  : Drag this icon to move the keyboard’s location on the screen.  : Click this icon to switch the keyboard mode.  Setting a Language Click Language on the right side. In the Change language dialog box that is displayed, select your preferred language.
  • Page 39 Adding an Input Method Click Current Keyboard on the right side. On the Change Keyboard page, click CHOOSE KEYBOARDS, Keyboard & input methods, and select the input methods you would like to use (multiple choices can be selected).

  • Page 40: Storage

    Setting an Input Method Select an input method on the right side to set the attributes of the input method. 4.3.3 Storage Enter the Storage submenu to view space distribution of the internal storage.

  • Page 41: Applications

    4.3.4 Applications Enter the Apps submenu to view all downloaded applications by type, running applications, and a summary of all applications.

  • Page 42: Whiteboard/Screenshot

    4.3.5 Whiteboard/Screenshot Enter the Whiteboard/Screenshot submenu to set how often the whiteboard data is cleared. 4.3.6 Smart Eye Protection Enter the Smart eye protection submenu to set Eye protection writing mode, Eye protection brightness control mode and the Bluelight filter. If only the Bluelight filter setting is on, the filter level can be set.

  • Page 43: Date And Time Settings

    4.3.7 Date and Time Settings Enter the Date & Time Setting submenu to set the date and time. Before setting the date and time, users should click Select time zone to set everything to the local time zone. Date Setting You can automatically obtain the date or customize the date and time.
  • Page 44 To customize a date and date format, set them in Set date and Choose date format.  Setting Time You can automatically obtain the time or customize time. To automatically obtain the current time, select Automatic date & time. ...

  • Page 45: Power On/Off Setting

    To customize time and time format, set them in Set time and select Use 24-hour format.  4.3.8 Power ON/OFF Setting Enter the Power ON/OFF Setting submenu to set an automatic power on/off time and the time for the system to enter shut down mode. To set the automatic power on time, select Auto power on, and the time you want the display ...
  • Page 46 To set the automatic power off time, select Auto power off, and set the time you would like  the display to turn off in Power off time, as shown in the following figure: To set the energy saving time, click Energy saving. In the dialog box that is displayed, set a ...

  • Page 47: Tool Bar Setting

    4.3.9 Tool Bar Setting Enter the Toolbar submenu to set whether to display the side tool bar and icons. Left: Click to turn on/off the left tool bar.  Right: Click to turn on/off the right tool bar.  Customized icon: Click the icon under Customized icon to display the last shortcut key on ...

  • Page 48: Input/Output Setting

    Enter the Logo & Wallpaper Setting submenu to set the background image, lock page image, or Home Page logo. On this page, click View to select a picture and automatically upload it to replace the current picture. Click Default, and the logo and wallpaper are reset to Newline’s default pictures.

  • Page 49: Security Setting

    4.3.12 Security Setting Enter the Security Setting submenu to set whether you need enter the password or modified password when going from the Start page to the Home page. The password must be at least 4 digit numbers. English letters are not allowed. 4.3.13 Theme Enter the Theme submenu to set the system theme: Classic or Colorful can be selected, The default setting is Classic type.

  • Page 50: About

    4.3.14 About Enter the About submenu to upgrade the system, perform a factory data reset, view firmware information, embedded operating system version information or the display’s serial number.

  • Page 51: Windows

    4.4 Windows On the Home Page, click Windows to enter the Internal PC source, as shown in the following figure. If the display is not equipped with an Internal PC, "No Signal" is displayed. 4.5 Screen Sharing Multiple devices can be cast wirelessly to the display through several casting modes (Airplay, Google Cast, and MirrorOp).

  • Page 52: Whiteborad

    4.6 Whiteborad The whiteboard has the following functions: Discussion and screen annotation  On the whiteboard page, you can select pen type, width, and color to write or annotate on the screen. You can also erase selected content or clear all content on the screen. Page navigation ...
  • Page 53 Icon Name Icon Function Mode Switch Click the icon to enter annotation mode. (See more detail in whiteboard mode section) Click to use the pen function, and the icon will turn blue. Click and hold the icon for two seconds to set the pen size or color. Highlighter Click to use the highlighter function, and the icon will turn blue.

  • Page 54: Whiteboard Functions

    Icon Name Icon Function Page Number Shows which page is currently being used. Hide Smart Bar Click to hide or show the smart bar. Mode Switch Click the icon to enter discussion mode. Screenshot Click to take a screenshot, and save the data in the display’s internal storage.
  • Page 55 Whiteboard Mode Click in the lower left corner of the discussion mode to switch between whiteboard modes. Annotation mode  The background is transparent and the real-time image of the current signal source will be displayed. You can comment on presentation content such as Office documents and pictures as shown in the following figure: Discussion mode ...
  • Page 56 The background is a single color, as shown in the following figure. You can write content on the page as you wanted. Pen Type On the Whiteboard, two types of pens are supported: Pen and highlighter. : used to write. ...
  • Page 57 Eraser Two methods are available to erase written errors or content as follows: Fist/hand back erasing: corresponding erase shape is a round with diameter 100pt.  Spot erasing: Click to clear errors or unnecessary content. Click and hold the icon for ...
  • Page 58 Screenshot In annotation mode, click to save the current slide as a picture. Up to 50 screenshots can be created. as shown in following figure: Pictures saved through screenshots can be viewed and obtained using the following methods: Screenshots are saved on the Navigation page, as shown in the following figure: ...

  • Page 59: Page Management

    Click on the home page and choose Internal storage > Pictures > Screenshots >  image to view or share screenshots. 4.6.2 Page Management You can preview, select, share, save, and delete any created writing page.
  • Page 60 Page Preview Click on the lower right corner in the discussion mode. All pages will be displayed. Click one page to switch to that page for more operations, as shown in the following figure: Only 8 pages are displayed at once. You can slide right or left using one finger to see more. Page Select Or Delete Page On the Navigation page, you can select or delete writing pages according to requirements, as shown in the following figure.
  • Page 61 Save Page On the Navigation page, when no external USB drives are connected, the USB icons will be gray. When an external USB drive is connected, the USB icons will turn yellow. Click the yellow USB icons and the selected whiteboard file can be saved in the folder of "Meeting + year month day hour minute second"...

  • Page 62: Object Detection

    Page share Click the button on the Navigation page, click File Commander to save to local storage or to the cloud, or click AquaMail to share current the meeting files by email. Before sending by email, confirm that an email account is successfully set up in Settings. 4.6.3 Object Detection This product supports object recognition and produces different effects according to the diameter and size of the input objects.

  • Page 63: Browser

    If the diameter or size of the input object is larger than 3mm or smaller than 8mm, there is a risk of identification failure. Keep the object vertical while writing. Object recognition: The system automatically remembers the settings selected for a fine pen and a thick pen.

  • Page 64: File Management

    4.8 File Management The product supports connection to USB flash memory. In File Viewer application, you can preview all files in the internal storage and storage devices connected via USB ports and select, copy, paste, delete and search for files. 4.8.1 File Viewer Page On the Home page, click File Viewer, as shown in the following figure: 4.8.2 File Preview...

  • Page 65: File Search

    4.8.3 File Search Enter the File Viewer application and click . In the dialog box that pops up, enter the keywords in the search box. The system will display a list of files that match the searched for keywords.

  • Page 66: File Filtering

    4.8.4 File Filtering You can click the menu on the left side to display files by type, for example, whether the files is a document, a picture, music, a video, archived or was downloaded. The system supports two view modes: list and thumbnail. You can click on the top right ...

  • Page 67: New Folder

    4.8.5 New Folder Enter the File Viewer application, and click to create folder. as shown in the following figure. 4.8.6 File Operation Enter the File Viewer application. You can create folders according to requirements, select files by long pressing, and set wallpaper/copy/paste/delete. For details on other operation, click in the upper right corner for more operation.

  • Page 68: File Name

    4.8.7 File Name Under the "Internal storage > Pictures > Screenshots > image" folder in the File Manager, all pictures of this meeting are saved. Screenshots include annotation page screenshots, remote control screenshots and pages in the discussion mode. Depending on the screenshots mode, picture naming is different.

  • Page 69: Gadget

    4.9 Gadget On the Home page, click Gadget. On the page that is displayed, all applications can be viewed. The following figure shows applications that the system is delivered with Name Icon Functions Gallery Click this icon to enter the gallery application. Browser Click this icon to enter the browser application.

  • Page 70: Add Shortcut

    Click to view signal sources in Connection.  Click to view the Windows software shortcuts that the Newline Assistant uploads to the  embedded operating system. For details, see “Add Quick Start Windows Programs in Smart System”.
  • Page 71 Click to view all Gadget applications.  Step 3 Add or delete applications on the tab. In the list, click the icon to add it as a shortcut on the Home page. A check icon will appear at  the upper right corner of the shortcut icons. Up to 5 shortcuts can be added. Tap the icon with the check mark again.

  • Page 72: Add Quick Start Windows Programs In Smart System

    4.10.2 Add Quick Start Windows Programs in Smart System Step 1 In Windows, run the Newline Assistant program and drag the software icons or folder shortcut icons that you want to add from the desktop or menu to the Newline Assistant window. The applications added or deleted through the Windows system will be automatically updated to the embedded operating system until the upload progress reaches 100%.
  • Page 73 Windows software shortcuts added by the Newline Assistant in Step 1. By default, the Newline Assistant application is added on the tab. Step 4 Tap the icon and add the shortcut at the Home page. Tap again and remove it.

  • Page 74: Preview Window

    4.11 Preview window On the Home page, signal source preview window including internal PC, HDMI Front, HDMI Rear (1 to 2), DisplayPort, and VGA. An icon without an active signal source connected will be gray, an icon with an active signal sources connected will be white, and the icon of the signal source currently being previewed will be blue.

  • Page 75: Quick Setting Menu

    Quick Setting Menu Using two fingers to swipe up from the bottom of the screen, the Quick Settings menu will appear, as shown in the following figure. Icon Functions Drag the slider to adjust the brightness. Drag the slider to adjust the volume. Click the icon to return to Home page.
  • Page 76 Icon Functions Click the icon to enter the settings page. Click the icon to turn on/off the Smart system Wi-Fi. Click the icon to mute/unmute. Click the icon to turn on/off the beep sound. Click the icon to enable sound only mode. In sound only mode, the screen LCD displays and LED backlight turns off, other functions are in normal operating condition.

  • Page 77: Serial Port Control

    Serial Port Control Connect RS-232 port to the PC or controlling product. Enable RS-232 serial port connection and complete the following configuration. Port: COM1 (Set according to PC or controlling product’s port number) Baud rate 19200 Odd/even check None Data bits Stop bit The following tables list controlling codes, querying codes and return codes.
  • Page 78 Function Controlling codes Return codes 7F 08 99 A2 B3 C4 02 FF 01 54 7F 09 99 A2 B3 C4 02 FF 01 54 01 Internal PC 7F 08 99 A2 B3 C4 02 FF 01 38 7F 09 99 A2 B3 C4 02 FF 01 38 01 7F 08 99 A2 B3 C4 02 FF 01 56 7F 09 99 A2 B3 C4 02 FF 01 56 01 Page up...
  • Page 79 Function Controlling codes Return codes Set display mode 7F 08 99 A2 B3 C4 02 FF 06 7F 09 99 A2 B3 C4 02 FF 06 XX XX CF 01 CF XX indicates the mode. 00 and 01 indicate standard and ECO modes respectively.
  • Page 80 Function Controlling codes Return codes 7F 09 99 A2 B3 C4 02 FF 01 37 XX CF Power supply 7F 08 99 A2 B3 C4 02 FF 01 37 XX indicates the power on/off state. XX = 01: power on state ...
  • Page 81 Function Querying codes Return codes Backlight 7F 09 99 A2 B3 C4 02 FF 01 49 brightness XX CF 7F 08 99 A2 B3 C4 02 FF 01 49 CF XX indicates the value of backlight brightness (0 - 100), corresponding to the hexadecimal number system (00 - 64).

  • Page 82: Faqs & Troubleshooting

    FAQs & Troubleshooting Symptom Troubleshooting Methods The screen cannot be powered on or Check whether the power supply is connected. the power indicator light is off. Check whether the power supply plug is properly connected. Check whether the power outlet has electricity. Check whether the rocker switch is enabled.
  • Page 83 Symptom Troubleshooting Methods The touch function is abnormal or the Restart the screen. positioning is inaccurate. In the Windows system, recalibrate the screen. For details, see section "Calibration". The touch function is unavailable when Switch between different external signal sources. the external signal source channel is Ensure that the USB touch cable is connected to being used.
  • Page 84 Symptom Troubleshooting Methods The keyboard is not correctly Confirm that the hardware keyboard is enabled. displayed. When you connect a handheld The front panel doesn’t support handheld microphone to a port on the front panel, microphone, and needs to use the fixed the distance from user to microphone microphone.

  • Page 85: Specifications

    Specifications Model TT-6518RS TT-7518RS TT-8618RS TT-9818RS Display Backlight Display Area 56.24 x 31.63 64.97 in x 36.55 74.69 in x 42.05 in 84.99 in x 47.81 in 1895.04 x 1065.96 2158.848 x 1428.5 x 803.5 1650.24 x 928.26 1214.352 mm Active Screen Size 65.00 inch 75.00 inch...
  • Page 86 Model TT-6518RS TT-7518RS TT-8618RS TT-9818RS Electrical Maximum ≤ Maximum ≤ Maximum ≤ Maximum ≤ 220 W Power 300 W 450 W 700 W Consumption Standby Mode Standby Mode ≤ Standby Mode ≤ Standby Mode ≤ ≤ 0.5 W 0.5 W 0.5 W 0.5 W Working Voltage...
  • Page 87 Model TT-6518RS TT-7518RS TT-8618RS TT-9818RS Net Weight approx. 44kg approx. 56kg approx. 73kg approx. 133kg Gross Weight 57±2kg 71±2kg 91±2kg 233±2kg Ports Front Interface HDMI In x 1, USB (Touch) x 1, USB (Public) x 2, Microphone In x 1 Inputs HDMI In x 2, DP x 1, USB (Touch) x 4, HDMI Out x 1, Line Out x 1, DC Out Rear Interface...

  • Page 88: More Information

    More Information For More Information Please visit our website (www.newline-interactive.com) for detailed instruction manual. Contact Us for Support support@newline-interactive.com Please email us at Our company is devoted to product innovation and technology enhancement. Therefore, we may change product specification and information without notice. Product pictures in the...
