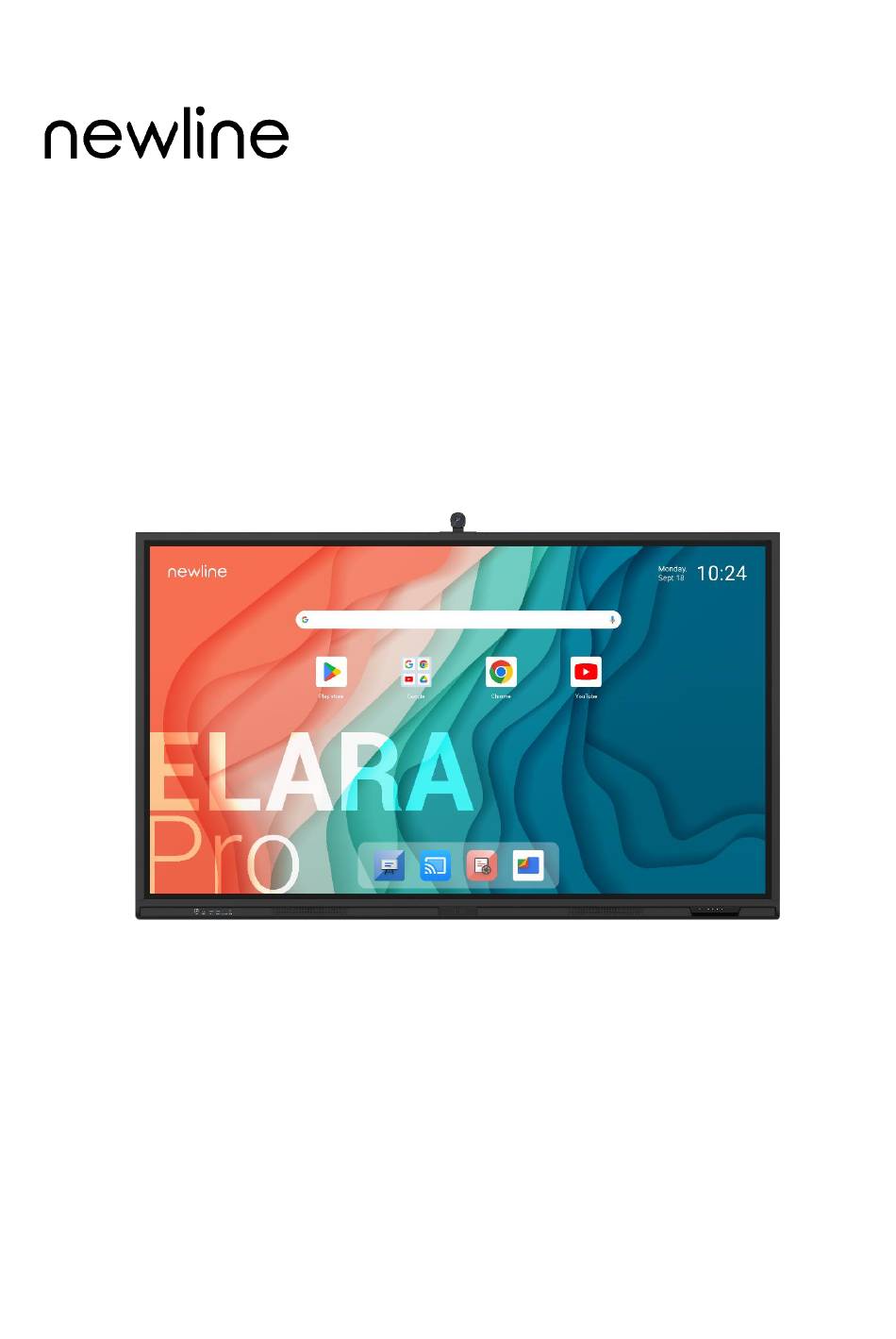

- Page 1 Elara Pro Series Interactive Flat Panel Display User Manual v er s io n 1 7 0 6 2 0 2 4...
-
Page 2: Table Of Contents
2.4 Installing the OPS (Optional) ............................. 21 2.5 Installing the Wi-Fi Module ............................21 2.6 Installing the Camera ..............................22 2.7 Installing the SDM-S (Not included) .......................... 23 2.8 Installing Newline Assistant ............................24 2.8.1 Introduction................................24 2.8.2 Installation ................................24 3 Getting Started ..........................25 3.1 Power On .................................. - Page 3 4.8.3 Newline Display Management+ ..........................57 4.8.4 Vote ..................................58 4.8.5 File Management ..............................60 4.8.5.1 File Viewer Page ..............................60 4.8.5.2 File Preview ................................61 4.8.5.3 File Filtering ................................. 61 4.8.5.4 New Folder ................................62 4.8.5.5 File Operation ............................... 62 4.8.5.6 File Name................................
- Page 4 Welcome to the world of Newline Thank you for choosing the Elara Pro Series Interactive Flat panel display. Please use this document to get the most out of your screen. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 5 Energy Star Compliance. Signage Displays with Plug-in Module. As an ENERGY STAR Partner, Newline Interactive Inc., has followed the EPA’s enhanced Product qualification and certification process to ensure that the products marked with the ENERGY STAR logo are ENERGY STAR qualified per the applicable ENERGY STAR guidelines for energy efficiency.
-
Page 6: About This Document
About This Document This document describes multiple functions, instructions, and notes about the product. Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows: Provides additional information to supplement operation in the main text. Provides tips for operation. -
Page 7: Safety Instruction
Safety Instruction For your safety, please read the following instruction before you use the product. Serious injury or property damage may be caused by improper operations. Do not try to repair the product on your own. WARNING Disconnect the product from the power supply immediately if major failures occur. Major failures include the following: ⚫... - Page 8 WARNING Do not install the product in an improper place. ⚫ Do not install the product in humid places, such as the bathroom, the shower room, near windows, or outdoor environments that experience rain, snow, or other harsh weather. Avoid installation near hot spring vapor.
- Page 9 CAUTION ⚫ Keep the radio away from the product. If the screen glass is broken or falls off: ⚫ Keep all personnel 10 feet away from the screen to ensure safety. ⚫ Do not perform any installation or disassembly while the screen glass is broken or has fallen off.
- Page 10 CAUTION About USB port. Front USB ports and rear USB 3.0/USB 2.0 ports switch connections based on signal sources. If the current signal source is reading the data from an external product connecting to the port, please switch the signal source after the data reading is complete. Otherwise, the data or product may be damaged.
-
Page 11: Overview
Overview 1.1 Introduction Take collaboration to the next level with the Elara Pro Series interactive display. Increase productivity and collaboration across the board with a display that uses advanced touch technology. Each product can be customized to fit your needs. The non-proprietary nature lets you use the... - Page 12 Rear View ⚫ Front Ports Power Output Plug Speakers Power Supply Plug Power On/Off Power Switch Front Buttons SDM-S Slot Remote Control Receiver Rear Ports Light Sensor Wi-Fi Module Camera(Plug - in) OPS Port Microphone Woofer NFC Sensing Area Notes: SDM-S is Smart Display Module Small.
-
Page 13: Ports
While HDMI and Display Port offer support for cables of varying lengths, the maximum cable length that Newline recommends for optimal performance is 3 meters (10 feet) for HDMI and 1.8 meters (around 6 feet) for Display Port. Using cable longer than recommended length may cause data loss and a negative impact to display quality. -
Page 14: Front Buttons
1.4 Front Buttons Buttons Operations Functions Short press Power on ⚫ Solid white color : Display is on and working Sleep mode The red and white lights flicker alternately: Display ⚫ enter Sleep mode. Long press for more Power off than 3 seconds ⚫... -
Page 15: Remote Control
Buttons Operations Functions Short press Go to the home page Short press Open the Quick Setting menu Long press for 5 Activate/Exit the power button Lock Function seconds Notes: Press Volume + >Volume + >Volume - >Volume - > Left > Left > Right > Right buttons on the Remote control to turn on/off the touch function. - Page 16 Buttons Operations Power On/Off Go to the Home Page Directional Pad Confirm/OK Press once to freeze the current screen. Press again to exit freeze function Enter the Source Selection Page Return to Previous/Exit App switcher Open the Quick Setting menu on the embedded operating system.
-
Page 17: Installation Guide
Installation Guide 2.1 Safety Precautions Installation Environment Installation Direction... -
Page 18: Installation Precautions
2.2 Installation Precautions Weight Loading Weight of the product: 65 inch: 39 kg 75 inch: 52 kg 86 inch: 65 kg When using a mobile stand, ensure that the weight of the product is less than the loading ⚫ capacity of the mobile stand. When using the wall-mount bracket, ensure that the wall can support the weight of the ⚫... -
Page 19: Installation
Ventilation Ensure adequate ventilation and/or an air conditioned environment. We recommend keeping certain distances from the side of the product to the wall or panels. Ventilation requirements are shown in following figure: 2.3 Installation The dimensions of the four bracket mounting holes on the back panel are VESA MIS-F compliant (86INCH or 75INCH: 800 x 400 mm/31.50 x 15.75 in;... - Page 20 75 " /86 " : 65 inch:...
-
Page 21: Installing The Ops (Optional)
2.4 Installing the OPS (Optional) The OPS does not support hot plugging. Therefore, you must insert or remove the OPS when the display is powered off. Otherwise, the display or OPS may be damaged. You will need to purchase the OPS separately. Perform the following steps to install the OPS. Step 1 Unscrew the M4 screws by hand to remove the OPS protective cover. -
Page 22: Installing The Camera
Step 2 Insert the Wi-Fi Module into the port on the rear of the panel until firmly seated, using the 2 screws to secure it. 2.6 Installing the Camera The camera is put in accessary box with an independent package, please install it onto panel referring to following steps. -
Page 23: Installing The Sdm-S (Not Included)
2.7 Installing the SDM-S (Not included) The SDM-S does not support hot plugging. Therefore, you must insert or remove the SDM-S when the display is powered off. Otherwise, the display or SDM-S may be damaged. Currently we don't provide SDM-S, but if you have a SDM-S to use, please install referring to the following steps. -
Page 24: Installing Newline Assistant
2.8 Installing Newline Assistant 2.8.1 Introduction The Newline Assistant agent is a tool used as a bridge between the embedded operating system and the OPS. It helps add Windows software shortcut to the Home Page, as well as to protect USB data when switching between sources. -
Page 25: Getting Started
Getting Started 3.1 Power On Step 1 Ensure the power cable is fully seated into the panel and wall outlet before powering on the panel. Please confirm your wall outlet supports a power range of 100V to 240V with frequency at 50 Hz/60 Hz ± 5% and is fully grounded. The power outlet should be installed near the equipment and should be easily accessible. -
Page 26: Calibration
Step 2 Long press the power button on the front panel or the power button on the remote control and a prompt dialog box will be displayed as shown in the following figure. Step 3 Tap OK to turn off the display, and the power indicator will turn to red. Step 4 If you want to completely turn off the product, turn off the rocker switch behind the panel (next to the power socket) and unplug the power cord. - Page 27 Step 4 Select in the Tablet PC Settings window.
- Page 28 Step 5 Select Touch input from the option and start calibration. Step 6 Use your finger or a pencil to click and hold the center of the flickering cross . Do not release until moves to the next positioning point. Complete the calibration process as instructed.
-
Page 29: Operating
Operating 4.1 Profile Logon When you set the screen lock in Settings>Security>Screen Lock, you need to verify the lock screen code after each boot. Method Operation Swipe Swipe the screen to unlock Pattern Draw an unlock pattern, the pattern need connect at least 4 dots. Enter the pin code, the pin must be at least 4 digits. - Page 30 Tap to enter the settings application. Tap to enter the Newline Classroom Tools application. Tap to open the whiteboard function. Tap “Newline Cast” icon to enable the wireless Newline Cast function. Note: By default, the “Newline Cast” icon is displayed after startup.
- Page 31 Icon Functions Tap to open the visualizer function. Tap to open the File viewer application to explore internal and external files on the panel. Gestures Gesture Functions Slide Up Slide up to view all the applications. Slide Down Slide down to expand the quick setting menu. Slide Left Slide left to enter the application page.
- Page 32 Dashboard: ⚫ Tapping the dashboard icon under the signal source, you can enter the settings of sound equalizer, image adjustment, screen display, etc. ⚫ Tapping the dashboard icon under the Android system, you can enter the settings of sound.
- Page 33 Quick Access Bar In the quick access bar, system preset some common apps. Tap the app icon to access the application interface. Tap the touch disable icon to turn on/off the touch function. Toolbar > Floating bar Press the toolbar and drag it out, the sidebar can be transformed into a floating bar. In the floating bar, users can add and delete icons, add custom icons, and drag the floating bar with their fingers to move around on the screen.
- Page 34 The functions of the toolbar are as follows: Icon Functions Tap to switch to the OPS source, long press to customize the icon. Go to Home page. Tap once to start annotation mode, tap again to stop annotation and take a screenshot.
- Page 35 In the tool bar, users can tap the icon to enter function interface, add and delete icons, add custom icons, drag the tool bar with their fingers to move around on the screen. Standard > Minimized Standard > Favorite Delete icons Long press the icons to enter the icon deleting status, tap the ×...
- Page 36 Customize the toolbar icons In the tool bar interface, tap the icon to show the following interface, users can customize the toolbar icons. Icons with √ on the upper right corner will display in the tool bar. Customize the favorite icons In the tool bar interface, tap the icon to show , tap + icon to show the following...
-
Page 37: Sources
4.3 Sources to enter the signal source selection, including (F) Type C, (R) Type C, HDMI 1, HDMI 2, and HDMI 3, OPS, SDM and Display port. The icon without signal source connected is gray, and the icon with signal source connected is white. -
Page 38: Newline Cast
PC apps among iOS/Mac OS/Windows/Android, eliminating the need for cables or adapters. on the Home Page to enter Newline Cast+. On screen directions will appear for you to follow in order to wirelessly cast to the display, as shown in the following figure:... -
Page 39: Whiteboard
4.5 Whiteboard The whiteboard function is designed to present conference writing to attendees in a quick and easy manner. The whiteboard has the following functions: Discussion and screen annotation ⚫ On the whiteboard page, you can select pen type, width, and color to write or annotate on the screen. - Page 40 21 22 23 Icon Name Icon Function Mode Switch Tap to switch to annotation mode. Tap to enter options interface. Users can insert image, Text, Sticky More note, Search Image or Search Web etc. QR Code Tap to export the whiteboard data into QR Code. Tap to enter move canvas function, press and move your finger in Move Canvas the page to move canvas and content on it.
-
Page 41: Whiteboard Functions
Icon Name Icon Function Capture Tap to take a screenshot. New Page Tap to add a new page. Previous Page Tap to back to the previous page. Next Page Tap to go to the next page. Navigation Tap to show the page thumbnails. Settings Tap to enter the whiteboard setting interface. - Page 42 Mode Switch in the lower left corner of the whiteboard mode to switch to annotation modes. Options Tap the icon to enter options interface. Users can manage files, add Text, Sticky note, Search Image or Search Web etc. On the FILE items, you can import data from file management, save whiteboard files and export whiteboard page.
- Page 43 On the ADD items, you can import the pictures, Text, Smart table, Sticky note, PDF document, Concept map, video, and audio from system files and USB device. You also can import the Search Image, Search Web and YouTube on the internet. On the TOOLS items, you can use rulers to draw line or shape on the page, import the visualizer image etc.
- Page 44 On the Whiteboard, tap to pop up QR code exporting windows. You can export the whiteboard page into QR Code, before that, you can customize the number of export page, change the export format at first. Move canvas On the whiteboard, tap the icon to enter move canvas function, press and move your finger in the page to move canvas and content on it.
- Page 45 : used to write. Highlighter : used to highlight. Characters covered by comments are still visible. AI Pen : used to write, support text recognition, shape recognition and formula recognition. Line Size and Color On the Whiteboard, tap and hold for two seconds to set the size and color.
- Page 46 icon supports three status: Unavailable: The icon is unavailable when users insert arrow and line; Unselected: The edge of shapes are colored when the icon is not selected; Selected: the shape will be filled with colors when you import the shape; Select On the Whiteboard, tap and user could choose the data on the page to move/ zoom in/...
- Page 47 Zoom in/out: Icon Functions Long press this icon to rotate the selected items Tap this icon to copy the items. Tap this icon to cut the items. Tap this icon to push to top layer. Tap this icon to push to bottom layer. Tap this icon to lock the layer.
- Page 48 Eraser Two methods are available to erase written errors or content as follows: Partial eraser: Tap to clear the passing part of eraser. ⚫ Object eraser: Tap to clear the whole object. ⚫ Clear All On the Whiteboard page, tap to show the pop-up windows to clear all content on the current page, as shown in the following figure:...
-
Page 49: Whiteboard Setting
Capture to take a screenshot, you can save the screenshot to pictures, print and share the screenshot. 4.5.2 Whiteboard Setting Tap the icon to enter the settings bar, users can set the object recognition, action hint and default settings. Object recognition Users can drag the slider to enable the object detection function, tap icon to view details functions, as shown in the following figure:... - Page 50 Fine Pen (2mm): User Fine Pen to write and erase with small eraser. ⚫ Fist/Palm: Identified as an eraser (100 pt). ⚫ Tap: Select an object without switching to grab tool. ⚫ Drag: Move objects or canvas. ⚫ Pinch with two fingers: Zoom in/out selected objects or canvas. ⚫...
- Page 51 Example 3：Turn off object recognition Switch manually: Tap each function you want to use manually every time. ⚫ The move button: After tapping this button, you can move the canvas with one finger or ⚫ pen, and zoom in/out with two fingers (pinch). Long press on objects: Shortcut for selecting objects.
-
Page 52: Page Operations
4.5.3 Page Operations You can preview, select, and delete the writing page, you also can save the page to the USB Flash device or local files. Page Preview at the lower right corner in the whiteboard mode. All pages will be displayed. Tap one page to switch to that page for more operations, as shown in the following figure. -
Page 53: Annotation
Page Operation On the Navigation page, you can select or delete writing pages according to requirements, as shown in the following figure: to select all pages. ⚫ to save the writing pages to USB flash device. ⚫ to share the writing pages to local file or AquaMail. ⚫... - Page 54 Take a Screenshot icon to enter take a screenshot interface, users can tap icon to take a screenshot; icon to switch to whiteboard mode; tap icon to save screenshot, tap icon to exit screenshot. Save screenshot icon to pop up save screenshot interface, you can save or share screenshot as following: to select all pages.
-
Page 55: Visualizer
to share the annotation pages to local file or Aqua Mail. ⚫ Notes: You can select "Internal storage > Pictures > Screenshots > image" folder to view or get screenshots. Settings icon to pop up settings interface, you can turn on/off object recognition, Action hint and Auto screenshot. -
Page 56: Application
Screen Split Mode (4) Tap to display in 4 split screen mode. Tap to change the camera (only when the panel Camera Switch an upper and lower camera). Tap to take a screenshot, you can paste the screenshot Capture on whiteboard, save it to files, save it to USB or Share it. -
Page 57: Google Play Story
4.8.3 Newline Display Management+ Newline Display Management Plus is a remote display management solution that enables users to centrally manage the Newline displays from the comfort of their desk. Users can deploy and install apps, configure display settings, and push updates without communicating... -
Page 58: Vote
Notes: Please visit our website at www.newline-interactive.com and enter Product > software solutions to get more details about Newline Cast and Newline Display Management. 4.8.4 Vote Tap the “ ” icon on the to enter “Vote”: Application program Users can input a topic (not required) and input options (2 options minimum, 10 options maximum). - Page 59 “Vote” only works when both the panel and the mobile device are connected to the internet. User will see the voting topic and options on the mobile device after the QR code is scanned. After making the selection, tap “submit” to cast vote. In the voting process, the number of voters is displayed in real-time under the QR code.
-
Page 60: File Management
4.8.5 File Management The product supports connection to USB flash memory. In File Viewer application, you can preview all files in the internal storage and storage devices connected via USB ports and select, copy, paste, delete and search for files. 4.8.5.1 File Viewer Page On the Home page, tap File Viewer to enter file commander interface, you can tap the icon to view pictures or files, as shown in the following figure:... -
Page 61: File Preview
4.8.5.2 File Preview Using the File Viewer application, you can tap the submenu on the left side to preview what files are on internal storage, external storage devices connected via the USB ports, cloud stored files, FTP uploaded files, and local network files, as shown in the following figure. 4.8.5.3 File Filtering You can tap the menu on the left side to display files by type, for example, whether the files is a document, a picture, music, a video, archived or was downloaded. -
Page 62: New Folder
to display files based on name, type, size, and modification. ⚫ 4.8.5.4 New Folder Enter the File Viewer application, and tap to create new file or tap to create new folder, as shown in the following figure. 4.8.5.5 File Operation Enter the File Viewer application. -
Page 63: File Name
4.8.5.6 File Name Under the "Internal storage > Pictures > Screenshots " folder in the File Manager, remote control screenshots of this meeting are saved. Screenshots include annotation page screenshots, screenshot pages in the discussion mode are saved in the "Internal storage > Pictures > Screenshots > image" folder. Depending on the screenshots mode, picture naming is different. -
Page 64: Extended Functions
4.9 Extended Functions Functions Status Operation Turn on After entering the sound only Tap the icon in the quick setting menu. Sound mode, the screen was Only extinguished and the sound Turn off played normally. Tap anywhere on the screen. Turn on When the function is turned on, the child lock icon will... -
Page 65: Quick Setting Menu
Tap the save icon on the annotation page. Common functions Freedom: Select the free mode, you can freely drag the screenshot box to adjust the screenshot screen; Full screen: Select full screen mode, full screen capture; Save: Click Save to get the screenshot and save it automatically;... - Page 66 Icon Functions Tap to enable or disable the Bluetooth. Tap to enable or disable the sound only function. In sound only mode, the screen LCD displays and LED backlight turns off, other functions will continue to work as normal. Tap the icon to enable the Freeze Function. Tap the icon to enter the google account setting.
-
Page 67: Settings
4.10 Settings Enter the system setting page using one of the following methods: on the Home page. ⚫ In the Quick Setting Menu, tap the icon. ⚫ Press MENU button on the remote control. ⚫ 4.10.1 Network & Internet Enter the Network&Internet submenu to enable Wi-Fi or Ethernet, view network information, and enable the Wake on LAN function. -
Page 68: Apps
password or two-way confirmation; 2 Bluetooth audio, keyboard and mouse can be directly paired, no need to enter a password. See all All devices can be viewed, including paired and available devices. Connection It can be set to print/screen/share nearby through Bluetooth. preference 4.10.3 Apps Enter the Apps submenu to view downloaded applications, screen time, unused apps and... -
Page 69: Storage
4.10.5 Storage Enter the Storage submenu to view the storage and space distribution of the device and disk. Menu Functions This device Displays the memory for the display Storage Switch ON/OFF manager Displays the memory of the external USB SD card Displays the memory of the SD card 4.10.6 Sound and vibration Enter the Sounds and vibration submenu to adjust the sound of media volume, call volume,... -
Page 70: Display
Dark theme Switch on/off, default off Appearance Display text and Set font size and screen size size Google theme Switch on/off Theme Newline theme 1 Switch on/off Newline theme 2 Switch on/off Color Switch ON/OFF Screen Switch ON/OFF saver 4.10.8 Wallpaper & Style Enter the Wallpaper &... -
Page 71: Location
Log into your google account and follow the prompts to find your Find my device missing device. Security update Check for update None: Turn off the screen lock. Swipe: Swipe the screen to unlock. Pattern: Draw an unlock pattern, the pattern need connect at least 4 dots. Screen lock PIN: Set the pin code, the pin must be at least 4 digits. -
Page 72: Input And Output Setting
Android system. 1. Default is off; 2. Only one Newline app can be selected at a time; 3. Enter the link, boot automatically jump to the URL. 4.10.14 Power Setting Enter the Power submenu to set power on or power off as following:... -
Page 73: Screen Eye Filters
Studies have shown that just as the ultra-violet rays can cause eye damage, the shortwave-length blue light rays from displays can cause eyestrain, retina damage, and affect vision over time. Newline Blue Light filter is an eye protection feature that can reduce the blue light. TT-6523QCA+ /TT-7523QCA+ /TT-8623QCA+ has obtained this certification. -
Page 74: Google
4.10.16 Google Enter the Google submenu to sign in to your google account, set the account related services, including backup data, recovery data, etc. You can sign in to your google account by the following method: On the Home page, slide right to enter the google login interface; ⚫... - Page 75 You can share this device with other people by creating additional users. Each user has their own space with customizable options such as apps, wallpapers and so on. Switch to new user: Tap to switch to other user or guest. Delete user: Delete the user account.
- Page 76 Installation lock: When you enable the Installation lock, under the smart system, you will not be able to install software through the app store or USB flash drive. Gadgets lock: All the installed application will be listed here, you can disable any gadgets you don’t want to show in the gadgets list except whiteboard and settings.
-
Page 77: About Tablet
Switch ON/OFF It allows files to be saved in common directories Shared Folder and the content will be shared to the public. You can share files by accessing Google Files > Internal storage > Shared folder. You can set the clearance frequency, when the set Shared folder time is reached, the data is automatically cleared. - Page 78 Menu Functions Device name Display device name Model Display device model Display the RAM of the device Serial number Display Serial number Android version Display Android version Firmware version Display Firmware version IP address Display IP address Mac address Display Mac address Bluetooth address Display Bluetooth address Up time...
-
Page 79: Serial Port Control
Serial Port Control RS232 communication cable (please use cross data cables) This Device Computer RXD0 TXD0 TXD0 RXD0 Cover RS232 port of panel Connect RS-232 port to the PC or controlling product. Enable RS-232 serial port connection and complete the following configuration. Port: COM1 (Set according to PC or controlling product’s port number) Baud rate 19200... - Page 80 Function Controlling codes Return codes 7F 08 99 A2 B3 C4 02 FF 01 7F 09 99 A2 B3 C4 02 FF 01 00 01 Power on 00 CF Power off 7F 08 99 A2 B3 C4 02 FF 01 7F 09 99 A2 B3 C4 02 FF 01 01 01 01 CF Mute/Unmute...
- Page 81 Return (exit) 7F 08 99 A2 B3 C4 02 FF 01 7F 09 99 A2 B3 C4 02 FF 01 1D 01 1D CF 7F 08 99 A2 B3 C4 02 FF 01 7F 09 99 A2 B3 C4 02 FF 01 2B 01 2B CF ←...
- Page 82 Freeze On 7F 09 99 A2 B3 C4 02 FF 0B 7F 09 99 A2 B3 C4 02 FF 0B 00 01 00 CF Freeze Off 7F 09 99 A2 B3 C4 02 FF 0B 7F 09 99 A2 B3 C4 02 FF 0B 01 01 01 CF Mute On 7F 09 99 A2 B3 C4 02 FF 0F...
- Page 83 Function Querying codes Return codes 7F 09 99 A2 B3 C4 02 FF 01 37 XX Notes: 7F 08 99 A2 B3 C4 02 FF 01 Power supply 37 CF XX indicates the power on/off state. XX = 01: power on state; XX = 00: power off state.
- Page 84 7F 09 99 A2 B3 C4 02 FF 01 35 XX Notes: XX indicates the mode. 7F 08 99 A2 B3 C4 02 FF 01 D.Mode 35 CF XX = 00-standard; XX = 01-ECO mode; XX = 02-custom; XX = 03-auto. 7F 09 99 A2 B3 C4 02 FF 01 49 XX Notes: Backlight...
- Page 85 OP: Backlight brightness; QR: Backlight state; ST: Whiteboard state; UV: Screen lock state.
-
Page 86: Faqs & Troubleshooting
FAQs & Troubleshooting Symptom Troubleshooting Methods The screen cannot be powered on or Check whether the power supply is connected. the power indicator light is off. Check whether the power supply plug is properly connected. Check whether the power outlet has electricity. Check whether the rocker switch is enabled. - Page 87 Symptom Troubleshooting Methods the external signal source channel is Ensure that the USB touch cable is connected to being used. the proper port. For details, see section "Ports". Remove and insert the USB touch cable again. There is no sound when the HDMI in Remove and insert the HDMI cable again.
-
Page 88: Specifications
Specifications Model TT-6523QCA+ TT-7523QCA+ TT-8623QCA+ Display Backlight Display Area 56.22 x 31.61 in/ 64.96 x 36.54 in/ 74.60 x 41.97 in/1895 x 1066mm 1428 x 803mm 1650 x 928mm Active Screen Size 65 inch 75 inch 86 inch Display Ratio 16:9 Resolution 3840 x 2160 Pixel... - Page 89 Model TT-6523QCA+ TT-7523QCA+ TT-8623QCA+ Touch Touch Surface Anti-Glare + Anti-Fingerprint + Antimicrobial Tempered Glass 88% ± 3% Transparency Touch Points Android, MAC, Linux 20 points, Windows 50 points Writing Tools Eraser, Stylus or Finger Transportation/Storage Storage -20~60°C/ 0~90% RH (non-condensing) Temperature/ Humidity 0℃-40℃/ 20～80% RH (non-condensing)
- Page 90 Model TT-6523QCA+ TT-7523QCA+ TT-8623QCA+ Pre-installed Refer to the actual panel display applications Wi-Fi Module Parameters Wi-Fi 6 +BT 5.2 Camera Module Camera Resolution 4K@ 30 Hz /UHD 120° FOV Lenses Field of View Resolution 8 MP 15° Camera Tile Range Manufacturer-reported maximum luminance LMax-Reported is 450cd/m...
-
Page 91: More Information
More Information For More Information Please visit our website (https://newline-interactive.com/eu/support/downloads) for detailed instruction manual. Contact Us for Support Please email us at support_eu@newline-interactive.com National Service Hotline: +34 91 804 31 79 Our company is devoted to product innovation and technology enhancement. Therefore, we may change product specification and information without notice.
