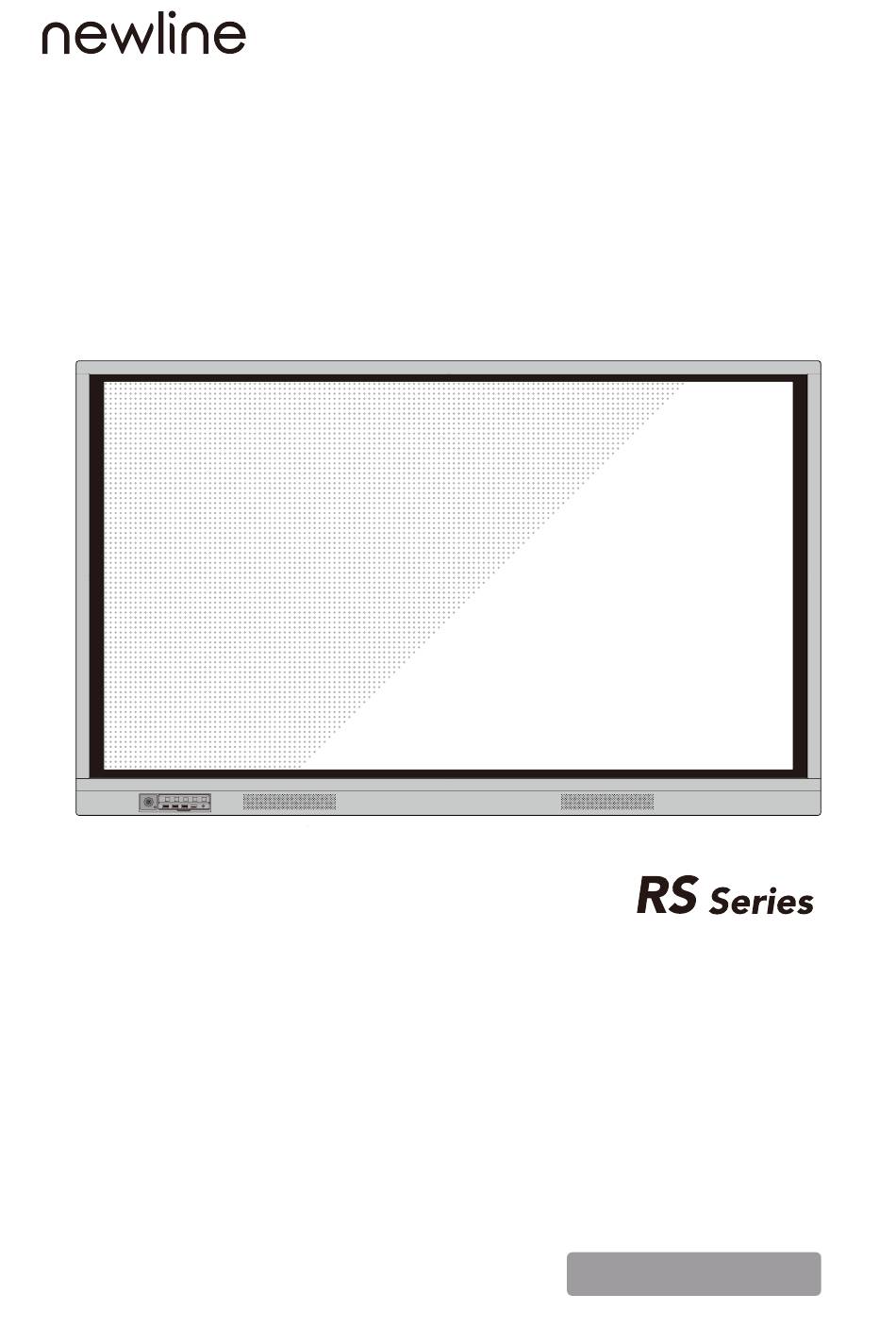

- Page 1 Home Return Menu Vol- Vol+ USB 2.0 USB 2.0 USB Touch HDMI IN Quick Start Manual Version 2.0...
- Page 2 Welcome to the world of newline. Thank you for choosing the newline RS series Interactive Touch Screen. Please use this document to get the most out of your screen. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Symbol Conventions
Symbol Conventions Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows: Provides additional information to supplement operation in the main NOTE text. Indicates a potentially hazardous situation that, if not avoided, could result in equipment damage, data loss, performance deterioration, or CAUTION unanticipated results. -
Page 4: Safety Instruction
The voltage/current of the rear power output port is 5V/2A (maximum). Purchase the power code/AC adapter according to customer needs. The port can be used for Newline Android box X10D. Please do not connect any products with different power requirement. Otherwise, it may cause damage to products or fire. - Page 5 WARNING Do not put items on the top of the product. Do not put items, such as a container for liquid (a vase, flowerpot, cosmetics ● or liquid medicine) on the top of the product. If any water or liquid is spilled on the product, a short circuit may occur and ●...
- Page 6 CAUTION Keep away from the product when you use a radio. The product complies with the international EMI standard to pervent radio interference. However, interference may still exists and causes noise in the radio. If noise occurs in the radio, try the following solutions. Adjust the direction of the radio antenna to avoid the interference from the product.
-
Page 7: Parts And Functions
Parts and Functions Parts Front View ◆ Home Return Menu Vol- Vol+ USB 2.0 USB 2.0 USB Touch HDMI IN Rear View ◆ TT-6518RS... - Page 8 TT-7518RS/TT-8618RS TT-9818RS Remote control receiver Speakers Power On/Off Power Supply Plug Light sensor Power Switch Front Plate Cover Internal PC Port (OPS) Front Ports Rear Ports Front Buttons...
-
Page 9: Front Ports
The voltage/current of the rear power output port is 5V/2A (maximum). Purchase the power code/AC adapter according to customer needs. The port can be used for Newline Android box X10D. Please do not connect any products with different power requirement. Otherwise it may... - Page 10 HDMI Touch TT-6518RS： TT-9818RS...
- Page 11 HDMI Touch TT-7518RS/TT-8618RS: Tip: You are advised to connect X10D to HDMI rear 2.
-
Page 12: Front Buttons
Front Buttons ◆ Home Return Menu Vol- Vol+ USB 2.0 USB 2.0 USB Touch HDMI IN Buttons Operations Functions Power on/off Steady on red: shut down modes ● Short press Steady on blue: working state ● Home Short press Go to the home page Return Short press Return to the last menu/Exit... - Page 13 Buttons Functions Buttons Functions Autocorrection Screen Display (For VGA Signal Source) Mute/Unmute Audio Open the Browser Application Enter number Toggle Display Backlight Mode Go to the Home Page Start/Exit the Screen Lock Return to Previous/Exit Function ● Open the Signal Source Up/Down/Left/Right Menu (Short Press) ●...
-
Page 14: Safety Precautions
Installation Guide Safety Precautions Installation Environment ◆ Do Not Install Tilted Installation Direction ◆... -
Page 15: Installation Precautions
Installation Precautions Weight Loading ◆ Weight of the product: 293 lb/ 133 kg (TT-9818RS), 161 lb/ 73 kg (TT-8618RS),123 lb/ 56 kg(TT-7518RS), 99 lb/ 45 kg (TT-6518RS) When using a mobile stand, ensure that the weight of the product is less than the ●... - Page 16 Ventilation ◆ Ensure adequate ventilation and/or air conditioning environment. We recommend keeping certain distances from the side of the product to the wall or panels. Ventilation requirements are shown in following figure.
-
Page 17: Installation
Installation The dimensions of the four bracket mounting holes on the back panel are VESA MIS-Fcompliant (TT-9818RS, TT-8618RS or TT-7518RS: 800 x 400 mm/31.50 x 15.75 in; TT-6518RS: 600 x 400 mm/23.62 x 15.75 in). Use metric M8 screws with length of 10 mm to 15 mm (0.40 to 0.59 in) to secure the touch screen with the mounting system. - Page 18 TT-7518RS/TT-8618RS: 800mm(31.50 in) TT-6518RS: 600mm(23.62 in)
-
Page 19: Installing The Internal Pc (Optional)
Installing the Internal PC (Optional) CAUTION The internal PC does not support hot plugging. Therefore, you must insert or remove it when the off .Otherwise,the screen or internal PC may be damaged. ay be damaged. You will need to purchase the internal PC separately. Perform the following steps to install the internal PC. -
Page 20: Turning On/Off
Turning On/Off Power On Step 1: Plug the power supply into the power outlet fully and plug the power connector into the side of the product. Ensure the power is in the range of 100V to 240V with frequency at 50 Hz/60 Hz ± 5%. The power current must be grounded. Note The power outlet should be installed near the equipment and shall be easily accessible. - Page 21 TT-6518RS Power Switch Power Supply Plug Step 3: Press the power button on the front control panel or on the remote control. Step 1: Press the power button on the front panel or the power button on the remote control. The information will be displayed as shown in the following Step 2: Press the power button on the front panel or the power button on the...
-
Page 22: Operating The Touch Screen
Operating the Touch Screen Start Screen When the product is turned on, the product will show the start screen page. As shown Home Touch the screen to start a meeting, and the product will go to the Home page. As Logo (Shortcut to Settings) Status Bar and Settings Main Icon... - Page 23 Main Icon Icon Functions Switch to the internal PC source. Click “Screen sharing” to enable the wireless screen sharing function. Note: By default, the “Screen sharing” icon is displayed after startup. When you click “Add” or “Gadget” icon, “Screen sharing” switches to the “Connection”...
-
Page 24: Side Toolbar
Side Toolbar The Annotation Mode/Discussion Mode/Home/Return/Windows icons are displayed by default in the toolbar at two sides of the screen. The bottom side tool bar can be customized as your choice (The default icon is Windows). Long press the icon at the bottom of shortcut keys at both sides to start other functions expanded quickly. - Page 25 Status Bar and Settings The upper right corner of the home page displays three working status icons (including start screen page. Icon Functions If the product is connected to Ethernet, the icon will be turned on. If the product is connected to a wireless network, the icon will be turned on. Access the system setting page.
-
Page 26: Add Shortcuts To Home Page
Step 2: Click the icons on top to switch the list between external signal sources, Windows programs and pre-installed gadgets. Click to view the Windows programs that the Newline Assistant uploads to ● the Smart system. For details,see "Add Quick Start Windows Programs in Smart System". - Page 27 Newline Assistant Introduction Newline Assistant is the tool used as a bridge between smart system and Internal PC (OPS). It helps to add windows software to smart system as well as to protect USB data when switching between sources.
-
Page 28: Add Quick Start Windows Programs In Smart System
Add Quick Start Windows Programs in Smart System Step 1: In Windows, run the Newline Assistant program and drag the software icons or folder shortcut icons that you want to add from desktop or menu to the Newline Assistant window. The applications added or deleted through the Windows system will be automatically updated to the smart system until the upload progress reaches 100%. - Page 29 Note By default, the Newline Assistant application is added on the tab. Step 4: Tap the icon and add the shortcut at the Home page. Tap again and remove it. Step 5: Return to Home page. Click the icon of an added Windows application to start...
-
Page 30: Quick Setting Menu
Quick Setting Menu Icon Functions Drag the slider to adjust the brightness. Drag the slider to adjust the volume. Click the icon to return to Home page. Click the icon to enter the settings page. Click the icon to mute/unmute. Click the icon to enable sound only mode. - Page 31 More Information For more information Please visit our website (www.newline-interactive.com) for detailed instruction manual. Contact Us for Support Please email us at support@newline-interactive.com. Our company is devoted to product innovation and technology enhancement. Therefore, we may change product specs and...
- Page 32 20302-T8I5-004010...
