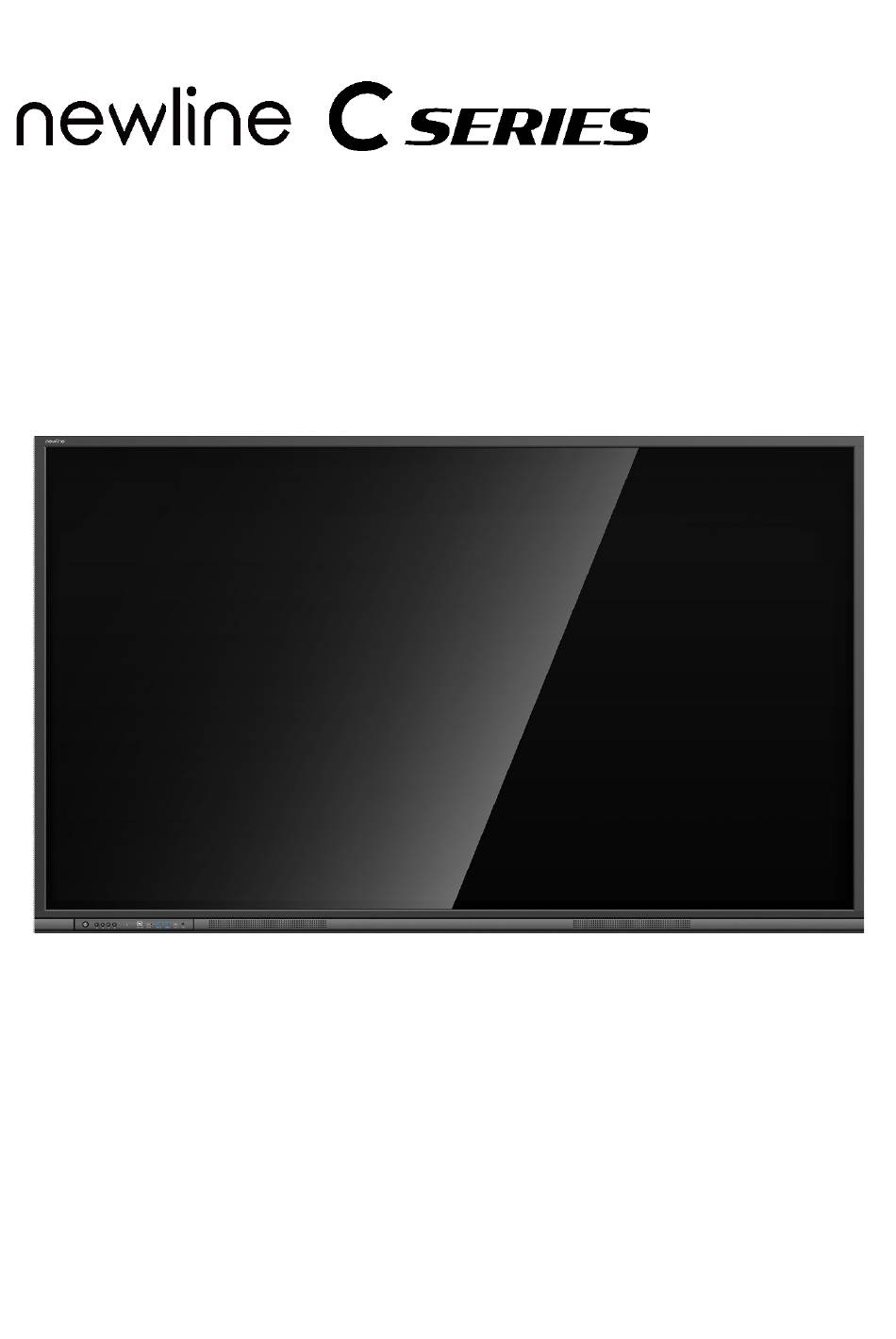

- Page 1 Interactive Flat Panel Display Quick Start Manual...
- Page 2 Welcome to the world of newline. Thank you for choosing the newline C series Interactive Flat Panel Display. Please use this document to get the most out of your screen. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Symbol Conventions
Symbol Conventions Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows: Provides additional information to supplement operation in the main text. Indicates a potentially hazardous situation that, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results. -
Page 4: Safety Instruction
Safety Instruction For your safety, please read the following instruction before you use the product. Serious injury or property damage may be caused by improper operations. Do not try to repair the product on your own. WARNING Disconnect the product from the power supply immediately if major failures occur. Major failures include the following: If smoke, a peculiar smell or an abnormal sound is discharged from the product. - Page 5 WARNING Do not install the product in an improper place. Do not install the product in humid places, such as the bathroom, the shower room, near windows, or outdoor environments that experience rain, snow or other harsh weather. Avoid installation near hot spring vapor. The preceding environments may cause faults in the product or electric shock under extreme conditions.
-
Page 6: Additional Advice
CAUTION try the following solutions. Adjust the direction of the radio antenna to avoid the interference from the product. Keep the radio away from the product. If the screen glass is broken or falls off. Keep all personnel 10 feet away from the screen to ensure safety. ... -
Page 7: Parts And Functions
Parts and Functions 1.1 Parts Front View ... - Page 8 Rear View Power On/Off Camera Port Front Buttons Power Supply Inlet Remote Control Receiver Power Switch Light Sensor Rear Ports Front Ports OPS Slot Speakers...
-
Page 9: Buttons Operations
1.2 Buttons Buttons Operations Functions Short press Power on Solid white color : Display is on and working Power off Solid red color : Display is in shut down mode Short press Adjust the Sound Volume Short press Adjust the Brightness Short press Enter the Source Selection Page Short press... - Page 10 Rear Ports CAUTION Front USB ports and rear USB 3.0/USB 2.0 ports switch connections based on signal sources. If the current signal source is reading the data from an external product connecting to the port, please switch the signal source after the data reading is complete. Otherwise, the data or product may be damaged.
-
Page 12: Remote Control
1.4 Remote Control Carefully read the following instructions before using the remote control to avoid possible faults: Do not drop or damage the remote control. Do not spill water or other liquids on the remote control. Do not place the remote control on a wet object. ... - Page 13 Buttons Operations Power On/Off Go to the Home Page Directional Pad Confirm/OK Press once to enter the OPS page Enter the Source Selection Page Return to Previous/Exit Press once to increase the brightness, long press to increase the brightness continuously Press once to decrease the brightness, long press to decrease the brightness continuously ...
- Page 14 Installation Guide 2.1 Safety Precautions Installation Environment...
-
Page 15: Installation Direction
Installation Direction 2.2 Installation Precautions Weight of the panel: 65INCH: 84.9lbs / 38.5kg 75INCH: 110lbs / 50kg 86INCH: 163lbs / 74kg When using a mobile stand, ensure that the weight of the machine is less than the loading capacity of the mobile stand. When using the wall-mount bracket, ensure that the wall can support the weight of the ... -
Page 16: Installation
For any problem, please contact our support desk. Our company is not responsible for any damage or losses incurred by users if the users fails to follow the instructions. Ventilation Ensure adequate ventilation and/or air conditioning environment. We recommend keeping certain distances from the side of the machine to the wall or panels. - Page 17 TT-6523C: 600 x 400 mm / 23.62 x 15.75 in; TT-7523C/TT-8623C: 800 x 400 mm / 31.50 x 15.75 in; Tiny VESA Mount: 75 x 75mm / 2.95 x 2.95 in. Consult a professional installer to install the machine. 2.4 Installing the OPS (Optional)
- Page 18 The OPS does not support hot plugging. Therefore, you must insert or remove the OPS when the display is powered off. Otherwise, the display or OPS may be damaged. You will need to purchase the OPS separately. Perform the following steps to install the OPS. Step 1 Unscrew the M4 screws by hand to remove the OPS protective cover.
-
Page 19: Turning On/Off
Turning On/Off 3.1 Power On Step 1 Plug the power supply into the power outlet fully and plug the power connector into the side of the machine. Ensure the power is in the range of 100 V to 240 V with frequency at 50 Hz/60 Hz ±... - Page 20 If an OPS is installed, the OPS and the screen will simultaneously powered off when the power is shutoff. Please properly shut down the panel before disconnecting the power source or it may cause damage. Accidental power failure may cause damage to the panel. Do not repeatedly turn the power on &...
- Page 21 More Information For More Information Please visit our website (https://newline-interactive.com) and select your regional website. Once there, navigate to the Support section and click on Downloads. Choose C Series to download the User Manual for detailed instructions. Contact Us for Support Please directly contact the support team within your region.
