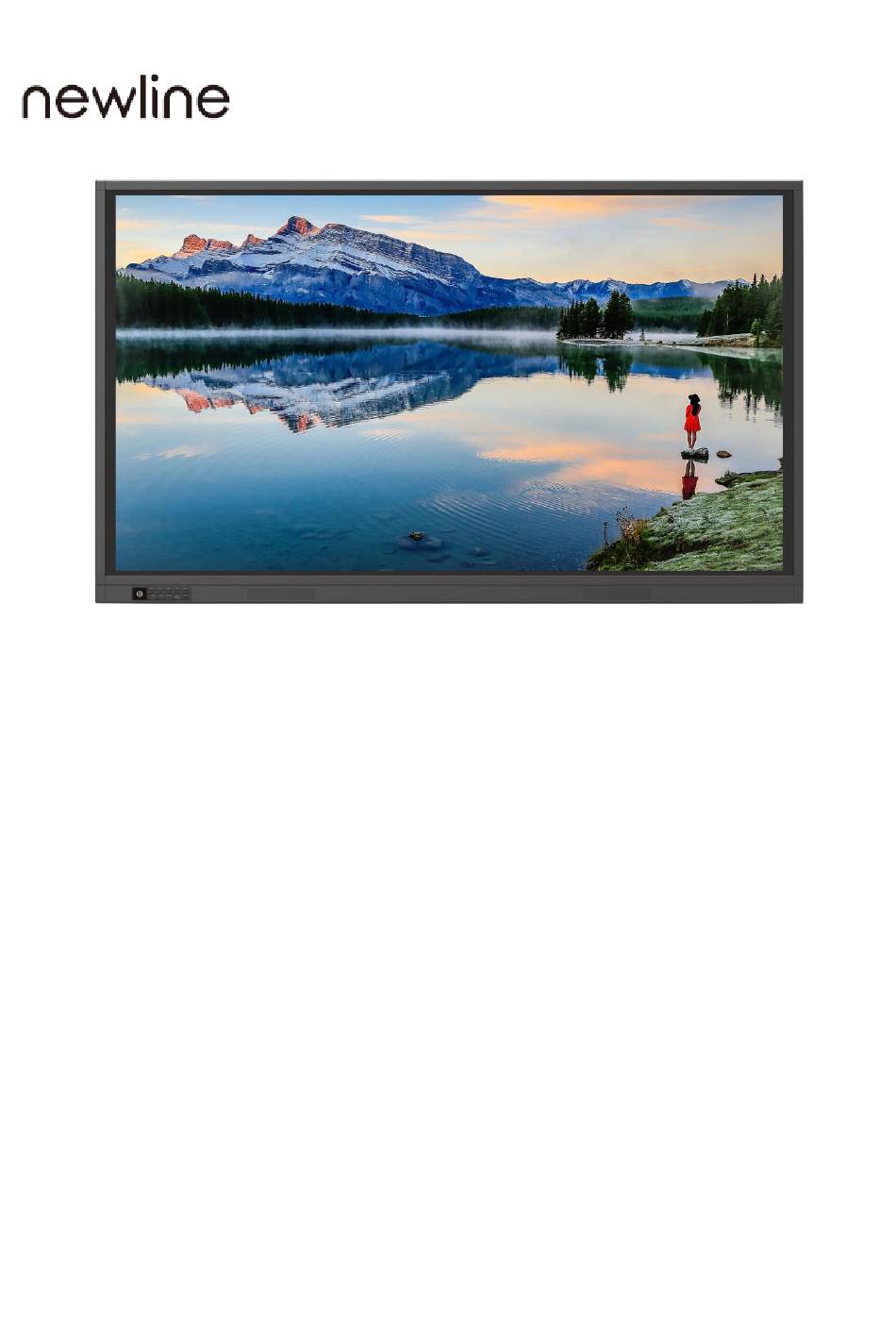

- Page 1 RS Plus Series V2.0 Quick Start Manual...
- Page 2 Welcome to the world of NEWLINE Thank you for choosing the RS series Interactive Touch Screen. Please use this NEWLINE document to get the most out of your screen. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Symbol Conventions
Symbol Conventions Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows: Provides additional information to supplement operation in the main text. Indicates a potentially hazardous situation that, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results. -
Page 4: Safety Instruction
Safety Instruction For your safety, please read the following instruction before you use the product. Serious injury or property damage may be caused by improper operations. Do not try to repair the product on your own. Disconnect the product from the power supply immediately if major failures occur. Major failures include the following: ... - Page 5 Do not put items on the top of the product. Do not put items, such as a container for liquid (a vase, flowerpot, cosmetics or liquid medicine) on the top of the product. If any water or liquid is spilled on the product, the product may short circuit cause fire or electric shock.
- Page 6 CAUTION Do not install the product on carpet or cloth. Do not use a cloth such as table cloth to cover the product. Keep the product away from the radio. The product complies with the international EMI standard to pervent radio interference. However, interference may still exists and causes noise in the radio.
- Page 7 CAUTION may be damaged.
-
Page 8: Parts And Functions
Parts and Functions 1.1 Parts Front View ... - Page 9 Rear View 65 INCH： 75 INCH/86 INCH: Remote Control Receiver Speakers Power On/Off Power Supply Plug Light Sensor Power Switch Front Plate Cover Internal PC Port (OPS) Front Ports Rear Ports...
- Page 10 Front Buttons...
- Page 11 1.2 Ports Front USB ports and rear USB 3.0/USB 2.0 ports switch connections based on signal sources. If the current signal source is reading the data from an external product connecting to the port, please switch the signal source after the data reading is complete. Otherwise, the data or product may be damaged.
- Page 12 The voltage/current of the rear power output port is 5 V/2 A (maximum). Purchase the power code/AC adapter according to customer needs. Please do not connect any products with different power requirement. Otherwise it may cause the damage to products or fire.
- Page 13 （绘图要求：去掉安卓盒子 X10D ， RS98 背面图） （绘图要求：去掉安卓盒子 ） X10D...
-
Page 14: Remote Control
Front Buttons Buttons Operations Functions Short press Power on/off Steady red color : Display is in shut down mode Steady white color : Display is on and working Home Short press Go to the home page Return Short press Return to the last menu/Exit Menu... - Page 15 Buttons Operations Power On/Off Mute/Unmute Audio Enter number Go to the Home Page Return to Previous/Exit Up/Down/Left/Right Confirm/OK Enter Whiteboard Mode Take a Screenshot Enable Sound Only Mode Freeze the Current Screen, Click Again to Exit Freeze Function Adjust the Sound Volume Adjust the Brightness Enter the Source Selection Page View Currently Running Applications...
- Page 16 Buttons Operations Open the Browser Application Toggle Display Backlight Mode Start/Exit the Screen Lock Function Open the Menu (Short Press) Screen Lock (Long Press for More than 2 Seconds) Open the System Settings （排版要求：排版时请将此表格排同一页，保证美观和方便阅读。）...
- Page 17 Installation Guide 2.1 Safety Precautions Installation Environment...
-
Page 18: Installation Precautions
Installation Direction 2.2 Installation Precautions Weight Loading Weight of the product: 161lb/ 73 kg (86INCH), 123lb/56 kg (75INCH), 99lb/ 45kg (65INCH) When using a mobile stand, ensure that the weight of the product is less than the loading capacity of the mobile stand. When using the wall-mount bracket, ensure that the wall can support the weight of the ... - Page 19 For any problem, please contact our support desk. Our company is not responsible for any damage or losses incurred by users if the users fails to follow the instructions. Ventilation Ensure adequate ventilation and/or an air conditioned environment. We recommend keeping certain distances from the side of the product to the wall or panels.
-
Page 20: Installation
2.3 Installation The dimensions of the four bracket mounting holes on the back panel are VESA MIS- Fcompliant (86INCH or 75INCH: 800 x 400 mm/31.50 x 15.75 in; 65INCH: 600 x 400 mm/23.62 x 15.75 in). Use metric M8 screws with a length of 10 mm to 15 mm (0.40 to 0.59 in) to secure the touch screen to the mountingsystem. - Page 21 The internal PC does not support hot plugging. Therefore, you must insert or remove the internal PC when the display is powered off. Otherwise, the display or internal PC may be damaged. You will need to purchase the internal PC separately. Perform the following steps to install the internal PC.
-
Page 23: Turning On/Off
Turning On/Off 3.1 Power On Step 1 Plug the power supply into the power outlet fully and plug the power connector into the side of the product. Ensure the power supply is in the range of 100V to 240V with frequency at 50 Hz/60 Hz ±... -
Page 24: Power Off
75INCH/86INCH: 65INCH: Step 3 Press the power button on the front control panel or on the remote control. 3.2 Power Off Step 1 Press the power button on the front panel or the power button on the remote control. when an internal PC is equipped, the information will be displayed as shown in the following figure. - Page 25 Step 2 Press the power button on the front panel or the power button on the remote control again, the power indicator will turn to red. Step 3 If you are not going to use the product for an extended period of time, we recommend you switch the power switch to “Off”.
-
Page 26: Operating The Touch Screen
Operating the Touch Screen 4.1 Start Screen When the product is turned on, the product will show the Start Screen page, as shown in the following figure:... - Page 27 4.2 Home Touch anywhere on the Start Screen to start a meeting, and the product will go to the Home page, as shown in the following figure: 1: Logo (Shortcut to Settings) 2: Clock (Shortcut to Clock) 3: Date and Week 4: Side Toolbar 5: Status Bar and Settings 6: Main Icon...
- Page 28 Open the File Manager to explore internal and external files on the display. Gadget displays all pre-installed applications, including Browser, Music, Calculator, E-mail, File Viewer, Office Viewer and Newline Cast…etc. Click the icon of an application to run the application.
- Page 29 The functions of the side toolbar are as follows: Icon Functions Enter annotation mode, and click again to stop annotation and take a screenshot. Access whiteboard mode. Go to Home page. Return to the previous menu/Exit an app. Go to the internal PC source. Manage currently running applications.
- Page 30 Icon Functions Go to your favorite source. You can set favorite source in the “tool bar” submenu in the system settings. Status Bar and Settings The upper right corner of the home page displays three working status icons (including USB drive(s), Ethernet, and Wi-Fi), system setting shortcut and return to the start screen page.
-
Page 31: Add Shortcuts To Home Page
Click to view signal sources in Connection. Click to view the Windows software shortcuts that the Newline Assistant uploads to the embedded operating system. For details, see “Add Quick Start Windows Programs in Smart System”. - Page 32 Click to view all Gadget applications. Step 3 Add or delete applications on the tab. In the list, click the icon to add it as a shortcut on the Home page. A check icon will appear at the upper right corner of the shortcut icons. Up to 5 shortcuts can be added. Tap the icon with the check mark again.
- Page 33 5.2.3 Add Quick Start Windows Programs in Smart System Step 1 In Windows, run the Newline Assistant program and drag the software icons or folder shortcut icons that you want to add from the desktop or menu to the Newline Assistant window.
- Page 34 Windows software shortcuts added by the Newline Assistant in Step 1. By default, the Newline Assistant application is added on the tab. Step 4 Tap the icon and add the shortcut at the Home page. Tap again and remove it.
-
Page 35: Quick Setting Menu
Quick Setting Menu Using two fingers to swipe up from the bottom of the screen, the Quick Settings menu will appear, as shown in the following figure. （绘图要求：参照下图绘制手势图替换上图）... - Page 36 （绘图要求：手势需优化） Icon Functions Drag the slider to adjust the brightness. Drag the slider to adjust the volume. Click the icon to return to Home page. Click the icon to enter the settings page. Click the icon to turn on/off the Smart system Wi-Fi. Click the icon to mute/unmute.
- Page 37 Icon Functions Click the icon to turn on/off the left toolbar. Click the icon to turn on/off the right toolbar. Click the icon to turn on/off the screen freeze function.
- Page 38 More Information For More Information Please visit our website (www.newline-interactive.com) for detailed instruction manual. Contact Us for Support Please email us at support@newline-interactive.com. Our company is devoted to product innovation and technology enhancement. Therefore, we may change product specs and...
