- Page 3 Welcome to the world of Newline. Thank you for choosing the Newline NT series Interactive Intelligent Display. Please use this document to get the most out of your screen. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Symbol Conventions
Symbol Conventions Symbols are used in this document to indicate operations that require special attention. The symbols are defined as follows: Provides additional information to supplement operation in the main text. NOTE Indicates a potentially hazardous situation that, if not avoided, could CAUTION result in equipment damage, data loss, performance deterioration, or unanticipated results. -
Page 5: Safety Instruction
Safety Instruction For your safety, please read the following instruction before you use the product. Serious injury or property damage may be caused by improper operations. Do not try to repair the product on your own. WARNING Disconnect the product from power supply immediately if major failures occur. - Page 6 WARNING Do not install the product in an improper place. Do not install the product in humid places, such as the bathroom, the shower ● room, near windows, or outdoor environments that experience rain, snow or other harsh weather. Avoid installation near hot spring vapor. The preceding environments may cause faults in the product or electric shock under extreme conditions.
- Page 7 CAUTION Keep away from the product when you use a radio. The product complies with the international EMI standard to pervent radio interference. However, interference may still exists and causes noise in the radio. If noise occurs in the radio, try the following solutions. Adjust the direction of the radio antenna to avoid the interference from the product.
-
Page 8: Parts And Functions
Parts and Functions Parts Front View ◆ ● TT-8519NT: ● TT-9819NT:... - Page 9 Rear View ◆ ● TT-8519NT: ● TT-9819NT:...
- Page 10 USB3.0 Power On/Off Power Switch Remote Control Receiver Power Supply Plug Optical Inductor Speakers Rear Ports Internal PC Port Rear Buttons Ports Front Buttons ◆ Button Operations Function description Short press Power on/Sleep mode Long press(3 seconds) Power off Rear Ports ◆...
- Page 11 SPDIF...
-
Page 12: Remote Control
Note • When using the 2.4G wireless mouse, we recommend using the USB port on the lower right side of the back panel. • Please do not connect a 2.4G wireless mouse and USB 3.0 devices simultaneously, on the left side of the back panel, in order to avoid the interference. - Page 13 Remote Control Remote Control Buttons ◆ Keyboard Buttons Function Buttons Function Mouse Right Button: click Power on/off. to exit Android app. Please enable the mouse Mute/Unmute Audio mode then use it. HOME Enter Home/Home source Mute/Unmute Microphone Open the system menu Short Press: Increase the sound volume Long Press: Increase the...
-
Page 14: Safety Precautions
Installation Guide Safety Precautions Installation Environment ◆ Installation Direction ◆ Hang the Product Horizontally No Vertical Installation Do Not Install Tilted Do Not Lay Flat... -
Page 15: Installation Precautions
Installation Precautions Weight Loading ◆ Weight of the product: TT-8519NT net weight: 46.5 kg(±2kg). TT-9819NT net weight: 84.0 kg(±2kg). When using a mobile stand, ensure that the weight of the product is less than the • loading capacity of the mobile stand. When using the wall-mount bracket, ensure that the wall can support the weight of •... -
Page 16: Installation
Ventilation Ensure adequate ventilation and/or air conditioning environment. We recommend keeping certain distances from the side of the product to the wall or panels. Ventilation requirements are shown in following figure. Installation The dimensions of the four bracket mounting holes on the back panel are VESA MIS- Fcompliant (TT-8519NT: 800 x 400 mm/31.50 x 15.75 in;... -
Page 17: Installing The Internal Pc (Optional)
98” 800mm(31.50in) Installing the Internal PC (Optional) CAUTION The internal PC does not support hot plugging. Therefore, you must insert or remove it when the screen is powered off. Otherwise, the screen or internal PC may be damaged. You will need to purchase the internal PC separately. Perform the following steps to install the internal PC. -
Page 18: Turning On/Off
Turning On/Off Power On Step 1: Plug the power supply into the power outlet fully and plug the power connector into the side of the product. Ensure the power is in the range of 100 V to 240 V with frequency at 50 Hz/60 Hz ± 5%. The power current must be grounded. Note The power outlet should be installed near the equipment and shall be easily accessible. -
Page 19: Boot-Up Screen
Operating the Intelligent Display Boot-up Screen When the product is turned on, the product will show the boot-up page. As shown in the following figure. Initial Setting When starting up for the first time, the system automatically enters the initial setup interface , as the following steps: Step 1: Language Choice: Press the Up and Down button on the remote control or on the rear control panel to... - Page 20 Step 2: Welcome Page The welcome page show as in the following figure. Choose OK to enter the next step; Choose Skip to enter the Home Page straightly. Step 3: Network Settings Press the Up and Down button on the remote control or on the rear control panel to select the network you want, then choose OK to make a confirm;...
- Page 21 Step 4: System Update If automatic update is detected by the system, the prompt page appears as following figure; Choose More Information to view more updates details; Choose OK to start update; Choose Skip to enter the next step straightly. Step 5: Import You can use USB flash memory to import the setting data to the product.
-
Page 22: Welcome Page

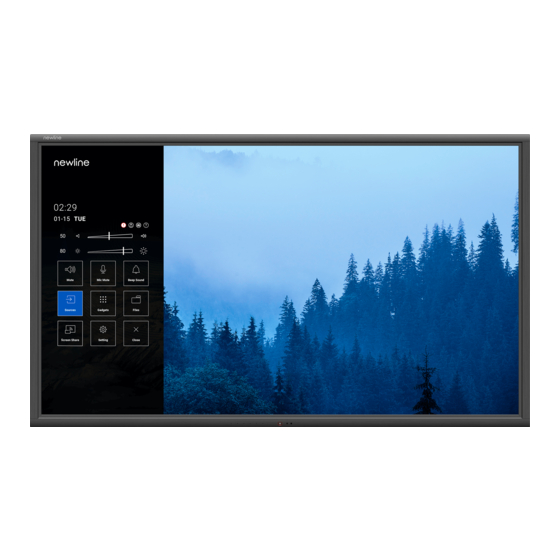

Step 6: Complete The Setting Choose OK to enter the Home Page. Welcome page After setting, the system enter the welcome page, as shown in the following figure: Enter the welcome page, you will see the menu page. If you don’t want the menu page, you can press the menu button “... - Page 23 Name Name Logo Adjust the Brightness Clock (Shortcut to Clock) Main Icon Date and Week Status Bar Adjust the Sound Volume Main Icon ◆ Icon Functions Mute/Unmute Audio. Mic Mute/Unmute. Click Connection to view the connected sources, including Internal PC,HDMI 1, HDMI 2, HDMI3, HDMI4. Gadget displays all pre-installed applications.
- Page 24 More Information For More Information Please visit our website (www.newline-interactive.com) for detailed instruction manual. Contact Us for Support Please email us at support@newline-interactive.com. Our company is devoted to product innovation and technology enhancement. Therefore, we may change product specs and information without notice, Product pictures in the manual are for reference only, please refer to actual products.
