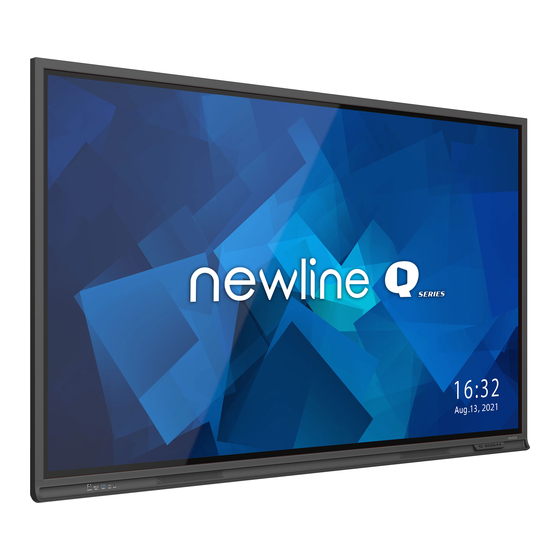

NewLine Q Series User Manual

Hide thumbs Also See for Q Series:
Table of Contents

Advertisement

Quick Links

Q series
User Manual
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q Series and is the answer not in the manual?

Questions and answers

Related Manuals for NewLine Q Series

Summary of Contents for NewLine Q Series

  • Page 1 Q series User Manual V1.0...

  • Page 2: Table Of Contents

    2.1 Safety Precautions ................................ 17 2.2 Installation Precautions ..............................18 2.3 Installation ..................................20 2.4 Installing the OPS (Optional) ............................21 2.5 Installing Newline Assistant ............................22 2.5.1 Introduction ................................22 2.5.2 Installation ................................. 22 3 Getting Started ..........................23 3.1 Power On ..................................
  • Page 3 4.7.3 Whiteboard Setting ..............................49 4.8 Annotation ..................................52 4.9 File Management ................................55 4.9.1 File Viewer Page ............................... 55 4.9.2 File Preview................................56 4.9.3 File Search ................................. 56 4.9.4 File Filtering ................................56 4.9.5 New Folder ................................57 4.9.6 File Operation ................................57 4.9.7 File Name ..................................
  • Page 4 Welcome to the world of Newline Thank you for choosing the Q series Interactive Flat panel display. Please use this document to get the most out of your screen. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: About This Document

    About This Document This document describes multiple functions, instructions, and notes about the product. Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows: Provides additional information to supplement operation in the main text. Provides tips for operation.

  • Page 6: Safety Instruction

    The voltage/current of the rear power output port is 5V/2A (maximum). Purchase the power code/AC adapter according to customer needs. The port can be used for the Newline X10D Android box. Please do not connect any products with different power requirement. Otherwise,...
  • Page 7 WARNING Do not put items on the top of the product. ⚫ Do not put items, such as a container for liquid (a vase, flowerpot, cosmetics, or liquid medicine) on the top of the product. ⚫ If any water or liquid is spilled on the product, the product may short circuit and cause fire or electric shock.
  • Page 8 CAUTION ⚫ Do not install the product on carpet or cloth. ⚫ Do not use a cloth, such as table cloth, to cover the product. Keep the product away from the radio. The product complies with the international EMI standard to pervent radio interference. However, interference may still exists and causes noise in the radio.

  • Page 9: Overview

    Overview 1.1 Introduction Take collaboration to the next level with the Q series interactive display. Increase productivity and collaboration across the board with a display that uses advanced touch technology. Each product can be customized to fit your needs. The non-proprietary nature lets you use the...
  • Page 10 Rear View ⚫ 65 " 75 " 86 " / 98 "...
  • Page 11 Front Ports Power Output Plug Speakers Power Supply Plug Power On/Off Power Switch Front Buttons Rear Ports 1 Remote Control Receiver Rear Ports 2 Light Sensor OPS Port...

  • Page 12: Ports

    1.3 Ports  Front USB ports and rear USB 3.0/USB 2.0 ports switch connections based on signal sources. If the current signal source is reading the data from an external product connecting to the port, please switch the signal source after the data reading is complete. Otherwise, the data or product may be damaged.
  • Page 13 Rear Ports ⚫ The rear power output port is supplies 5 V/2 A (maximum) power. Please contact Newline to purchase the power AC adapter for powering external devices. Please do not connect any products which require power than listed. Doing so may cause injury or damage to the panel.

  • Page 14: Front Buttons

    1.4 Front Buttons Buttons Operations Functions Short press Power on ⚫ Solid white color : Display is on and working Sleep mode The red and white lights flicker alternately: Display ⚫ enter Sleep mode. Long press for more Power off than 2 seconds ⚫...

  • Page 15: Remote Control

    1.5 Remote Control Carefully read the following instructions before using the remote control to avoid possible faults: Do not drop or damage the remote control. ⚫ Do not spill water or other liquids on the remote control. ⚫ Do not place the remote control on a wet object. ⚫...
  • Page 16 Buttons Operations Power On/Off Mute/Unmute Audio Number Keypad Go to the Home Page Return to Previous/Exit Directional Pad Confirm/OK Start Whiteboard Mode Take a Screenshot Enable Sound Only Mode Press once to freeze the current screen. Press again to exit freeze function Adjust the Volume Adjust the Brightness Enter the Source Selection Page...
  • Page 17 Buttons Operations Open the Browser Application Toggle Display Backlight Mode Enter the Screen Lock interface  Open the Quick Setting menu on the embedded os system.  Open the menu in Windows system. Open the System Settings...

  • Page 18: Installation Guide

    Installation Guide 2.1 Safety Precautions Installation Environment...

  • Page 19: Installation Precautions

    Installation Direction 2.2 Installation Precautions Weight Loading Weight of the product: 143lb/ 65kg (86INCH), 115lb/52 kg (75INCH), 86lb/ 39kg (65INCH) When using a mobile stand, ensure that the weight of the product is less than the loading ⚫ capacity of the mobile stand. When using the wall-mount bracket, ensure that the wall can support the weight of the ⚫...
  • Page 20 Ensure adequate ventilation and/or an air conditioned environment. We recommend keeping certain distances from the side of the product to the wall or panels. Ventilation requirements are shown in following figure: （ Tips ： Updated to Q Series front panel figure ）...

  • Page 21: Installation

    Dimensions of the mounting holes on the back panel are shown on the following figure: Consult a professional installer to install the display product. 75 " /86 "/ 98": （ Tips ： Updated to Q Series Back panel figure ） 65 inch：...

  • Page 22: Installing The Ops (Optional)

    （ Tips ： Updated to Q Series Back panel figure ） 2.4 Installing the OPS (Optional) The OPS does not support hot plugging. Therefore, you must insert or remove the OPS when the display is powered off. Otherwise, the display or OPS may be damaged.

  • Page 23: Installing Newline Assistant

    2.5 Installing Newline Assistant 2.5.1 Introduction The Newline Assistant agent is a tool used as a bridge between the embedded operating system and the OPS. It helps add Windows software shortcut to the Home Page, as well as to protect USB data when switching between sources.

  • Page 24: Getting Started

    Getting Started 3.1 Power On Step 1 Ensure the power cable is fully seated into the panel and wall outlet before powering on the panel. Please confirm your wall outlet supports a power range of 100V to 240V with frequency at 50 Hz/60 Hz ± 5% and is fully grounded. The power outlet should be installed near the equipment and should be easily accessible.

  • Page 25: Power Off

    ： (tips Image to be updated) Step 3 Press the power button on the front control panel or on the remote control. 3.2 Power Off Step 1 Press the power button on the front panel or the power button on the remote control to enter sleep mode.

  • Page 26: Calibration

    Step 3 In the Warning dialog box, tap Cancel to return to working mode. Tap Turn off to turn off the panel, and the power indicator will turn to red. Step 4 If you want to completely turn off the product, turn off the rocker switch behind the panel (next to the power socket) and unplug the power cord.
  • Page 27 Step 4 Select in the Tablet PC Settings window.
  • Page 28 Step 5 Select Touch input from the option and start calibration. Step 6 Use your finger or a pencil to click and hold the center of the flickering cross . Do not release until moves to the next positioning point. Complete the calibration process as instructed.

  • Page 29: Operating The Touch Screen

    Operating the Touch Screen 4.1 Profile Logon When the panel is powered on, the panel will show all the registered accounts as shown in the following figure: Tap the icon to enter the 6 digits passkey and log into the system homepage. Default passkey is 2364606633.
  • Page 30 Notes: The passkey is only limited to 6 digits, English letters are not allowed. After passkey enabled, every time you boot up the screen, system will request the passkey. If you forgot your passkey, please contact your administrator to reset your passkey.

  • Page 31: Home

    4.2 Home Once logged into the system, the user will be taken to the Home page as shown in the following figure: 1: Logo (Shortcut to Settings) 2: Clock (Shortcut to Clock) 3: Date and Week(Shortcut to Calendar) 4: Side Toolbar 5: Status Bar and Settings 6: Main Icon 7: Preview Window for Signal Source...
  • Page 32 Shortcut for Clock Tap the time icon on the Home page to start the clock application. Using the icons on the top, you may switch from clock mode to alarm mode, or to timer and stopwatch mode. In the clock mode, you may tap to add other time zones as shown in the following figure:...
  • Page 33 Tap to enter the app interface. Apps displays all pre-installed applications, including Calculator, Calendar, Clock, Settings, Newline Cast, File Viewer, Office Suite, and…etc. Tap the icon of an application to run the application. Tap “Screen Sharing” icon to enable the wireless screen sharing function.
  • Page 34 (Tips: Image to be updated) Shrink 2 (Tips: Image to be updated) The functions of the side toolbar are as follows: Icon Functions Switch to the OPS source. Go to Home page. Tap once to start annotation mode, tap again to stop annotation and take a screenshot.
  • Page 35 Icon Functions Switch to whiteboard mode. Minimize or maximize the toolbar. Go to Apps folder. Tap to view the external internal sources, including HDMI 1, HDMI 2, HDMI 3, Front Type C, Type C and Display Port. App switcher allows the user to manage currently running applications. Swipe up or down to view currently running applications, swipe left or right to close the application or tap “...

  • Page 36: Sources

    4.3 Sources On the side toolbar page, tap to enter the signal source selection, including Front Type C, Type C, HDMI 1, HDMI 2, HDMI 3 and Display port. The icon without signal source connected is gray, and the icon with signal source connected is white.

  • Page 37: Ops

    Multiple devices can be cast wirelessly to the display through several casting modes (Airplay, Google Cast…). To cast: tap Screen Sharing on the Home Page to enter Newline Cast. On screen directions will appear for you to follow in order to wirelessly cast to the display, as...

  • Page 38: Whiteboard

    4.7 Whiteboard The whiteboard function is designed to present conference writing to attendees in a quick and easy manner. The whiteboard has the following functions: Discussion and screen annotation ⚫ On the whiteboard page, you can select pen type, width, and color to write or annotate on the screen.
  • Page 39 on the side toolbar or tap in discussion mode to enter annotation mode. ⚫ In annotation mode, a transparent layer lays over the screen, letting you write over whatever is on the screen until you exit annotation mode. Icon Name Icon Function Mode Switch Tap to switch to annotation mode.

  • Page 40: Whiteboard Functions

    Icon Name Icon Function hold the icon for two seconds to set the way of eraser. Clear Clear all data on this page. Undo Back to the previous step. Redo Tap to restore the action that was cancelled in the previous step. New Page Tap to add a new page.
  • Page 41 Page settings ⚫ Tap and hold for two seconds to set the color and the pattern of the new page, as shown in the figure below. Mode Switch in the lower left corner of the discussion mode to switch between whiteboard modes.
  • Page 42 Discussion mode ⚫ The background is a single color, as shown in the following figure. You can write content on the page as you wanted. Options Tap the icon to enter options interface. Users can manage files, add Text, Sticky note, Search Image or Search Web etc.
  • Page 43 On the TOOLS items, you can use rulers to draw line or shape on the page, import the visualizer image etc. On the CANVAS items, you can choose split mode to set the split application. QR code export On the Whiteboard, tap to pop up QR code exporting windows.
  • Page 44 Move canvas On the whiteboard, tap the icon to enter move canvas function, press and move your finger in the page to move canvas and content on it. Pen Type On the Whiteboard, two types of pens are supported: Pen and highlighter. : used to write.
  • Page 45 Insert auto shape On the Whiteboard, tap to insert the shape or set the shapes and color. Shapes: Circular, ellipse, square, equilateral triangle, right triangle, star, arrow, line icon supports three status: Unavailable: The icon is unavailable when users insert arrow and line; Unselected: The edge of shapes are colored when the icon is not selected;...
  • Page 46 Select On the Whiteboard, tap and user could choose the data on the page to move/ zoom in/ zoom out/ rotate/change colors. Finger gesture Rotate:...
  • Page 47 Zoom in/out: Icon Functions Long press this icon to Rotate the selected items Tap this icon to copy the items. Tap this icon to cut the items. Tap this icon to Push to top layer. Tap this icon to Push to bottom layer. Tap this icon to lock the layer.
  • Page 48 Tap this icon to unlock the layer. (the icon will appear only after one item locked) Eraser Two methods are available to erase written errors or content as follows: Partial eraser: Tap to clear the passing part of eraser. ⚫ Object eraser: Tap to clear the whole object.

  • Page 49: Page Operations

    4.7.2 Page Operations You can preview, select, and delete the writing page, you also can save the page to you USB Flash device or local files. Page Preview at the lower right corner in the whiteboard mode. All pages will be displayed. Tap one page to switch to that page for more operations, as shown in the following figure.

  • Page 50: Whiteboard Setting

    Page Operation On the Navigation page, you can select or delete writing pages according to requirements, as shown in the following figure: to select all pages. ⚫ to save the writing pages to USB flash device. ⚫ to share the writing pages to local file or AquaMail. ⚫...
  • Page 51 Object recognition Users can drag the slider to enable the object detection function, tap icon to view details functions, as shown in the following figure: Example 1: Turn on write with Fine Pen only Fine Pen (2mm): User Fine Pen to write and erase with small eraser. ⚫...
  • Page 52 Fine Pen and finger (thick pen): User Fine Pen or finger (thick pen) to write. System will ⚫ detect the thickness of writing and automatically switch to the corresponding color and thickness of pen/highlighter. The move button: after tapping this button, you can move the canvas with one finger or ⚫...

  • Page 53: Annotation

    Long press on objects: shortcut for selecting objects. ⚫ Action hint: Drag the slider to enable the action hint. Default settings: Tap the button to enter default setting page, users can set whiteboard page background, change the color and thickness of Smooth Pen and Highlighter, change the default type of eraser, both object eraser and partial eraser can be set.
  • Page 54 Take a Screenshot icon to enter take a screenshot interface, users can tap icon to take a screenshot; tap icon to switch to whiteboard mode; tap icon to save screenshot, tap icon to exit screenshot. Save screenshot icon to pop up save screenshot interface, you can save or share screenshot as following: to select all pages.
  • Page 55 to save the annotation pages to USB flash device. ⚫ to share the annotation pages to local file or AquaMail. ⚫ to delete selected pages. ⚫ Notes: You can select "Internal storage > Pictures > Screenshots > image" folder to view or get screenshots.

  • Page 56: File Management

    Notes: If you need more details instruction, please refer to whiteboard setting. 4.9 File Management The product supports connection to USB flash memory. In File Viewer application, you can preview all files in the internal storage and storage devices connected via USB ports and select, copy, paste, delete and search for files.

  • Page 57: File Preview

    4.9.2 File Preview Using the File Viewer application, you can tap the submenu on the left side to preview what files are on internal storage, external storage devices connected via the USB ports, cloud stored files, FTP uploaded files, and local network files, as shown in the following figure. 4.9.3 File Search Enter the File Viewer application and tap .

  • Page 58: New Folder

    The system supports two view modes: list and grid. You can tap on the top right ⚫ corner to switch view modes. to display files based on name, type, size, and modification. ⚫ 4.9.5 New Folder Enter the File Viewer application, and tap to create new file or tap to create new folder, as shown in the following figure.

  • Page 59: File Name

    4.9.7 File Name Under the "Internal storage > Pictures > Screenshots " folder in the File Manager, remote control screenshots of this meeting are saved. Screenshots include annotation page screenshots, screenshot pages in the discussion mode are saved in the "Internal storage > Pictures > Screenshots > image" folder. Depending on the screenshots mode, picture naming is different.

  • Page 60: Apps Folder

    4.11 Apps folder On the Home page, tap Apps. On the page that is displayed, all applications can be viewed. The following figure shows applications that the system is delivered with . Name Icon Functions Calculator Tap this icon to enter the calculator application. Calendar Tap this icon to enter the calendar application.

  • Page 61: Add Shortcut

    Tap this icon to enter the Newline Broadcast application. Broadcast Visualizer Tap this icon to enter the visualizer application. Newline app Tap this icon to enter the newline app store application. store Newline Tap this icon to enter the Display diaplay application. display chromium Tap this icon to enter the chromium application.
  • Page 62 Connection. ⚫ to view the Windows software shortcuts that the Newline Assistant uploads to ⚫ the embedded operating system. For details, see “¡Error! No se encuentra el origen de la referencia.”.
  • Page 63 Step 3 Add or delete applications on the tab. In the list, tap the icon to add it as a shortcut on the Home page. A check icon will appear ⚫ at the upper right corner of the shortcut icons. Up to 5 shortcuts can be added. Tap the icon with the check mark again.

  • Page 64: Add Quick Start Windows Programs In Smart System

    4.12.2 Add Quick Start Windows Programs in Smart System Step 1 In Windows, run the Newline Assistant program and drag the software icons or folder shortcut icons that you want to add from the desktop or menu to the Newline Assistant window.
  • Page 65 Step 3 On the shortcut setting page, tap icon to view all the Windows software shortcuts added by the Newline Assistant in ¡Error! No se encuentra el origen de la referencia.. By default, the Newline Assistant application is added on the tab.

  • Page 66: Automatically Power Off

    4.13 Automatically Power Off If the screen is left un-operated for a specified duration, it will be locked to guarantee your privacy. Choose Settings> Power Setting to set the duration. For details on the setting method, see " Power Setting ". After the screen is locked, if it is operated again within 120 seconds, the screen is unlocked.

  • Page 67: Language And Input

    Wake on LAN: Tap the corresponding button to enable Wake on LAN function. ⚫ Proxy: Tap the item to view proxy server. ⚫ 4.14.2 Language and Input Enter the Language & Input submenu to set language and keyboard. The default input method of the system is Kika Keyboard F, and Physical keyboard must be enabled.

  • Page 68: Date And Time Settings

    4.14.3 Date and Time Settings Enter the Date & Time submenu to set the date and time. Before setting the date and time, users should tap Time zone to select local time zone. Setting a Date You can automatically obtain the system date or customize a date. To automatically obtain a date, select Use network provided time.
  • Page 69 To customize a date and date format, set them in date and Select date format. ⚫ Setting Time You can automatically obtain the system time or customize time. To automatically obtain time, select Use network provided time. ⚫...

  • Page 70: Storage

    To customize time and time format, set them in time and Use 24-hour format. ⚫ Time format will be 24-hours mode only when the Use 24-hour format is selected, othersize time format will be 12 hours mode. 4.14.4 Storage Enter the Storage submenu to view space distribution of the internal storage.

  • Page 71: Applications

    4.14.5 Applications Enter the Apps submenu to view downloaded applications by type, running applications, and all applications. 4.14.6 Display & Theme Enter the Display & Theme submenu to set the theme, wallpaper, logo and font size.  Theme: Standard, abstract, galaxy, forest, classic, five themes can be chosen; ...

  • Page 72: Tool Bar

     Logo: Tap the button to turn on/off the logo on the Home page;  Set logo: Users can use default logo or customize the logo from file viewer; 4.14.7 Tool Bar Enter the Tool Bar submenu to set whether to display the tool bar. Left: Tap to turn on/off the left tool bar.

  • Page 73: Input And Output Setting

    4.14.8 Input and Output Setting Enter the Input and Output submenu to set the Home source and USB connection, enable new input source and CEC auto. Starting source: Customize settings to connect to the signal source after power on. ⚫ New input source: After the New input source function is enabled, the system can ⚫...
  • Page 74  Sleep and touch to wake up: Tap the button to enable the function, users can touch the screen to wake up the system from sleep mode. To set the automatic power on time, select Auto power on, and set the power on time in ⚫...

  • Page 75: Screen Eye Filters

    To set the energy saving time, tap Energy saving. In the dialog box that is displayed, set ⚫ a duration after which the screen enters the lock mode if the screen is left un-operated. After the screen is locked, if the user does not operate the screen within 120s, the screen enters the power off mode.
  • Page 76 Studies have shown that just as the ultra-violet rays can cause eye damage, the shortwave-length blue light rays from displays can cause eyestrain, retina damage, and affect vision over time. Newline Blue Light filter is an eye protection feature that can reduce the blue light. TT-6521Q /TT-7521Q /TT-8621Q has obtained this certification.

  • Page 77: System

    4.14.11 System Enter the System submenu to see system version information and admin mode. About Enter About to check the system info such as Model, serial number, firmware version…etc. Advanced For enhance the security, and the better user experience, we collect the settings about the security to the admin mode.
  • Page 78  Go to Settings → System → advanced, tap the admin mode, then use the floating keyboard on the screen, enter the passkey 2364606633 to get into the admin mode.  Use remote control and press: UP> DOWN> UP> DOWN> LEFT> RIGHT> LEFT> RIGHT>...
  • Page 79 2. System update Enter the System update submenu to set about Firmware update using USB method, Firmware config update using USB method and over the air update method. 3. Security Enter the Security submenu to set about whiteboard and screenshot data removal frequency or USB lock.
  • Page 80 ⚫ Whiteboard and screenshot data removal frequency: You can set the data clearance time period, the default setting is never. ⚫ USB lock: When you enable the USB lock, under the smart system, only USB disk will be locked, user will not able to read the data from the USB disk, but USB mouse and keyboard could be used.
  • Page 81 ⚫ Owner rename: If you would like to change owner name, you can rename it here. ⚫ Reset passkey: If you would like to reset passkey, you can reset it here.

  • Page 82: Quick Setting Menu

    Quick Setting Menu Using two fingers and swipe up from the bottom of the screen to access the Quick Settings menu, as shown in the following figure. Icon Functions Drag the slider to adjust the brightness. Drag the slider to adjust the volume. Tap the icon to enable the Freeze Function.
  • Page 83 Functions Tap the icon to enable or disable the embedded operating system Wi-Fi. Tap the icon to launch the Newline Classroom Tools. Tap the icon to enable sound only mode. In sound only mode, the screen LCD displays and LED backlight turns off, other functions will continue to work as normal.

  • Page 84: Serial Port Control

    Serial Port Control RS232 communication cable (please use cross data cables) This Device Computer RXD0 TXD0 TXD0 RXD0 Cover RS232 port of panel Connect RS-232 port to the PC or controlling product. Enable RS-232 serial port connection and complete the following configuration. Port: COM1 (Set according to PC or controlling product’s port number) Baud rate 115200...
  • Page 85 Function Controlling codes Return codes Power on 7F 08 99 A2 B3 C4 02 FF 01 7F 09 99 A2 B3 C4 02 FF 01 00 01 00 CF Power off 7F 08 99 A2 B3 C4 02 FF 01 7F 09 99 A2 B3 C4 02 FF 01 01 01 01 CF Mute/Unmute...
  • Page 86 Home page 7F 08 99 A2 B3 C4 02 FF 01 7F 09 99 A2 B3 C4 02 FF 01 1C 01 1C CF Return (exit) 7F 08 99 A2 B3 C4 02 FF 01 7F 09 99 A2 B3 C4 02 FF 01 1D 01 1D CF 7F 08 99 A2 B3 C4 02 FF 01 7F 09 99 A2 B3 C4 02 FF 01 2B 01...
  • Page 87 Freeze ON/OFF 7F 08 99 A2 B3 C4 02 FF 01 7F 09 99 A2 B3 C4 02 FF 01 3B 01 toggle 3B CF Freeze On 7F 09 99 A2 B3 C4 02 FF 0B 7F 09 99 A2 B3 C4 02 FF 0B 00 01 00 CF Freeze Off 7F 09 99 A2 B3 C4 02 FF 0B...
  • Page 88 Function Querying codes Return codes 7F 09 99 A2 B3 C4 02 FF 01 37 XX Notes: 7F 08 99 A2 B3 C4 02 FF 01 Power supply 37 CF XX indicates the power on/off state. XX = 01: power on state; XX = 00: power off state.
  • Page 89 7F 09 99 A2 B3 C4 02 FF 01 35 XX Notes: 7F 08 99 A2 B3 C4 02 FF 01 XX indicates the mode. D.Mode 35 CF XX = 00-standard; XX = 01-ECO mode; XX = 02-auto. 7F 09 99 A2 B3 C4 02 FF 01 49 XX Notes: Backlight 7F 08 99 A2 B3 C4 02 FF 01...
  • Page 90 OP: backlight brightness; QR: backlight state; ST: Whiteboard state; UV: Screen lock state.

  • Page 91: Faqs & Troubleshooting

    FAQs & Troubleshooting Symptom Troubleshooting Methods The screen cannot be powered on or Check whether the power supply is connected. the power indicator light is off. Check whether the power supply plug is properly connected. Check whether the power outlet has electricity. Check whether the rocker switch is enabled.
  • Page 92 Symptom Troubleshooting Methods the external signal source channel is Ensure that the USB touch cable is connected to being used. the proper port. For details, see section "Ports". Remove and insert the USB touch cable again. There is no sound when the HDMI in Remove and insert the HDMI cable again.
  • Page 93 Symptom Troubleshooting Methods When the touch screen connects to Please use the remote control to start and turn off CEC facilities and powers down, touch the touch screen. Then you can use the CEC screen will stay in shut down mode facilities to recall it.

  • Page 94: Specifications

    Specifications Model TT-6521Q TT-7521Q TT-8621Q Display Backlight Display Area 56.24 x 31.63 in/ 64.97 in x 36.55 in/ 74.69 in x 42.05 in/ 1432 x 807mm 1652 x 930mm 1893 x 1069mm Active Screen Size 65 inch 75 inch 86 inch Display Ratio 16:9 Resolution...
  • Page 95 Model TT-6521Q TT-7521Q TT-8621Q Touch Touch Surface Anti-glare tempered glass Transparency 88%±3% 10 Points in Smart system Touch Points 20 Points in Windows Writing Tools Eraser, Stylus or Finger ≤10ms ≤10ms ≤10ms Scan Speed Communication USB-A Interface Transportation/Storage Storage -15℃~55℃/20～90％RH(Non coagulation) Temperature/ Humidity 0℃-40℃/20～80％RH(Non coagulation)
  • Page 96 Model TT-6521Q TT-7521Q TT-8621Q Flash 32GB build in + 64GB TF card Supports all major types of multi-media files Multimedia File Formats Pre-installed Refer to the actual panel display. applications...

  • Page 97: More Information

    More Information For More Information Please visit our website (www.newline-interactive.com) for detailed instruction manual. Contact Us for Support support@newline-interactive.com Please email us at Our company is devoted to product innovation and technology enhancement. Therefore, we may change product specification and information without notice. Product pictures in the...

This manual is also suitable for:

Tt-6521qTt-7521qTt-8621q
