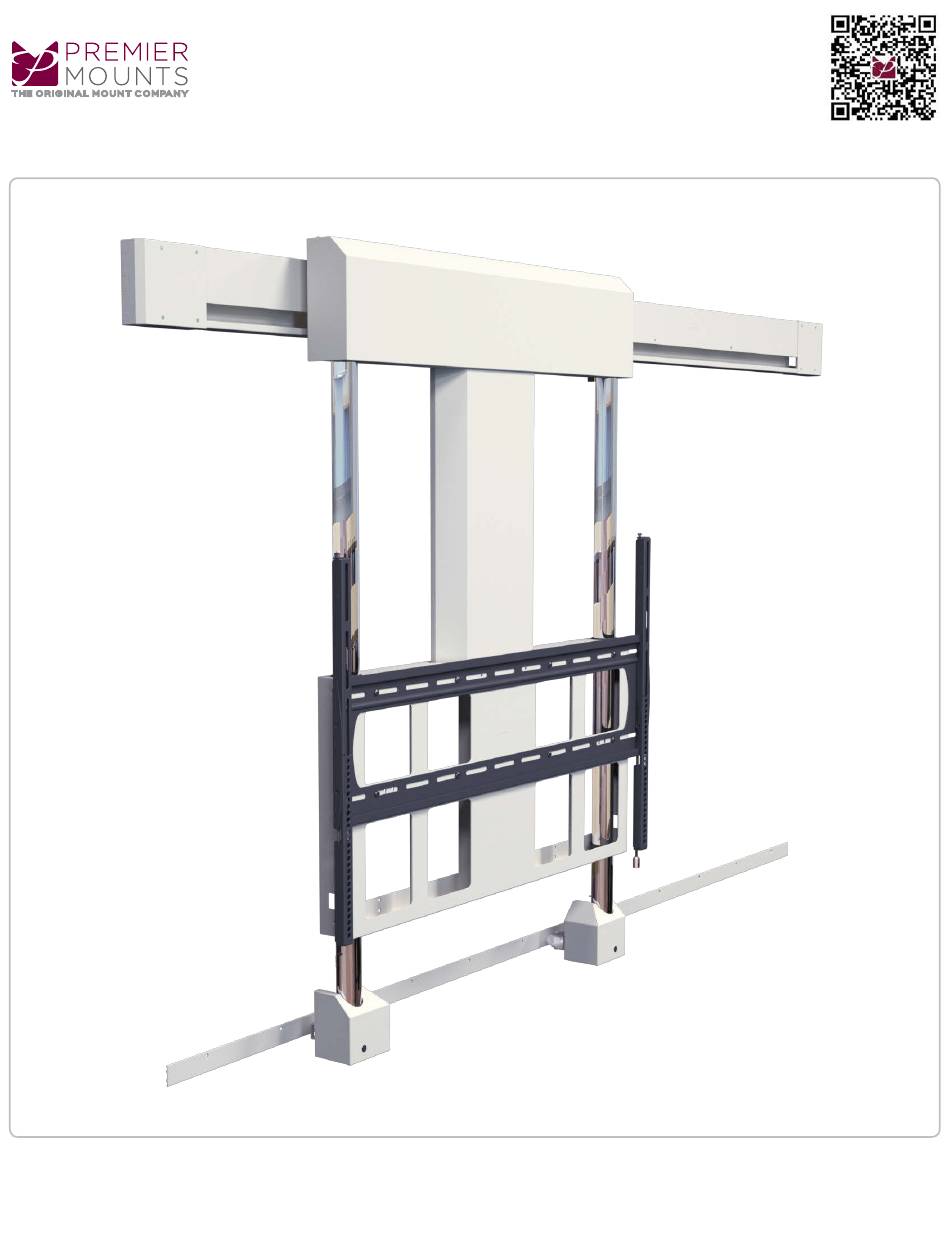

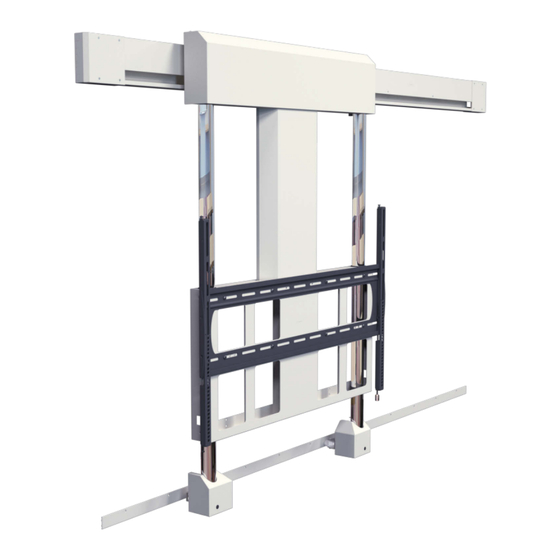

FPS-300
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d'Installation, Installatie gids
Warranty, Garantie, Garantía, Garanzia, Garantie, Waarborg: http://www.mounts.com/warranty
9535-000-011-0X
Rev.2
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
1321 S. State College Blvd., Fullerton, CA 92831 USA
Advertisement
Related Manuals for Premier Mounts FPS-300
Summary of Contents for Premier Mounts FPS-300
- Page 1 FPS-300 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Warranty, Garantie, Garantía, Garanzia, Garantie, Waarborg: http://www.mounts.com/warranty 9535-000-011-0X Rev.2 www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 1321 S. State College Blvd., Fullerton, CA 92831 USA...
-
Page 2: Included Components
“wire mold” channel to be run into the end caps as 16.00 16.00 well. 16.00 Unpack all FPS-300 system components and confirm all OPTIONAL POWER BOX components called out in the supplied parts list are ac- OUTLET LOCATION counted for. With all components laid out select the upper... - Page 3 FPS-300 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Take one 48 in. upper channel section (A) and place it horizontally on the wall and level at the desired height, in line with both the predetermined stud locations and with anchoring position in the far right or left slot.
- Page 4 Once the mounting pilot holes have been drilled, take the first 48 in. (1219mm) section of mounting channel and se- cure it level on the wall with the mounting hardware provid- ed. Once the first upper channel is secure, follow the same procedure for the second 48 in.
- Page 5 FPS-300 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids With both upper and lower channels level and secure to the wall, the main slider assembly can be raised (two people recommended) with the upper rollers properly seated into the upper channel receiver slots.
- Page 6 Using the spirit level supplied, adjust the stand off of the lower roller wheels to provide a level vertical for the slider frame on the wall. Loosen the locking screw at the bottom of the roller using a Phillips head screwdriver. Install the dome plug and tighten the bottom lock screw once the slider is level.
- Page 7 FPS-300 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Remove the top cover on the slider assembly and set aside for later re-install. Lay the plastic track glide unit with power and signal cable installed within track section fully inside the upper channel receiver section.
- Page 8 Secure both ends of the cable track system to the upper channel structure with the track brackets and hardware sup- plied as shown in the visual diagram. Secure the power strip to the frame using two (2) M3x8mm screws and two (2) M3 kep nuts. M5 x 10mm M3 x 8mm Double check all power and signal cables are properly se-...
- Page 9 FPS-300 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Use additional tie wraps as needed for proper wire and cable routing. Re-install the upper channel and end covers securely at this time. M5 x 10mm Warranty: http://www.mounts.com/warranty...
- Page 10 Install the power signal box covers and channel covers. M4 x 5mm M4 x 5mm...
- Page 11 FPS-300 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Refer to the “Universal Low Profile Flat Mount for 50″ to 80″ Flat Panels” for instruction on installing the display. M8 x 16mm 1/4” Warranty: http://www.mounts.com/warranty Updates: The most up-to-date installation Garantie, Garantía, Garanzia, Garantie, Waarborg...
- Page 12 What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement prod- uct or part will be shipped to you at no charge, but you must pay any related labor costs.
