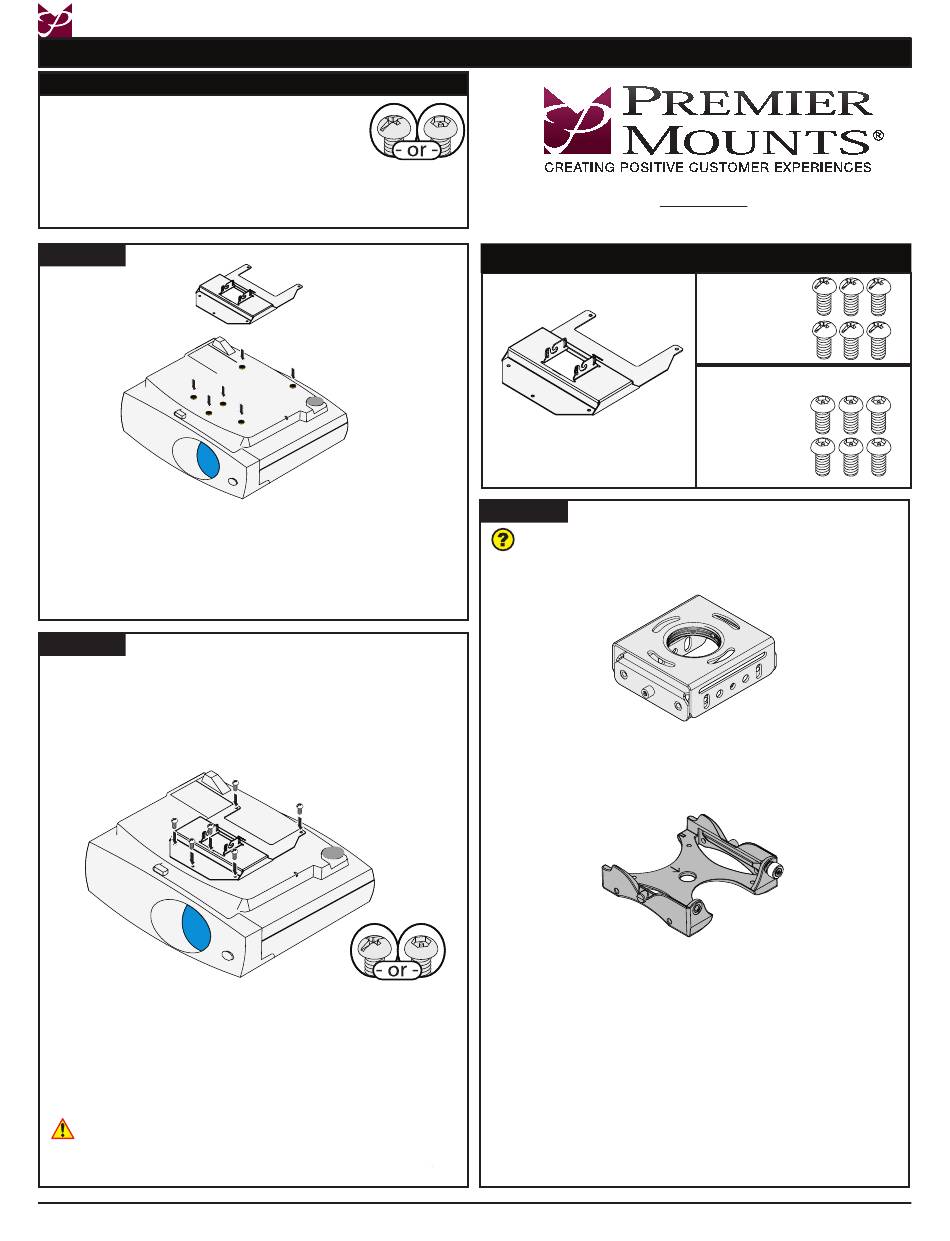

FTP-096 / PDS-096 Projector Bracket Installation Instructions
Lock-It™ Security Hardware Pack
Your Premier Mounts bracket comes with the option of using
Lock-It™ Security Screws. Simply replace any of the Phillips
head screws with the corresponding sized Lock-It™ Security
screws and tighten using the appropriate Security Allen
wrench.
When you see these graphics associated with a step, you have the option of
using the standard mounting hardware or the Lock-It™ Security hardware.
Step 1
­ ­
Invert the projector and place it on a soft, flat surface.
® ­
Remove any foot levelers that might prevent bracket installation.
¯ ­
Locate the mounting points on the projector.
° ­
Place the bracket on the projector.
± ­
Align the mount holes on the bracket with the mounting points on the
projector.
Step 2
­ ­
Insert one (1) M8 x 10mm pan Phillips screw or one (1) M8 x 10mm Lock-
It™ security screw into each mounting point.
® ­
Tighten the mounting hardware.
Do not overtighten the mounting screws.

Installation Instructions

9530-000-961-00
Projector shown is for example purposes only.
Images not to scale.
Visit the Premier Mounts website at http://www.mounts.com
3130 East Miraloma Avenue, Anaheim, CA 92806 USA
USA and Canada
Phone: 1.800.368.9700 Fax: 1.800.832.4888
techsupport@mounts.com
Parts List
FTP-096 / PDS-096
Bracket (Qty 1)
Step 3
Which base are you attaching to your projector bracket?
•
PDS - Proceed to the "PDS Base Box Installation" section.
•
FTP - Proceed to the "FTP Quick Set Base Installation" section.
FTP-096 / PDS-096 Projector Bracket
M8 x 10mm
Pan Phillips Screw
(Qty 6)
M8 x 10mm Lock-It™
Security Screw
(Qty 6)
