Save the Channel Group
From the File Menu select Save Group As to rename the group. Modified factory
default groups must be renamed. If the current group is a user group and is to be
saved under the same name, select Save Group.
Print the Channel Group Information
From the File Menu select Print. A tabular listing of the current group is sent to the
default printer.
Send Group to Unit
From the File Menu select Setup Comm Port. Select the proper communications port
and click OK.
Connect the communications cable and power on the Qualifier meter while holding
the F1 key. SL and CL appear on the Qualifier meter's display.

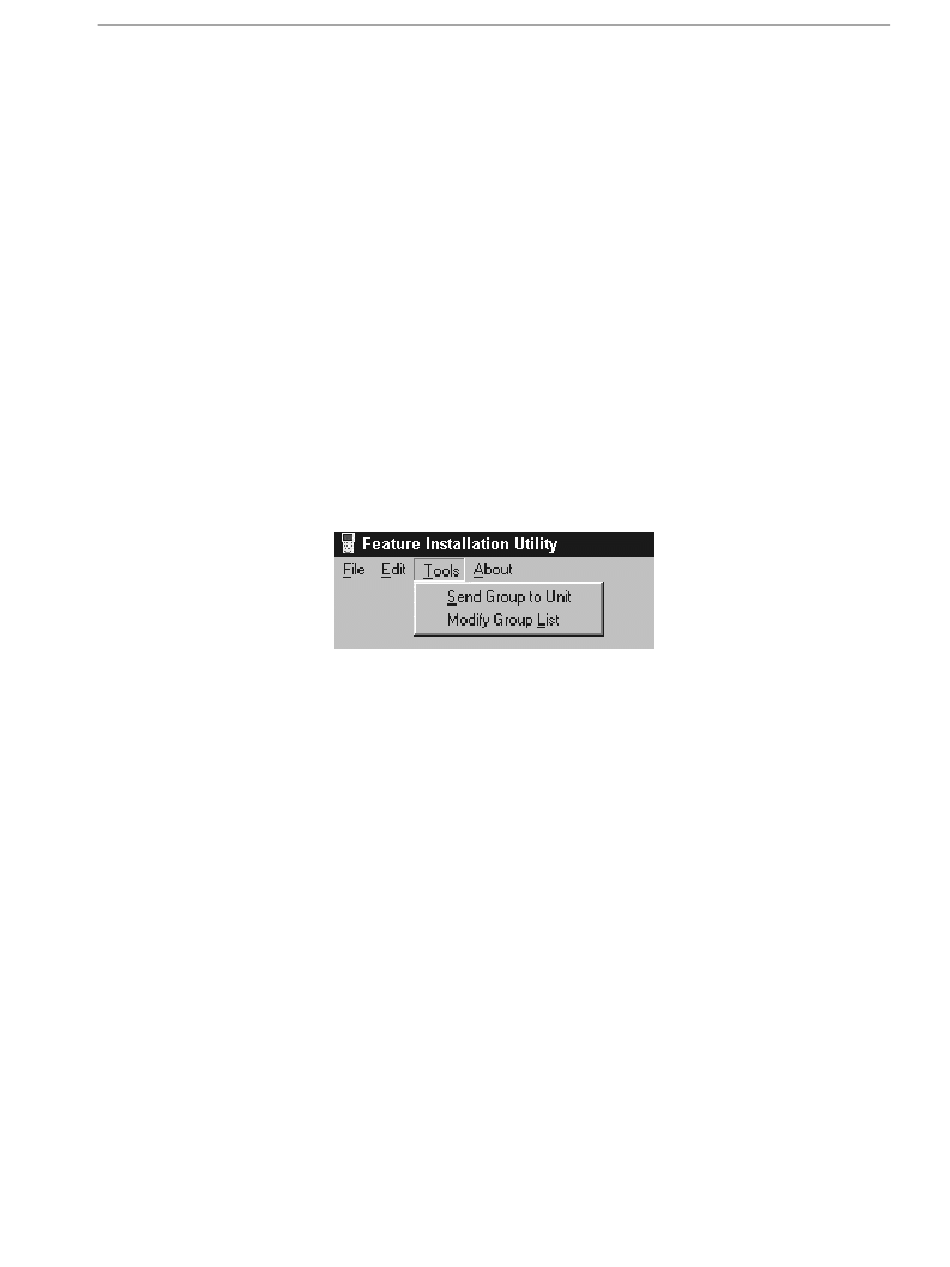

From the Tools Menu select Send Group to Unit.
Groups containing: digital channel descriptions, more than 128 channels, or analog
dB offsets will not load into non-digital units.
Modify Group List
From the Tools Menu select Modify Group List. Select the group to remove and
click Delete Group.
Only user defined groups are listed. Factory default groups are protected and can not
be deleted.
Exit Feature Installation Utility
From the File Menu select Exit.
or
Click the Close button in the upper right corner of the display.
Access Installed Channel Group
With the Qualifier meter off, press and hold F6 while powering the unit on.
Press an arrow key to select country set 0.
Important: If the Qualifier meter was on country set 0 during the installation, scroll
to country set 1 and then back to country set 0 to properly load the new set.
Power the unit off.
The installed channel group is active on the next power-up.
See section Country Set Define for detailed instructions.
