Power-Up - ComSonics CyberTek QUALIFIER User Manual

When first powered-on, Qualifier meter is in a low power state to reduce battery
consumption. In this state, the LCD provides the user with the channel name, units of
measure, the last measured value and a bar graph. "Backlight" and/or "Battery Low"
annunciators may also appear.
1
7
6

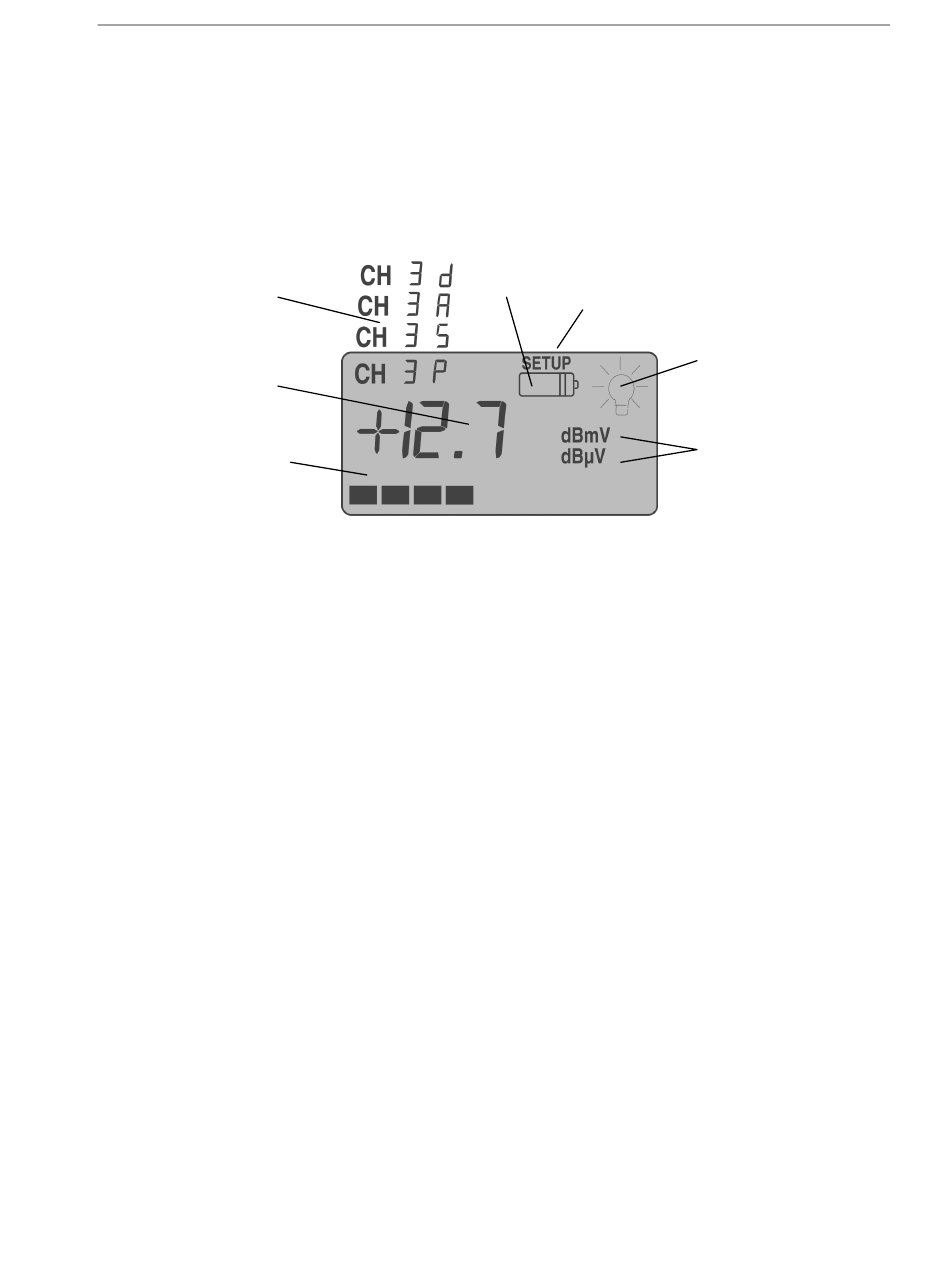

The selected channel name in the format [CH XX88 X]. CH for channel, followed
1
by the channel name comprised of a combination of two alpha-numeric and two
numeric characters. The channel name is followed by P for picture carrier, or S
sound carrier, or A for channels with a second audio channel, or d for a programmed
digital channel. Digital channels are user programmed via a computer program. See
section Feature Installation Utility.
2 Battery symbol is illuminated if a battery low condition is sensed.
3 SETUP is illuminated when the User Preference mode is activated.
4 Lightbulb symbol is illuminated if the backlight is active.
5 dBmV or dBµV Units of Measure conforming to internationally used conventions.
6 The bar graph provides a visualization of the measured signal level relative to the
total dynamic range.
-OR-
The bar graph provides a relative indication of the remaining battery life while the
battery low signal is activated.
At Power-Up, the measured value displays the level of the last channel measured
7
prior to power-down. The display updates with each function keypress.

Power-Up

2 3
1-3
Qualifier Meter
4
5
