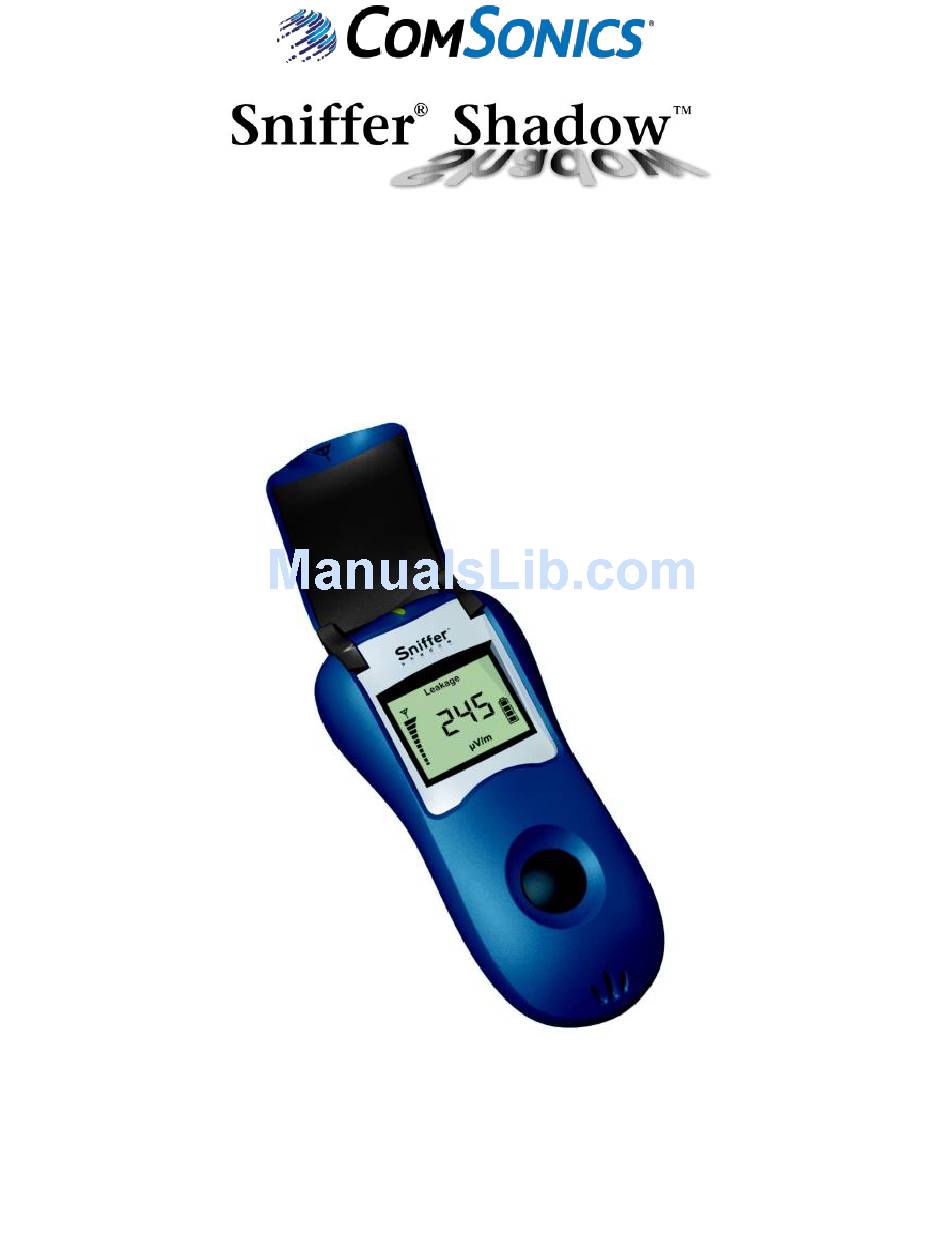

- Page 1 User Guide...

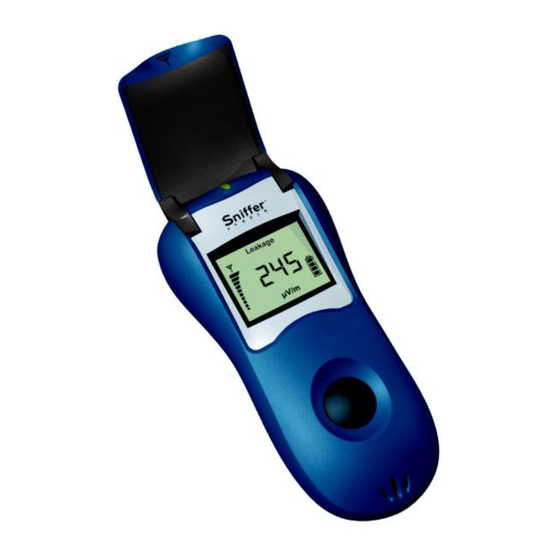

- Page 2 Introduction Thank you for purchasing ComSonics’ Sniffer Shadow , the latest weapon for fighting dreaded home-borne ingress. Shadow’s sleek new shape provides a tool that is as easy to look at as it is to use. One button – that’s right, only ONE BUTTON blends with the ergonomic contours of the front panel making it virtually impossible to misadjust the instrument.
-
Page 3: General Operation
General Operation The Sniffer Shadow has one multifunction button on the front. Press the button momentarily to power on the unit. The speaker sounds a single beep. Hold the button for two seconds to power off. The speaker sounds a double beep. -
Page 4: Measure Mode
Monitor Mode The Monitor mode is active when the Shadow is on and the lid is closed. In this mode, the indicator light flashes green at five-second intervals. In Monitor mode, the speaker emits the Sniffer warble tone indicating the presence of a RF field exceeding the Monitor mode squelch setting. The warble tone sounds for one second and repeats every five seconds. - Page 5 * Function is field adjustable by using the optional Configuration Software Kit. See Configuration Software Kit section for selections. Accessories Sniffer Shadow (includes Holster, 101213-001 AC Charger, and User Guide) AC 101226-001 Charger 100-240VAC Vehicle...
- Page 6 Configuration Software Kit (option 101241-001) The Sniffer Shadow is factory configured to the settings indicated through out this guide. To re-configure a Sniffer Shadow in the field, an optional Configuration Software Kit is available. The kit consists of a program disk, interface cable, and reference guide. It requires a PC with MS Windows 95 or later and an available serial port or adapter.
-
Page 7: Specifications
Specifications *Channel Tuning Single Frequency (See Configuration Software Kit section for list of available frequencies) Usable Level Range 5 to 1999 µV/m 14 to 66.0 dBµV/m *Units of Measure 5 to 57.0 dBµV Level Accuracy ± 10% over operating temperature Pre-detection BW 7.5 kHz Battery... -
Page 8: Technical Support
Ship the product prepaid. All material in this manual is the property of ComSonics, Inc. and protected under the United States copyright law. No material shall be reproduced or used in any form or by any...
