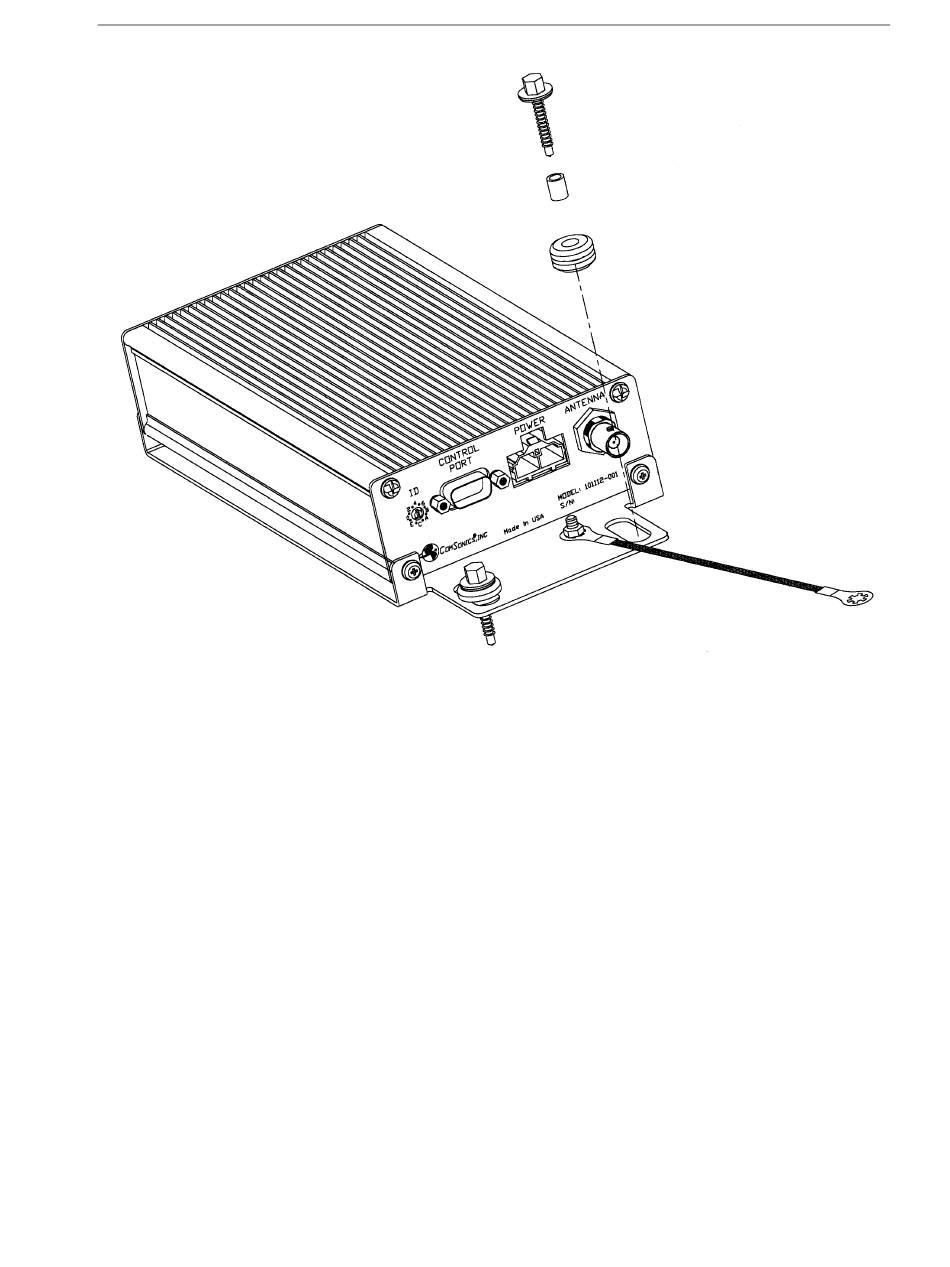

6. Select a location for mounting the ground strap to the vehicle chassis. This must be a
metal surface fully connected to the vehicle ground. Mark the hole for the ground strap
using a center punch. Remove any paint from the area of the hole to provide a good
electrical connection between the ground lug and the vehicle chassis.
7. Use a 1/4-inch nut driver attached to a power screwdriver or variable speed drill. Install
one (1) 3/4-inch self-drilling screw through the ground lug into the chassis at the marked
location. DO NOT OVER TIGHTEN SCREW! Remove any debris remaining from the
drilling operation.
2-5
Qualifier System
