Summary of Contents for JUMO 40.2005

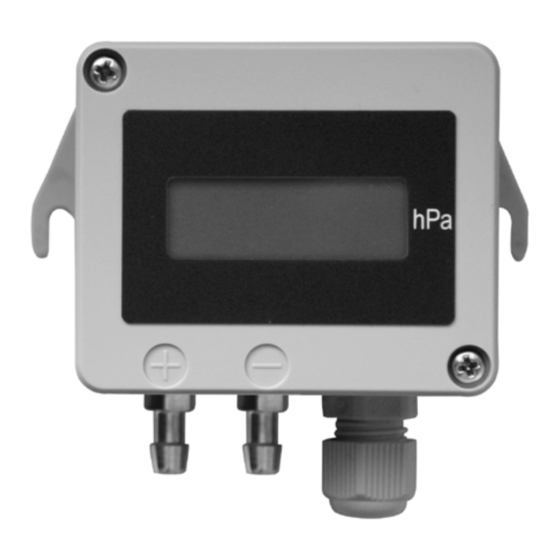

- Page 1 Multi-range differential pressure transmitter Type 40.2005 B40.2005 Operating instructions 2010/-10-11/00550566...
- Page 2 1 General Do not blow into the pressure connections! This will damage the instrument. The instrument must only be operated within its specifications! It does not meet the requirements for “equipment with a safety function”, as defined by Pressure Equipment Directive 97/23/EC. For hazardous media such as oxygen, acetylene, combustible and toxic substances, refrigerating plants, pressure vessels, etc., please comply with...
- Page 3 40.2005, or look on the Internet at: www.jumo.net JUMO GmbH & Co. KG is certified according to DIN ISO 9001. The pressure transmitter described below complies with DIN and VDE requirements. You have acquired a product that in itself meets strict requirements and which complies with or exceeds all the stated specifications.
- Page 4 However, should you have any difficulties with starting up or using our products, do not hesitate to contact us. Phone: (06 61) 60 03-7 15 Fax: (06 61) 60 03-6 06 Internet: www.jumo.net...
-
Page 5: Instrument Identification
2 Instrument identification The device version and the important data are located on the nameplate. TYP 402005 Made in Germany : 0...2.5 / 5 / 7.5 / 10 hPa : 0... 10 V / 0 (4)...20 mA : 14...38 VDC / 12...31 VAC Ser. - Page 6 3 Mounting 3.1 Operating conditions Differential pressure can be measured in dry, non-ionizing and aggressive gases with this measuring instrument. It should not be installed near to sources of interference (transformers, signal sources, electric motors) or sources of heat. Tremors or vibrations at the mounting location can lead to measurement errors.
- Page 7 3.2 Dimensions / attachment R2.1...
-
Page 8: Electrical Connection
4 Electrical connection Only suitable qualified professionals are allowed to connect the pressure transmitters! Please comply with the regulations and safety requirements for electrical, weak current and power current installations, particularly taking into account pertinent national regulations, such as VDE 0100. The supply voltage must not be connected to output signal terminals! This would result in an instrument fault. - Page 9 Connection Terminal assignment Screw terminal 0(4) - 20 mA, 3 wires, output 409 Voltage supply 14 - 38 V DC, 0 V/S- 12 - 31 V AC 0 - 10 V DC, 3 wires, output 409 Voltage supply 14 - 38 V DC, 0 V/S- 12 - 31 V AC...
- Page 10 5 Start-up 5.1 Pressure connection Connect the tube with the higher pressure to "+". Connect the tube with the lower pressure to "-".
- Page 11 5.2 DIP switches Button Output signal End value Damping Measuring range...
-
Page 12: Setting The Measuring Range
5.3 Setting the measuring range Basic range Basic range Measuring Measuring range range 25 hPa 2.5 hPa 50 hPa 5 hPa 75 hPa 7.5 hPa 100 hPa 10 hPa 5.4 Setting the output signal Output signal 0 - 10 V 0 - 20 mA 4 - 20 mA... - Page 13 5.5 Setting the damping Time constant 10 ms 0.5 sec 2 sec 4 sec 6 Calibration 6.1 Setting the zero point Disconnect both pressure tubes from the instrument. Open the instrument. DIP switch S5 is set to "OFF". Press the "T" key. Close the instrument.
- Page 14 6.2 Setting the end value for the output signal Open the instrument. Set DIP switch S5 to "ON". Apply the nominal pressure to the instrument. Press the "T" key. Set DIP switch S5 to "OFF". Close the instrument.
- Page 16 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Street address: JUMO House 8 Technology Boulevard Moritz-Juchheim-Straße 1 Temple Bank, Riverway Canastota, NY 13032, USA 36039 Fulda, Germany Harlow - Essex CM20 2DY, UK Phone: 315-697-JUMO...
