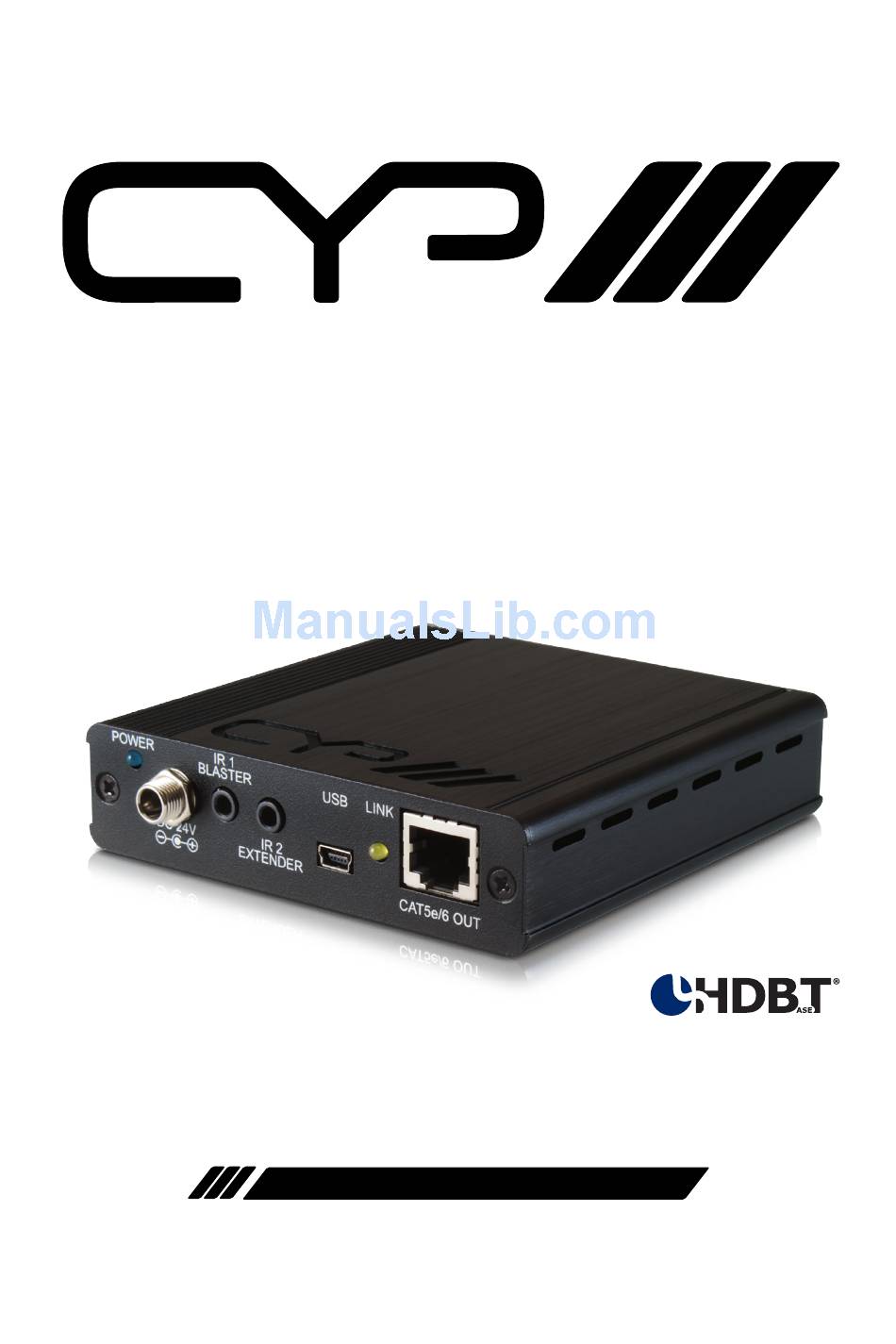

- Page 1 PU-507TX-1H 5-Play™ HDBaseT™ Transmitter with simultaneous HDMI output (inc. PoE & single LAN, up to 100m) OPERATION MANUAL...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 IR Cable Pin Assignment .......10 6.4 D-Sub 9 Pin Definitions ......10 7. -
Page 5: Introduction
1. INTRODUCTION The PU-507TX-1H Transmitter allows uncompressed HDMI signals and IP data to be transmitted over a Single CAT5e/6/7 cable. This solution has a simultaneous HDMI output enabling a local HDMI display to be connected. This device also features full 5-Play convergence allowing the distribution of Video, Audio, LAN serving, Power over Ethernet (PoE), RS- 232 and 2-way IR control functionality over the same CAT5e/6/7 cable. -
Page 6: Features
5. FEATURES Supports all v1.4 HDMI resolutions plus 4k. Supports uncompressed video/audio up to 10.2Gbps Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA. HDMI, HDCP, & DVI compliant Supports HDCP repeating and CEC functions Uncompressed data transfer over single CAT cable (100m - CAT6/7;... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel RS232 IN HDMI OUT HDMI IN HDMI to CAT5e/6 with LAN/IR/RS232 Transmitter HDMI OUT: Connect to HDMI display for instant image display or cascade with another family type Transmitter. HDMI IN: Connect with source equipment such as DVD/Blu-ray or PS3 player. -
Page 8: Rear Panel

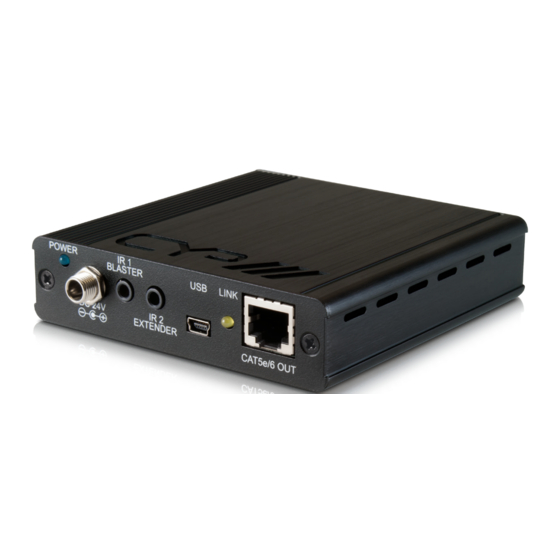

6.2 Rear Panel IR 1 POWER BLASTER LINK IR 2 DC 24V EXTENDER CAT5e/6 OUT POWER LED: Once the power supply is connected the LED will illuminate. DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 9: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3V IR Blaster Signal IR Extender IR Signal Power 3.3V Ground 6.4 D-Sub 9 Pin Definitions Define TX / R TxD/RxD RxD/TxD... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM 3D TV/Display Blu-ray or PS3 Player HDMI HDMI RS-232 Cable RS232 IN HDMI OUT HDMI IN HDMI to CAT5e/6 with LAN/IR/RS232 Transmitter IR 1 POWER BLASTER LINK IR 2 DC 24V EXTENDER CAT5e/6 OUT IR2 Blaster Power IR1 Extender 60°... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps/10.2Gbps Input ports 1 x HDMI, 1 x 3.5mm Phone Jack for RS-232, 1 x IR IN, 1 x LAN*, 1 x USB (Service only) Output ports 1 x HDMI, 1 x CAT5e/6/7 1 x IR OUT, Resolution Up to 4Kx2K (3840x2160@30Hz/4096x2160@24Hz) -
Page 12: Cat5E/6/7 Cable Specification
8.1 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5E/6/7 100 M <=225 <=5.3 GBPS UP TO 1080P, 60 HZ, 36 BITS, 3D (DATA RATES LOWER THAN 5.3 VIDEO) GBPS OR BELOW 225 MHZ TMDS CLOCK). 70 M >225 MHZ >...
