- Page 1 PU-305BD-TX Bi-Directional Digital Audio over Single CAT Transmitter OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........6 6. Operation Controls and Functions ..7 6.1 Front Panel ........... 7 6.2 Rear Panel ............. 8 6.3 RS-232 Pin Definition ....... 8 7. -
Page 6: Introduction
1. INTRODUCTION The Optical (S/PDIF) IN & OUT with RS-232 Transmitter can send and receive S/PDIF audio signal synchronously over a single run of CAT5e/6 cable up to 300m. With RS-232 control and PoE feature added this Transmitter can pair with Receiver unit together that support device control and one side power supply. -
Page 7: Operation Controls And Functions

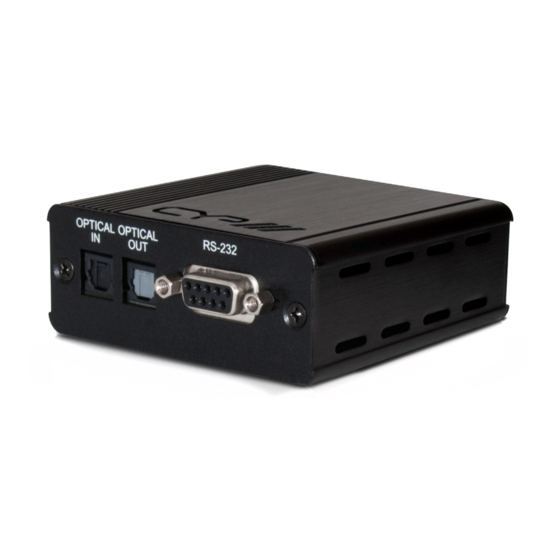

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL OPTICAL RS-232 OPTICAL IN Connect to source equipment such as DVD/Blu-ray player, Set-Top Box or game console for audio input signal routing. OPTICAL OUT Connect to active speakers and or AV amplifiers with optical cable for audio output. -
Page 8: Rear Panel
6.2 Rear Panel AUDIO - CAT DC 12V POWER AUDIO-CAT Connect the AUDIO-CAT output to the AUDIO-CAT input of the Receiver unit using CAT5e/6/7 cable. DC 12V Connect the adaptor with power cord included in the package and connect to AC wall outlet for power supply. POWER indicator When power is ON, the LED will illuminate. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Amplifier PC/NB DVD/Blu-ray Player OPTICAL OPTICAL RS-232 AUDIO - CAT DC 12V POWER AUDIO - CAT DC 12V POWER OPTICAL OPTICAL RS-232 DVD/Blu-ray Player RS232 Control Device Amplifier... -
Page 10: Specifications
8. SPECIFICATIONS Input Port 1 x Optical Output Port 1 x Optical Control Port 1 x RS-232 Audio Sampling Rate Up to 192 kHz Audio Format LPCM 2CH, Dolby Digital 2~5.1CH, and DTS 2~5.1CH (Pass through) CAT Cable Distance 192k@100m/328ft 96k@150m/492ft 48k@300m/984ft Input Level/Frequency... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Dolby Dolby Laboratories, Inc., Digital Theater System... - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
