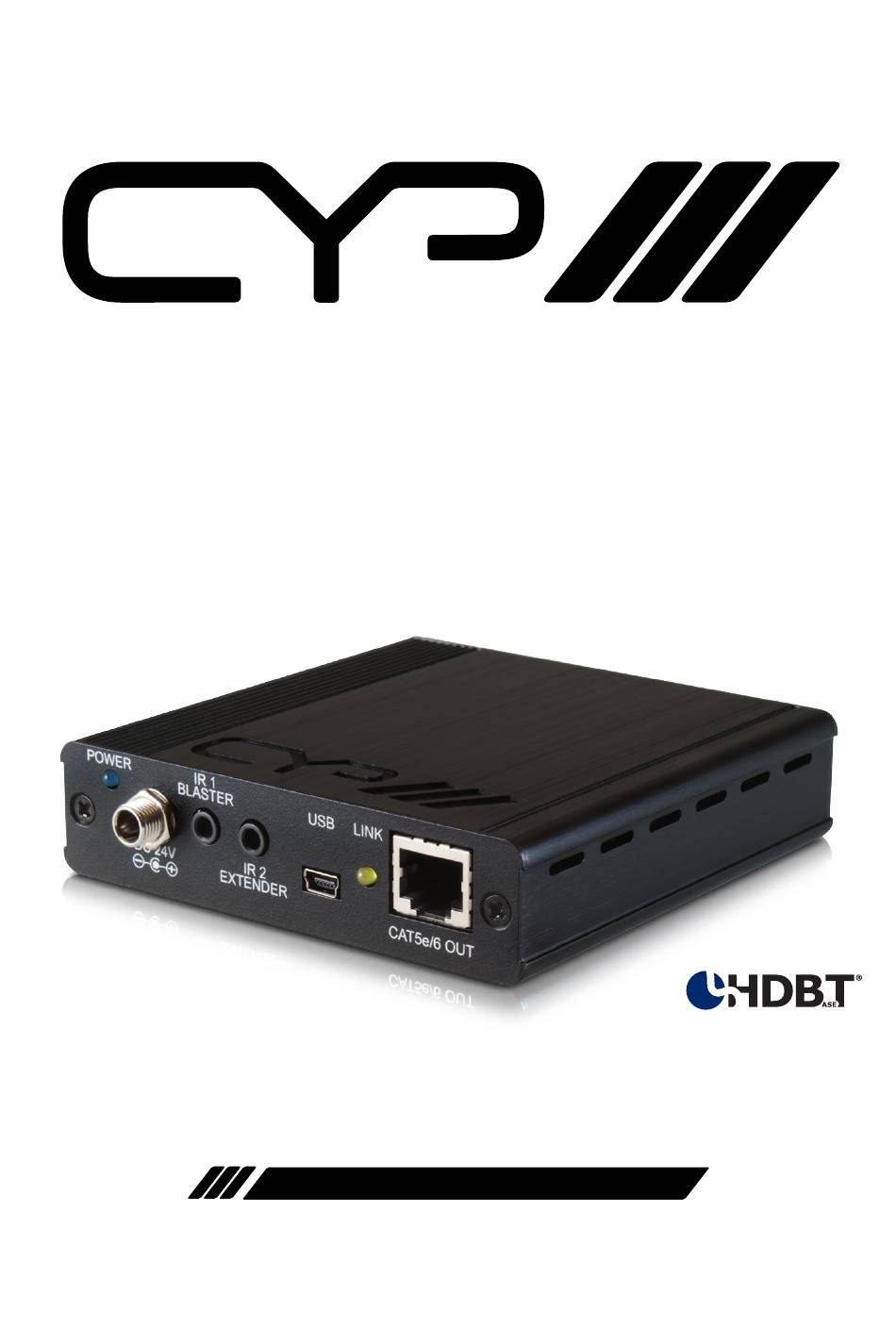

- Page 1 PU-514LTX-1H HDBaseT™ LITE Transmitter with simultaneous HDMI output (HDMI, IR & RS-232, up to 60m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 IR Cable Pin Assignment .......10 6.4. -
Page 6: Introduction
1. INTRODUCTION The PU-514LTX-1H Transmitter allows uncompressed HDMI, and 2-way IR signals to be transmitted over a Single CAT5e/6/7 cable to distances of up to 60m. This device has the additional benefit of a simultaneous HDMI output for connection to a local HDMI display. Utilise the USB power output from a TV as an optional way of powering a compatible receiver unit alternative to using a mains power supply. -
Page 7: Features
USB output from a TV (Cable available separately - APC-USB): * Please note the performance and consistency of USB power outputs from TV's can vary and cannot be guaranteed by CYP. Note: 1. This system was tested with CAT6/23AWG cables, results may vary with cables of a different specification. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel RS232 IN HDMI OUT HDMI IN HDMI to CAT5e/6 with IR/RS232 Transmitter HDMI OUT: Connect to HDMI display for instant image display or cascade with another family type Transmitter. HDMI IN: Connect with source equipment such as DVD/Blu-ray or PS3 player. RS-232 IN: Connect to a PC/Laptop or RS-232 enabled device (with supplied 3.5mm Phone Jack to D-Sub 9-Pin adaptor) to transmit of RS-232... -
Page 9: Rear Panel
6.2 Rear Panel IR 1 POWER BLASTER LINK IR 2 DC 24V EXTENDER CAT5e/6 OUT POWER LED: Once the power supply is connected the LED will illuminate. DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Ground 6.4. D-Sub 9 Pin Definitions Define TX / RX TxD/RxD RxD/TxD... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM 3D TV/Display Blu-ray or PS3 Player HDMI HDMI RS232 IN HDMI OUT HDMI IN RS-232 Cable HDMI to CAT5e/6 with IR/RS232 Transmitter IR 1 POWER BLASTER LINK 1.5m IR 2 DC 24V EXTENDER 60° CAT5e/6 OUT IR BLASTER 60°... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300Mbps/10.2Gbps Input ports 1 x HDMI, 1 x RS-232, 1 x IR IN, 1 x USB (Service only) Output ports 1 x HDMI, 1 x IR OUT, 1 x CAT5e/6/7 Resolution Up to 4Kx2K (3840x2160@30Hz/4096x2160@24Hz) HDMI Input Cable Dis- tance... -
Page 13: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates lower (HD Video) than 5.3 Gbps or below 225MHz TMDS clock) 40 m >225 MHz... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4Kx2K 3840x2160 / 4096x2160 Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
