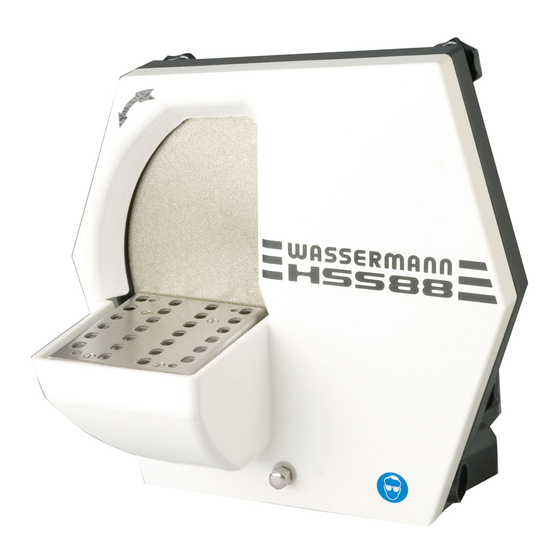

Wassermann HSS-88 User Manual
Trimmer
Hide thumbs
Also See for HSS-88:
- User manual (20 pages) ,
- Replacement manual (8 pages) ,
- Replacement manual (8 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wassermann HSS-88
Summary of Contents for Wassermann HSS-88
- Page 1 Trimmer HSS-88 USER MANUAL...
- Page 2 Dear customer, Thank you for choosing a product from the Wassermann range. Wassermann Dental- Maschinen incorporates the highest standards of quality and the latest technology. In order to enjoy maximum performance and years of trouble-free operation, please read this user manual carefully before you connect this device and start work, and operate the device according to the recommended guidelines.
-
Page 3: Table Of Contents
Contents 1 Features............................4 2 Safety Symbols used in this Manual.....................4 3 Safety Guidelines......................... 5 3.1 Potential Dangers..........................5 4 Responsibility for Operation or Damage..................6 5 Application............................ 6 6 Before Starting..........................7 6.1 Transport............................... 7 6.2 Installation............................. 7 6.3 Storage..............................8 7 Installation/ Start-up........................ -
Page 4: Features
Features ■ versatile, powerful wet trimmer ■ can be used with all Wassermann discs and orthodontic attachments ■ multiple expansion options ■ the grinding attachment KMS can be delivered also on swiss- and EOS-version ■ high speed - 3000 min ■... -
Page 5: Safety Guidelines
Wear a hair net (or similar) if you have long hair. • Do not wear rings, chains, bangles or similar jewelry when working with • the HSS-88. Turn off the tap overnight and at weekends. • Make sure that the equipment is connected to the correct power source. -
Page 6: Responsibility For Operation Or Damage
We will be in no way responsible in this case. Application The HSS-88 plaster-cast grinder is used in dental laboratories exclusively for grinding (trimming) plaster models. To avoid damaging the unit and/or its grinding disc, it should be used only with plaster. -
Page 7: Before Starting
Before Starting Transport Before transporting the unit, ensure that it has been unplugged from the power socket. Make sure that it is packed correctly in order to avoid accidental damage. Be sure to check for any transport damage when unpacking the goods. Note down any damage if found. -
Page 8: Storage
Storage If the unit is to be stored, even for a short time, its location can have a significant effect on its operation. The location should be dry, well-ventilated and free of vibrations. It is important for the unit to be seated on a wooden base and to be kept at a constant temperature. -
Page 9: Drain Hose
Drain Hose The drain hose must be installed in such a way that blockages cannot occur (splash water). Arrange it in a continuous arc (no kinks) and with a permanent fall of at least 1 cm per metre. The end of the drain hose must be above the level of the plaster-cast mounting position. -
Page 10: Assembly
Assembly Installing the Angled Mount If required, the angled mount is just clamped in position on the HSS-88. Please observe the following instructions. Ensure that the mount is placed correctly in position. It should be installed in accordance with the following diagram. -
Page 11: Operation
Operation 10.1 General Operating Instructions All instructions for using the unit, whether in verbal or written form, are based on our own experience and experimentation and can only be regarded as guidelines. After switching on the unit, wait a few seconds for the motor to come up to speed. The full power of the motor can then be used. -
Page 12: Troubleshooting
Troubleshooting Fault Cause Solution Water spurting Water pressure too high Adjust water pressure at tap (see 8.2 from work area Water regulation) Drain hose extended with a Ensure that the drain hose diameter is smaller diameter hose 1 inch (25.4 mm) Drain hose kinked Ensure that the drain hose does not have any kinks in it... -
Page 13: Care And Maintenance
12.2 Maintenance The HSS-88 plaster-cast grinder is a low-maintenance unit. However, when opening the disc chamber for cleaning or to change the disc, be sure to clean the sealing surfaces and re-coat them with water-insoluble grease. As a safety measure, check regularly that the hose retainers and water-supply hoses are... -
Page 14: Repairs
Installing a spare disc on an existing disc mounted in the unit, regardless of its origin or model type, is strictly prohibited by Wassermann. Warning! The use of diamond grinding discs to grind embedded material and metals will result in excessive wear on the blade. -
Page 15: Scope Of Delivery/ Accessories
12.7 Scope of Delivery/ Accessories HSS-88 incl. grinding disc Item no.: incl. diamond grinding disc 168998 incl. Dia-Quick grinding disc (partly diamonded) 168996 incl. corundum grinding disc 168999 incl. foil grinding disc 168991 Incl. in delivery Item no.: Inclined support... -
Page 16: Warranty
This warranty does not cover damage caused by improper use, external mechanical causes, transport damage or interference with the unit by unauthorized persons. Technical Data HSS-88 Item no.: 168997 without grinding disc Voltage 220–240 V / 50/60 Hz Power consumption 4.6 A... -
Page 17: Disposing Of The Unit
Disposing of the Unit The unit has to be disposed by an authorized recycling operation. The selected company has to be informed of all possibly health-hazardous residues in the unit. 14.1 Information on Disposal for Countries within the EU To conserve and protect the environment, prevent environmental pollution and improve the recycling of raw materials, the European Commission adopted a directive that requires the manufacturer to accept the return of electrical and electronic units for proper disposal or recycling. -
Page 18: Eu Declaration Of Conformity
Trimmer for dental Dental-Maschinen GmbH applications Rudorffweg 15-17 21031 Hamburg Germany Model: HSS-88 incl. diamond grinding disc Item no.168998 HSS-88 incl. Dia-Quick grinding disc Item no.168996 HSS-88 incl. corundum grinding disc Item no.168999 HSS-88 incl. foil grinding disc Item no.168991 HSS-88 without grinding disc Item no.168997... - Page 19 Notes:...
