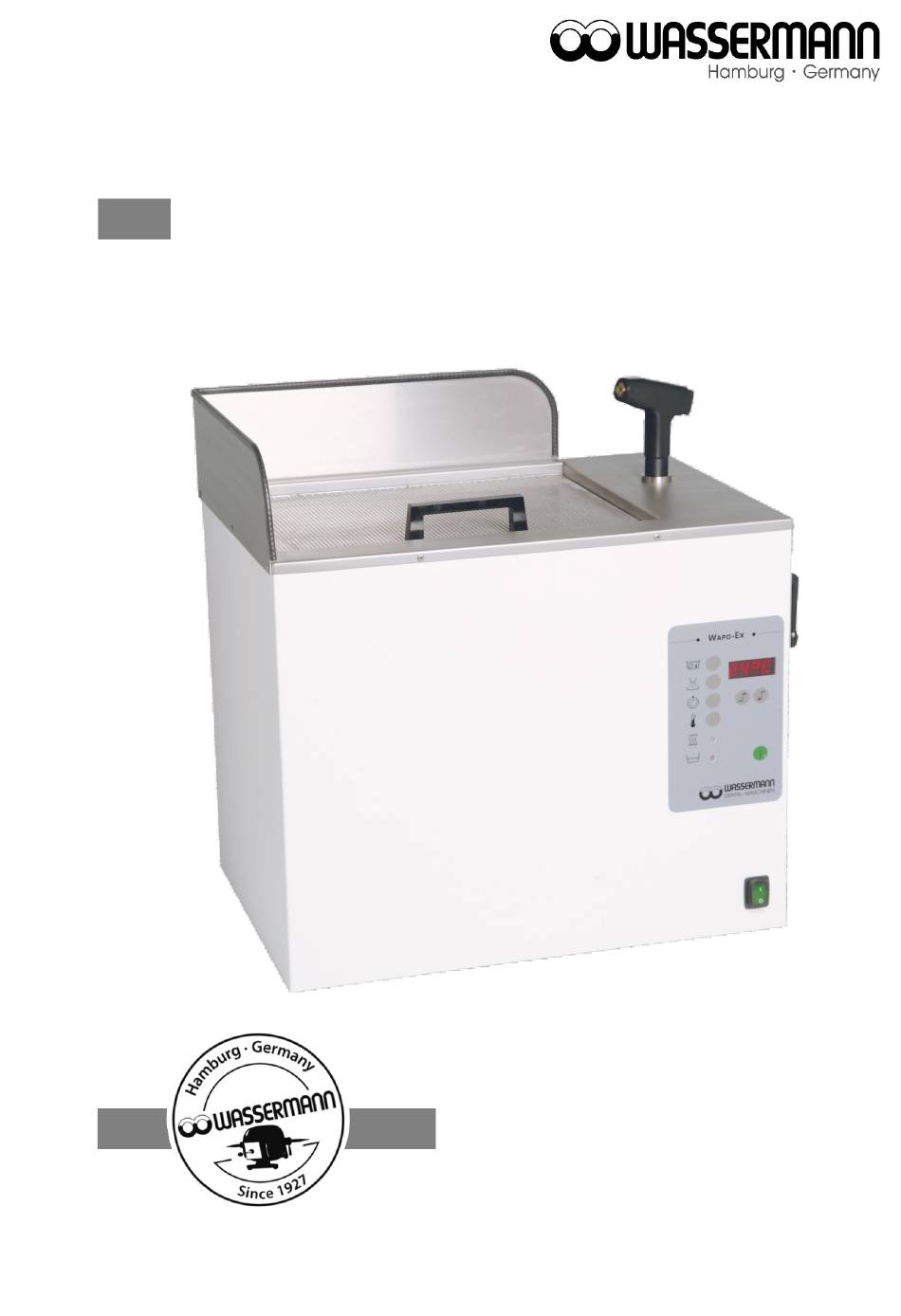

  • Page 1 Combination Automat Wapo-Ex Boil Out and Polymerisation Unit USER MANUAL...
  • Page 2 Dear customer, Thank you for choosing a product from the Wassermann range. Wassermann Dental- Maschinen incorporates the highest standards of quality and the latest technology. In order to enjoy maximum performance and years of trouble-free operation, please read this user manual carefully before you connect this device and start work, and operate the device according to the recommended guidelines.

  • Page 3: Table Of Contents

    Contents 1 Features..........................4 2 Safety Symbols used in this Manual..................5 3 Safety Guidelines.......................5 4 Responsibility for Operation or Damage................6 5 Application..........................6 6 Before Starting........................6 6.1 Transport............................6 6.2 Installation............................7 6.3 Storage............................7 7 Installation/ Start-up......................8 8 Operation...........................9 8.1 General Operating Instructions.......................9 8.2 Operation............................10 8.3 Setting Time and Temperature.....................11 8.3.1 For Scalding (button 2)......................11 8.3.2 Conversion Table °C - °F.......................11...

  • Page 4: Features

    The unit has a low-water monitor to protect the heater, and for scalding small items, there is a recessed lid and a hand-held spray in non-heat-conducting plastic. The special Wapo-Ex/ IVOCAP model has an automatic water-level regulator. Combined table automat for scalding and polymerisation; simultaneous applications •...

  • Page 5: Safety Symbols Used In This Manual

    Do not point the spray at living creatures. The water from the nozzle can be as hot as about 95°C, so should only be sprayed near the unit lid or the washbasin. Wear heat-resistant gloves when working with th Wapo-Ex.

  • Page 6: Responsibility For Operation Or Damage

    Wassermann Dental-Maschinen GmbH are not extended by these instructions. Application The Wapo-Ex is used for scalding up to 4 half-caps and up to 6 caps for polymerisation. A divider in the trough creates two separate chambers. You can also scald small items using a hand spray.

  • Page 7: Installation

    Installation Open the box, remove the packing materials, and carefully lift out the device and accessories. Check the included accessories. The device has to stand horizontally on a steady and even surface. Install the device in a place where it will not block the working area and the functionality (take the dimensions into account).

  • Page 8: Installation/ Start-Up

    When the desired temperature has been reached, the yellow LED (9) goes out and • the unit is ready for operation. The Wapo-Ex has a dry-run protection device to prevent the heater burning out due to a lack of water (red LED). A warning signal also sounds while the program is running.

  • Page 9: Operation

    Wear heat-resistant gloves when working with th Wapo-Ex. The Wapo-Ex is ready for use when the temperature is above 60°C, that is, the pump starts operation once the set temperature has been reached. On addition there is a safety step: the heating stops automatically when the temperature of the heating is higher than 99 °C.

  • Page 10: Operation

    Operation Turn on main switch (green rocker switch). • The red water-level LED (10) should not come on or flash. If it does, check the • water level or the water-level sensor. Choose Polymerisation or Scalding. • Place prepared caps in unit. •...

  • Page 11: Setting Time And Temperature

    Setting Time and Temperature 8.3.1 For Scalding (button 2) Setting the time: 1. Press Time (3). 2. Press Set (4). 3. Keep Time (3) pressed and set the desired time using Set (4) or Default (5). Setting the temperature: 1. Press Temperature (6). 2.

  • Page 12: Polymerisation (Choice Of 3 Times And 3 Temperatures)

    8.3.3 Polymerisation (Choice of 3 Times and 3 Temperatures) The Polymerisation (1) and Set-Point (4) LEDs must be on, but not Start/Stop (7). Use the buttons as described below to set the function. This allows you to check and/or change stored values.

  • Page 13: Setting The Temperature

    8.3.5 Setting the Temperature 1. Press and hold Temperature (6), then press Start/Stop (7) once. The first character on the display (8) flashes to indicate that the value can be changed by pressing Set-Point (4) or True Value (5) while Temperature (6) is held on. Release all three buttons to store the changed value.

  • Page 14: Storing

    As each new value is stored, the previous value is overwritten. Warning: Pressing Scalding (2) or Polymerisation (1) and Default (5) resets the Wassermann default values. Storing the value using Polymerisation (1) and Plus (4) is confirmed by a “YES”.

  • Page 15: Troubleshooting

    Troubleshooting Fault Cause Solution Wapo-Ex does not heat Dirty level sensor Clean level sensor Water level too low Add water Water-level LED comes Dirty level sensor Clean level sensor on and warning tone sounds Water level too low Add water until red LED goes out and tone...

  • Page 16: Care And Maintenance

    Care and Maintenance 10.1 Cleaning Disconnect the power plug before starting any maintenance work. The identification plate has always to be kept in easily legible condition and has not to be removed. Remove external dirt from time to time with some form of cold cleaner. Use only cold cleaners to avoid damaging the paintwork or removing the lettering.

  • Page 17: Maintenance

    Warning: Do not use materials containing solvents to dissolve wax, as this will attack the unit’s rubber components. Warning: Let Kalk-Ex work for a maximum 12 hours. Drain solution and rinse thoroughly. To change the filter and clean the level sensor (white ring), first remove the cap containers.

  • Page 18: Scope Of Delivery/ Accessories

    10.6 Scope of Delivery/ Accessories Included parts Item no. Service set (10 filter mats, 1 L lime remover, 2 L wax remover) 170020 Discharge hose, PVC-hose 19 x 4 (3/4“) -1.5 m 320030 Hose clip Ø 20-32 x 12.2 322017 Accessories Item no.

  • Page 19: Technical Data

    Technical Data Wapo-Ex Artikel Nr.: 170996 Voltage 220–240 V / 50/60 Hz Power consumption Output 2000 W W x H x D 550 x 570 x 400 mm Weight 35,5 kg Water capacity approx. 20 l Other voltages on request.

  • Page 20: Eu Declaration Of Conformity

    Boil Out and Dental-Maschinen GmbH Polymerisation Rudorffweg 15-17 Unit for dental 21031 Hamburg applications Germany Model: Wapo-Ex Item no. 170996 Applicable DIN EN 61010-1 standards: DIN EN 61000-6-3 DIN EN 61000-6-1 DIN 45635-1 DIN EN 60335-1 Hiermit wird bestätigt, dass die oben bezeichnete Maschine den genannten EU-Richtlinien entspricht.
