Wassermann WP-EX 3000 User Manual

Polisher with speed regulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
Polisher
WP-EX 3000
with speed regulator

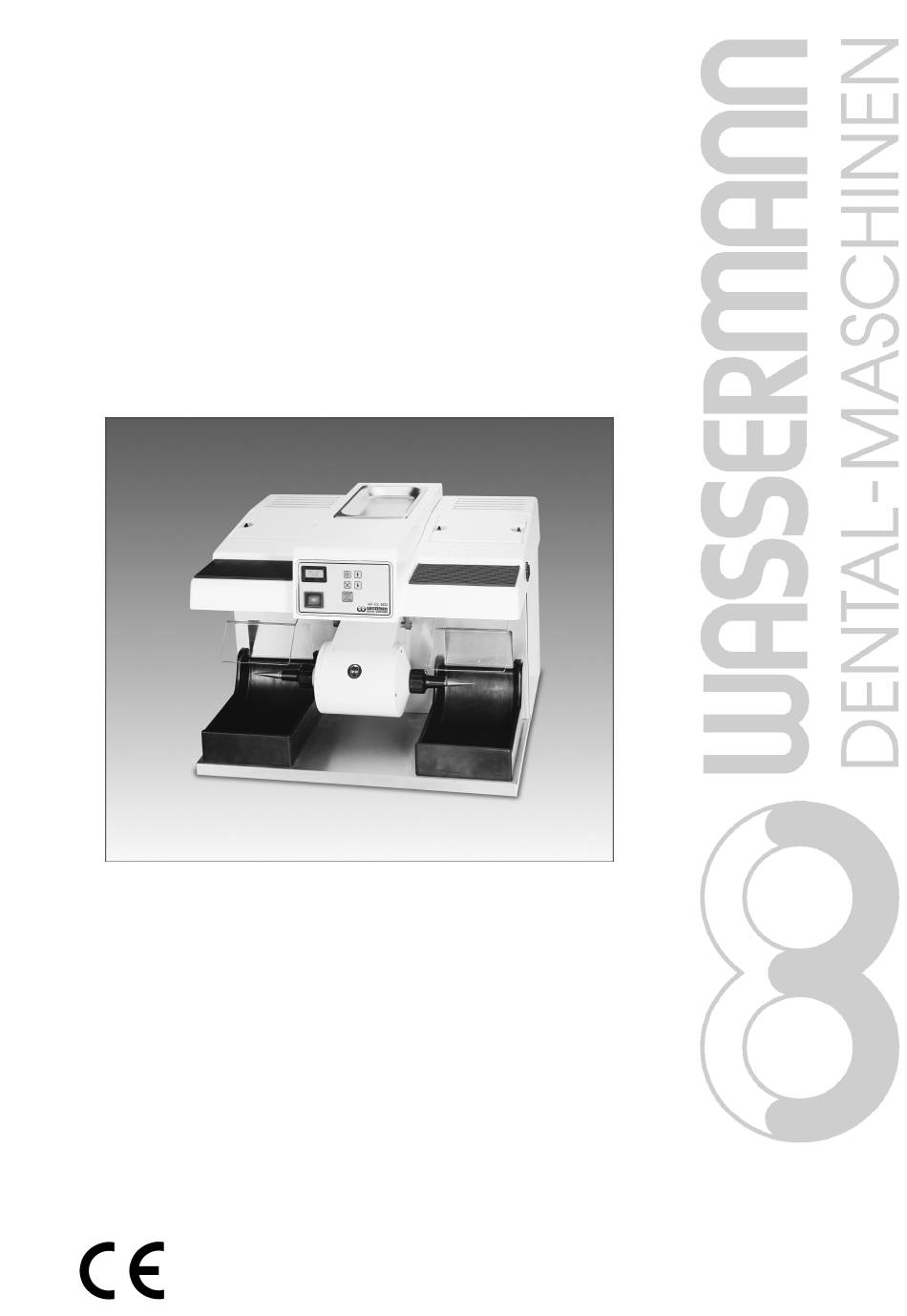

Fig.: WP-EX 3000
WASSERMANN DENTAL-MASCHINEN GMBH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP-EX 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wassermann WP-EX 3000

Summary of Contents for Wassermann WP-EX 3000

  • Page 1 User manual Polisher WP-EX 3000 with speed regulator Fig.: WP-EX 3000 WASSERMANN DENTAL-MASCHINEN GMBH...
  • Page 2 - 1 - Dear customer, Thank you for choosing a product from the Wassermann range. Wassermann dental equipment incorporates the highest standards of quality and the latest technology. In order to enjoy maximum performance and years of trouble-free operation, please read this user manual carefully before you start work, and operate the unit according to the recommended guidelines.

  • Page 3: Table Of Contents

    - 2 - Contents Contents .........................2 For your safety......................3 ................3 ORRECT USE OF THIS PRODUCT ..............3 AFETY SYMBOLS USED IN THIS MANUAL .....................3 AFETY GUIDELINES ....................4 OUR USER MANUAL ............4 ESPONSIBILITY FOR OPERATION AND DAMAGE .....................4 UTHORISED USERS Care and maintenance ...................5 .....................5 AINTENANCE ........................5...

  • Page 4: For Your Safety

    - 3 - 1 For your safety 1.1 Correct use of this product This polisher is used for polishing dental appliances. Its integrated suction system guarantees optimum performance. 1.2 Safety symbols used in this manual Warning! This is a warning of risk situations and dangers. Failure to observe this warning could be life-threatening.

  • Page 5: Your User Manual

    The unit must be maintained and operated in accordance with this user manual. Wassermann Dental-Maschinen GmbH is not responsible for damage arising from the non-observance of these instructions.

  • Page 6: Care And Maintenance

    - 5 - 2 Care and maintenance 2.1 Maintenance Always disconnect the power cable before undertaking cleaning or maintenance. The model plate must always be legible and should not be removed. The equipment should be cleaned at regular intervals to ensure trouble-free operation. It requires only normal cleaning (sponge, damp cloth, mild detergent).

  • Page 7: Use / Application

    250 steps and from 1500 rpm to 6000 rpm in 500 steps. It has low-noise, completely maintenance-free bearings. The WP-EX 3000 also comes with a light and a powerful suction unit. Shaft ends have 9mm long standard tapers for mounting the brush spindles.

  • Page 8: Contents

    - 7 - 4.2 Contents 146994 WP-EX 3000 polisher 152022 Right brush spindle 152025 Left brush spindle 592012 Cable with right-angle plug 610015 2 x microfine dust filter bag (installed) 4.3 Location / storage The polisher location is very important when it comes to workplace safety, even if it is only to be set up there for a short period.

  • Page 9: Start Up

    - 8 - 6 Start up The instrument must be at room temperature before you start it. 1. Connect the polisher to the power supply. 2. Turn on main switch (green rocker switch). 3. Use the selector to set the motor speed. 4.

  • Page 10: Technical Data

    - 9 - 7.1 Technical data Voltage 230 V / 50 Hz Power consumption 3.7 A / 850 W Output 500 W Suction capacity 970 m2/h Weight 51 kg Width 645 mm Depth 545 mm Height 475 mm Polisher noise emission 70db(A).

  • Page 11: Repairs

    Service department. The WP-EX 3000 polisher should only be operated in perfect condition. If faults occur which could harm operators or third parties, the unit should not be used until it has been fixed.

  • Page 12: Ec Conformity Certificate

    W A S S E R M A N N Product description: Polisher for dental Dental-Maschinen GmbH applications Rudorffweg 15 - 17 D-21031 Hamburg Model: WP-EX 3000 polisher 146994 Applicable EN 61010-1:1993 + A2:1995 standards: EN 60335/2/54 03.97 EN 50081-1 + EN 50082-1 DIN 45635-1 Hiermit wird bestätigt, dass die oben bezeichnete Maschine den genannten EG-...
  • Page 13 - 12 -...
  • Page 14 - 13 -...
  • Page 15 - 14 -...
  • Page 16 WASSERMANN Dental-Maschinen GmbH Rudorffweg 15 – 17, D-21031 Hamburg Tel.: + 49 (0)40 / 730 926 – 0 Fax: +49 (0)40 / 730 37 24 e-mail: info@wassermann-dental.com Internet: http://www.wassermann-dental.com...

This manual is also suitable for:

146994
