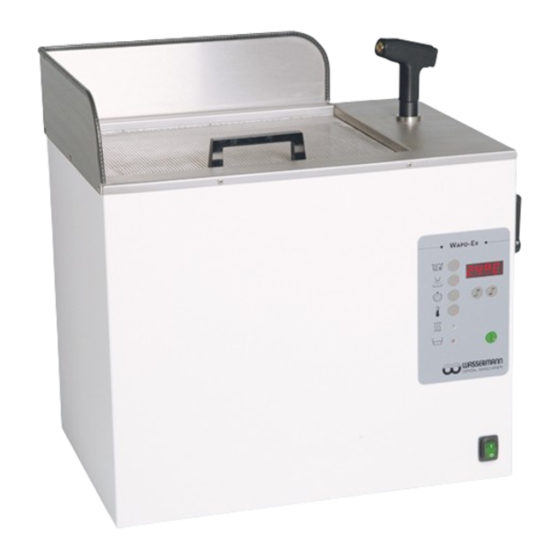

Figure 1: Wapo-Ex
Die Basis für Ihr Labor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WAPO-Ex and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wassermann WAPO-Ex

  • Page 1 Service manual Wapo-Ex Wax scalding and polymerisation unit Figure 1: Wapo-Ex Die Basis für Ihr Labor...
  • Page 2: Tel.: + 49 (0)40 / 730 926 - 0

    - 1 - Dear customer, Thank you for choosing a product from the Wassermann range. Wassermann dental equipment incorporates the highest standards of quality and the latest technology. In order to enjoy maximum performance and years of trouble-free operation, please read this service manual carefully before you connect this device and start work, and operate the device according to the recommended guidelines.
  • Page 3: Table Of Contents

    - 2 - Contents 1 Features..........................3 2 For your safety........................3 2.1 Your service manual....................3 2.2 Safety guidelines......................4 2.3 Responsibility for operation and damage..............4 3 Applications........................5 4 Before you start......................5 4.1 Unpacking / Transport....................5 4.2 Set-up and storage......................5 5 Start-up...........................6 6 Operation........................7 6.1 Operation........................7 6.2 Setting time and temperature..................8 6.2.1 For scalding (button 2).......................8...
  • Page 4: Features

    - 3 - 1 Features The proven Wassermann WAPO - Ex combination unit, now with an easy-to-read multifunction display, is an extremely compact piece of bench top equipment, which is used for scalding wax and for polymerisation. It can take 4 half-caps for scalding and/or 6 caps in a denture for polymerisation.
  • Page 5: Safety Guidelines

    The unit must be maintained and operated in accordance with this service manual. Wassermann Dental-Maschinen GmbH is not responsible for damage arising from the non-observance of these instructions.
  • Page 6: Applications

    - 5 - 3 Applications The WAPO - Ex is used for scalding up to 4 half-caps and up to 6 caps for polymerisation. A divider in the trough creates two separate chambers. You can also scald small items using a hand spray. Only use the device for this type of application.
  • Page 7: Start-Up

    − When the desired temperature has been reached, the yellow LED (9) goes out and the unit is ready for operation. Wear heat-resistant gloves when working with the WAPO-Ex. The WAPO - Ex has a dry-run protection device to prevent the heater burning out due to a lack of water (red LED).
  • Page 8: Operation

    - 7 - 6 Operation 6.1 Operation 1. Turn on main switch (green rocker switch). 2. The red water-level LED (10) should not come on or flash. If it does, check the water level or the water-level sensor. 3. Choose Polymerisation or Scalding. 4.
  • Page 9: Setting Time And Temperature

    - 8 - 6.2 Setting time and temperature 6.2.1 For scalding (button 2) Setting the time: 1. Press Time (3). 2. Press Set (4). 3. Keep Time (3) pressed and set the desired time using Set (4) or Default (5). Setting the temperature: 1.
  • Page 10: Polymerisation (Choice Of 3 Times And 3 Temperatures)

    - 9 - 6.2.3 Polymerisation (choice of 3 times and 3 temperatures) The Polymerisation (1) and Set-Point (4) LEDs must be on, but not Start/Stop (7). Use the buttons as described below to set the function. This allows you to check and/or change stored values.
  • Page 11: Setting The Temperature

    - 10 - 6.2.5 Setting the temperature 1. Press and hold Temperature (6), then press Start/Stop (7) once. The first character on the display (8) flashes to indicate that the value can be changed by pressing Set-Point (4) or True Value (5) while Temperature (6) is held on.
  • Page 12: Storing

    As each new value is stored, the previous value is overwritten. Warning: Pressing Scalding (2) or Polymerisation (1) and Default (5) resets the Wassermann default values. Storing the value using Polymerisation (1) and Plus (4) is confirmed by a “YES”.
  • Page 13: Manual Operation

    - 12 - 6.5 Manual operation Once the unit is ready for use, you can, at any time, activate the hand spray by turning the ball valve (horizontal). Settings should be as described under 6.2. When you have finished, always return the ball valve to its original position (vertical). The WAPO - Ex is ready for use when the temperature is above 55°C, that is, the pump starts operation once the set temperature has been reached.
  • Page 14: Troubleshooting / Correcting Errors

    - 13 - 7 Troubleshooting / Correcting errors Fault Likely cause Likely solution WAPO-Ex does not heat Dirty level sensor Clean level sensor Water level too low Add water Water-level LED comes Dirty level sensor Clean level sensor on and warning tone...
  • Page 15: Maintenance

    - 14 - Warning: Do not use materials containing solvents to dissolve wax, as this will attack the unit’s rubber components. Warning: Let KALK–EX work for a maximum 12 hours. Drain solution and rinse thoroughly. 8 Maintenance 8.1 Cleaning In order to guarantee trouble-free operation, the unit should receive the following attention: At least 1x per week −...
  • Page 16: Maintenance

    Re-insert the base plate with its raised edges facing upwards. 8.2 Maintenance The WAPO-Ex does not need any special maintenance. Just make sure it is clean and free of lime build-up. 8.3 Warranty The warranty period for our instruments is 12 months.
  • Page 17: Spare Parts And Accessories

    - 16 - 8.4 Spare parts and accessories Spare parts Item number Description 170074 Cap container 170009 Button cover 326002 Scalding nozzle 392008 Rubber foot 32 x 32 - H6, black 511091 Rocker switch, green Accessories Item number Description 170020 Service packet for WAPO - Ex 170100 Wheeled chassis for Wapo - Ex (not standard item)
  • Page 18: Technical Data

    - 17 - 9 Technical data 170996 WAPO – Ex / 170995 WAPO – Ex IVOCAP Voltage: 220-240 V / 50/60 Hz Power consumption: Output: 2000 W Water capacity: approx. 20 litres Overall dimensions: Width 550 mm Height 470 mm Depth 400 mm Weight: 35.5 kg...
  • Page 19: Ec Conformity Certificate

    Dental-Maschinen dental applications GmbH Rudorffweg 15 - 17 D-21031 Hamburg Model: WAPO-Ex (170996) WAPO-Ex IVOCAP (170995) Applicable standards: DIN EN 61010-1 DIN EN 61000-6-3 DIN EN 61000-6-1 DIN 45635-1 DIN EN 60335-1 Hiermit wird bestätigt, daß die oben bezeichnete Maschine den genannten EG-Richtlinien entspricht.
  • Page 20: Wiring Diagram

    - 19 - 11 Wiring diagram...
  • Page 21: Spare Part Diagram

    - 20 - 12 Spare part diagram...
  • Page 22 - 21 -...
  • Page 23 - 22 -...
  • Page 24 WASSERMANN Dental-Maschinen GmbH Rudorffweg 15 – 17, D-21031 Hamburg Tel.: + 49 (0)40 / 730 926 – 0 Fax: +49 (0)40 / 730 37 24 e-mail: info@wassermann-dental.com Internet: http://www.wassermann-dental.com...
