Channel output On/Off

Rear panel

AFG2021 Quick Start User Manual
1. To enable signal output,
push the front-panel
Channel On/Off. The
button is lit with an LED
when it is in the On state.
You can configure the
signal with the outputs
off. This will allow you
to minimize the chance
of sending a problematic
signal to a DUT.

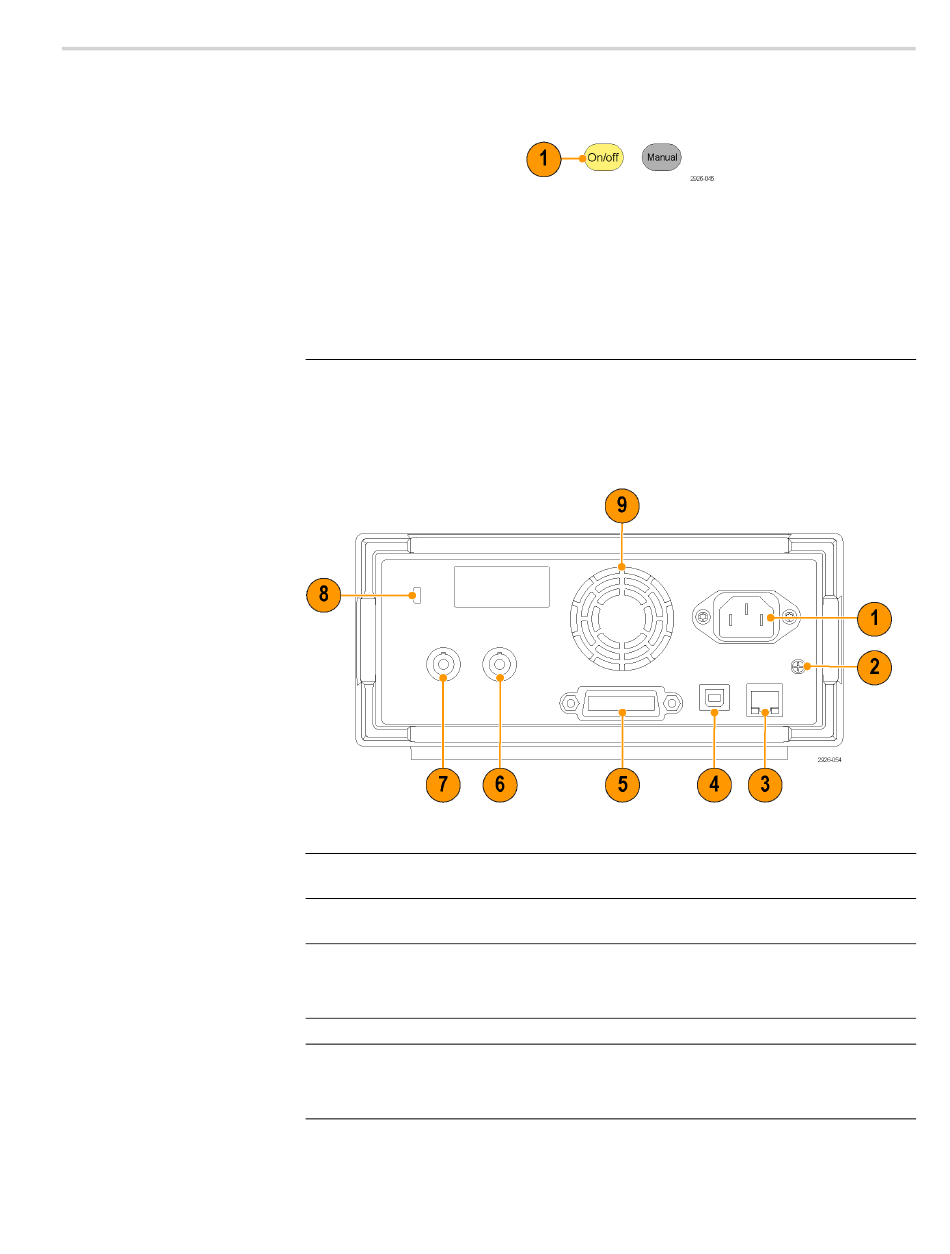

The following illustration shows the rear panel connectors for the instrument.
Item Description
1 Power input: This is where you attached an appropriate power cord to supply
power to the instrument.
2 Chassis ground screw: This screw is used to ground the instrument. Use a
unified coarse screw (#6-32, 6.35 mm length or less).
3 LAN port: This port can be used to connect the instrument to a network.
Connect a 10BASE-T or 100BASE-T cable here.
NOTE.
This port is only available for the AFG2021 with option GL.
4 USB (type B) connector: This can be used to connect a USB type B controller.
5 GPIB: This is port can be used to control the instrument through GPIB
commands.
NOTE.
This port is only available for the AFG2021 with option GL.
Instrument front panel, interface, and rear panel
