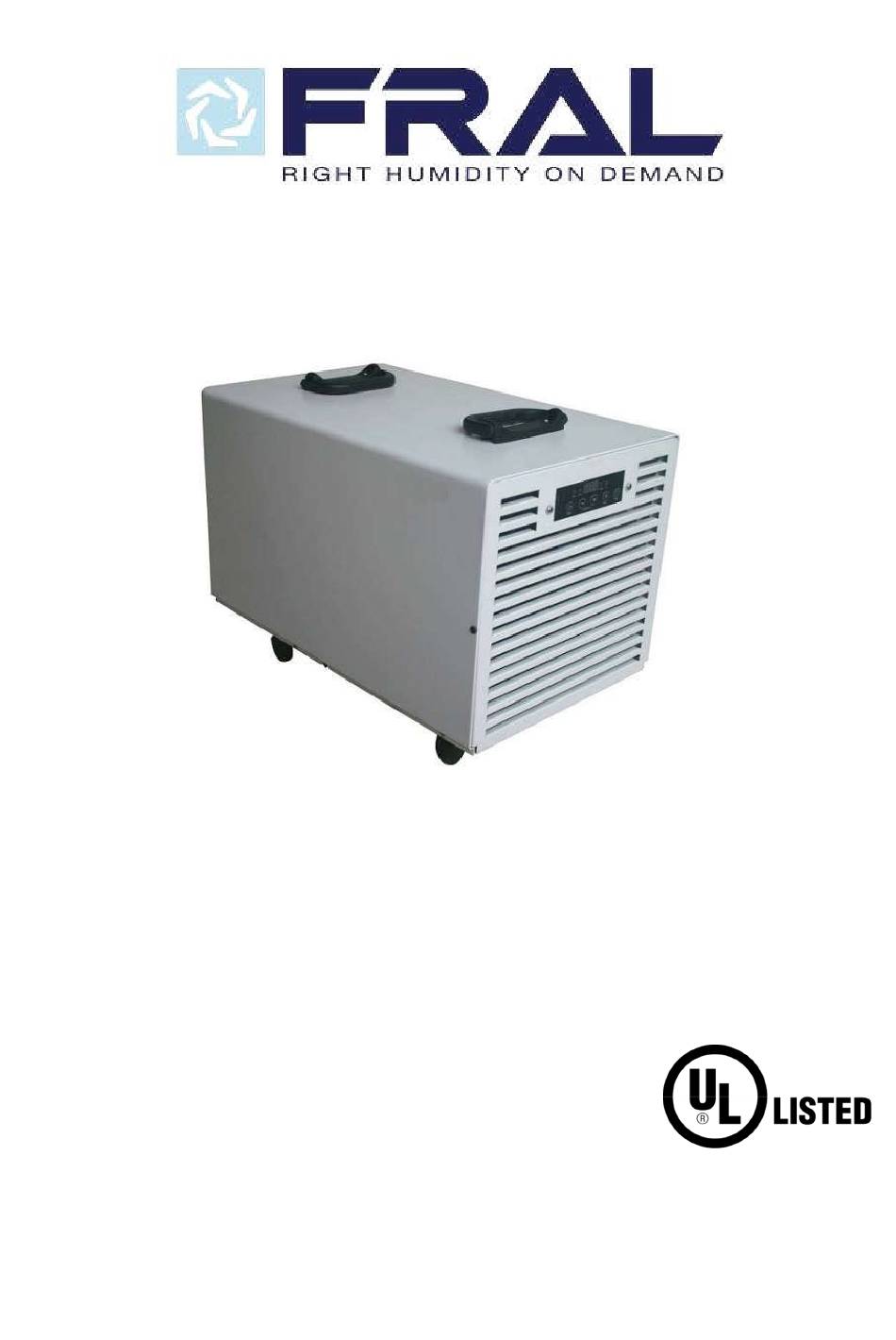

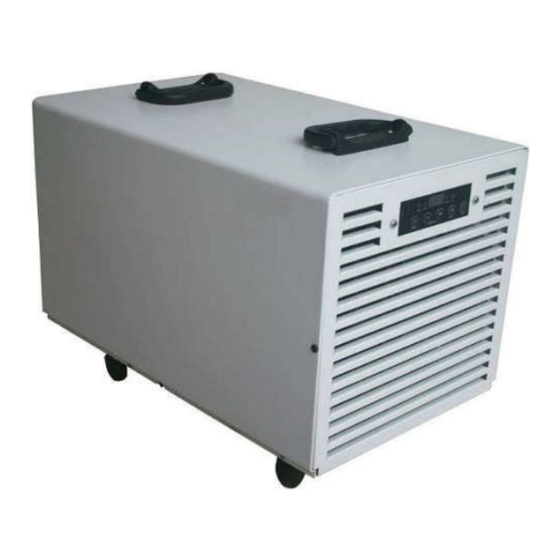

- Page 1 DEHUMIDIFIERS FDK54 USE AND MAINTENACE MANUAL M.FDK54-05 UK Manual 26/09/2017...
-
Page 2: Safety Warnings
The FDK54 Dehumidifiers must only be maintained and serviced by a qualified technician. The FDK54 Dehumidifiers are intended only for operation when oriented with the unit sitting on its feet and level. Any other orientation could cause water to come in contact with the electrical components. -
Page 3: Description Of The Machine
Then the air, passing through a warm heat-exchanger, heats up and returns in the room dehumidified and at a slightly higher temperature. The FDK54 Dehumidifier is a refrigerating machine which utilizes its Electronic Board for Room Humidity control and Defrosting Device control. -
Page 4: Control Panel
It’s possible to make the machine works regardless of the degree of moisture holding SET- until the message "Cont" appears. HOUR COUNTER: to show on the display the machine operating time push switch HOURS. M.FDK54-05 UK Manual 26/09/2017... -
Page 5: Unit Alarms
This operation must be done by a specialized technician. This cleaning will improve the performances and the long life of the machine. Note: You can require spare filters from your dealer's service. M.FDK54-05 UK Manual 26/09/2017... - Page 6 Control board may be defective ii. Bypass valve may be defective 7. After routine maintenance has been completed, return humidistat to desired setting. If any problems occur during routine maintenance, contact your contractor or the factory. M.FDK54-05 UK Manual 26/09/2017...
-
Page 7: Technical Data
Functioning Relative Humidity Range (Temperature range 89,6°F-96,8°F) 35 - 78 % Rated Condensation Capacity (at 80°F-60%) 54 ppd Weight 75 lb Dimensions LxDxH 14,2 x 22,85 x 16,5 in Voltage : 115V / 1ph / 60Hz M.FDK54-05 UK Manual 26/09/2017... -
Page 8: Electric Diagram
8. ELECTRIC DIAGRAM COMPRESSOR BLU-BLUE BIANCO-WHITE VIOLA-PURPLE BLU-BLUE F PUMP BLU-BLUE PUMP ARANCIONE-ORANGE R.G.A BLU-BLUE JUMP 1 FLOAT JUMP 2 JUMP 3 JUMP 4 G.A. T3 T2 T1 0105 M.FDK54-05 UK Manual 26/09/2017... - Page 9 LIMITED WARRANTY (FRAL FDK54, FDK70 AND FDK100 MODELS) Customer should not repackage and ship the Fral FKD 54, FDK70 and/or FDK100 (the “Product”) unit due to possibility of irreparable damage. For warranty service, please contact Aerus Customer Service by calling 1-888-764-0693 or via email at support@aerusonline.com.
- Page 10 Every effort is made to ensure customers receive an up-to-date instruction manual on the use of our products; however, from time to time, modifications to our products may without notice make the information contained herein subject to alteration. For the latest information, please visit our website. M.FDK54-05 UK Manual 26/09/2017...
-
Page 11: Gravity Drain Installation
Level Unit Attach Drain Line Step Step Screw female end of drain line onto Fral drain. The Fral dehumidifier comes with a fixed drain outlet Use adjustable underneath the machine, it is a feet to level unit standard garden hose thread"... - Page 12 Option 2: Condensate Pump Installation Condensate Pump drain Condensate Pump drain Level of Dehumidifier Drain Fitting Dehumidifier Drain Fitting IMPORTANT: The drain hose from WARNING: Hose line going from dehumidifier dehumidifier to pump must run downward into pump must run downward. Water will not and stay below the level of dehumidifier drain go above the level of dehumidifier drain fitting fitting.
