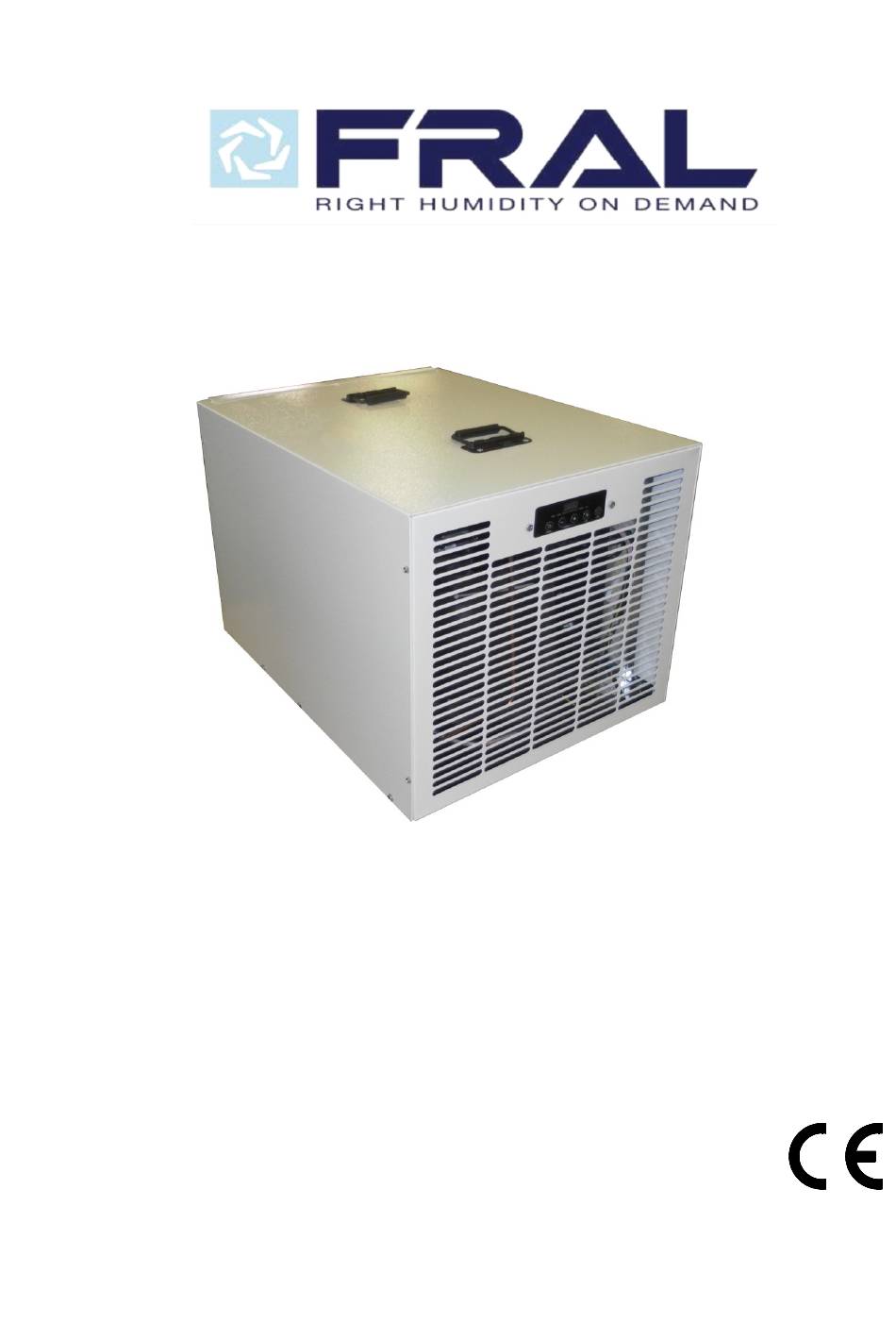

- Page 1 M.FDKA100.1-03 26/09/2017 DEUMIDIFICATORI DEHUMIDIFIERS FDKA100.1 MANUALE D’USO E MANUTENZIONE USE AND MAINTENACE MANUAL M.FDKA100.1-03 26/09/17...
-
Page 2: Safety Warnings
M.FDKA100.1-03 26/09/2017 1. SAFETY WARNINGS The FDK100 Series Dehumidifier must always be connected using the grounded electrical • connection as required from all electrical appliances. The warranty is voided and all responsibility for the operation is born by the owner if non-grounded wiring is utilized. -
Page 3: Description Of The Machine

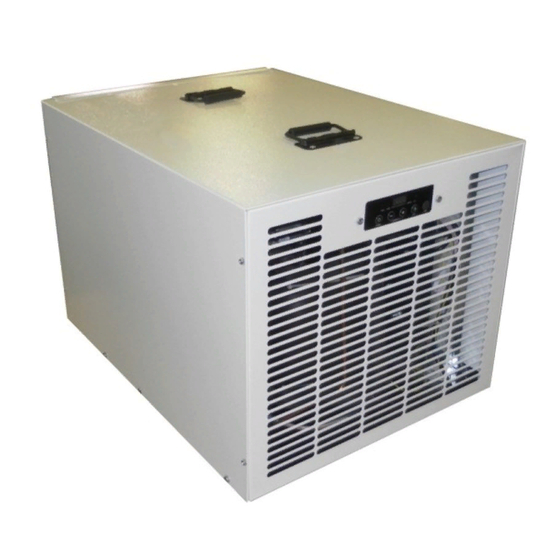

M.FDKA100.1-03 26/09/2017 2. DESCRIPTION OF THE MACHINE Functioning This dehumidifier is a refrigerating cycle dehumidifier: its functioning is based on a physical principle according to which the air, coming into contact with a cooled surface, wets the surface by covering it with humidity in the form of condensed drops, or ice with low ambient temperature. -
Page 4: Control Panel
M.FDKA100.1-03 26/09/2017 3. CONTROL Signalling panel Units are provided with signalling light panel that indicates unit operational status. Below is reported a brief description of their meaning. Control panel The Electronic card with microprocessor, control many functions: Power LED; it’s on when the machine is in the ON state. -
Page 5: Unit Alarms
M.FDKA100.1-03 26/09/2017 4. UNIT ALARMS PROBLEM PROBABLE CAUSE and CORRECTIVE ACTION It occurs for two possible reasons: the environment temperature is too low or the defrost cycles are not able to melt the ice in the battery. To reset put the dehumidifier above 50 °... - Page 6 M.FDKA100.1-03 26/09/2017 Warning : Never apply an external source of heat to melt ice off coil. Maintenance – Annual Inspection of Coils and drain line is required. 1. Unplug Unit 2. Filter may be cleaned by a. Vacuuming b. Washing with warm, soapy water. Rinse and shake dry.
- Page 7 M.FDKA100.1-03 26/09/2017 7. TECHNICAL DATA Rated Average Power Consumption (at 80°F, 60% R.H.) 960 W Max. Absorbed Current (at 95°F, 70% R.H.) F.L.A. 13,0 A Air Flow 600 cfm Refrigerant R410A Standard Defrosting Control System electronic Hot gas defrosting control system termost./ electronic...
-
Page 8: Electric Diagram
M.FDKA100.1-03 26/09/2017 8. ELECTRIC DIAGRAM POWER SUPPLY 115V-60HZ COMPRESSOR BLUE 3x1,5mm WHITE 40uF CAPACITOR TRANSFORMER 115V-220V-60HZ PURPLE BROWN BLU-BLUE BLUE BLACK 1,5uF CAPACITOR F PUMP BLUE PUMP SOLEDOID VALVE ORANGE BLUE R.G.A ELECTRICAL BRIDGE 1 FLOAT PCB 115V-60HZ ELECTRICAL BRIDGE 2... - Page 9 M.FDKA100.1-03 26/09/2017 LIMITED WARRANTY (FRAL FDK54, FDK70 AND FDK100 MODELS) Customer should not repackage and ship the Fral FKD 54, FDK70 and/or FDK100 (the “Product”) unit due to possibility of irreparable damage. For warranty service, please contact Aerus Customer Service by calling 1-888-764-0693 or via email at support@aerusonline.com.
- Page 10 M.FDKA100.1-03 26/09/2017 UNAUTHORIZED CHANNELS Warranties are voided if a product is purchased through unauthorized channels; this includes websites that are not authorized to use our trademarked names, images, and logos as well as Internet auction sites (e.g. eBay and Craigslist). To confirm warranty coverage prior to purchasing a product, contact Customer Service with the product serial number.
-
Page 11: Gravity Drain Installation
Level Unit Attach Drain Line Step Step Screw female end of drain line onto Fral drain. The Fral dehumidifier comes with a fixed drain outlet Use adjustable underneath the machine, it is a feet to level unit standard garden hose thread"... - Page 12 M.FDKA100.1-03 26/09/2017 Option 2: Condensate Pump Installation Condensate Pump drain Condensate Pump drain Level of Dehumidifier Drain Fitting Dehumidifier Drain Fitting IMPORTANT: The drain hose from WARNING: Hose line going from dehumidifier dehumidifier to pump must run downward into pump must run downward. Water will not...
