Summary of Contents for Fral FDNF62

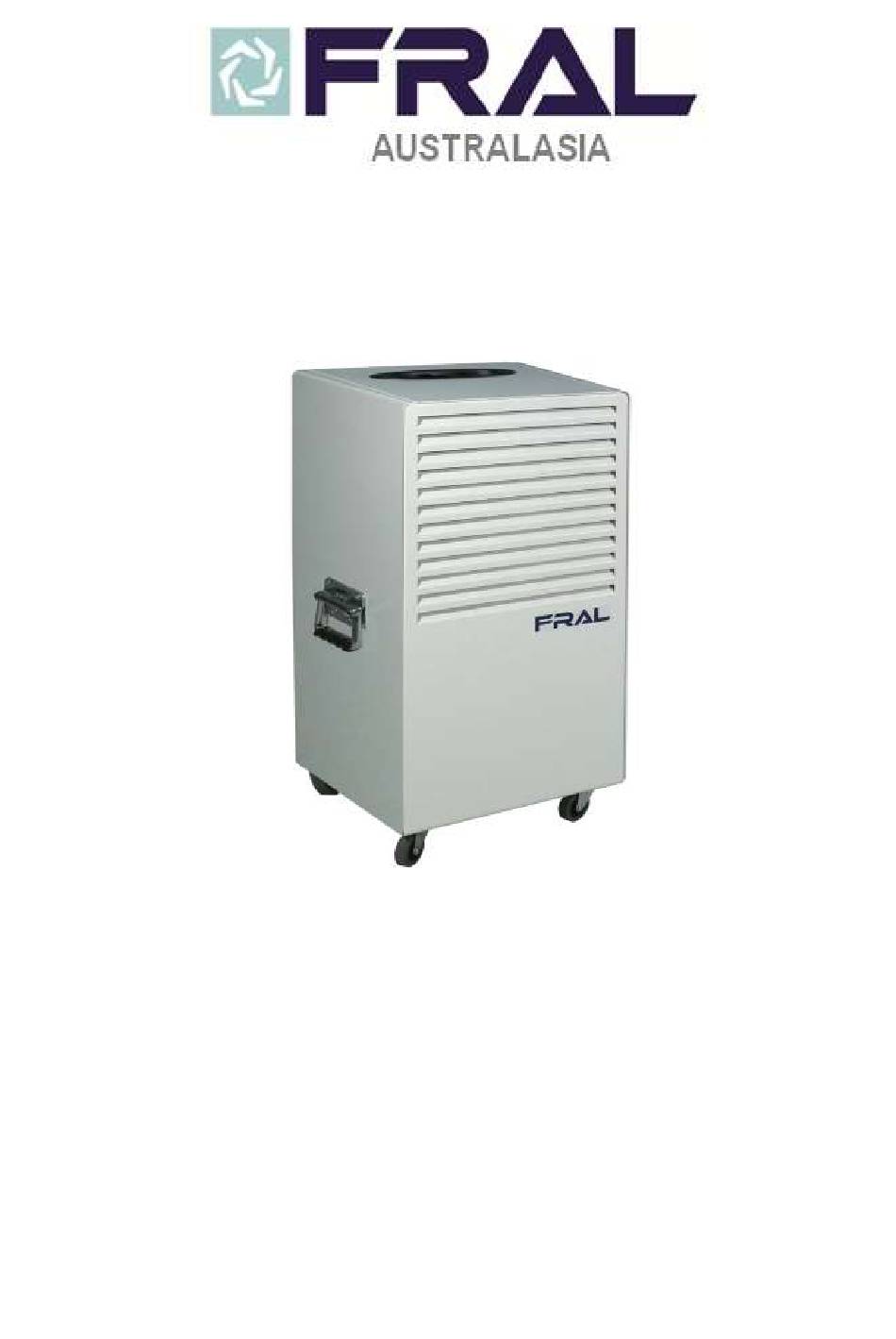

- Page 1 FDNF62 DEHUMIDIFIER USER AND MAINTENANCE MANUAL FRAL AUSTRALASIA PO Box 5071 Port Macquarie New South Wales 2444 Australia...
-
Page 2: Information For Users
1. SAFETY WARNINGS This dehumidifier must always be connected using earthed electrical plugs as required for all electrical appliances; FRAL Company declines any responsibility for any danger or damage whenever this norm is not complied with. Any intervention on the machine using any instrument must be carried out only by a qualified technician. -
Page 3: Declaration Of Conformity
DECLARATION OF CONFORMITY (Community directives Low Voltage and Electro-magnetic Compatibility) FRAL Company s.r.l. Viale dell’Industria e dell’Artigianato 22/c – 35010 Carmignano di Brenta – PD – Italy hereby declares that the following products: Dehumidifier FDNF62 Have been designed, manufactured and distributed by according to safety and electro-magnetic compatibility to European Norms and Regulations: MACHINES NORMS (2006/42/CE - 17.05.2006);... -
Page 4: Technical Data
2. TECHNICAL DATA CONDENSED WATER AT DIFFERENT AMBIENT TEMPERATURE AND HUMIDITY CONDITIONS 15˚C 20˚C 20˚C 25˚C 25˚C 30˚C 10˚C 10˚C 15˚C 27˚C 27˚C 32˚C 10 l/d 17 l/d 14 l/d 22 l/d 19 l/d 27 l/d 23 l/d 34 l/d 28 l/d 36 l/d 52 l/d... - Page 5 RELAY LEGEND COMPRESSOR FAN MOTOR ELECTRONIC CARD HUMIDISTAT ELECTRONIC MICRO SWITCH ELECTRO VALVE THERMOSTAT HOUR COUNTER...
-
Page 6: Description Of The Machine
The models with hot gas defrosting system have one by-pass solenoid valve and a special electronic card. The functioning of Hot Gas Defrosting is an exclusive Fral system for the dehumidifiers: this system consists of a thermostat and one electronic control, which use the hot gas by-pass system only when it is necessary and for the period... -
Page 7: Control And Display Panel
4. CONTROL AND DISPLAY PANEL The Control Panel is always placed on the upper side of the machine and consists of 4 light indicators: POWER (Supply): red light which turns on when the electric power arrives at the machine; FULL (ALARM): green light which turns on when the water tank is full, or when the lifting pump is not working properly and then it fills up the water tank. -
Page 8: Periodical Maintenance
6. CONNECTION TO A DRAIN PIPE - LIFTING PUMP (optional) This dehumidifier can be connected directly with a fixed draining pipe; in this case, the water tank must be removed to allow for the connection of the pipe to the connection fitting.
