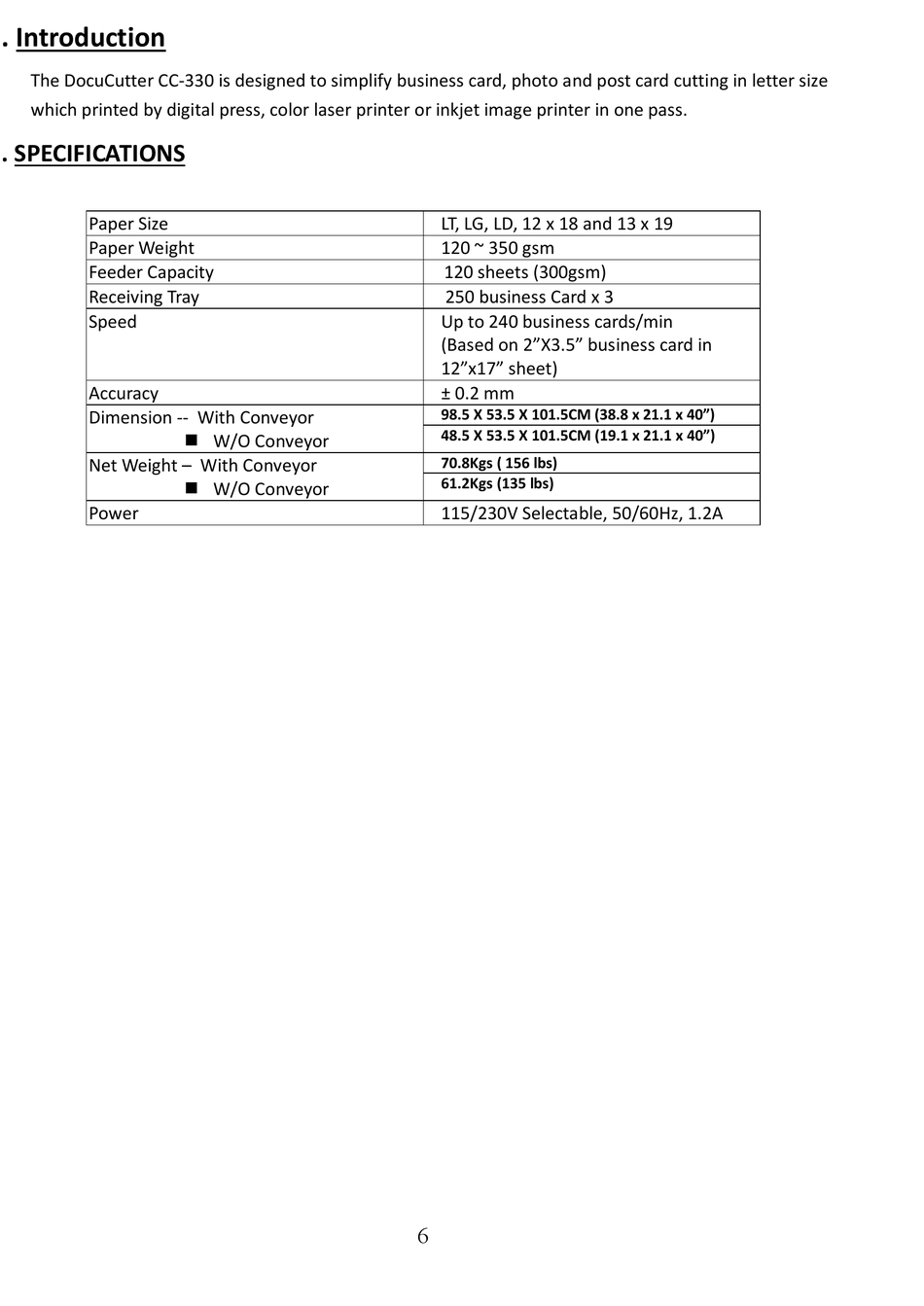

Introduction; Specifications - Duplo DocuCutter CC-330 Service And Parts Manual

. Introduction

The DocuCutter CC-330 is designed to simplify business card, photo and post card cutting in letter size
which printed by digital press, color laser printer or inkjet image printer in one pass.

. SPECIFICATIONS

Paper Size
Paper Weight
Feeder Capacity
Receiving Tray
Speed
Accuracy
Dimension -- With Conveyor
Net Weight – With Conveyor
Power
 W/O Conveyor
 W/O Conveyor
LT, LG, LD, 12 x 18 and 13 x 19
120 ~ 350 gsm
120 sheets (300gsm)
250 business Card x 3
Up to 240 business cards/min
(Based on 2"X3.5" business card in
12"x17" sheet)
± 0.2 mm
98.5 X 53.5 X 101.5CM (38.8 x 21.1 x 40")
48.5 X 53.5 X 101.5CM (19.1 x 21.1 x 40")
70.8Kgs ( 156 lbs)
61.2Kgs (135 lbs)
115/230V Selectable, 50/60Hz, 1.2A
6
