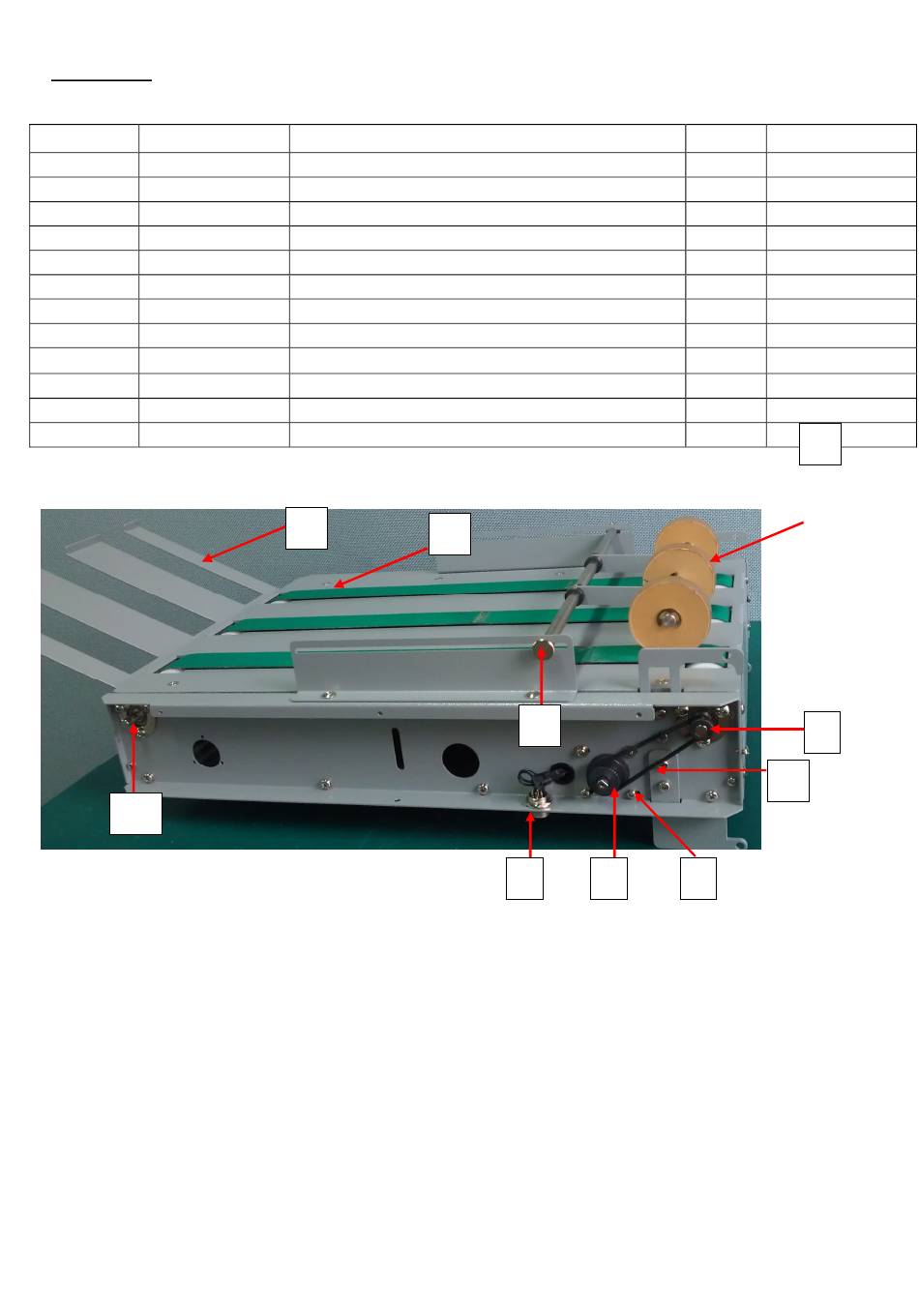

Conveyor - Duplo DocuCutter CC-330 Service And Parts Manual

. Conveyor

Index P/N
3.01 882-301-000A
3.02 882-302-000A
882-302-000B
3.03 882-303-000A
3.04 00S-M04-010T
3.05 08P-18G-0800
3.06 00B-MXL-106A
3.07 00M-000-0415
00T-000-0706
3.08 08P-35G-0800
3.09 00C-000-1413
3.10 00B-000-6901
10
Part Name
Asm, Pick Up Roller, CC-330 Conveyor
Belt, CC-330 Conveyor, 21"
Belt, CC-330 Conveyor, 15"
Ramp, CC-330 Conveyor
Thumb Screw, M4x10
Pulley, 0.08P, 18G, OD 8mm
Belt, 106MXL, 6.4mm
Motor, DC
Thermostat, 80 ℃
Pulley, 0.08P, 35G
Connector, 8Pin, Male
Ball Bearing, 6901ZZ
3
2
24
4
9 8
Qty Remarks
1
3
3
1
2
1
1
1
1
1
4
1
5
6
