Summary of Contents for CYP PRO-3GSDIHDMI

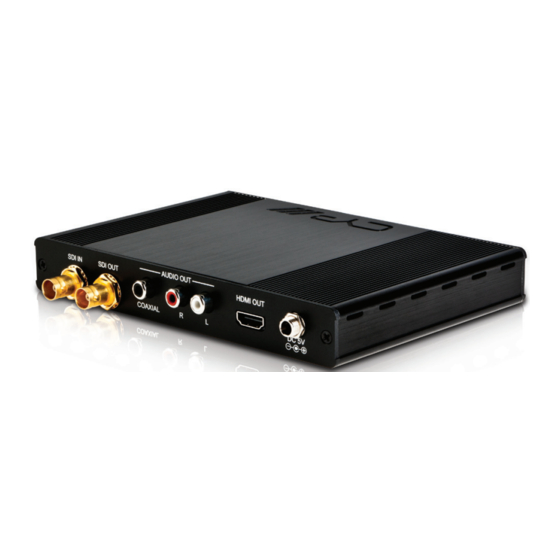

- Page 1 PRO-3GSDIHDMI 3G-SDI Extender with HDMI Scaler OPERATION MANUAL...
-
Page 2: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 7. Operation Controls and Functions ..........3 Front Panel ..............3 Rear Panel ..............3 8. OSD Menu and Function List . -
Page 4: Introduction
1. Introduction The SDI to HDMI Scaler with Audio allows SD, HD and 3G-SDI signals to be display on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s gives you fast signal transmission without signal loss. For professional this means that it is now easier to distribute and extend your SDI signal while giving you the ability to display your work on HDMI displays. -
Page 5: Specifications
6. Specifications SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmition Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s Frequency Bandwidth 165MHz/link Input Port 1 x BNC (SD/HD/3G-SDI) Output Port 1 x BNC (SD/HD/3G-SDI), 1 x HDMI, 1 x Coaxial, 1 x L/R (RCA) SDI Supports SD: 480i, 576i HD: 720p 50/60, 1080i 50/60, 1080p 24/25/30... -
Page 6: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel PRO-3GSDIHDMI . Power LED: This blue LED will illuminate when the device is connected with ① power supply. . 3G LED: This green LED illuminate when the input SDI signal is with 3G format. -
Page 7: Osd Menu And Function List
8. OSD Menu and Function List 1st Layer 2nd Layer 3rd Layer NATIVE 800 x 600 @60 1024 x 768 @60 1280 x 768 @60 1360 x 768 @60 1280 x 800 @60 1280 x 1024 @60 1440 x 900 @60 1400 x 1050 @60 1680 x 1050 @60 Output... - Page 8 Contrast 0~255 (105) Brrightness 0~192 (96) 0~255 (128) 0~255 (128) Color 0~255 (128) R Offset 0~63 (32) G Offset 0~63 (32) B Offset 0~63 (32) Exit Group 1 Group 2 Group 3 SDI Audio Group 4 Auto Factory Reset Yes Information Input Timing, Output Timing &...
- Page 9 2. Color Adjust screen color RGB’s Contrast and or Brightness. 3. SDI Audio Select SDI audio output from 4 different group and each group contents 2CH or from auto which contain up to 7.1Ch follow by input source signal. If no audio output is require the audio can also be mute by selecting off.
- Page 10 4. Factory Reset Select YES to return to the factory setting. Factory setting on display is at 1280 x 720p @60Hz with full size screen, Color setting are as the bracket in the OSD chart and SDI audio is on auto. 5.
-
Page 11: Connection And Installation
9. Connection and Installation... - Page 12 Acronyms Acronym Complete Term Bandwidth 2.97G bit/s ≈ 3G Serial Digital Interface High Definition...
- Page 15 www.cypeurope.com...
