Summary of Contents for CYP CS-HH
-

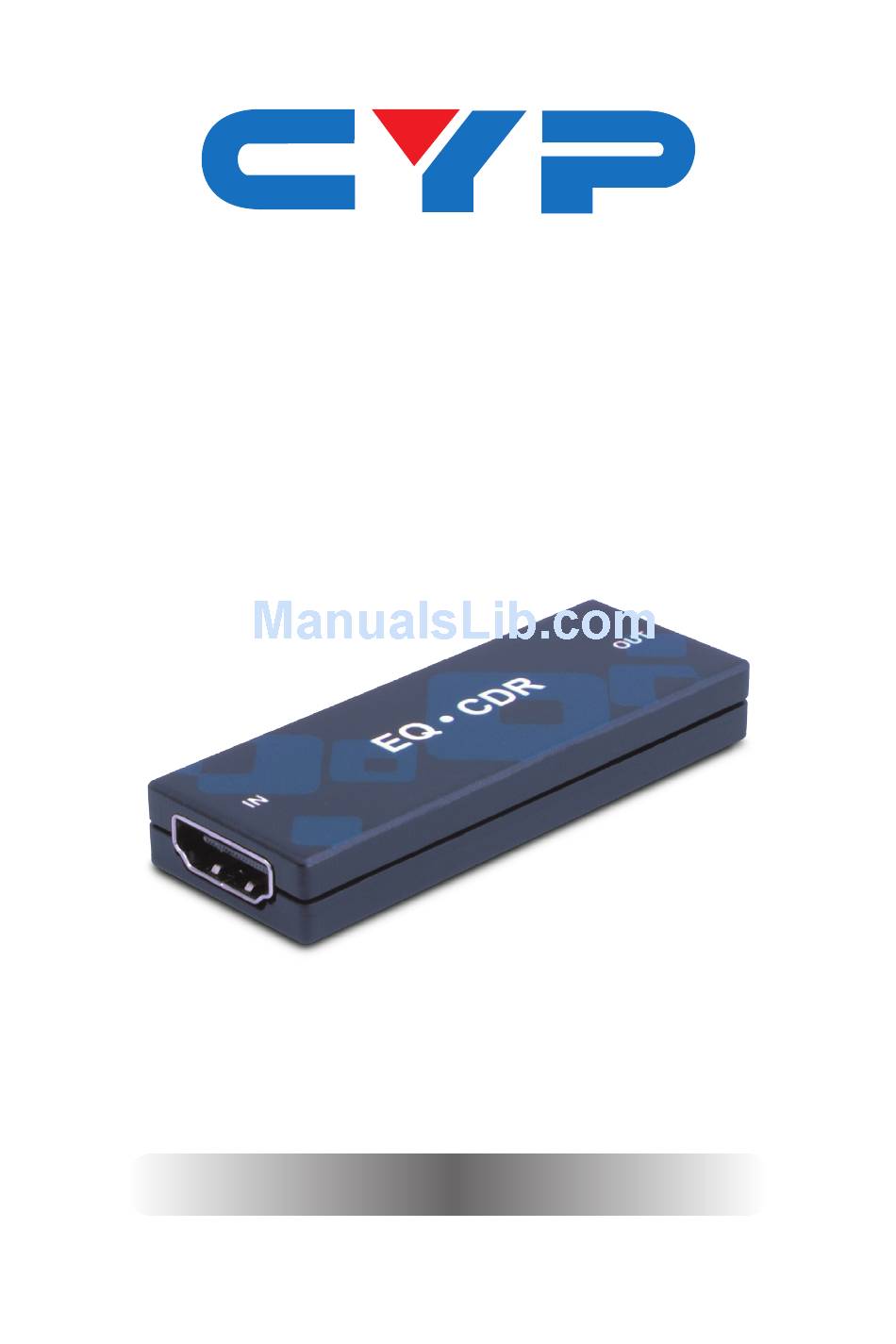

Page 1: Operation Manual
CS-HH HDMI Enhancer Operation Manual Operation Manual... - Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 7. Connection Diagram ......4 8. Specifications ........5 9. Acronyms ..........5... -
Page 6: Introduction

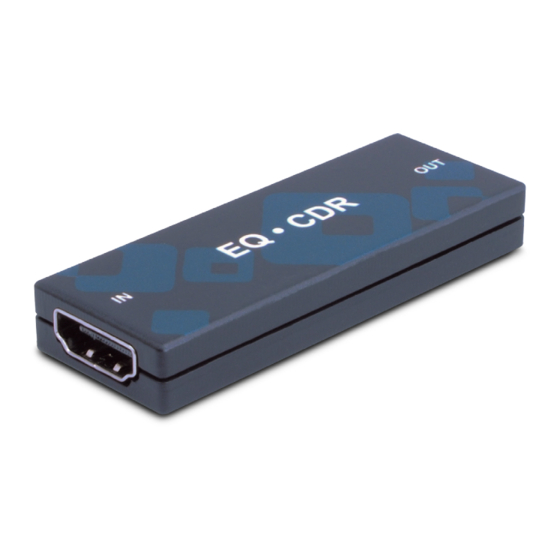

1. INTRODUCTION This HDMI to HDMI Enhancer can extend or cascade HDMI digital audio and video signals without signal loss. It is capable of receiving and transmitting 2.25 Gbps bandwidth rate and supports resolutions up to 1080p@60 Hz. It has the added benefit of a built-in equalizer and CDR (Clock Data Recovery) which can provide long cable support even at deep color resolutions. -
Page 7: Features
5. FEATURES • Built-in TMDS equalization and CDR (Clock Rate Recovery) for extended HDMI cable distance • Resolutions support: - HDTV: 480i to 1080p@24/50/60 Hz - PC: VGA to WUXGA (RB) • Capable of receiving and transmitting HDMI signals at 2.25 Gbps bandwidth •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS HDMI IN Connect the HDMI input to the HDMI output of your source equipment such as Blu-ray player or HDMI switcher/HDMI Splitter/ HDMI Matrix. The unit can be directly powered from HDMI source equipment that provides power through the HDMI cable or by an HDMI Power Inserter connected between the source and the unit. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM HDMI Source (Blu-ray Player HDMI Cable (0.5m) HDMI Power HDMI IN Inserter (Optional) HDMI OUT HDMI Cable (Up to 15m) HDMI Enhancer HDMI Cable (Up to 15m) HDMI Splitter HDMI OUT 1 HDMI OUT 2 (Optional) AV Receiver HDMI Cable (0.5m) HDMI IN HDMI Power... -
Page 10: Specifications
8. SPECIFICATIONS Frequency Bandwidth 2.25 Gbps (single link) Input Port 1×HDMI (Female) Output port 1×HDMI (Female) Output Resolution HDTV: 480i ~1080p@24/50/60 Hz PC: VGA~WUXGA (RB) Input Cable Distance 15m@8/12-bit Output Cable Distance 15m@8/12-bit ESD Protection Human Body model: ± 8kV (air-gap discharge) ±... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
