Example:
1. Select the fixtures.
2. Press
appropriate wheel to set the color value.
3. Press
appropriate wheel to set the value.
To move parameter steps
For absolute moves from step to step:
Use

Setting values using pickers

Vector has preset pickers for gobo and color parameters. Pickers show
bitmaps that logically correspond to the steps.
Some pickers have more than one page. Use the
buttons that appear in the picker to page.

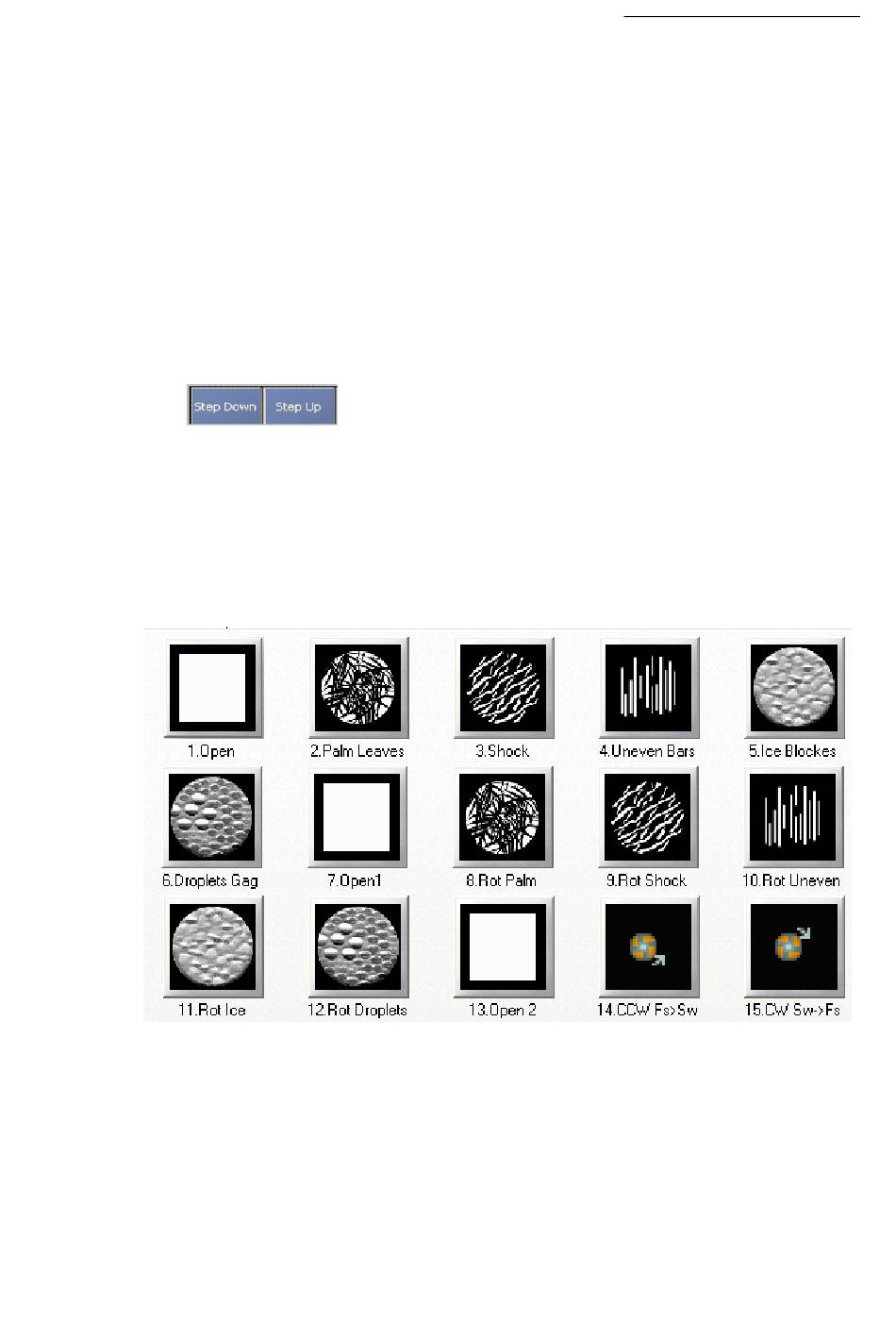

Figure 18: Gobo picker
Set color and image values.
to switch to the color wheel bank and use the
COLOR
to switch to the image wheel bank and use the
, located on the
SELECTING AND CONTROLLING FIXTURES
tool bar.
Editor
PREVIOUS
VECTOR
and
NEXT
57
