- Page 1 ® R&S RT-ZF2 Ethernet Compliance Test Fixture Set Manual (=AÅÁ2) 1317555102...
- Page 2 This manual describes the R&S RT-ZF2 Ethernet Compliance Test Fixture Set (1317.5522.02). © 2019 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Fax: +49 89 41 29 12 164 Email: info@rohde-schwarz.com...
-
Page 3: Safety Information
® Safety Information R&S RT-ZF2 Safety Information The product documentation helps you to use the product safely and efficiently. Keep the product documentation nearby and offer it to other users. Safety information warns you about the potential dangers and gives instructions how to prevent personal injuries or damage caused by dangerous situations. -
Page 4: Product Description

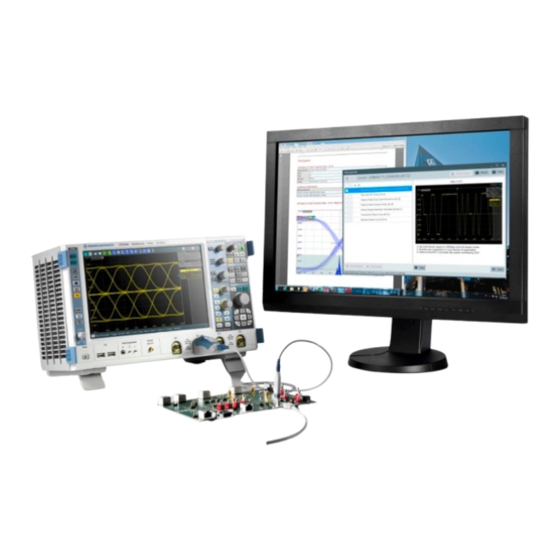

R&S RT-ZF2 Deliveries Product Description The R&S RT-ZF2 Ethernet compliance test fixture set is a product for automated compliance testing of various Ethernet standards. It is used in combination with: ● R&S RTO/R&S RTP oscilloscope ● 10BASE-T, 100BASE-TX, 1000BASE-T tests: R&S RTO-K22 (1329.7460.02), R&S RTP-K22 (1337.8691.02) - Page 5 103 m cable with specific sections of different impe- dance that cause signal distortions Calibration Board The calibration board is required in return loss measurements. It is used to cali- brate the vector network analyzer for the measurement. Calibration Board for RT-ZF2 Open Short Match X100...
- Page 6 ® Product Description R&S RT-ZF2 Ethernet Test Board X202 Jitter Slave Test 1000BaseT X700 X705 X704 X702 X701 X703 Master X602 Jitter Slave Test 10GBaseT X600 X601 Master Figure 2-2: Ethernet test board 1 = Twisted Pair Model 2 = Return Loss 3 = Resistive Load Manual 1317.5551.02 ─...
-
Page 7: Connecting The Board
® Connecting the Board R&S RT-ZF2 4 = Common Mode Output Voltage 5 = Resistive Load with Distortion Source 6 = Jitter Slave Test 1000BASE-T 7 = Jitter Slave Test 10GBASE-T X206 jumper The X206 jumper switches the link partner on or off. It is used in 10BASE-T test cases. -
Page 8: Test Equipment
– Differential probe with at least 1 GHz bandwidth – R&S RTO/R&S RTP-K22 10/100/1000BASE-T Ethernet compliance test option (required option, installed on the osilloscope) – R&S RT-ZF2 Ethernet test fixture set – For energy-efficient Ethernet tests, in addition: R&S RTO/R&S RTP-K86 EEE test option R&S RT-ZF5 Ethernet test fixture set for 100/1000BASE-T EEE tests... - Page 9 – Differential probe with at least 3 GHz bandwidth – R&S RTO/R&S RTP-K23 10GBASE-T Ethernet compliance test option (required option, installed on the R&S RTO/R&S RTP) – R&S RT-ZF2 Ethernet test fixture set ● 100BASE-T1 compliance tests: – R&S RTO/R&S RTP oscilloscope with at least 600 MHz bandwidth –...
