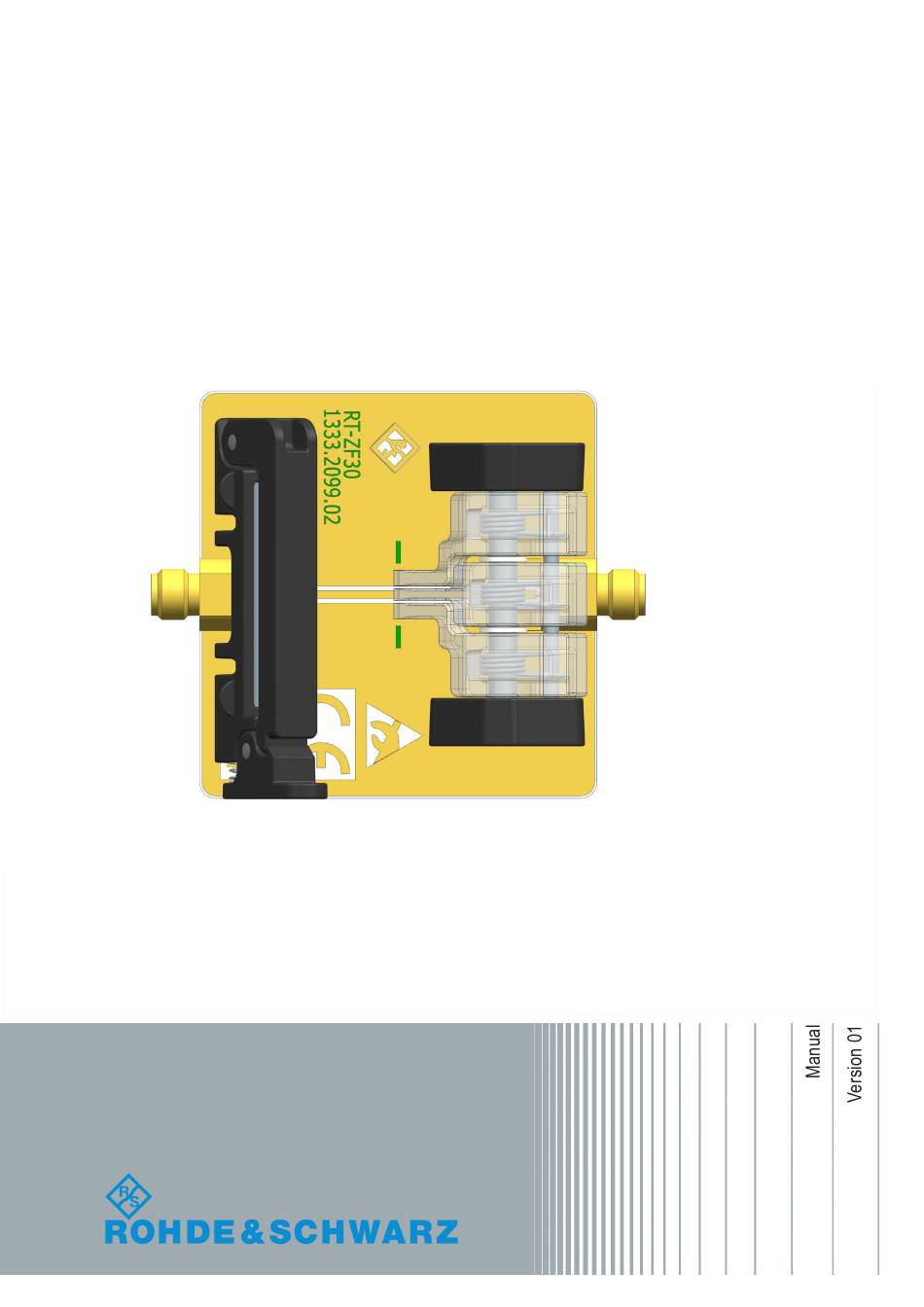

- Page 1 ® R&S RT-ZF30 Probe Test Fixture Manual (B1]Å2) 1801455502...
- Page 2 This manual describes the R&S RT-ZF30 test fixture (1333.2099.02). © 2019 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Fax: +49 89 41 29 12 164 Email: info@rohde-schwarz.com Internet: www.rohde-schwarz.com...
-
Page 3: Safety Information
® Safety Information R&S RT-ZF30 Safety Information The product documentation helps you to use the product safely and efficiently. Keep the product documentation nearby and offer it to other users. Safety information warns you about the potential dangers and gives instructions how to prevent personal injuries or damage caused by dangerous situations. -
Page 4: Product Description
Protect the work area against electrostatic discharge to avoid damage to electronic components. Always work at a static-approved workstation. Product Description The R&S RT-ZF30 probe test fixture is a product for characterization and deskew- ing of R&S probes. It is used in combination with: ●... - Page 5 R&S RT-ZF30 Board Description Board Description The R&S RT-ZF30 probe test fixture has the following elements: X1, X2 RPC-2.92 connectors for source and termination. A, A1 A is a strain relief. A1 is the release lever for the strain relief.
- Page 6 ® Connecting the Fixture R&S RT-ZF30 Connecting the Fixture Basic instructions Risk of damaging the fixture To prevent damage to the fixture: ● Always use a cable to connect the fixture to a source. Never connect the fixture directly to the source to avoid mechanical stress and strain to the connectors.
- Page 7 ® Connecting the Fixture R&S RT-ZF30 For probes with a browser tip ► It is recommended to use a probe positioner, e.g. R&S RT-ZAP, for reliable results. Always connect the probe to the midpoint of the fixture. Manual 1801.4555.02 ─ 01...
