Summary of Contents for Rohde & Schwarz RT-ZF1

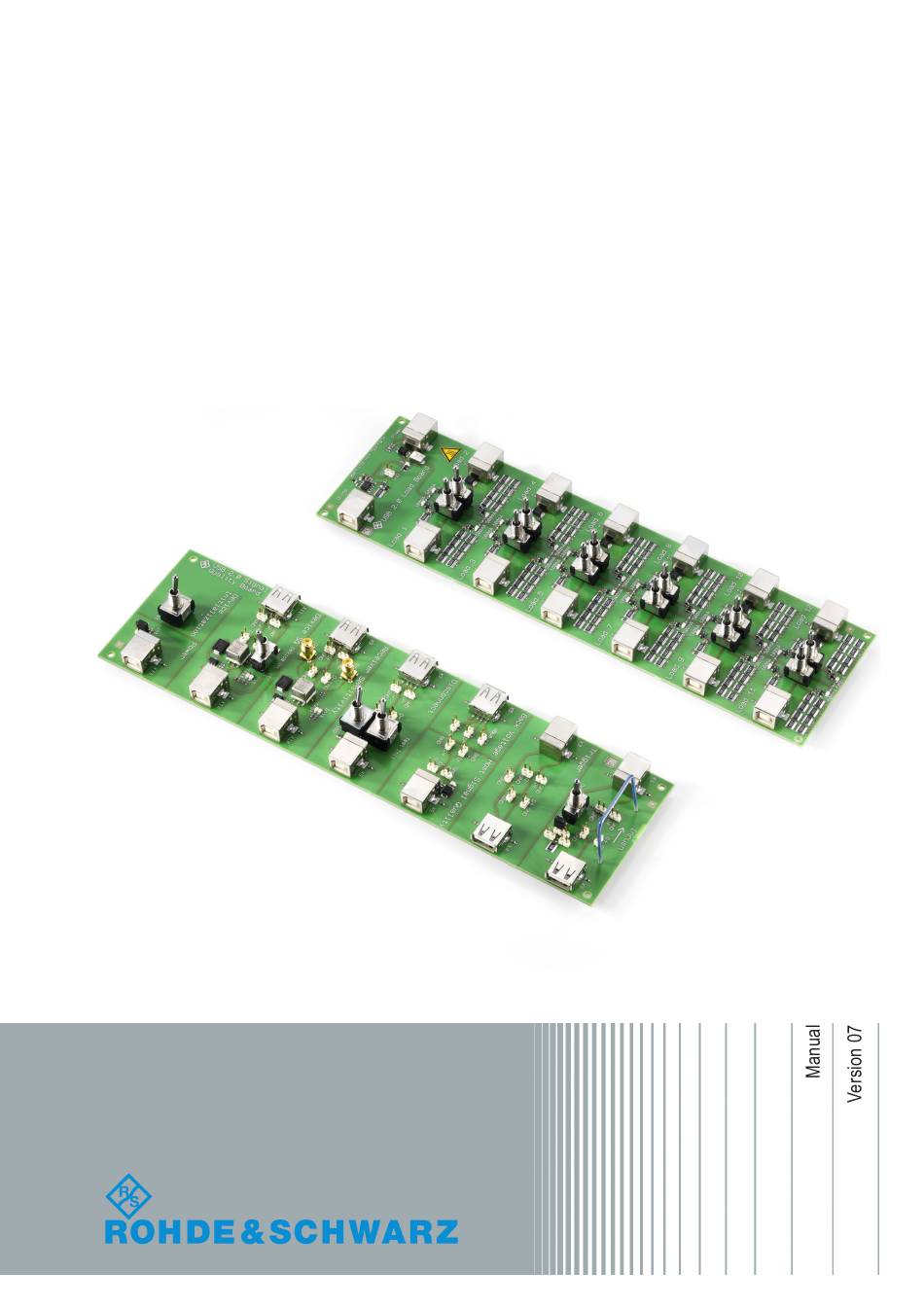

- Page 1 ® R&S RT-ZF1 USB 2.0 Compliance Test Fixture Set Manual (=A[J2) 1317432602...
- Page 2 This manual describes the R&S RT-ZF1 USB 2.0 Compliance Test Fixture Set (1317.3420.02). © 2019 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Fax: +49 89 41 29 12 164 Email: info@rohde-schwarz.com...
-
Page 3: Load
® Safety Information R&S RT-ZF1 Safety Information The product documentation helps you to use the product safely and efficiently. Keep the product documentation nearby and offer it to other users. Safety information warns you about the potential dangers and gives instructions how to prevent personal injuries or damage caused by dangerous situations. -
Page 4: Load
® Product Description R&S RT-ZF1 Deliveries electromagnetic compatibility in other environments due to conducted as well as radiated disturbances. ESD and EMI impact The product is sensitive to electrostatic discharge (ESD) because of open mod- ules. Protect the work area against electrostatic discharge to avoid damage to electronic components. - Page 5 ® Product Description R&S RT-ZF1 Signal Quality Board Table 2-1: Supplied accessories Item Quantity Order number USB cable type A to type B, length 20 cm 3589.2124.00 USB cable type A to type B, length 1.3 m 0041.9177.00 USB Adapter, type A to mini 3589.2147.00...
- Page 6 ® Product Description R&S RT-ZF1 Signal Quality Board Inrush D- GND Low and full speed tests: Device D+ GND Device on off Trigger D- GND Low and full speed tests: Hub D+ GND Low and full speed tests: Device, Hub...
-
Page 7: Load
® Product Description R&S RT-ZF1 Load Board Device Initialization switch The device initialization switch at the bottom of the board is relevant for device high speed signal quality and device high speed receiver sensitivity tests. The current switch position - init or test - is indicated by LEDs in the relevant test sec- tions. -
Page 8: Table Of Contents
® Product Description R&S RT-ZF1 Load Board Warning Hot Surface Droop Power USB 2.0 Load Board 100 mA 100 mA Load 1 Load 2 500 mA 500 mA 100 mA 100 mA Load 3 Load 4 500 mA 500 mA... -
Page 9: Load
For full speed and low speed compliance tests, a 4-channel R&S RTO with less than 2 GHz bandwidth is sufficient. ● R&S RT-ZF1 USB 2.0 compliance test fixture set, which consists of the load board and the signal quality board. -
Page 10: Load
® Test Equipment R&S RT-ZF1 ● Tabor WX2182B / Tabor WX2182C arbitrary waveform generator for automatic receiver sensitivity tests. For manual receiver sensitivity tests, any AWG with at least 1.44 Gsample/s can be used. ● R&S ScopeSuite software, which can be installed on a computer or directly on the R&S RTO/R&S RTP.
