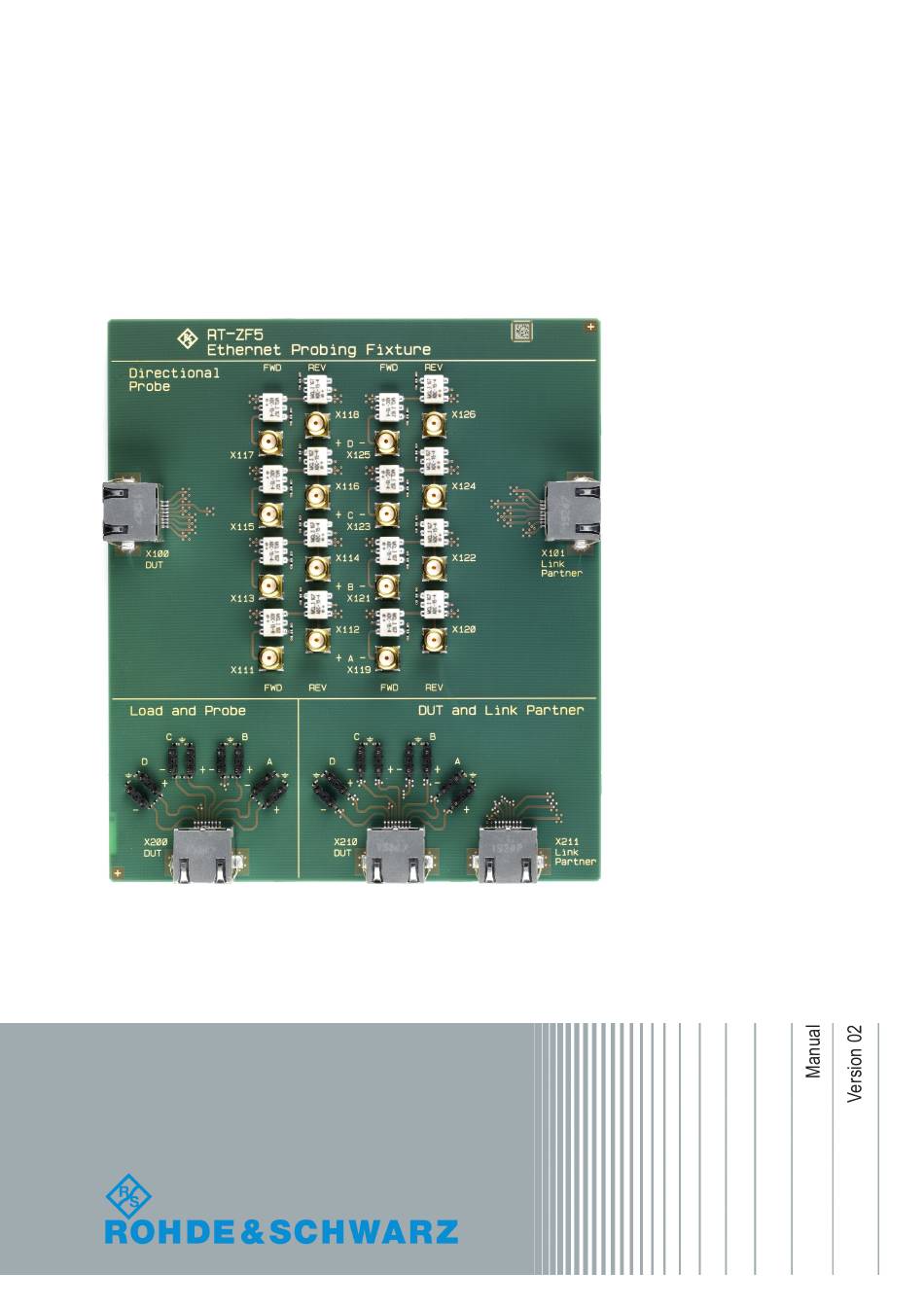

- Page 1 ® R&S RT-ZF5 Ethernet Probing Fixture Manual (=QGB2) 1333231802...
- Page 2 This manual describes the R&S RT-ZF5 Ethernet probing fixture (1333.0896.02). © 2019 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Fax: +49 89 41 29 12 164 Email: info@rohde-schwarz.com Internet: www.rohde-schwarz.com...
-
Page 3: Safety Information
® Safety Information R&S RT-ZF5 Safety Information The product documentation helps you to use the product safely and efficiently. Keep the product documentation nearby and offer it to other users. Safety information warns you about the potential dangers and gives instructions how to prevent personal injuries or damage caused by dangerous situations. -
Page 4: Product Description
Board Description Product Description The R&S RT-ZF5 test fixture is a multipurpose fixture to probe or tap Ethernet sig- nals up to the 10GBASE-T standard. The fixture can be used to separate the directions of a full duplex connection for decoding applications like R&S RTO/R&S RTP-K57 (100BASE-T1). - Page 5 X125 X116 X124 X115 X123 X114 X122 X101 X100 Link X113 X121 Partner X112 X120 X111 X119 Load and Probe DUT and Link Partner X211 X200 X210 Link Partner Figure 2-1: R&S RT-ZF5 Ethernet probing fixture Manual 1333.2318.02 ─ 02...
- Page 6 ® Connecting the Board R&S RT-ZF5 Figure 2-2: Wiring diagram of the Directional Probe section Connecting the Board The appropriate DUT and probe connection depends on the test case. The R&S ScopeSuite software provides a step-by-step guide that shows the required setup for each test case.
