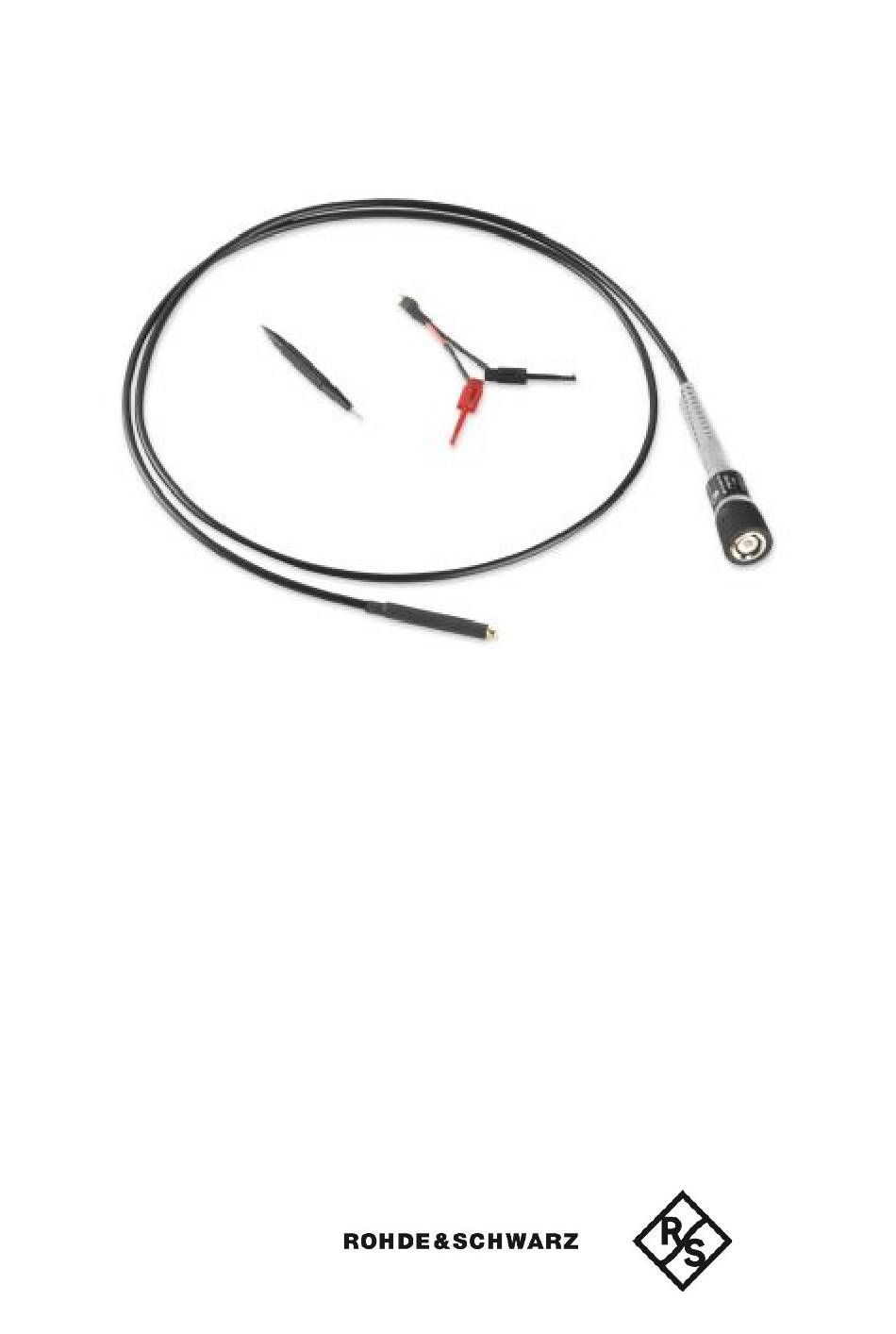

R&S®RT-ZPMMCX Probe User Manual 700 MHz Passive Voltage Probe ® R&S RT-ZPMMCX 1803.1599.02...
Page 2
Manufacturer R&S RT-ZPMMCX ROHDE & SCHWARZ For comprehensive information about Rohde and Schwarz, visit our homepage on the R&S Internet (www.rohde-schwarz.com). Customer support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz product, contact our customer support center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde &...
Declaration of Conformity The manufacturer declares the product complies with all relevant provisions of the following harmonization legislation: 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2011/65/EU Restriction of Hazardous Substances (RoHS) Reference of the harmonized standards applied to the above-mentioned harmonization legislation: IEC 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use...
Page 4
IEC Measurement Categories The probe is not rated for any measurement category. Do not use the probes in circuits with measurement category II, III or IV. Definitions and Examples: Overview of measurement categories according to IEC 61010-01 O = No Measurement Category (Other circuits that are not directly connected to mains) IEC Pollution Degree Pollution Degree 1 No POLLUTION or only dry, nonconductive POLLUTION.
Safety and Handling Information The overall safety of any measurement setup incorporating this probe is the responsibility of the user. Prevent personal injury, fire and product damage. To avoid personal injury and to prevent fire or damage to this product or products con- nected to it, review and comply with the following safety precautions.
(± 2 % at DC) (-3dB) (10%-90%) Impedance 14.9 MΩ ±1% || < 4 pF R&S®RT-ZPMMCX 25:1 > 700 MHz < 570 ps Each input accessory is lowering the probe’s bandwidth. Please review the “Ordering Information” section for the bandwidth limitations of each accessory.
Typical Frequency Response – R&S®RT-ZPMMCX – normalized 100M Frequency [Hz] Typical Input Impedance The input impedance of the probe decreases as the frequency of the applied signal increases. Typical Differential Input Impedance – R&S®RT-ZPMMCX (full bandwidth) qqqq 100000000 10000000 1000000...
100E+6 1E+9 Frequency [Hz] Adjustment Procedures The passive probe R&S®RT-ZPMMCX can be adjusted for low frequency (LF) compensation and for high frequency (HF) compensation. The trimmers are sensitive components. Too much mechanical pressure during adjustment might damage the trimmers. LF Compensation When the probe is connected to the oscilloscope input the first time, the probe’s cable capacitance...
Page 9
LF compensation is performed by connecting the probe to the CAL – output on the oscilloscope front panel and adjusting the LF compensation trimmer to optimum square wave response. For clarification see the following figures. HF Compensation Overshoot doesn´t necessarily need to be adjusted when connecting the probe to your oscilloscope for the first time.
DUT. Scope of Delivery 1x R&S®RT-ZPMMCX Probe 1x Adaptor MMCX to Y-Lead 2x 0.025'' (0.635mm) socket, -40°C to +125°C 1x Pico Hook™ red, for use with R&S®RT-ZAMXSQ 1x Pico Hook™...
Page 12
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of the owners. 1801.8115.02 | Version 1 | Juni 2024 | R&S®RT-ZPMMCX Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol, e.g. R&S®RT-ZPMMCX is indicated as R&S RT-ZPMMCX...
