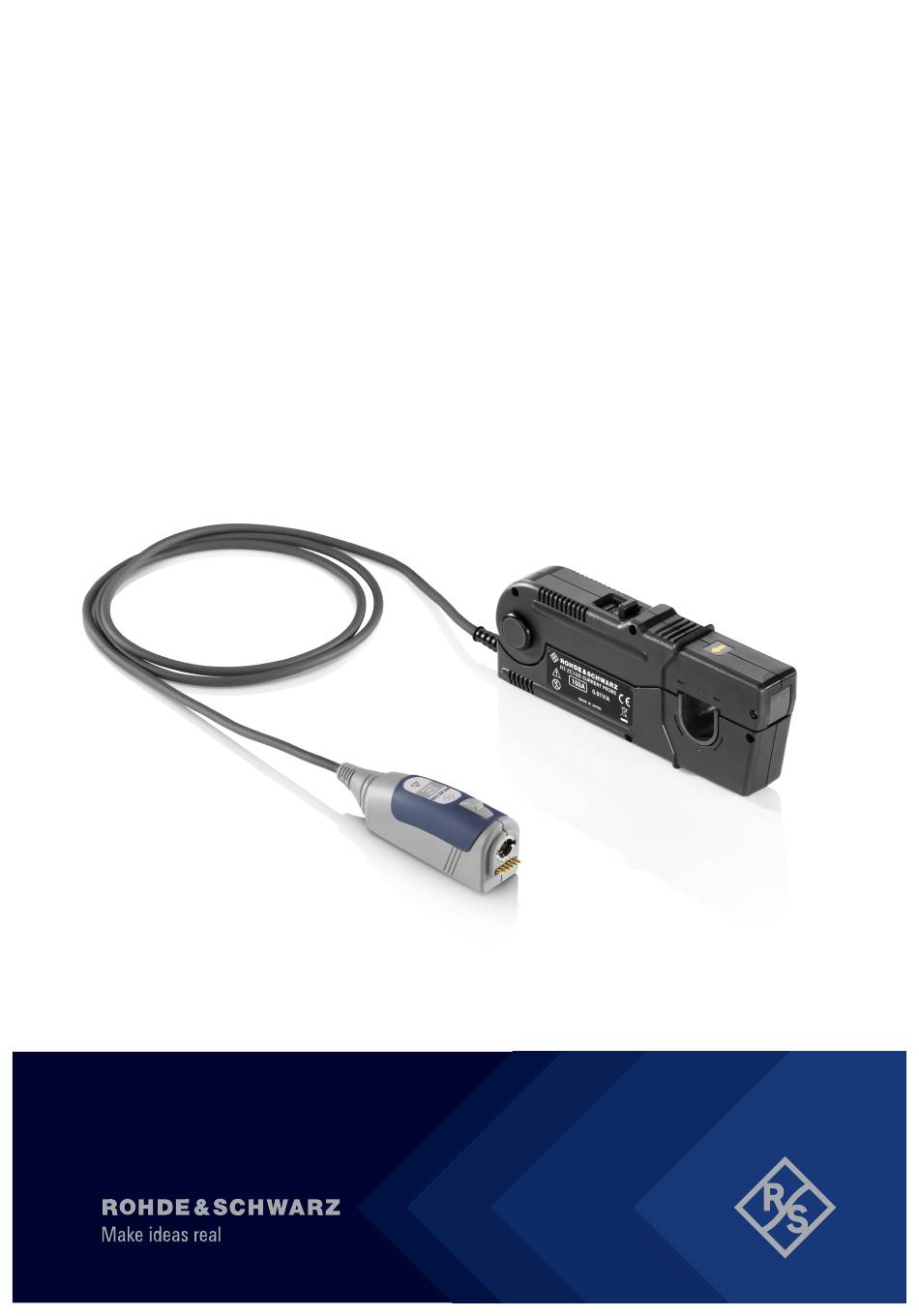

- Page 1 ® R&S RT-ZC10B Current Probe User Manual (B2ñ\2) 1802994402 Version 01...
- Page 2 Rohde & Schwarz GmbH & Co. KG. All other trademarks are the properties of their respective owners. ® 1802.9944.02 | Version 01 | R&S RT-ZC10B ® The following abbreviations are used in this manual: R&S RT-ZC10B is abbreviated as R&S RT-ZC10B.
-
Page 3: Table Of Contents
® Contents R&S RT-ZC10B Contents 1 Safety and regulatory information........5 1.1 Safety instructions................5 1.2 Labels on the product................7 1.3 Warning messages in the documentation.......... 8 2 Product description...............9 2.1 Key features..................9 2.2 Unpacking and checking..............10 2.3 Description of the probe..............10 2.3.1 Sensor.................... - Page 4 ® Contents R&S RT-ZC10B User Manual 1802.9944.02 ─ 01...
-
Page 5: Safety And Regulatory Information
® Safety and regulatory information R&S RT-ZC10B Safety instructions Safety and regulatory information The product documentation helps you to use the product safely and efficiently. Follow the instructions provided here and in the Chapter 1.1, "Safety instructions", on page 5. - Page 6 ® Safety and regulatory information R&S RT-ZC10B Safety instructions Using the product requires specialists or specially trained personnel. These users also need sound knowledge of at least one of the languages in which the user interfaces and the product documentation are available.
-
Page 7: Labels On The Product
® Safety and regulatory information R&S RT-ZC10B Labels on the product ● Prevent the probe from receiving mechanical shock. Avoid putting excessive strain on the probe cable or exposing it to sharp bends. Touching a broken cable during measurements can cause injuries. -
Page 8: Warning Messages In The Documentation
® Safety and regulatory information R&S RT-ZC10B Warning messages in the documentation Table 1-1: Meaning of safety labels Potential hazard Read the product documentation to avoid personal injury or product damage. Hazardous contact voltages Do not use the probe at uninsulated live lines. Make sure to measure at sufficiently insulated conductors. -
Page 9: Product Description
Key features Product description The R&S RT-ZC10B is an AC/DC current probe. It allows the user to make cur- rent measurements from DC to 10 MHz. By clamping on the conductor to be measured, the current waveform is captured easily without interrupting the elec- tric circuit. -
Page 10: Unpacking And Checking
● Safety instructions for oscilloscopes and accessories (multilingual) ● Calibration certificate ● Documentation of calibrated values Description of the probe An overview of the probe parts is shown in Overview of the R&S RT-ZC10B cur- rent probe. User Manual 1802.9944.02 ─ 01... -
Page 11: Sensor
® Product description R&S RT-ZC10B Description of the probe Figure 2-1: Overview of the R&S RT-ZC10B current probe 1 = Sensor 2 = Probe box 3 = Sensor cable 4 = Sensor head (clamp) 5 = Slider 6 = Lever... -
Page 12: Probe Box
® Product description R&S RT-ZC10B Description of the probe Slider The slider opens the sensor head. Always use this slider to open the sensor head. Lever The lock mechanism keeps the sensor head closed. Lock/Unlock indication 2.3.2 Probe box The probe box connects the probe and the oscilloscope via the Rohde & Schwarz probe interface. - Page 13 ® Product description R&S RT-ZC10B Description of the probe (1) Rohde & Schwarz probe interface with 7 mm (276 mil) coaxial connector and 6 pogo pins (2) Release knob User Manual 1802.9944.02 ─ 01...
-
Page 14: Connecting The Probe
Handling the probe Connecting the probe Handling the probe The R&S RT-ZC10B can withstand a moderate amount of physical and electrical stress. To avoid damage, treat the probe with care: ● Prevent the probe from receiving mechanical shock. ● Avoid strain on the probe cable and route it carefully. Keep the cable away from heat sources, as bare conductors could be exposed if the insulation melts. -
Page 15: Connecting The Probe To The Oscilloscope
Check that the conductor being measured is not clamped when connecting the R&S RT-ZC10B to the oscilloscope. 2. NOTICE! Risk of damaging the probe. Connect the probe only to an instrument with Rohde & Schwarz probe inter- face. -
Page 16: Identification Of The Probe
® Connecting the probe R&S RT-ZC10B Identification of the probe Figure 3-1: Connecting the probe to the Rohde & Schwarz oscilloscope ► To disconnect the probe: a) Press and hold the release button (3). b) Pull the probe box away from the oscilloscope. -
Page 17: Setting Up And Demagnetizing
2. NOTICE! Risk of circuit damage. Demagnetizing causes current to flow into the conductor, which may damage parts in the circuit to be measured. Do not demagnetize while the R&S RT-ZC10B is clamping a conductor to be mea- sured. Make sure that there is no conductor in the sensor aperture. -
Page 18: Connecting The Probe To The Dut
® Connecting the probe R&S RT-ZC10B Connecting the probe to the DUT Connecting the probe to the DUT 1. Check that the system is safe, and that the preparations described in the pre- ceding sections have been carried out. 2. Notice: Always open the clamp of the probe with the slider, to avoid damaging the probe. -
Page 19: Considerations For Measurements
® Connecting the probe R&S RT-ZC10B Considerations for measurements Considerations for measurements Measurements of continuous input current To avoid damage to the probe when doing measurements of continuous input cur- rent, consider the following: ● The maximum continuous input range is based on heat that is internally gen- erated during measurement. - Page 20 ® Connecting the probe R&S RT-ZC10B Considerations for measurements utive maximum current, electric currents in both sides will heat up the sensor and raise the temperature, thereby causing damage to the sensor. Drift, oscillation, and sound ● Immediately after powering on, the probe may be subject to an appreciable offset drift due to the effect of self-heating.
- Page 21 ® Connecting the probe R&S RT-ZC10B Considerations for measurements At high frequencies, common mode noise may affect measurements taken on the high-voltage side of circuits. If this occurs, reduce the frequency range of the waveform measuring instrument, or clamp onto the low-voltage side of the circuit, as appropriate.
-
Page 22: Maintenance And Service
® Maintenance and service R&S RT-ZC10B Contacting customer support Maintenance and service If service or calibration is needed, contact your Rohde & Schwarz service center. Return a defective product to the Rohde & Schwarz service center for diagnosis and exchange. -
Page 23: Returning For Servicing
Calibration interval Figure 4-1: QR code to the Rohde & Schwarz support page Returning for servicing Use the original packaging to return your R&S RT-ZC10B to your Rohde & Schwarzservice center. A list of all service centers is available on: www.services.rohde-schwarz.com If you cannot use the original packaging, consider the following: 1. -
Page 24: Storage
® Maintenance and service R&S RT-ZC10B Disposal Storage Protect the product against dust. Ensure that the environmental conditions, e.g. temperature range and climatic load, meet the values specified in the data sheet. Store the product in a shock-resistant case, e.g. in the shipping case.
